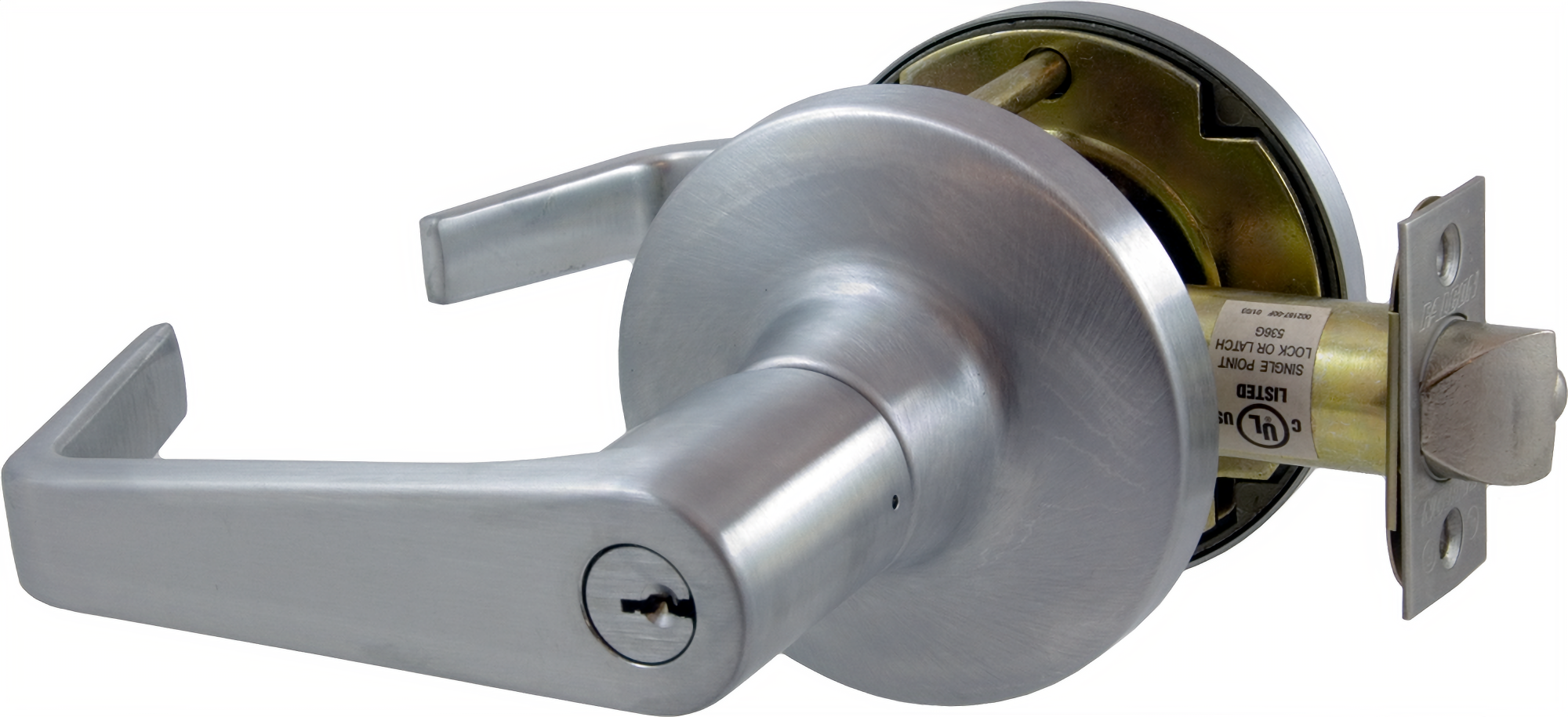

Falcon Lock T511CP6DDAN626 Entry Dane Lever offers robust security and reliability for high-traffic areas. This Grade 1 cylindrical lock features a 6-pin Schlage C keyway and a resilient deadlatch mechanism. Designed to meet the latest ANSI/BHMA A156.2, Series 4000 standards, it ensures superior performance and durability, making it an ideal choice for commercial applications. Constructed with a heavy-duty compression spring, the T Series lock surpasses typical cycle test requirements, providing long-lasting lever support. The Pressure Release™ feature allows the outside lever to move freely when locked, preventing rigidity and enhancing accessibility. Its non-handed design allows for easy installation on doors ranging from 1-3/4" to 2-1/8" thick, without the need for field disassembly. The satin chrome finish not only offers a sleek appearance but also provides excellent rust resistance. Included with the lockset are two nickel silver keys and a UL-listed 3-hour fire rating, ensuring safety and peace of mind. The ANSI strike plate and solid lever design comply with ADA requirements, making this lock both functional and stylish. Whether for offices, schools, or commercial spaces, the Falcon Lock T511CP6DDAN626 delivers security, ease of use, and a professional aesthetic that meets the demands of modern environments.

Entry Dane Lever, 6-Pin, Schlage C Keyway, Cylindrical Lock, Deadlatch, ANSI Strike, 2-3/4in Backset, Grade 1, UL, 626/US26D Satin Chrome

Falcon is focused on offering a solid product, which is why the T Series lock is constructed with a compression spring that far exceeds ANSI/BHMA cycle test requirements. Unlike typical torsion springs that can break at the bend points, the T Series spring provides the most robust lever support for years of reliable performance. Perfect for high-use applications, the T Series lock delivers on Falcon’s promise of providing a solid product at a solid price.

Features:

• Key-in-lever cylindrical locksets shall be Falcon Lock T Series or equal and meet the following requirements:
• All locks shall meet the new ANSI/BHMA A156.2, Series 4000,Grade 1 for key-in-lever locksets.
• Locksets shall be UL Listed (3 hour A Label).
• Locksets shall be provided standard with Pressure Release™feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
• Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be through-bolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner Elevation Door Edge Standard Strike
• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
• Locksets shall adjust to fit door thickness from 1-3/4" to 2- 1/8".
• All locksets shall be non-handed and not require field disassembly for re-handing.
• Preparation for door must be non-handed.

Specifications:

• Door Thickness: 1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4", please specify door thickness.
• Backset: 2-3/4" standard. 2-3/8" also available. Link (A22161-005-10) available for 5" backset.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
• Keyways: "G" keyway standard on conventional cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
• Latches: 9/16" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also available. Adjustable front standard.
• Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.* Screws: Furnished with combination screws for use in wood or metal doors and frames.
• Electric Functions: Available in 24 VDC .185 AMP.
• Certifications: ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1. UL: 3 hour A label. and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.

Functions:

• T101 - Passage/Closet Latchset

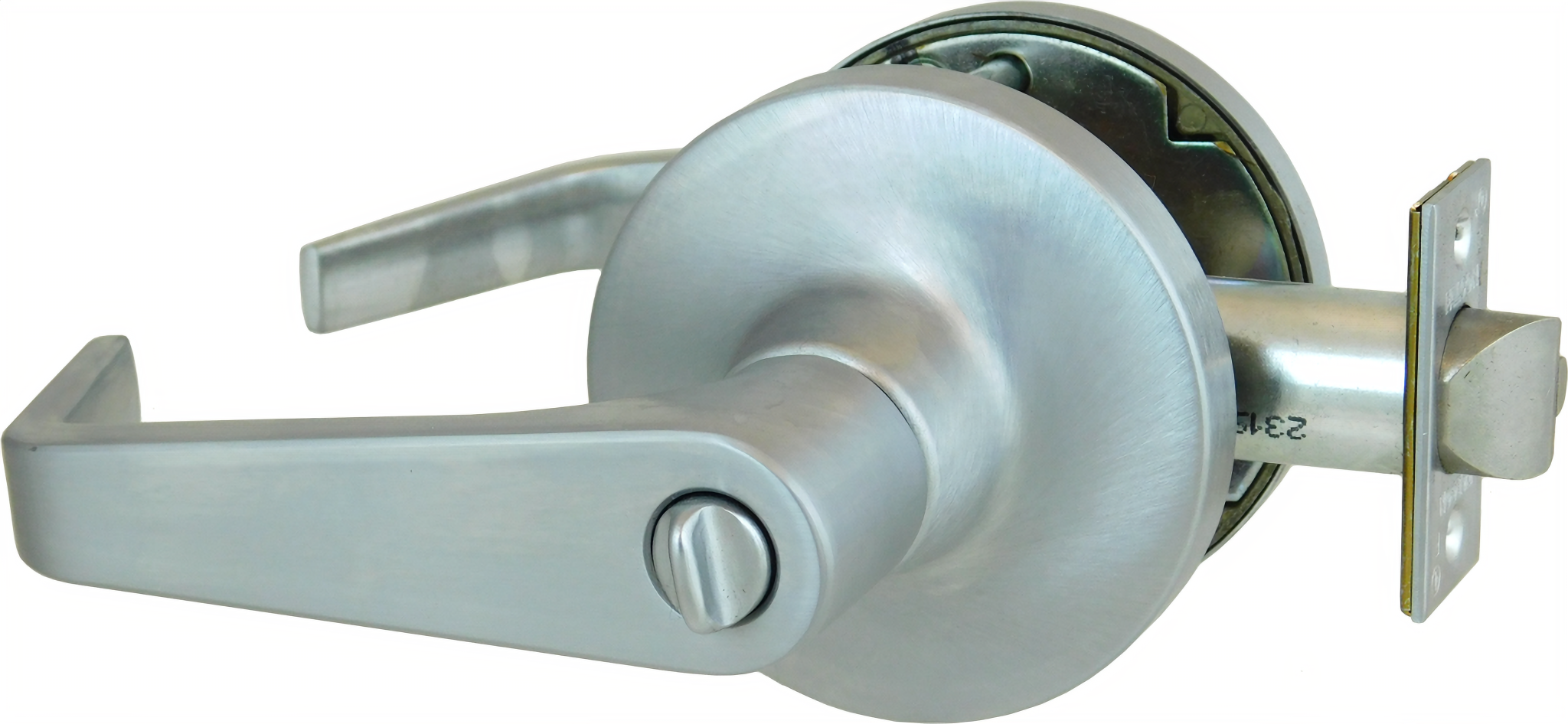

• T301 - Privacy Lock
• T351 - Closet Lock
• T381 - Classroom Security Lock
• T411 - Asylum Lock
• T501 - Entry Lock
• T511 - Entry/Office Lock
• T521 - Office Lock
• T561 - Classroom Lock
• T571 - Dormitory Lock
• T581 - Storeroom Lock
• T851 - Storeroom (Electrified – Fail Safe)
• T881 - Storeroom (Electrified – Fail Secure)
• T12 - Dummy Trim

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin brass
• 613/US10B - Oil rubbed bronze
• 619/US15 - Satin nickel
• 622/US19 - Matte black
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
• 643e/US11 - Aged bronze

Resources

• Cut Sheet
