Falcon Lock T521HD Q 626 Grade 1 Office Lock

Falcon T521HD Q 626 Grade 1 Office Lock combines robust construction with versatile functionality, making it an ideal choice for high-traffic environments. This extra heavy-duty cylindrical lock is built to withstand heavy use and abuse, meeting ANSI/BHMA Grade 1 standards with ease. Its non-handed design ensures easy installation on doors ranging from 1-3/4" to 2-1/8" thick, while the SFIC prep with a construction core allows for quick re-keying and retrofitting. With a sleek satin chrome finish, the Quantum lever and standard rose enhance both security and aesthetics. The lock features a durable mechanism made from brass and cold-formed steel, providing rust resistance and longevity. Installation is straightforward, as the lock chassis is secured with threaded mounting nuts, and the preassembled outer trim simplifies the process. The T521HD lock supports various cylinder types, allowing compatibility with other manufacturers, and includes standard 6-pin chambers that can be upgraded to 7-pin. Designed for commercial use, this lock is UL listed, fire rated for 3 hours, and comes with a limited 10-year warranty. For professionals seeking reliability and ease of use, the Falcon T521HD Q 626 is a solid investment in security.

Grade 1 Office Lock

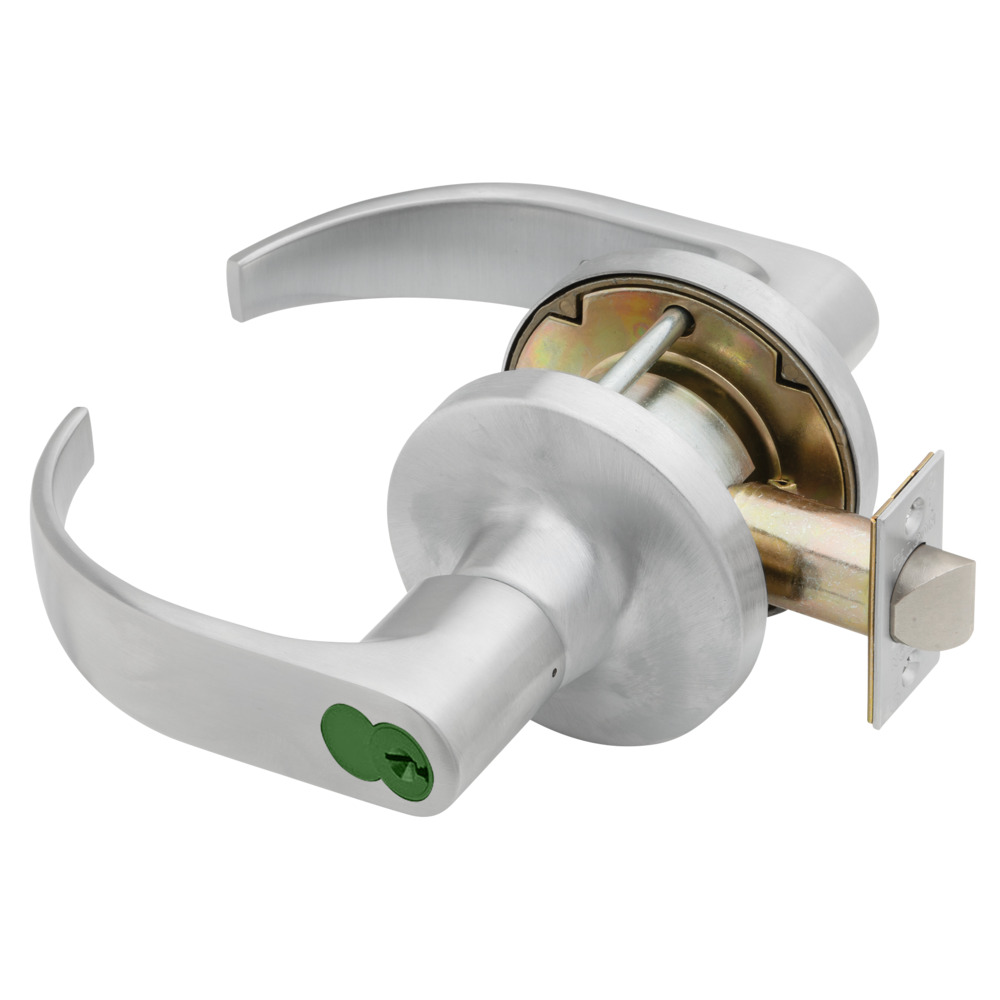

Grade 1 Office Cylindrical Lock, SFIC Prep With Construction Core, Quantum Lever, Standard Rose, Satin Chrome Finish, Non-Handed

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

Can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying.

• Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
• Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
• Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
• Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
• Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• Electrified Functions: Available in 24 VDC .185 AMP.
