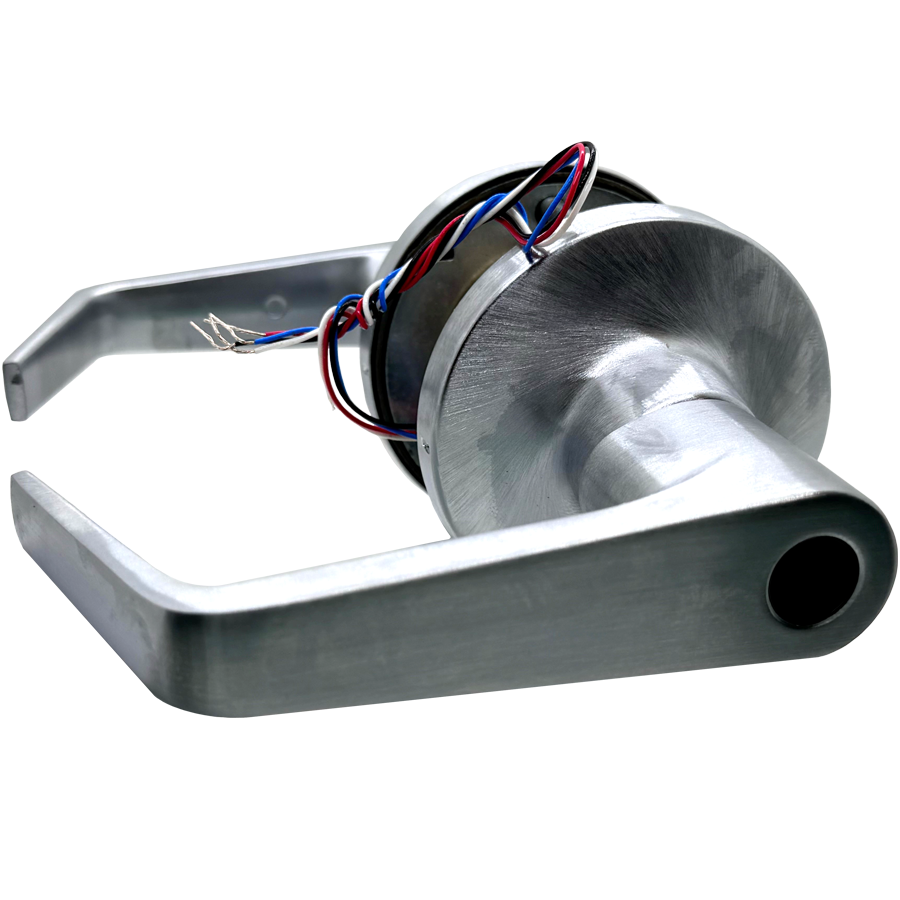

Falcon Lock T851LDDAN626 Electrified Storeroom Dane Lever, Fail Safe, 24V, Grade 1, Satin Chrome

Falcon Lock T851LDDAN626 Electrified Storeroom Dane Lever offers a robust solution for high-traffic and secure environments. Designed as a fail-safe lock, this cylindrical deadlatch operates on 24V and features a durable 6-pin design, ensuring reliable access control for storerooms and similar applications. Constructed to exceed ANSI/BHMA Grade 1 standards, this lock is UL listed for up to three hours of fire-rated protection, providing peace of mind in safety-critical situations. The Pressure Release™ feature allows the outside lever to move freely when locked, preventing rigidity and enhancing usability. Its heavy-duty compression springs behind the lever trim ensure long-lasting performance while preventing sagging. With a standard backset of 2-3/4 inches and an adjustable door thickness range of 1-3/4 inches to 2-1/8 inches, the T851 is versatile for various door preparations. The solid brass and zinc-plated components resist rust, while the satin chrome finish adds a contemporary touch. Additionally, the lock is non-handed, simplifying installation and adjustments. Whether securing a commercial space or enhancing residential safety, the Falcon Lock T851LDDAN626 is designed for seamless integration and dependable security.

Electrified Storeroom Dane Lever, Fail Safe, 24V, 6-Pin, Less Core, Cylindrical Lock, Deadlatch, ANSI Strike, 2-3/4in Backset, Grade 1, UL, 626/US26D Satin Chrome

Falcon is focused on offering a solid product, which is why the T Series lock is constructed with a compression spring that far exceeds ANSI/BHMA cycle test requirements. Unlike typical torsion springs that can break at the bend points, the T Series spring provides the most robust lever support for years of reliable performance. Perfect for high-use applications, the T Series lock delivers on Falcon’s promise of providing a solid product at a solid price.

Features:

• Key-in-lever cylindrical locksets shall be Falcon Lock T Series or equal and meet the following requirements:
• All locks shall meet the new ANSI/BHMA A156.2, Series 4000,Grade 1 for key-in-lever locksets.
• Locksets shall be UL Listed (3 hour A Label).
• Locksets shall be provided standard with Pressure Release™feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
• Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be through-bolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner Elevation Door Edge Standard Strike
• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
• Locksets shall adjust to fit door thickness from 1-3/4" to 2- 1/8".
• All locksets shall be non-handed and not require field disassembly for re-handing.
• Preparation for door must be non-handed.

Specifications:

• Door Thickness: 1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4", please specify door thickness.
• Backset: 2-3/4" standard. 2-3/8" also available. Link (A22161-005-10) available for 5" backset.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
• Keyways: "G" keyway standard on conventional cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
• Latches: 9/16" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also available. Adjustable front standard.
• Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.* Screws: Furnished with combination screws for use in wood or metal doors and frames.
• Electric Functions: Available in 24 VDC .185 AMP.
• Certifications: ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1. UL: 3 hour A label. and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.

Functions:

• T101 - Passage/Closet Latchset
• T301 - Privacy Lock
• T351 - Closet Lock
• T381 - Classroom Security Lock
• T411 - Asylum Lock
• T501 - Entry Lock
• T511 - Entry/Office Lock
• T521 - Office Lock
• T561 - Classroom Lock
• T571 - Dormitory Lock
• T581 - Storeroom Lock
• T851 - Storeroom (Electrified – Fail Safe)
• T881 - Storeroom (Electrified – Fail Secure)
• T12 - Dummy Trim

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin brass
• 613/US10B - Oil rubbed bronze
• 619/US15 - Satin nickel
• 622/US19 - Matte black
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
• 643e/US11 - Aged bronze
