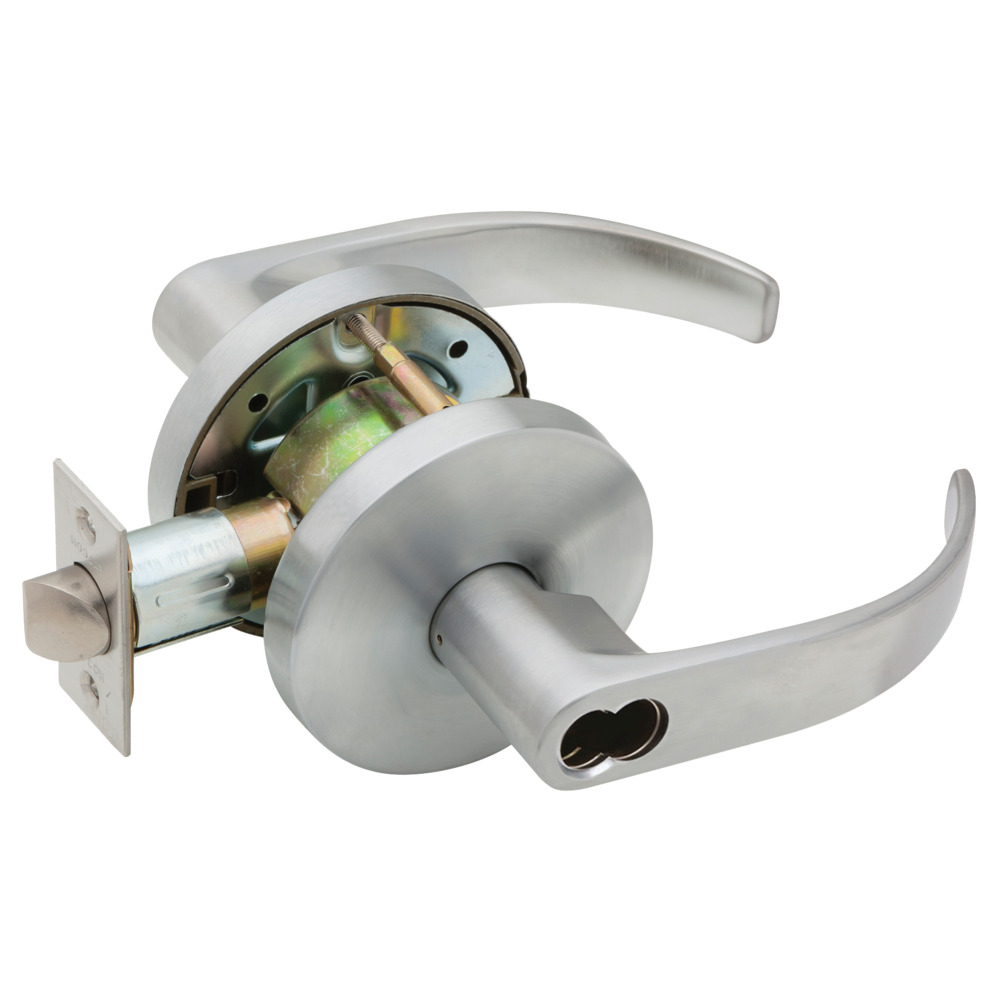

Falcon Lock W501BD Q 626 Grade 2 Entry Lock

Falcon Lock W501BD Q 626 Grade 2 Entry Lock offers a reliable solution for securing lower traffic doorways in various settings, including government, retail, and multi-family applications. Designed with a Grade 2 rating, this cylindrical lock features a Quantum lever with a standard rose and a sleek satin chrome finish, ensuring both style and durability. Built to accommodate door thicknesses ranging from 1-3/8" to 1-3/4", the W501BD is non-handed, allowing for versatile installation. It includes a secure SFIC prep less core, compatible with conventional cylinders and small format interchangeable cores from various manufacturers. The robust mechanism is constructed from brass or cold-formed steel, zinc plated for rust resistance, and features stainless steel springs, ensuring longevity even in challenging environments. This lock is equipped with a 1/2" bolt projection latch, UL listed for 3-hour door assemblies, and designed to work seamlessly with a variety of strike sizes. The product meets ANSI/BHMA A156.2, Series 4000, Grade 2 standards, ensuring compliance and reliability. With a limited 10-year warranty, the Falcon W501BD Q 626 is an economical choice that doesn’t compromise on quality, making it an excellent addition to any commercial property.

Grade 2 Entry Lock

Grade 2 Entry Cylindrical Lock, SFIC Prep Less Core, Quantum Lever, Standard Rose, Satin Chrome Finish, Non-handed

Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (big and small), Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now masterkey across the complete Falcon product line.

Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.

• Door Thickness: 1-3/8” to 1-3/4” standard.
• Backset: 2-3/4” standard; 2-3/8” also available.
• Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
• Handing: Locks are non-handed.
• Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
• Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
• Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
• Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
• Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour A label.
