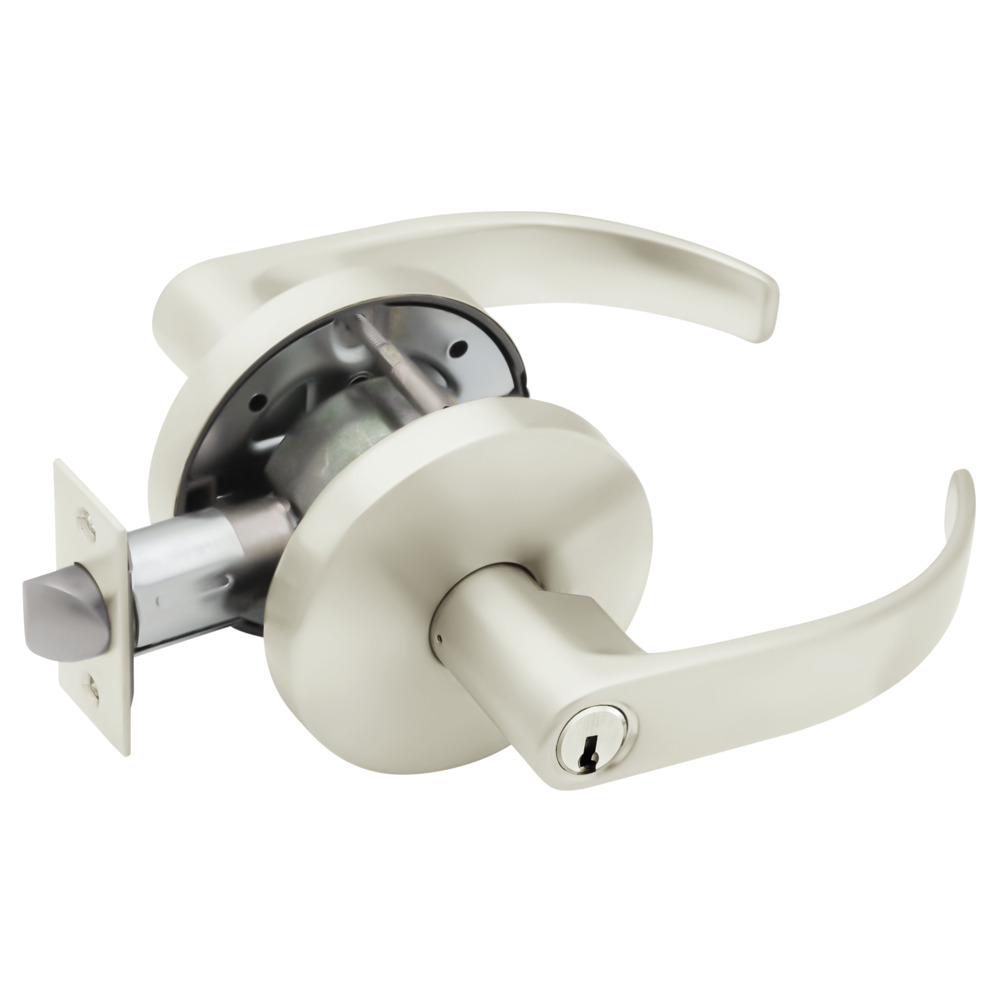

Falcon Lock W511PD Q 625 Grade 2 Entry Office Lock

Falcon W511PD Q 625 Grade 2 Entry / Office Lock offers a robust solution for your security needs at an affordable price. This Grade 2 cylindrical lock is designed for lower traffic doorways in various settings, including government buildings, retail spaces, and multi-family residences. The lock features a key-in-lever cylinder and a stylish Quantum lever with a standard rose, all finished in a bright chrome that enhances both durability and aesthetics. Designed for ease of installation, the W511PD is non-handed and accommodates door thicknesses from 1-3/8" to 1-3/4". Its solid construction includes brass or cold-formed steel components, with rust-resistant zinc plating. The lock mechanism is highly versatile, accepting standard 6-pin cylinders from Falcon and other manufacturers like Schlage and Yale, ensuring compatibility with existing key systems. The Falcon W Series locks not only meet ANSI/BHMA A156.2, Series 4000 Grade 2 standards but are also UL listed for a 3-hour fire rating, providing peace of mind in safety. With a 10-year limited warranty, this lock is a reliable choice for commercial applications and everyday use. Upgrade your door security with the Falcon W511PD, where quality meets affordability.

Grade 2 Entry / Office Lock

Grade 2 Entry/Office Cylindrical Lock, Key in Lever Cylinder, Quantum Lever, Standard Rose, Bright Chrome Finish, Non-handed

Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (big and small), Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now masterkey across the complete Falcon product line.

Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.

• Door Thickness: 1-3/8” to 1-3/4” standard.
• Backset: 2-3/4” standard; 2-3/8” also available.
• Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
• Handing: Locks are non-handed.
• Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
• Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
• Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
• Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
• Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour A label.
