GRI 2020-12-B 3/8in Recessed Magnetic Contact Switch Set, 1/2in Gap, 12in Leads, Brown

George Risk Industries 2020-12-B 3/8in Diameter Recessed (Flush Mount) Magnetic Contact Switch Set offers a reliable solution for a variety of access control and alarm applications. Designed with a 1/2-inch gap, this closed loop (N/O) switch features a press-in fit for easy installation, making it ideal for both professionals and knowledgeable homeowners. Crafted to ensure durability, the GRI 2020-12-B comes with a lifetime warranty and is UL and ULC approved for added peace of mind. Its shorter length case is complemented by a softer fill that protects the fragile reed inside. The switch is equipped with standard 12-inch leads, but longer leads, zip cord, or jacketed cable are available upon request, ensuring flexibility for different installation needs. This versatile switch is designed for recessed mounting and is compatible with various applications. Keep in mind that when using in steel door installations, the GRI PA-75 collars should be utilized with the wide gap switch for optimal performance. With additional options such as built-in E.O.L. resistors, diodes, and extra wide gap bare magnets, the GRI 2020-12-B is a top choice for enhancing security systems effectively.

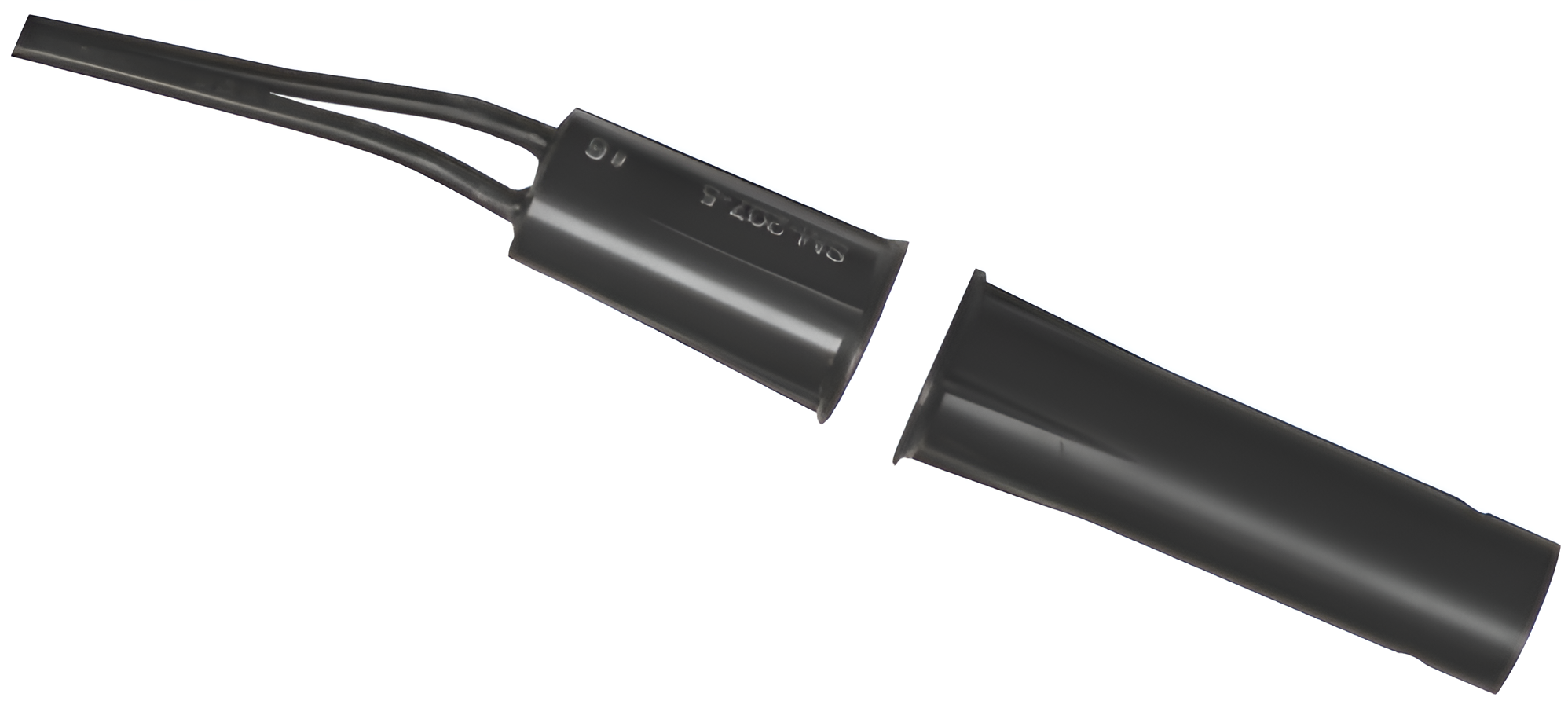

3/8in Diameter Recessed (Flush Mount) Magnetic Contact Switch Set, 1/2in Gap, Press in to Fit, Closed Loop (N/O), 12in Leads, Brown

GRI's recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a "T" configuration. When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI's bare magnets are installed with the painted end towards the switch as they are polarity sensitive. When protecting steel doors, use the GRI PA-75 collars with our wide gap switch.

Features:

• Lifetime Warranty
• Available in closed loop, open loop, SPDT and DPDT
• UL and ULC approved
• Shorter length case
• Softer fill to protect fragile reed
• Standard 12" leads or terminal block
• Longer leads, zip cord or jacketed cable on request
• Built-in E.O.L. resistors and diodes are available
• Switch or magnet are available separately
• Extra wide gap bare magnets
• Standard gap 1/2" +
• Wide gap 1" +
• Extra wide gap 1.5" +
• Supervisory loops available

NOTE: If this series is to be used in a steel door application, G.R.I.'s PA-75 adaptor should be used with a wide gap switch.

Resources

• Cut Sheet
