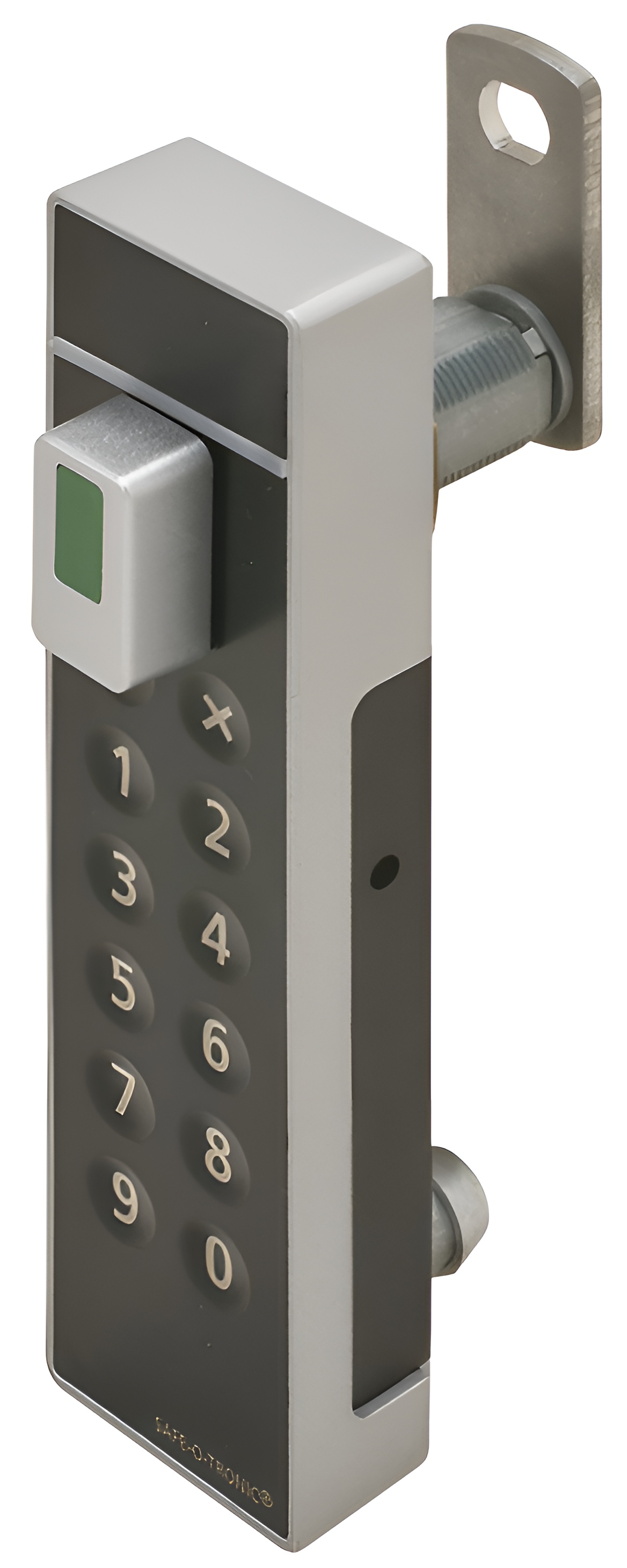

Hafele 231.98.002 Safe-O-Tronic LS100 Keypad LockHafele 231.98.002 Keypad Lock, Safe-O-Tronic LS100 offers a secure and convenient solution for electrically controlling cabinet doors, drawers, and lockers. This lock operates in day use mode, allowing easy access with the entry of a correct PIN code on the user-friendly keypad. Designed to comply with ADA standards, it ensures accessibility for all users. This model features a horizontal orientation with the knob positioned on the left, presented in a sleek black finish. The lock is powered by a 3-AAA battery pack, included with your purchase, and boasts an impressive battery life of four years based on ten lock cycles per day. A low battery indicator, visible via external LEDs, keeps you informed about power status. Installation is straightforward, requiring only two drill points, and it is suitable for interior use in wood, laminate, plastic, and metal doors and drawers with a thickness of up to 19 mm. Constructed with a sturdy aluminum lock body, a plastic faceplate, and a durable steel cam, the Safe-O-Tronic LS100 is built to withstand a pull strength of 50 lbf, ensuring long-lasting performance. Supplied with necessary mounting hardware and instructions, this lock combines security with ease of use.
Keypad Lock, Safe-O-Tronic LS100
Horizontal right with knob on left, black
SAFE-O-TRONIC® access LS 100 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically released with a correct PIN code entered on the keypad. Lock complies with ADA standards for door locks Programmable master code (5 digits) to operate the lock(s) Lock is easily programmed by user with easy to use keypad Lock mounts vertically for raised panel doors Lock powered by a 3-AAA battery pack (included)(item 231.98.210) Low battery indicator via external LEDs Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification Long battery life (10 lock cycles per day for four years) Easy installation with only two drill points
Batteries changed with Torx® screw driver (listed below)
Attributes
Area of application: For interior use For installation in wood, laminate, plastic and metal doors and drawers
Color/finish: BlackLock body: Gray

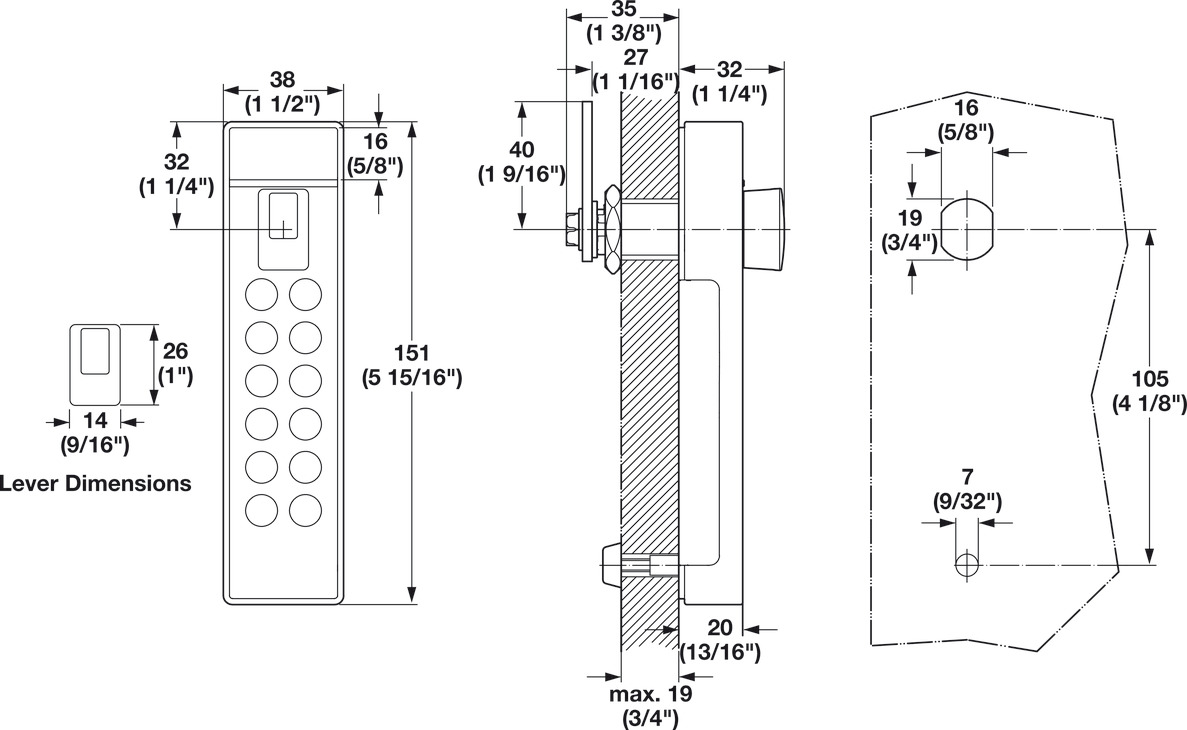

Dim. ( L x W x H): 151 x 38 x 33 mm
For door thickness: ≤19 mm
Installation reference: SAFE-O-TRONIC® access LS 100 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically released with a correct PIN code entered on the keypad. Lock complies with ADA standards for door locks Programmable master code (5 digits) to operate the lock(s) Lock is easily programmed by user with easy to use keypad Lock mounts vertically for raised panel doors Lock powered by a 3-AAA battery pack (included)(item 231.98.210) Low battery indicator via external LEDs Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification Long battery life (10 lock cycles per day for four years) Easy installation with only two drill points
Material: Lock body: Aluminum Face plate: Plastic Cam: Steel
Model series: LS100
Operation modes: Day Use Mode
Supplied with: Nut Straight cam Mounting screw Instructions

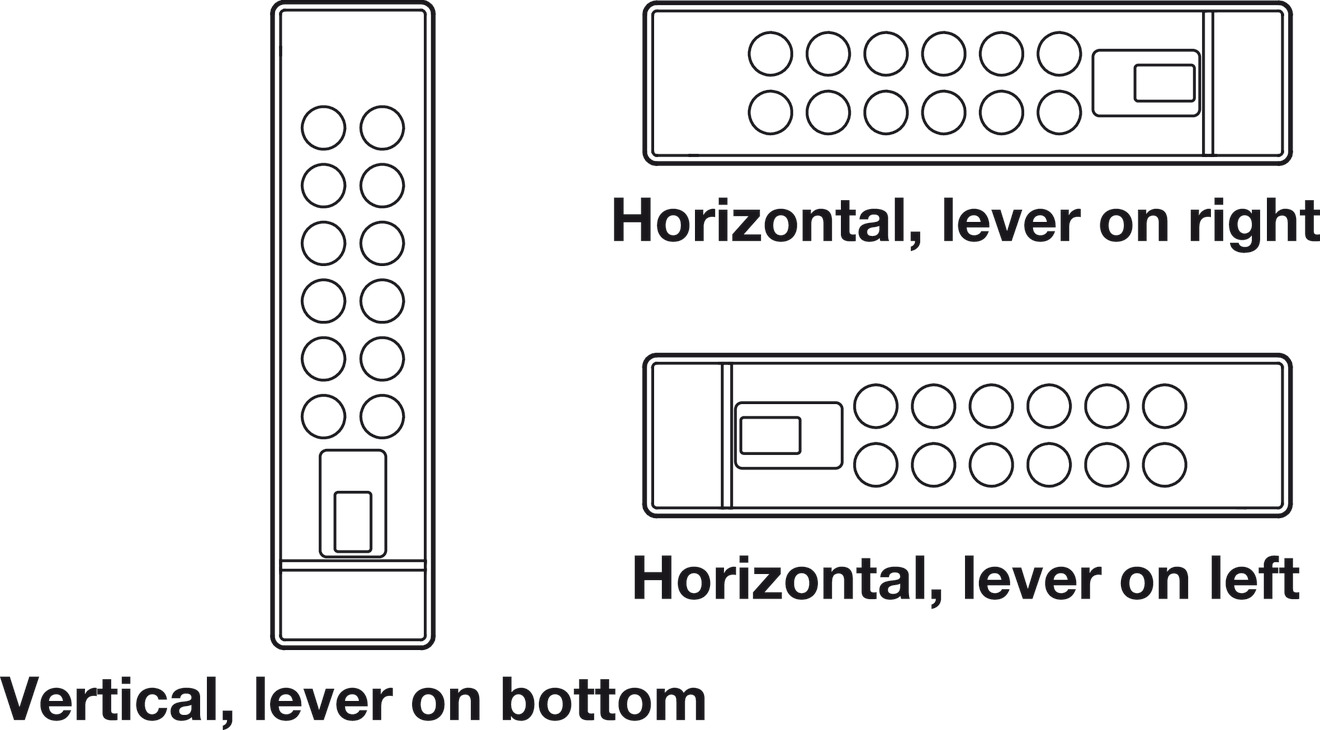

Version: Horizontal, Lever on left
