Hafele 237.58.130 Antenna, FAN 100, Dialock is an innovative solution designed for seamless integration in indoor furniture applications. With a cable length of 39 3/8 inches (1000 mm), this antenna offers flexibility in installation, allowing you to position it optimally for effective performance. The reader range extends to approximately 25 mm when used with the FT 120 furniture terminal and key FOB, though it's important to note that environmental factors such as nearby metal materials or magnetic fields may reduce this range. For optimal functionality, the FAN 100 antenna should not be installed on metal surfaces or behind mirrors, and a minimum distance of 250 mm between two antennas is recommended. This antenna comes with a degree of protection rated at IP67, ensuring durability and reliability in various settings. It's designed for recess mounting in a 35/40 mm drill hole, ensuring a sleek and unobtrusive installation as close to the front as possible to maximize its range. The version includes a connecting cable and coaxial plug for straightforward connectivity. The Hafele 237.58.130 Antenna is an essential component for enhancing access control systems, providing both functionality and safety in your furniture designs.

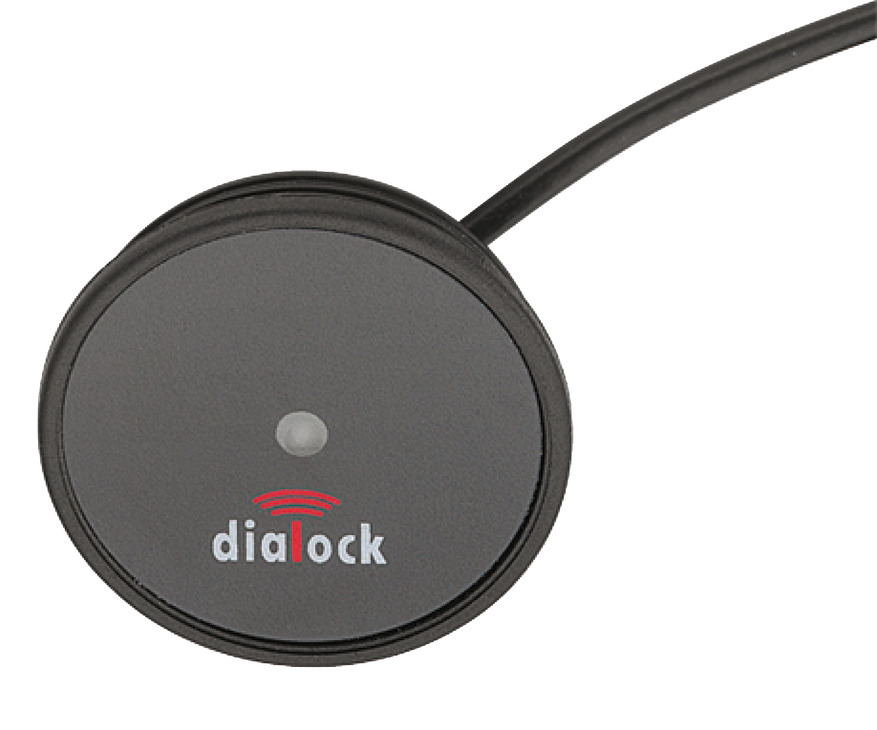

Antenna, FAN 100, Dialock
Cable length: (39 3/8") 1000 mm
Reader range: Approx. 25 mm with FT 120 and FAN 100 antenna (key FOB). The range may be smaller due to environmental reasons, for example if metal materials or magnetic fields (power supply line) are in the near proximity. The FAN 100 antenna must not be installed behind or on metal surfaces or behind mirrors. Minimum distance between 2 antennas: 250 mm The antenna can be connected directly to the output port of the FT 120 furniture terminal. The supplied ferrite bead must be installed on the antenna lead at a distance of max. 10 cm from the FT 120.

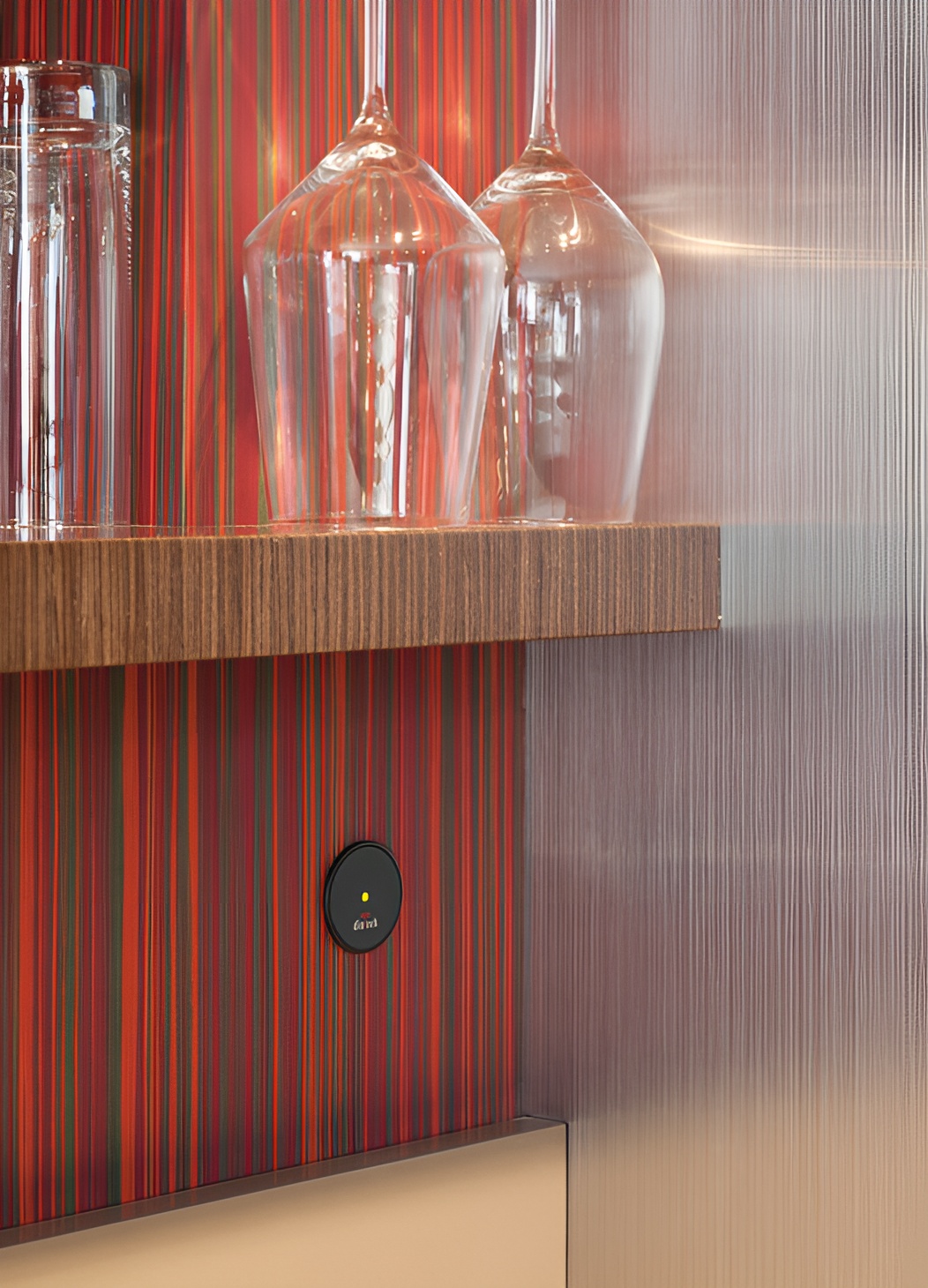

Area of application: For indoor use: For installation in furniture
Cable length: 1,000.00 mm
Degree of protection: IP67

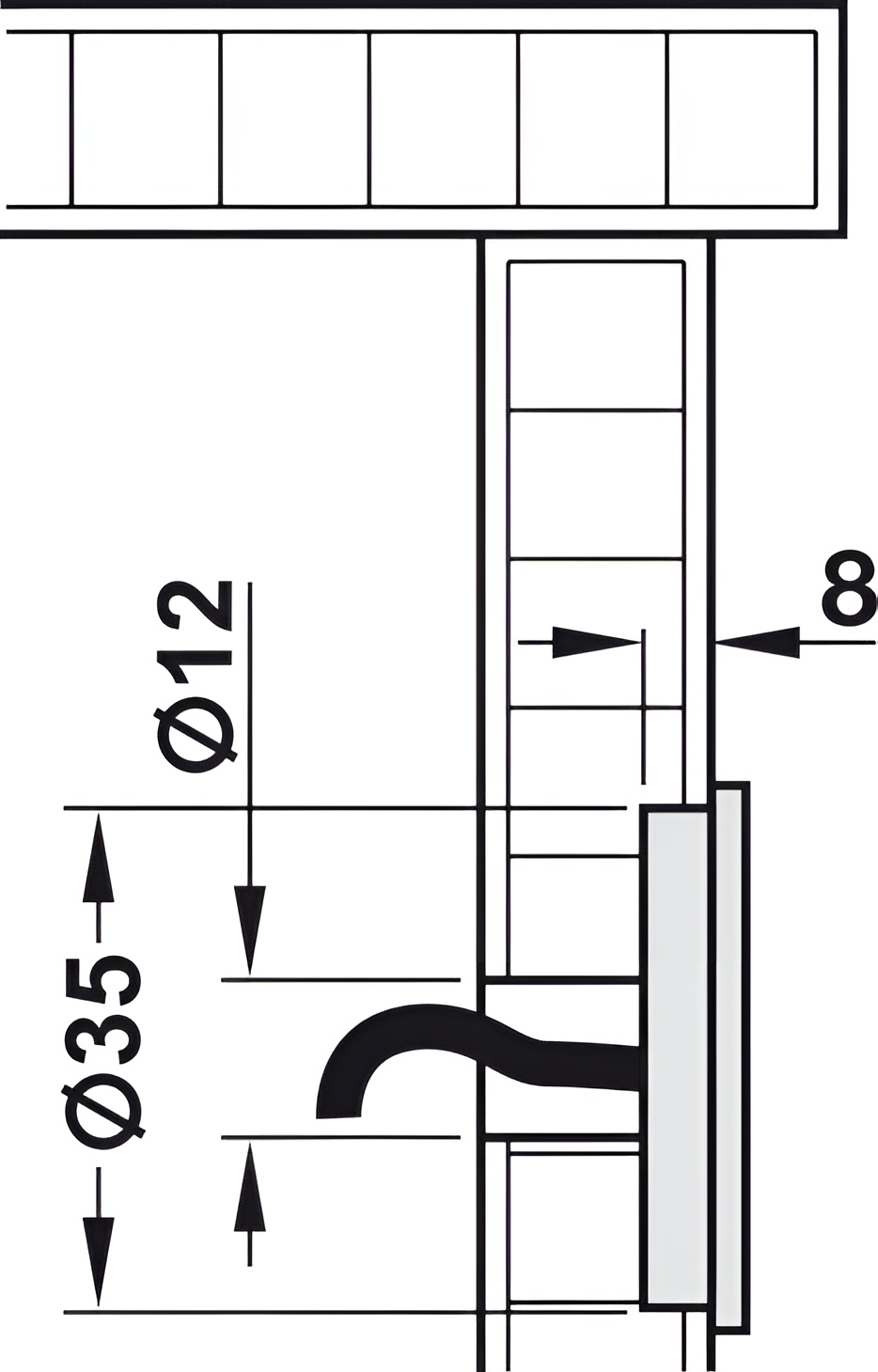

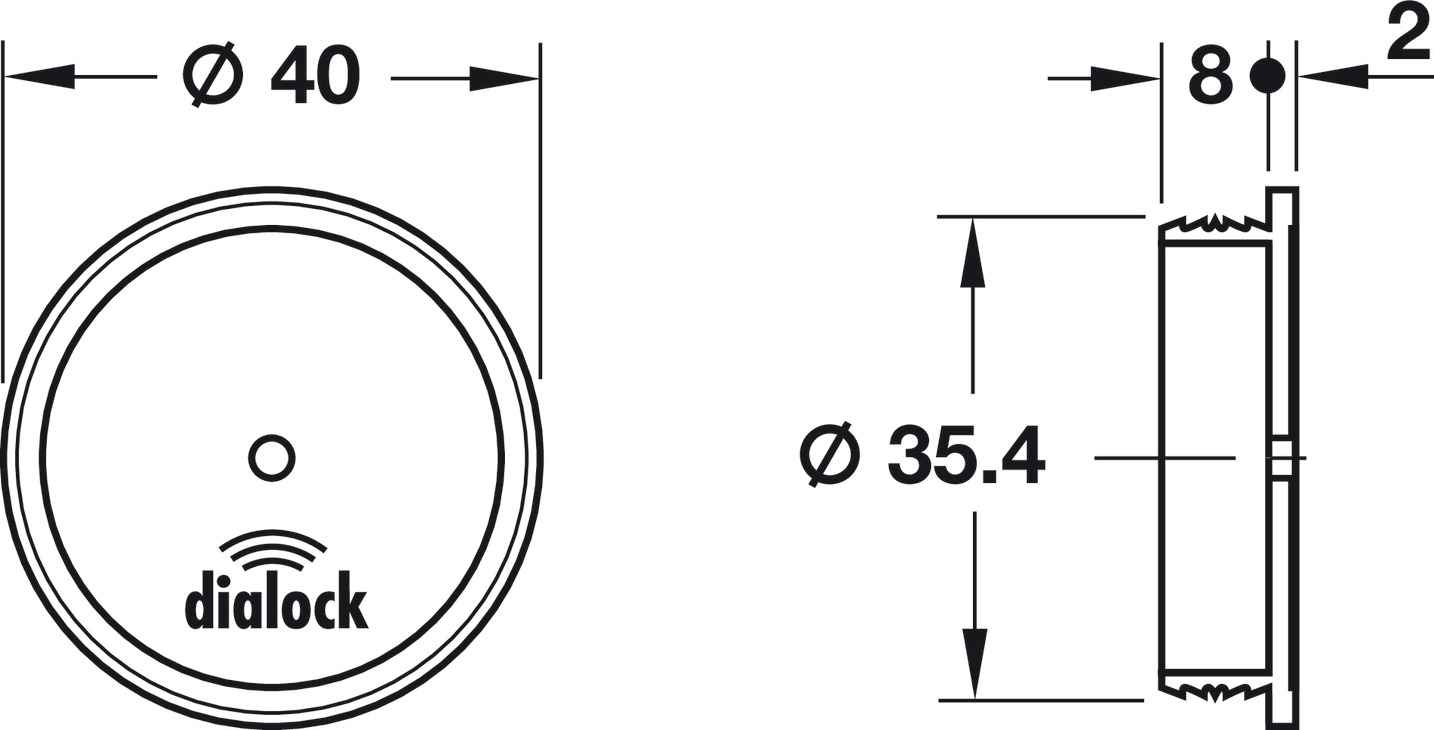

Installation: for recess mounting in a 35/40 mm drill hole, fit antenna as closely as possible to the front (antenna range).

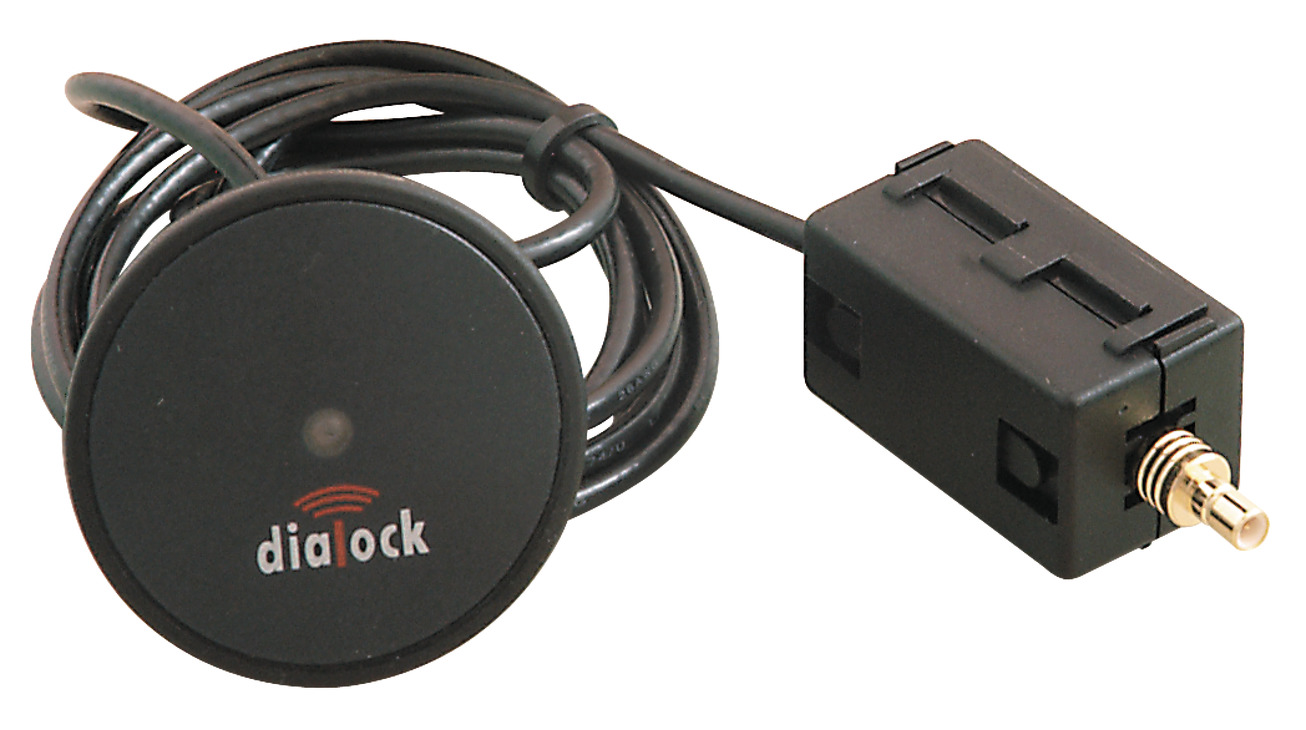

Version: With connecting cable and coaxial plug
