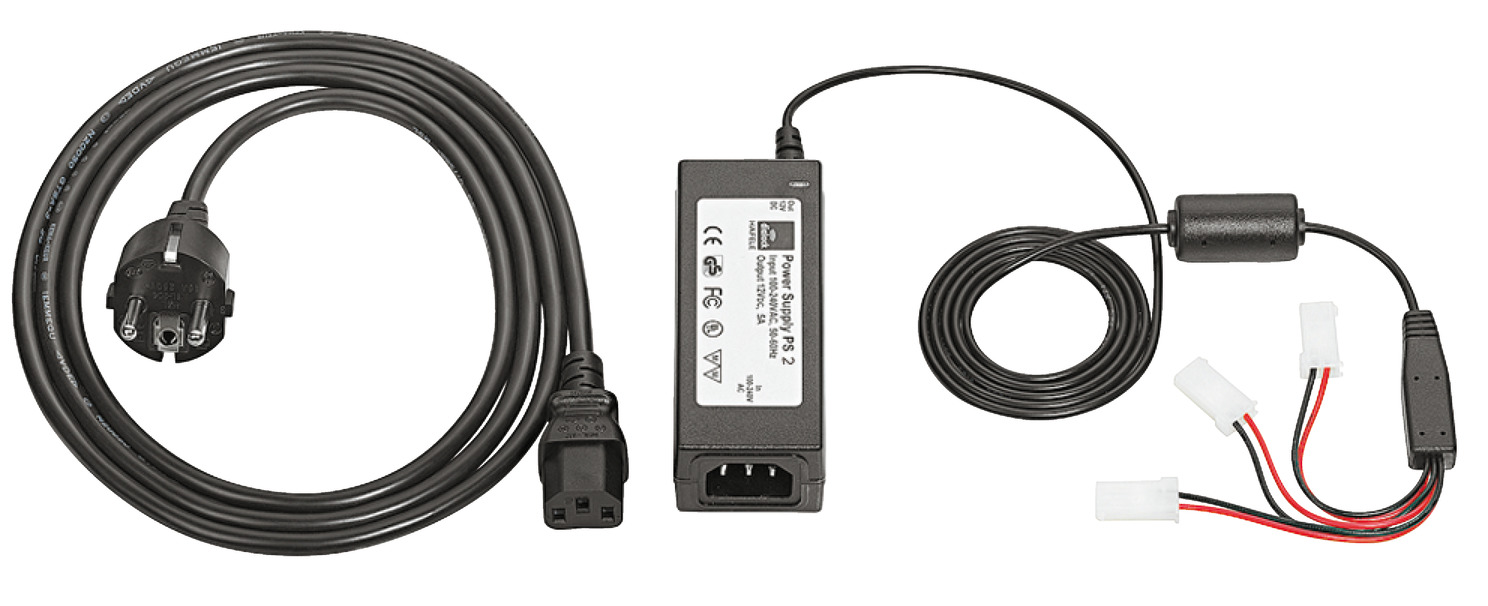

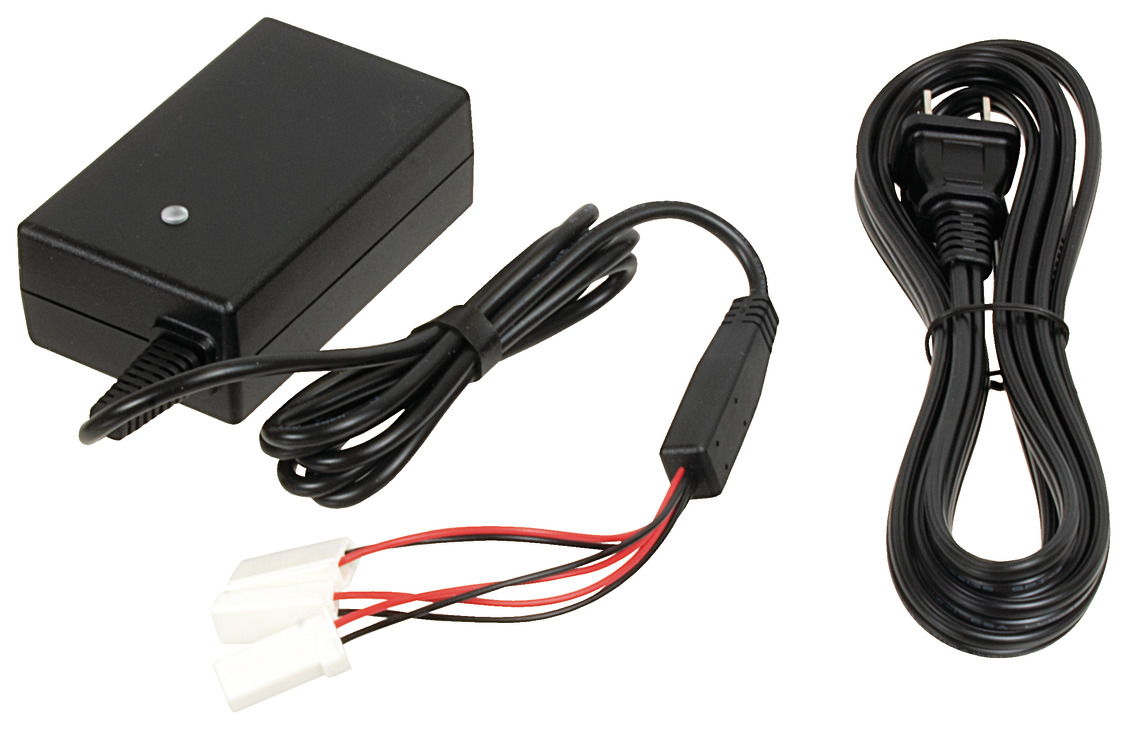

Hafele 237.58.149 Power Supply Unit is a versatile 12V DC solution designed for reliable voltage supply to furniture terminals and multi-lock adapters. With an output current of 2.5A, this power supply ensures optimal performance and functionality for various applications. It operates efficiently across a mains voltage range of 100 V to 240 V and is compatible with a mains frequency of 50–60 Hz, making it suitable for diverse environments. Measuring 115 x 42 x 30 mm, the compact design allows for easy placement on a protected shelf or trough, although it does not come with mounting tabs. The supplied UL 3-Prong Male AC Plug grants a straightforward connection to your power source. Furthermore, the power supply cable spans a generous length of 1,800 mm, while the output cable measures 1,350 mm, providing flexibility in installation. This unit operates effectively within a temperature range of 0 to 50 °C and can withstand relative humidity levels of 0 to 95%. The pluggable connection via a 3-way AMP plug enhances convenience, ensuring a secure and reliable connection. Elevate your locking system's performance with the Hafele 237.58.149 Power Supply Unit, a dependable choice for modern applications.
Power Supply Unit, 12V DC with Plug
Dialock, 2.5A
Area of application: voltage supply for furniture terminals and multi-lock adapters
Cable length: 1,350.00 mm
Dim. ( L x W x H): 115 x 42 x 30 mm
Mains frequency: 50 – 60 Hz
Mains voltage: 100 V – 240 V
Operating temperature: 0 – 50 °C
Order reference: Powered switches reduce lock capacity. The in-line power supplies are not provided with mounting tabs. They are best placed on a protected shelf or trough.
Output current: 2.50 A
Output voltage: 12 V DC
Power supply cable length: 1,800.00 mm
Product Category: Power Supply Unit
Product type: Power Supply Unit
Relative humidity: 0 – 95 %
Supplied with: UL 3-Prong Male AC Plug
Version: pluggable connection to output cable via AMP plug (3-way AMP plug at output)
