Hafele 237.59.010 Furniture Terminal, FT 200/FT 200 CAP, Dialock is an advanced solution designed for controlling EFL furniture locks, making it an essential component for intelligent furniture management. This terminal integrates seamlessly into the Dialock software, allowing for convenient configuration and management of locking points and access rights. Equipped with Bluetooth Low Energy (BLE), the FT 200 supports a direct connection to up to four EFL 3/EFL 3C locks and two FAN 200 antennas. It features a spring bolt lock function that automatically relocks after a customizable 3 to 30 seconds, enhancing security. The deadbolt function allows permanent locking and unlocking via an authorized user key, with acoustic feedback for confirmation. The terminal supports both keyed alike and keyed to differ configurations, accommodating various user access levels. Additional functionality includes optional indications of locking status through visual or acoustic signals. Custom requirements can also be met through macro programming, providing flexibility for specific applications. Supplied with a mains lead, the FT 200 is designed for easy integration with other essential components, including CC 200 connection cables and appropriate power supplies. This innovative furniture terminal is the ideal solution for modern furniture access control needs.

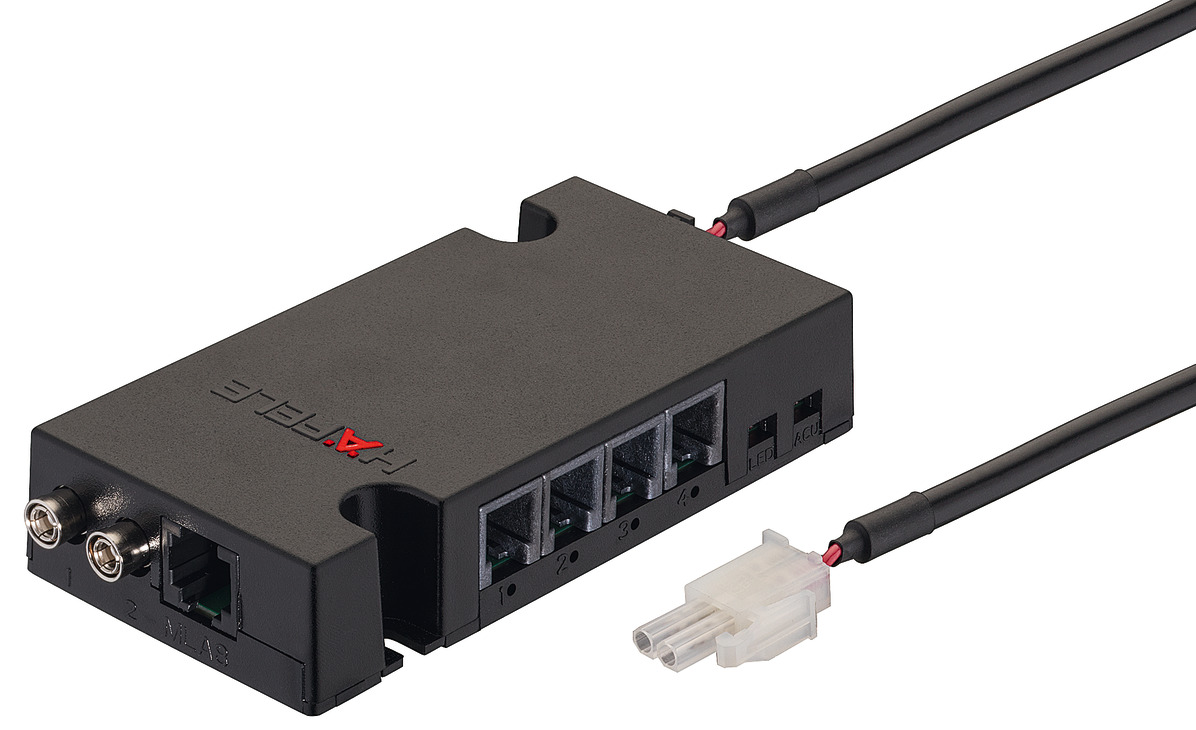

Furniture terminal, FT 200/FT 200 CAP, Dialock for controlling EFL furniture locks, connection for 2 FAN 200 antennas
Standard
Standard functions Operation by holding an authorised user key in front of the antenna which then transmits an opening pulse to the furniture lock Spring bolt lock function: 3 seconds after the lock has been released, it is automatically locked again (open time setting variable up to 30 seconds). Deadbolt lock function: The lock is permanently unlocked and locked by holding an authorised user key in front of the lock acoustic feedback as read confirmation of the keys Keyed alike furniture locks: An authorised user key unlocks all locks which are connected to the FT 200 / FT 200 CAP furniture terminal simultaneously. Several furniture locks can also be implemented with the MLA 6P / MLA 8 multi-lock adapters. More information on functionality can be found under the MLA 6P / MLA 8 multi-lock adapters. keyed to differ furniture locks: An authorised user key unlocks only certain locks, even though several locks are connected to the FT 200 / FT 200 CAP furniture terminal. Several furniture locks can also be implemented with the MLA 6P / MLA 8 multi-lock adapters. A maximum of 12 key changes can be implemented in combination with the MLA 8 multi-lock adapter. More information on functionality can be found under the MLA 8 multi-lock adapter. One CC 200 connection cable is also required for each furniture lock. Optional functions: Indication of the locking status, e.g. unlocked door, by means of acoustic or visual (external LED) signal transmitters With the spring bolt lock function, the opening time of the furniture locks can be set variably up to 30 seconds with the red and green programming card Separate activation of the 2 antennas is possible via an individual macro Customer-specific requirements (e.g. installation of an acoustic signal generator or actuation of an alarm system) can be implemented using macro programs by request Notes on software operation: When using the Dialock software, please contact your responsible Häfele employee. Notes on macro programs: Macro programs must be specified beforehand using a request form. This can be found at www.dialock-support.de in the Service section. An MDU 110 data transfer unit and instruction from Dialock technician is required for programming. In case of detailed questions, please contact your responsible Häfele employee.
Area of application: intelligent furniture terminal for controlling furniture locks
Model: FT 200
Order reference: Please also order: EFL 3 / EFL 3C furniture lock CC 200 connection cable (connecting cable between EFL 3 and FT 200 / MLA 6P / MLA 8) PS 4 power supply unit FAN 200 antenna Programming and clearing key card User keys if required Dialock MDU 110 software and data transfer unit A macro must also be installed when installing an acoustic signal generator (see "optional functions") The plug connector must also be ordered when using the potential free inputs/outputs. An individual macro must first be installed when using the relay output.
Product type: Furniture terminal
Supplied with: 1 FT 200 furniture terminal 1 mains lead
Version: Standard
