Hafele 237.59.060 Antenna, FAN 200, Dialock offers a reliable solution for integrating access control within furniture environments. Designed for indoor use, this antenna pairs seamlessly with the FT 200 and FT 200 CAP furniture terminals, providing an effective reader range of approximately 25 mm with the key fob. The antenna's IP67 rating ensures robust protection against dust and water, making it suitable for various applications. Installation requires a recess mounting in a 35/40 mm drill hole, ensuring the antenna is positioned as close to the front as possible for optimal functionality. With a cable length of 1,000 mm, the FAN 200 antenna facilitates flexible installation while maintaining performance integrity. It is compatible with RFID technologies including MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, and Tag-it™ Iso. However, for best results, avoid installing the antenna behind metal surfaces or mirrors, as this could diminish its range. Additionally, ensure a minimum distance of 250 mm between two antennas to maintain performance. The included connecting cable with a coaxial plug (SMB) provides ease of installation, while integrated red/green LEDs indicate activation status, enhancing user experience and operational efficiency.

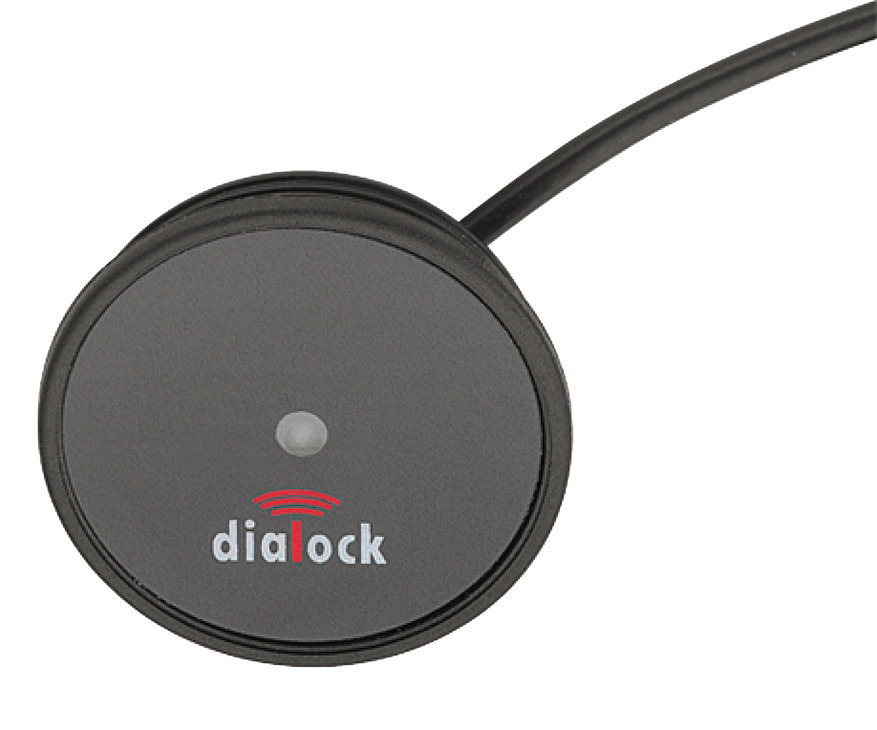

Antenna, FAN 200, Dialock
Cable length: (39 3/8") 1000 mm
Reader range: Approx. 25 mm with FT 200 and FAN 200 antenna (key fob). The range may be smaller for environmental reasons if metals or magnetic fields (power supply lines), for example, are nearby. The FAN 200 antenna must not be installed behind or on metal surfaces or behind mirrors. Minimum distance between 2 antennas: 250 mm. The antenna can be connected directly to the output of the FT 200 furniture terminal. The FAN 200 antenna is not suitable for installation in metal or metal coated furniture.
Area of application: For indoor use: For installation in furniture for FT 200 / FT 200 CAP furniture terminal
Cable length: 1,000.00 mm
Degree of protection: IP67

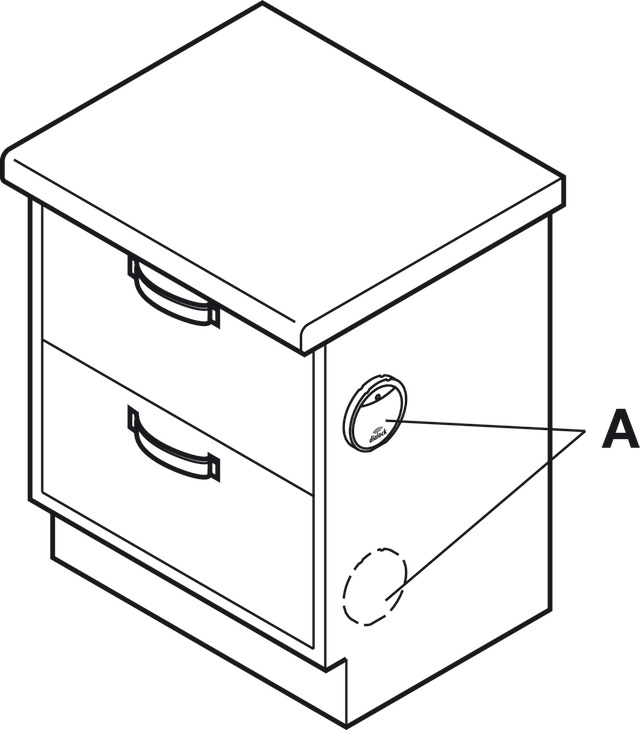

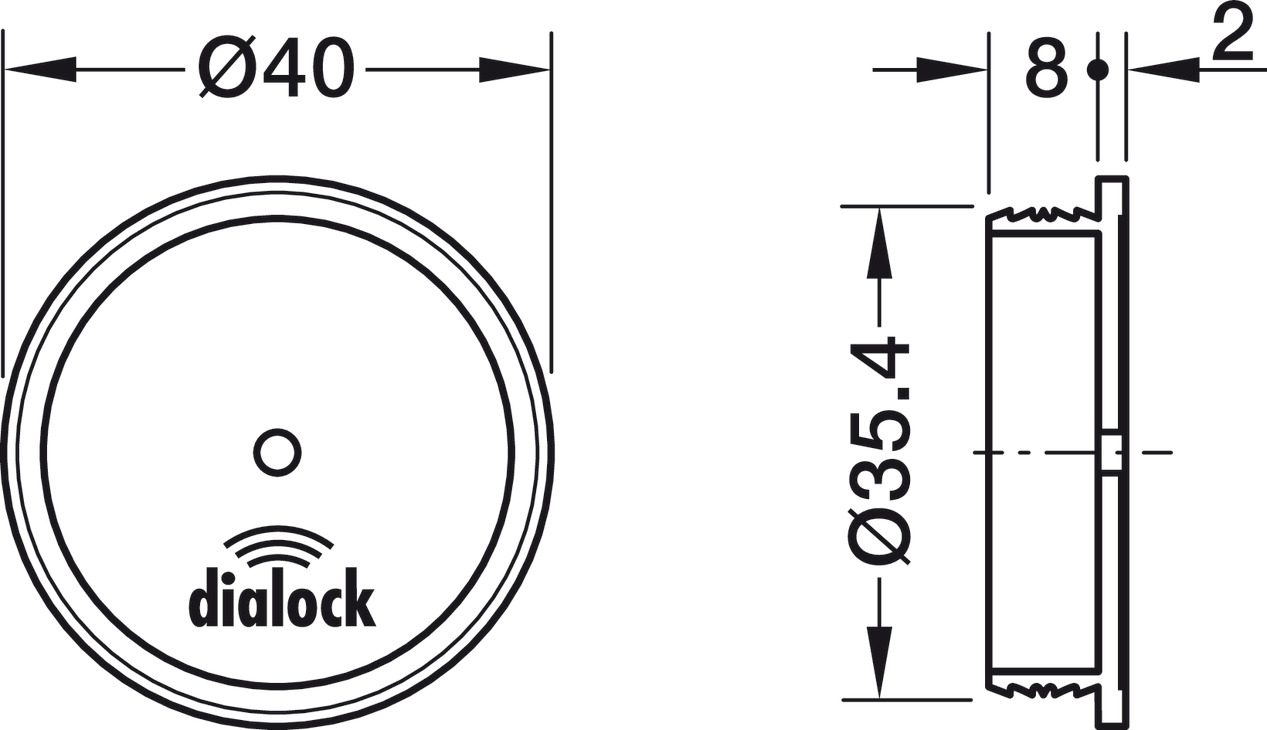

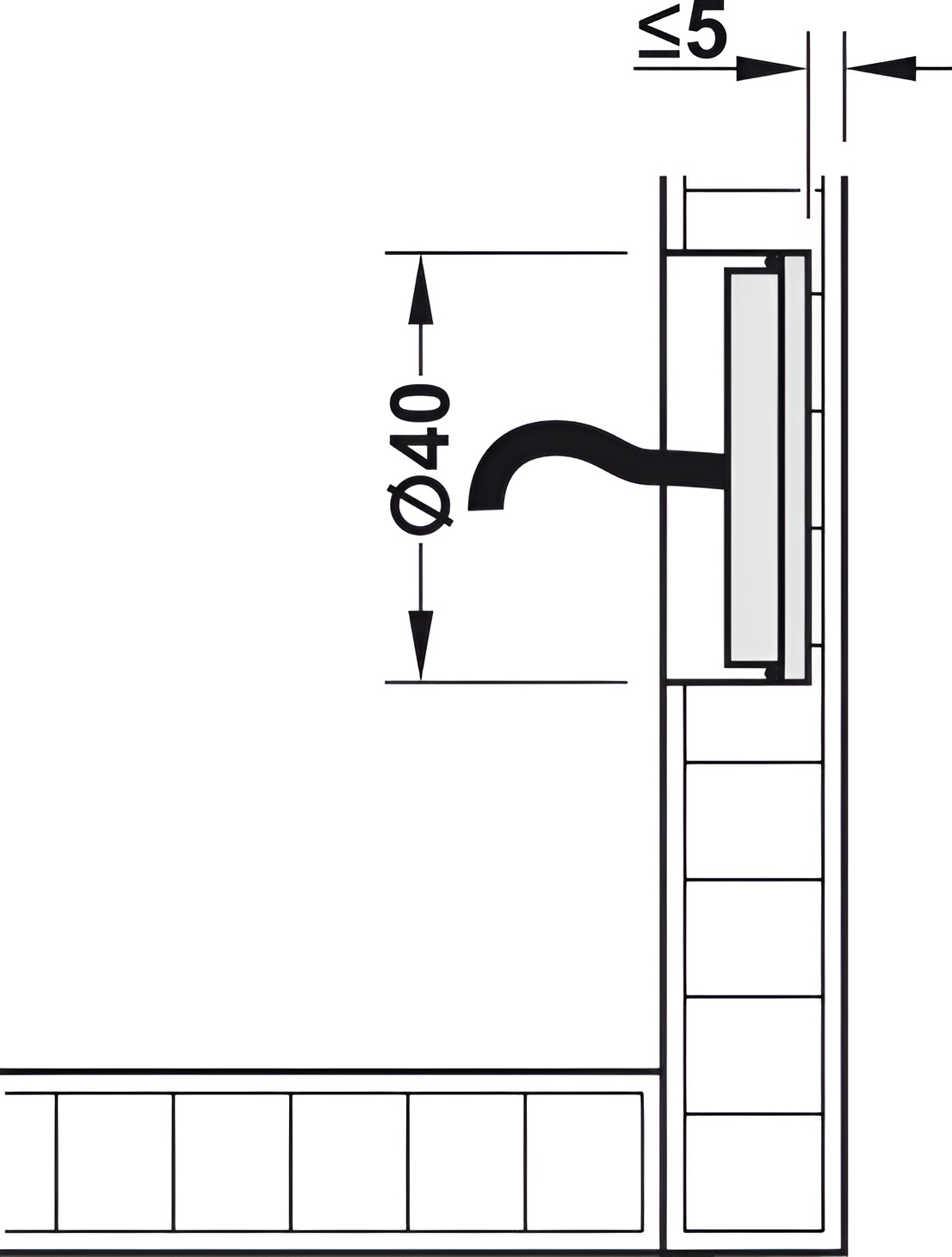

Installation: For recess mounting in a 35/40 mm drill hole, antenna as close as possible to the front
RFID technology: MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-it™ Iso
Version: with connecting cable and coaxial plug (SMB) offset reader unit for keys with integrated red/green LEDs, for indicating the activation status
