Hafele 246.10.010 MCL1 Nano Magnetic Cabinet Lock

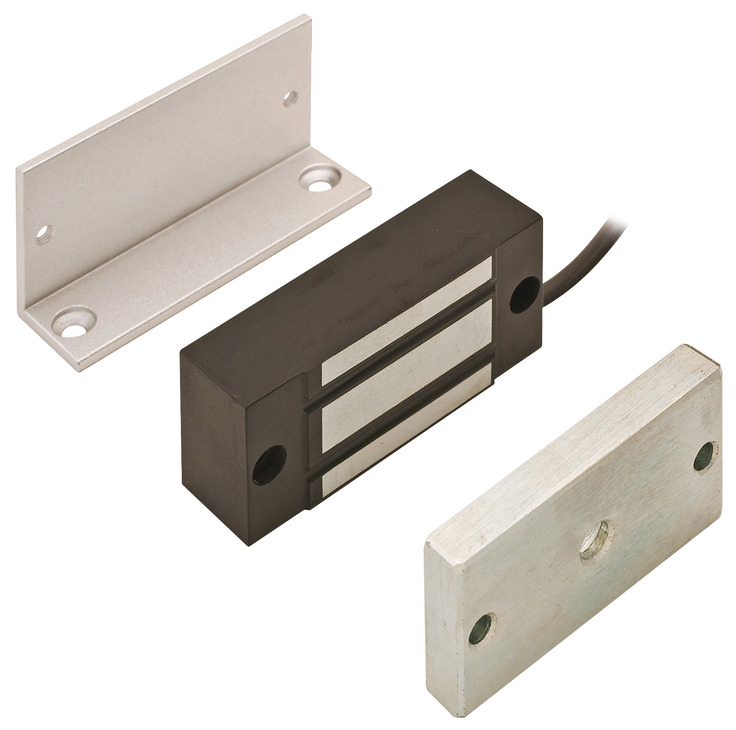

Hafele 246.10.010 Magnetic Cabinet Lock, MCL1 Nano offers a compact and lightweight solution ideal for various applications, including maintenance access panels, security cabinets, display showcases, and sliding doors. Designed for structural integrity, this medium load locking mechanism utilizes electromagnetic energy to securely capture an armature plate, ensuring reliability and safety. One of the standout features of the MCL1 Nano is its silent operation, which is particularly beneficial in environments where noise reduction is essential. The lock releases the armature plate when power is turned off, providing a fail-safe operation that enhances security. Flexible mounting options make it compatible with doors ranging from 3 to 50 mm (1 1/8" to 2") thick, while the armature plate is designed to "float" for optimal alignment with the magnet. The MCL1 can be remotely triggered using a push button, RF remote, or Dialock® terminals, offering versatile access control. It comes equipped with a male AMP connector, mounting screws, an L-bracket, and detailed instructions for seamless installation. Finished in an appealing black and chrome-plated design, this magnetic cabinet lock is constructed from durable steel and aluminum, ensuring long-lasting performance.

Magnetic Cabinet Lock, MCL1 Nano

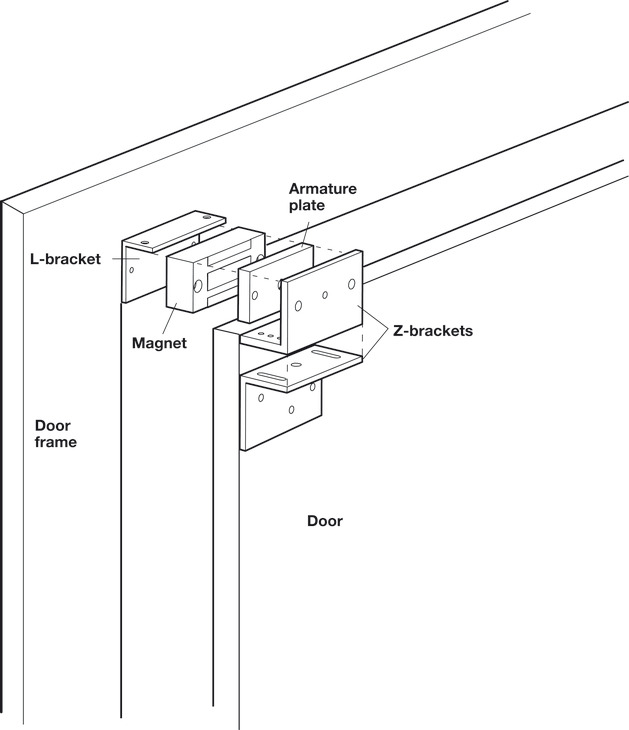

Armature plate should "float" to allow alignment with magnet. The MCL1 is a fail safe lock. When used with FT120, use the external relay, item 237.56.132. When used with the FT200, use MLA 8 Item No. 237.59.030and external relay Item No. 237.56.132. For details contact Dialock® Department at 1-888-437-7477 or 1-336-889-2322

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 10.101
