Hafele 262.26.531 Connector Housing is expertly designed for efficient assembly in woodworking projects, accommodating wood thicknesses from 13 mm and above. Constructed from durable zinc alloy, this connector housing features a stylish nickel-plated finish, ensuring both longevity and aesthetic appeal. This versatile connector is compatible with all connecting bolts from the Minifix® system, making it an ideal choice for various applications. The housing requires a drill hole diameter of 15 mm, with the option to choose bolt drill hole diameters of 5, 7, or 8 mm, depending on your specific needs. The distance from the center of the Minifix® housing to the front edge of the panel can be adjusted to either 24 mm or 34 mm, offering flexibility in design. With a drilling depth of 11 mm +0.2 mm, the Hafele 262.26.531 ensures precise and reliable installation, utilizing a PZ2 cross slot or flat blade drive for easy handling. Suitable for wood thicknesses of 13 mm and above, this connector housing not only simplifies assembly but also enhances the stability and durability of furniture constructions. When seeking a dependable solution for your woodworking needs, the Hafele 262.26.531 Connector Housing stands out as a top choice.

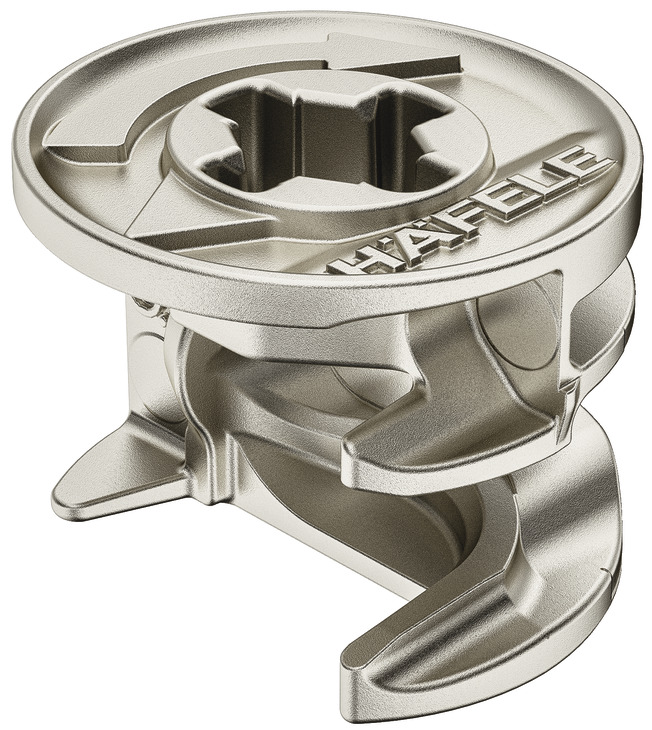

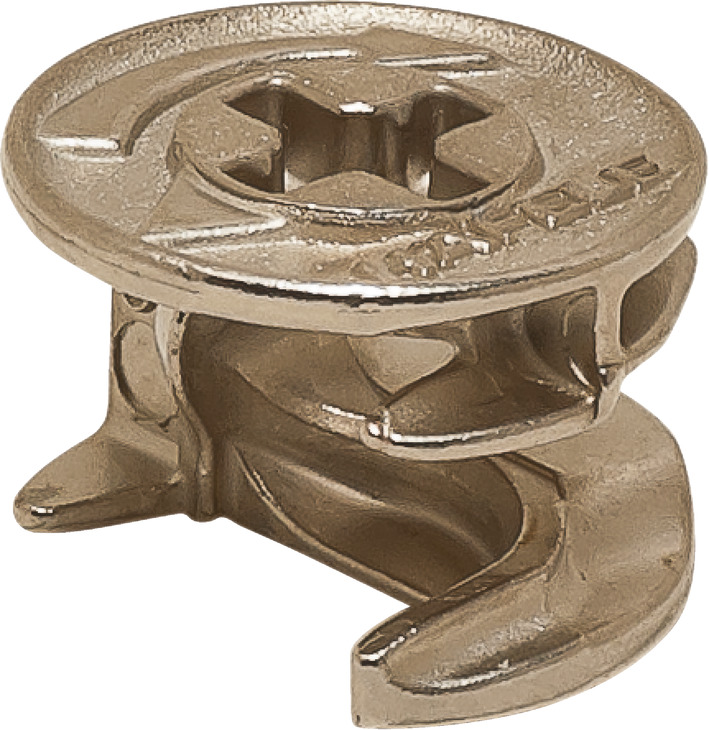

Connector Housing, Hafele Minifix 15, zinc alloy without rim
For wood thickness from 13 mm and above, nickel-plated
Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm. Distance from centre of Minifix® housing to front edge of panel (24 or 34 mm), depending on choice of connecting bolt.
Area of application: Wood thickness from 12 mm
Color/finish: nickel plated
Dim. A: 6.50 mm
Drill hole Ø housing: 15.00 mm
Drilling depth: 11 mm +0.2 mm
Drive: PZ2 cross slot, Flat blade
For wood thickness: ≥13 mm
Installation: for all connecting bolts
Material: Zinc alloy
Suitable for: All connecting bolts from the Minifix ® system
