Hafele 262.87.901 Connecting Bolt, Maxifix System with M6 or M8 Thread is designed for seamless integration within the Maxifix 35 system, ensuring a robust connection for various furniture applications. With a bolt length of 28.5 mm and a 9.00 mm bolt hole, this connecting bolt is engineered to provide stability and strength while maintaining a clean aesthetic. Constructed from durable zinc-plated steel, the bolt resists corrosion and wear, making it a reliable choice for long-term use. The PZ3 cross slot drive allows for easy installation, ensuring efficient assembly without compromising performance. Installation is straightforward, involving screw fixing into sleeves, which simplifies the process for both professionals and DIY enthusiasts. This bolt features a thread size of M6 and a thread length of 9.50 mm, accommodating a variety of fastening needs. With a drilling dimension of 35.00 mm, it is well-suited for precise applications in cabinetry and furniture assembly. Shipped via UPS, the Hafele 262.87.901 Connecting Bolt is a practical solution for anyone seeking to enhance the structural integrity of their projects while benefiting from Hafele's reputation for quality and innovation.

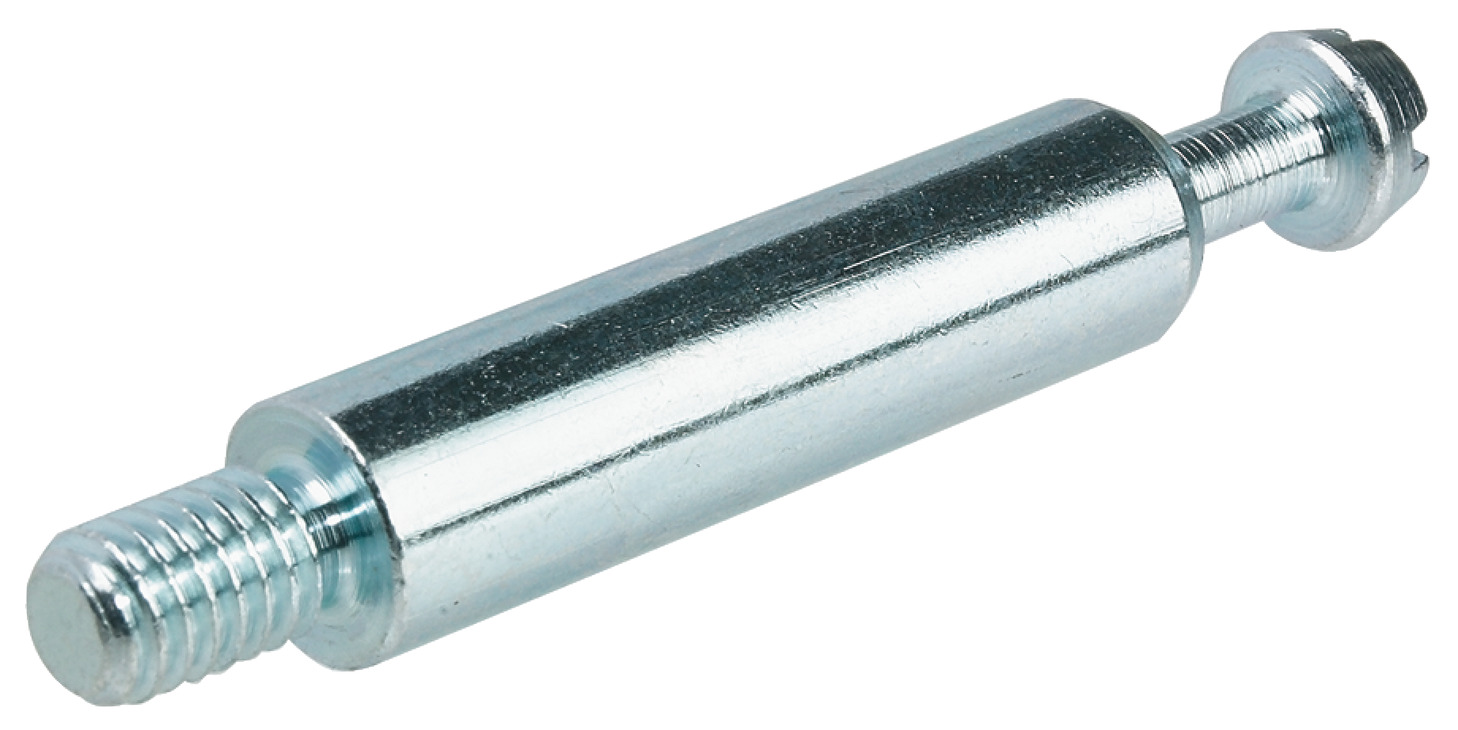

Connecting Bolt, Maxifix System with M6 or M8 Thread

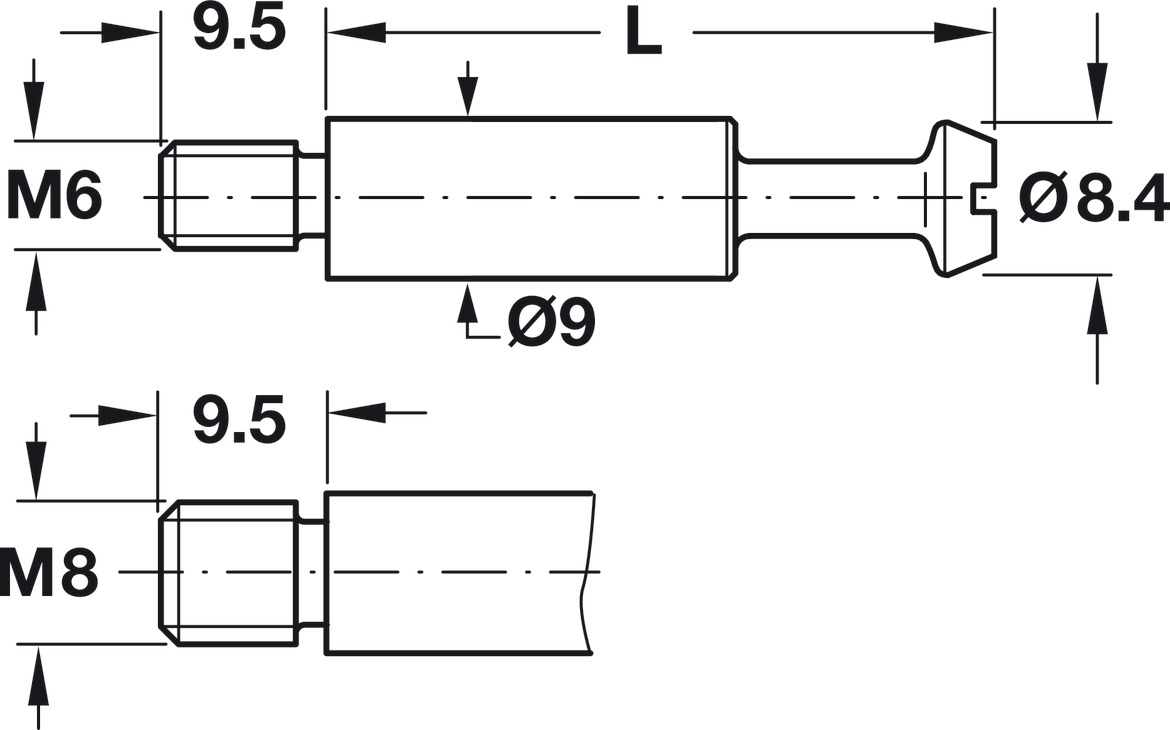

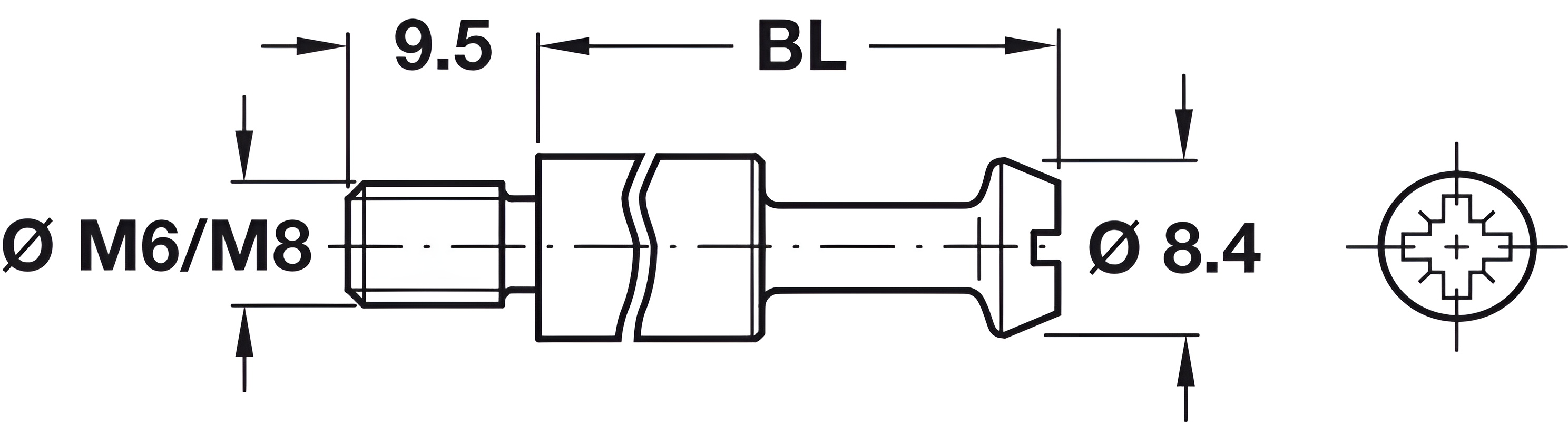

Bolt length: 28.5 mm
Area of application: For Maxifix 35
Bolt hole: 9.00 mm
Bolt length: 28.50 mm
Color/finish: zinc plated
Drilling dim.: 35.00 mm
Drive: PZ3 cross slot
Installation: Screw fixing into sleeves
Material: Steel
Thread: M6
Thread length: 9.50 mm
