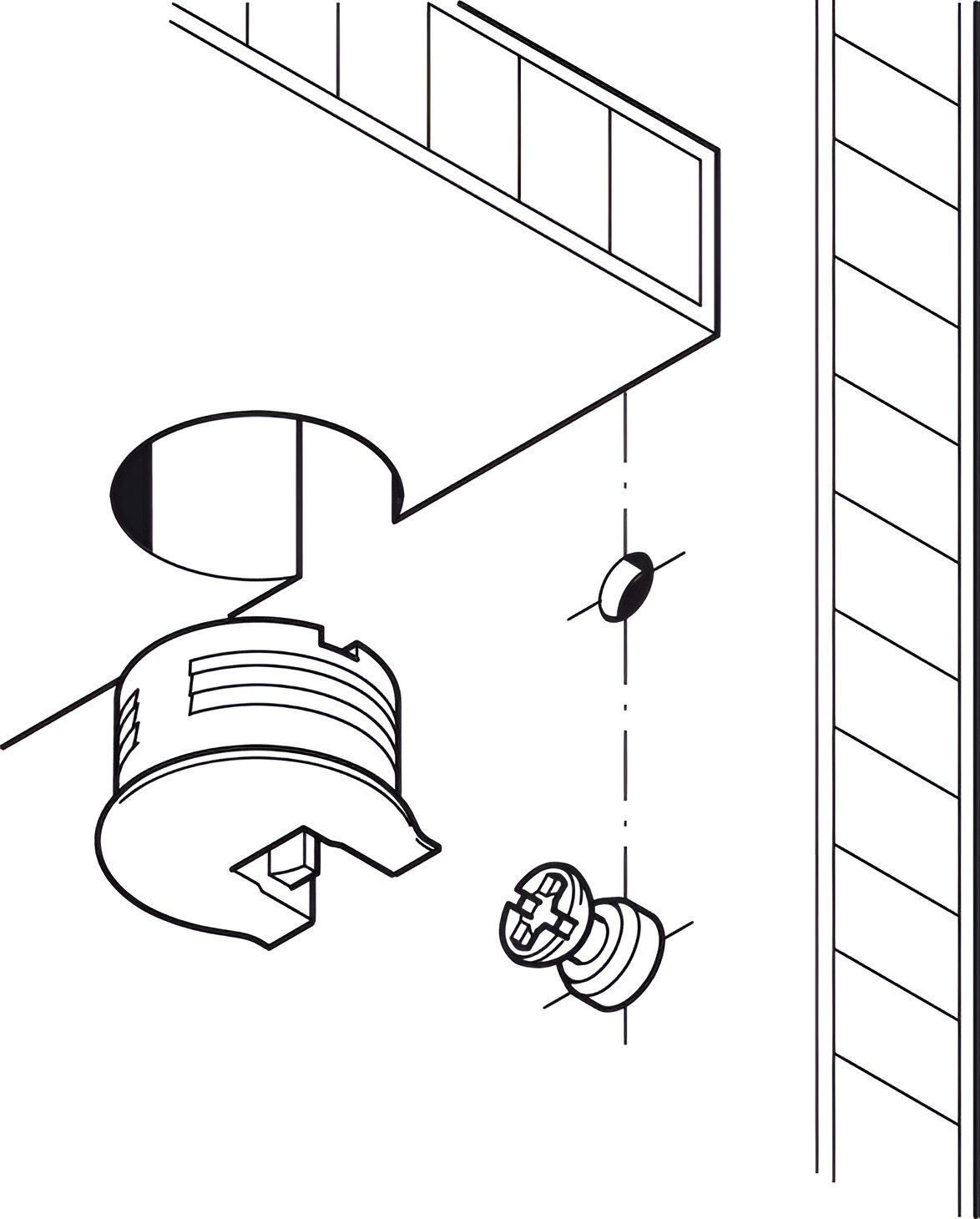

Hafele 263.09.132 Connector Housing, Rafix Tab 20 System offers a seamless solution for shelf connections with its innovative design. This connector housing is pressed into the shelf and easily attached to connecting bolts, providing a cost-effective method for establishing strong shelf support without the need for additional tightening elements. The tool-less installation is a standout feature, allowing the housing to be simply slid onto the bolt, ensuring a secure fit thanks to the angled tightening position. Designed for wood thicknesses of 19 mm or more, this product utilizes standard Rafix machining, making it versatile for various applications. The integrated lip effectively prevents shelf movement, enhancing stability and durability. It is essential to use additional Rafix connectors for taller components to avoid bulging, ensuring your shelves maintain their integrity over time. Finished in a sepia brown color (RAL 8014), the housing’s aesthetic aligns well with modern décor trends. With a drill hole diameter of 20 mm and a drilling depth of 12.7 mm, this connector housing is crafted from durable plastic, making it both practical and reliable. Ideal for building professionals and discerning homeowners, the Hafele 263.09.132 connector housing is an essential addition to any shelving system.
Connector Housing, Rafix Tab 20 System
Brown 19mm
Additional Rafix connectors are required for high components in order to prevent "bulging". The colours shown are similar to RAL colours and are as close as possible to the actual standard colours. The colour shades may vary slightly due to production reasons.
Area of application: Shelf connector

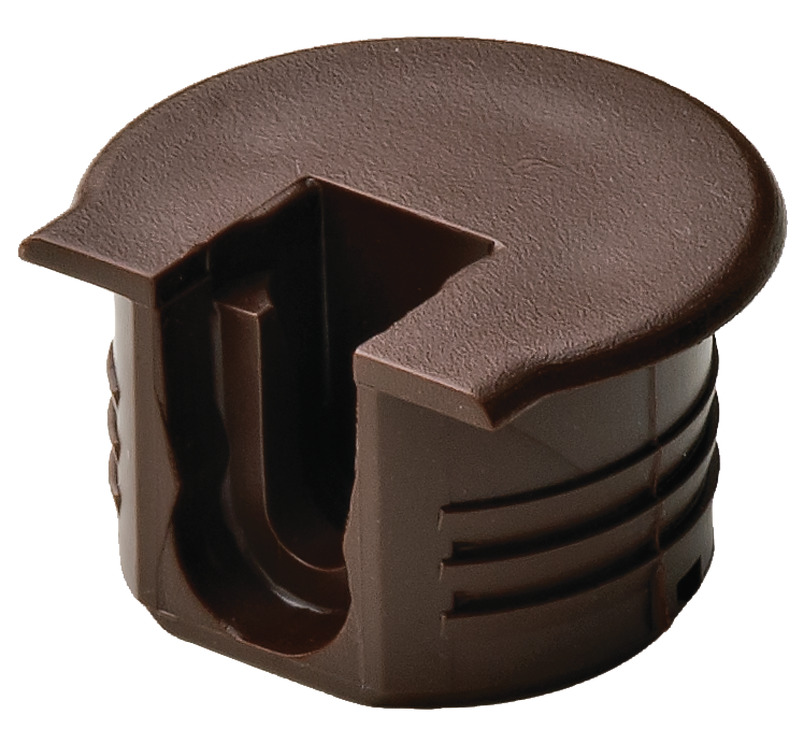

Color/finish: Sepia brown, RAL 8014

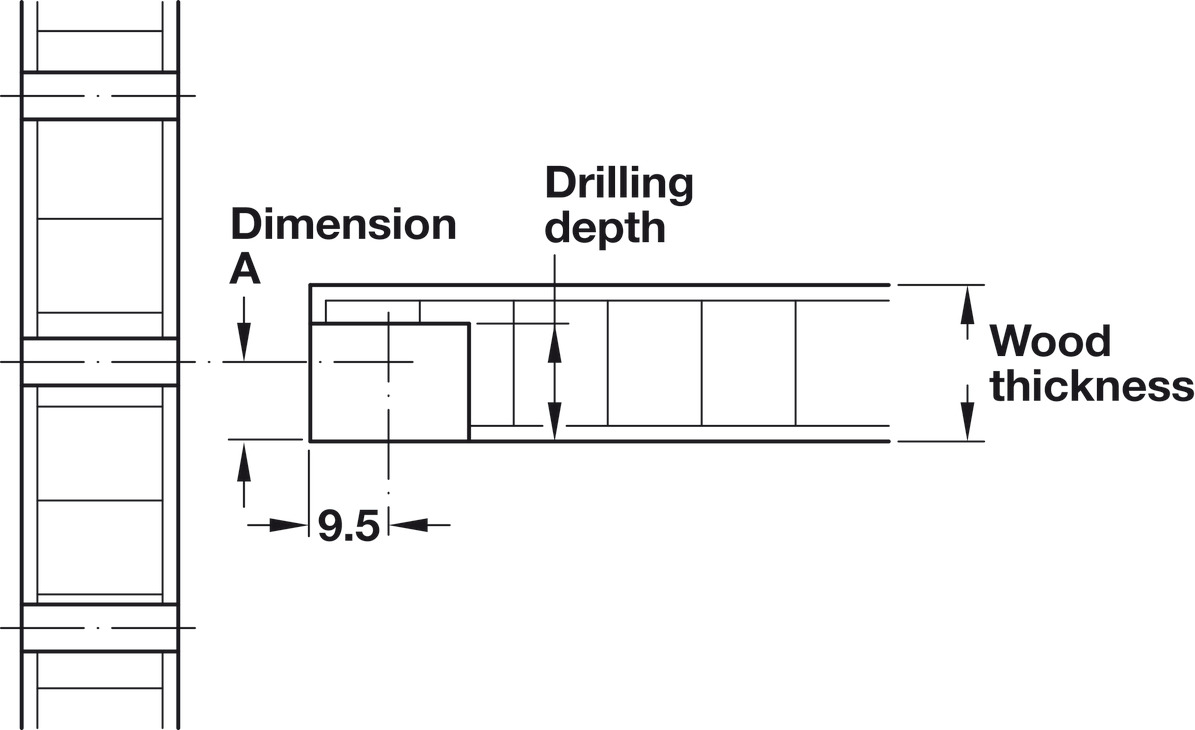

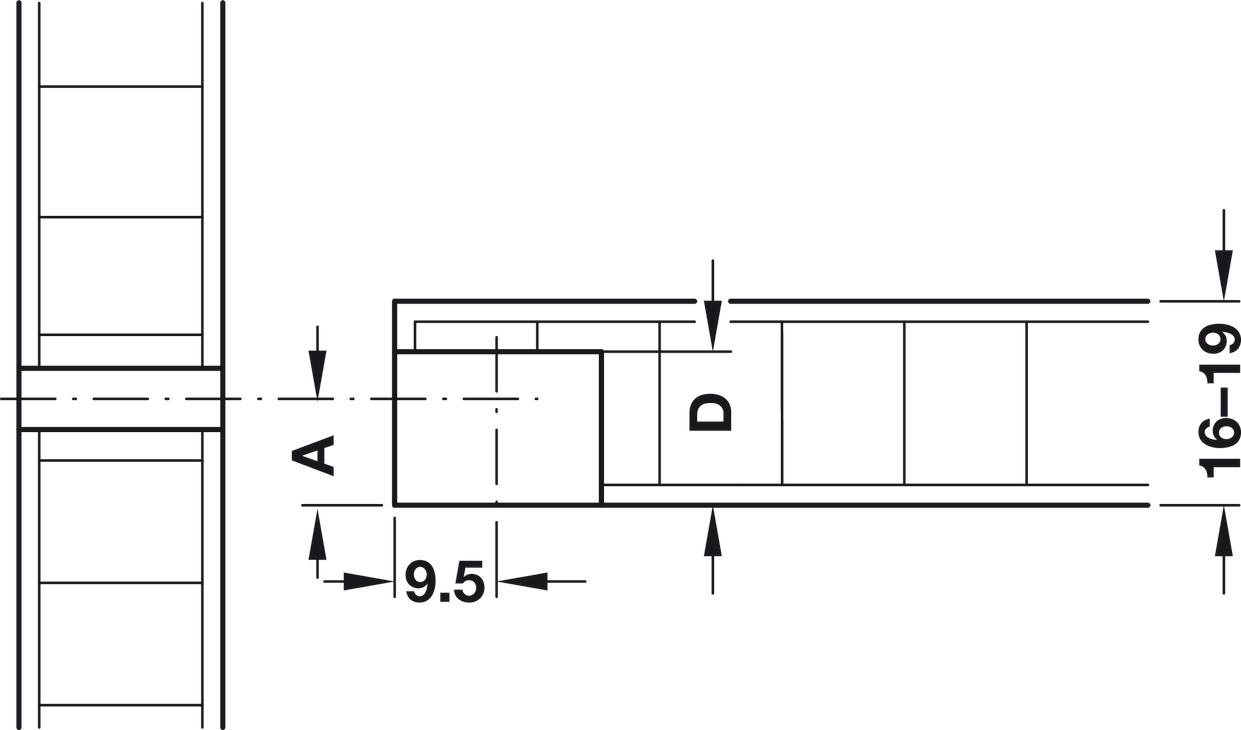

Dim. A: 8.00 mm
Drill hole Ø housing: 20.00 mm

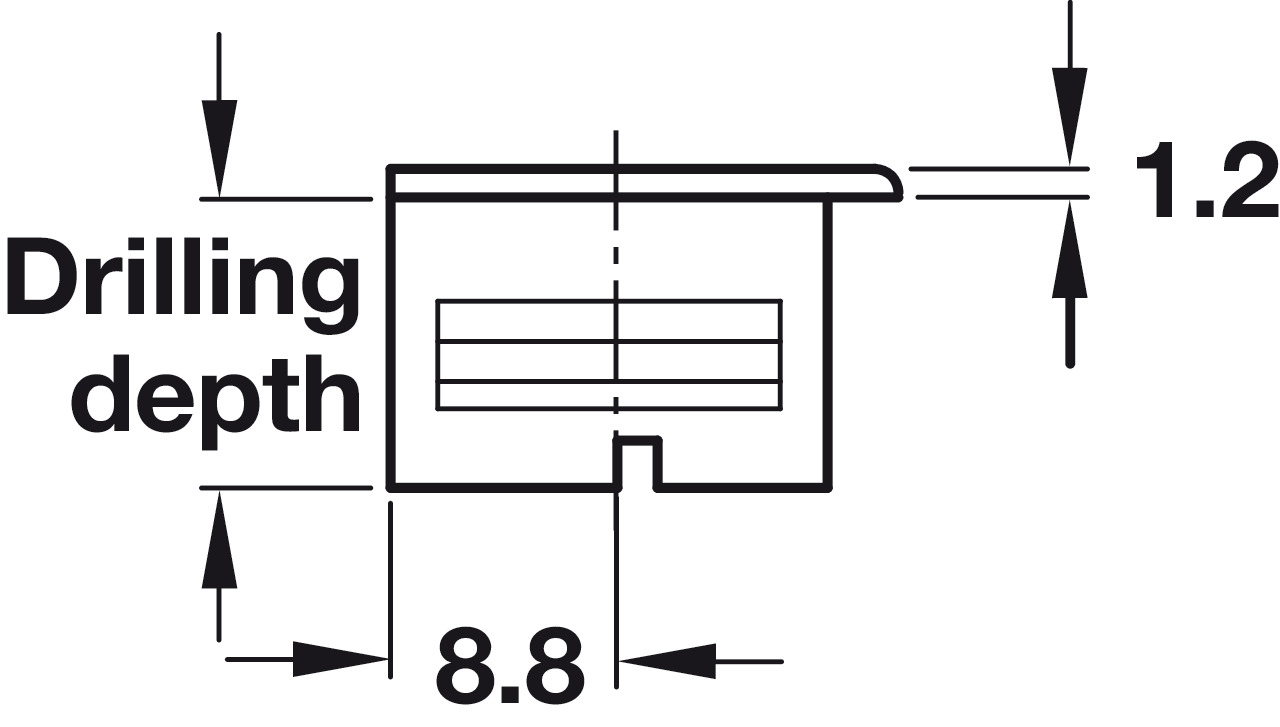

Drilling depth: 12.7 mm
Features: with rim, with ridge, Without tightening element
For wood thickness: ≥19 mm
Installation: Without tools
Material: Plastic
