Hafele 263.14.305 Connector Housing is a robust and versatile component designed for the Rafix 20 system, expertly crafted from durable plastic with a zinc alloy tightening element. This connector housing is ideal for wood thicknesses of up to 19 mm, ensuring a secure fit and reliable performance in various applications. With a diameter of 20 mm, this connector housing features a drilling depth of 12.7 mm plus an allowance of 1.5 mm, facilitating easy installation. The PZ2 cross slot drive allows for efficient tightening, making it user-friendly for both professionals and experienced DIYers. Notably, the design includes a rim and ridge, enhancing stability and ensuring a snug connection, while the absence of a dowel simplifies the assembly process. Offered in a sleek black finish, this connector housing not only meets functional requirements but also complements modern aesthetics. The colors are designed to closely resemble RAL standards, although slight variations may occur during production. Hafele’s commitment to quality and innovation is evident in this product, making it a reliable choice for furniture fittings and architectural hardware. The 263.14.305 Connector Housing is an excellent addition to any project requiring sturdy and dependable connections.

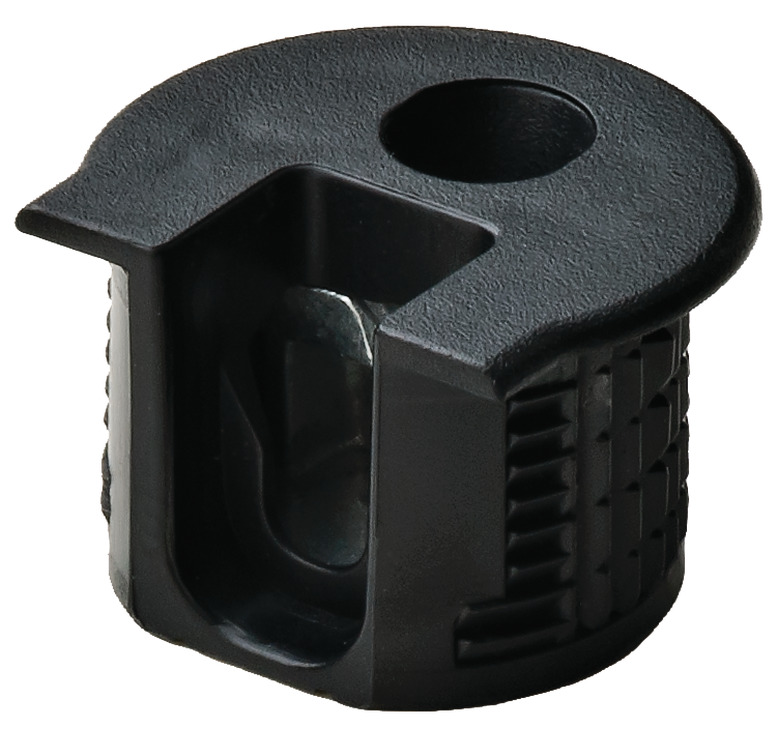

Connector Housing, Rafix 20 system, plastic
with Tightening Element, For wood thickness 19 mm, black
The colors shown are similar to RAL colors and are as close as possible to the actual standard colors. The color shades may vary slightly due to production reasons.
Color/finish: Black
Dim. A: 9.50 mm
Drill hole Ø housing: 20.00 mm
Drilling depth: 12.7 mm +1.5 mm
Drive: PZ2 cross slot
Features: with rim, with ridge, with tightening element, without dowel
For wood thickness: ≤19 mm
Material: Plastic, Tightening element: Zinc alloy
Ridge: with
