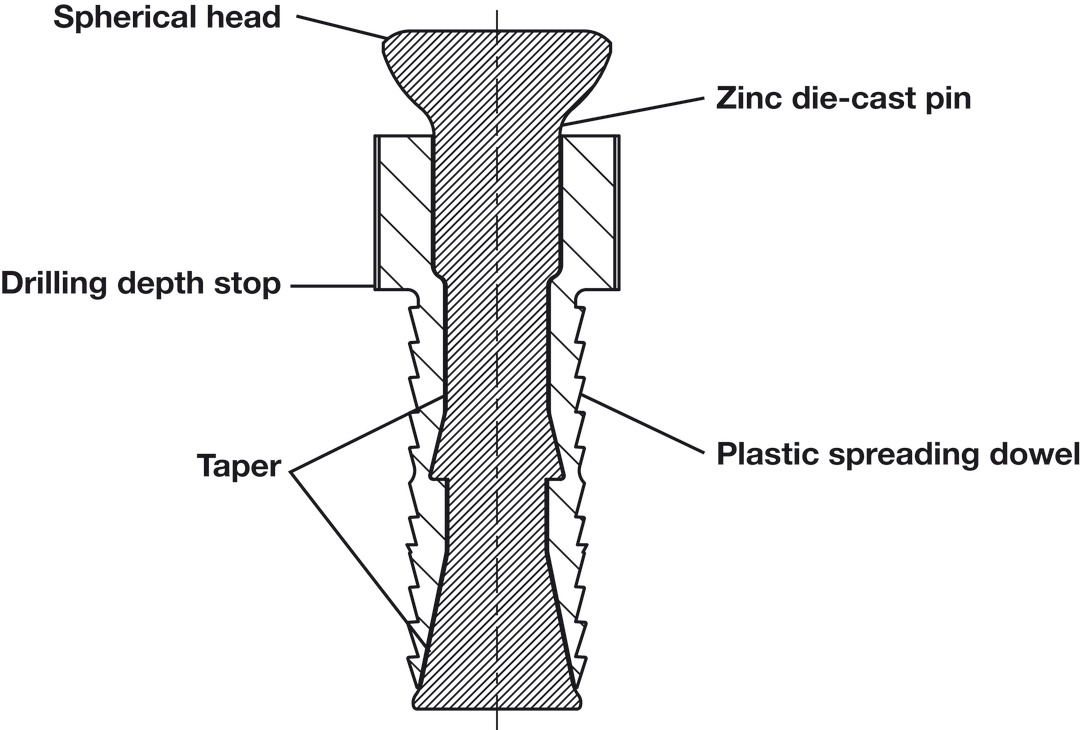

Hafele 263.20.313 Spreading Bolt, Hafele Rafix C20 offers a reliable solution for securing panel surfaces without causing damage upon removal. Designed specifically for a 5 mm drill hole, this spreading bolt features a depth stop that guarantees consistent positioning, ensuring precision in every application. The tool-less insertion and removal process simplifies assembly, allowing for quick adjustments without the need for additional equipment. The spreading sleeve is easily inserted into the drill hole by hand, and when the Rafix housing is pulled, it effectively spreads and secures the wall plug, providing stability and strength. Constructed from durable plastic and zinc alloy, this spreading bolt is not only robust but also lightweight, making it an ideal choice for various applications. With a drilling depth of 12.5 mm +1 mm and a thread length of 12.00 mm, it meets the specific requirements for use with Rafix housing featuring a ridge. Whether you're a building professional or a knowledgeable homeowner, the Hafele 263.20.313 Spreading Bolt delivers exceptional performance and ease of use. Designed for efficiency, it supports a seamless installation process, enhancing the overall quality of your projects. This product ships via UPS, ensuring timely delivery to meet your needs.

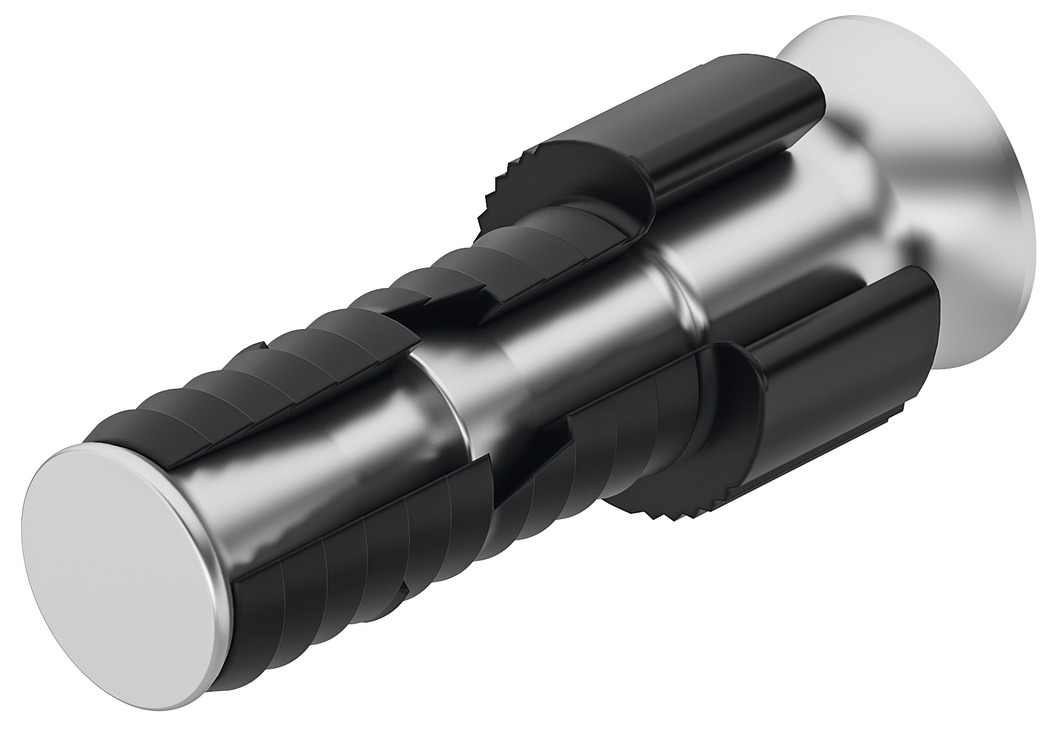

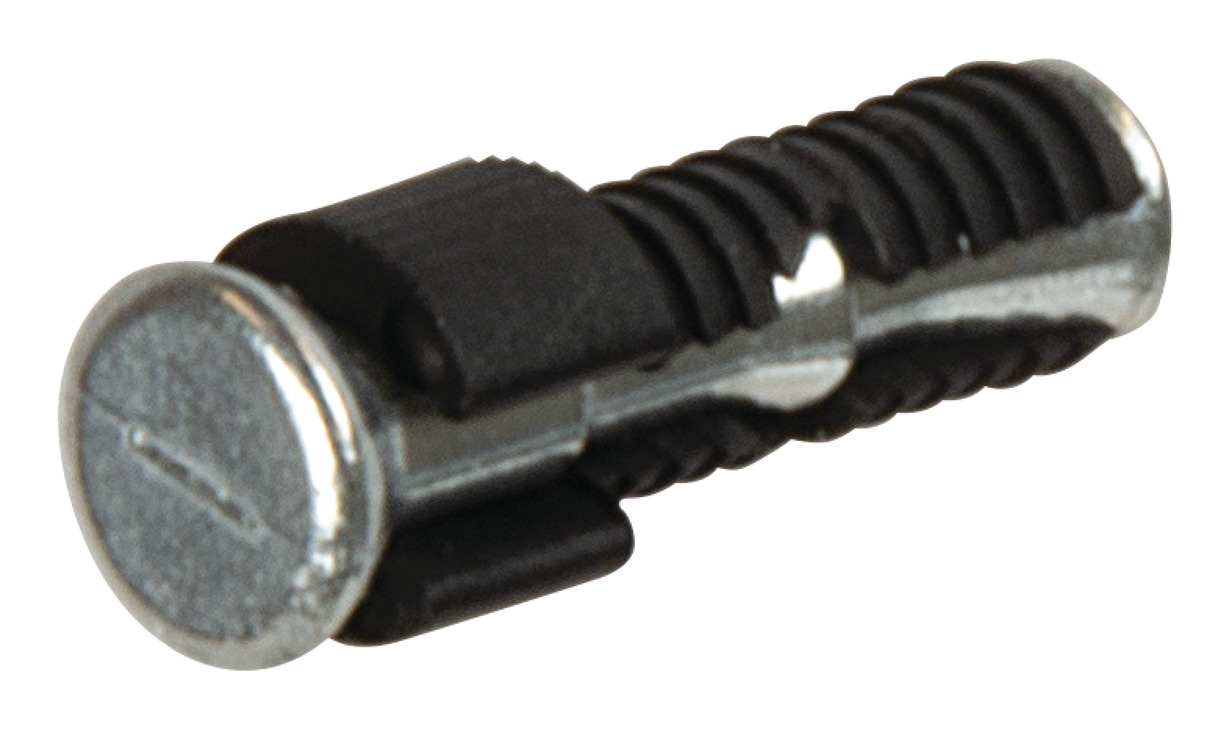

Spreading Bolt, Hafele Rafix C20
For 5 mm drill hole
Area of application: For Rafix housing with ridge

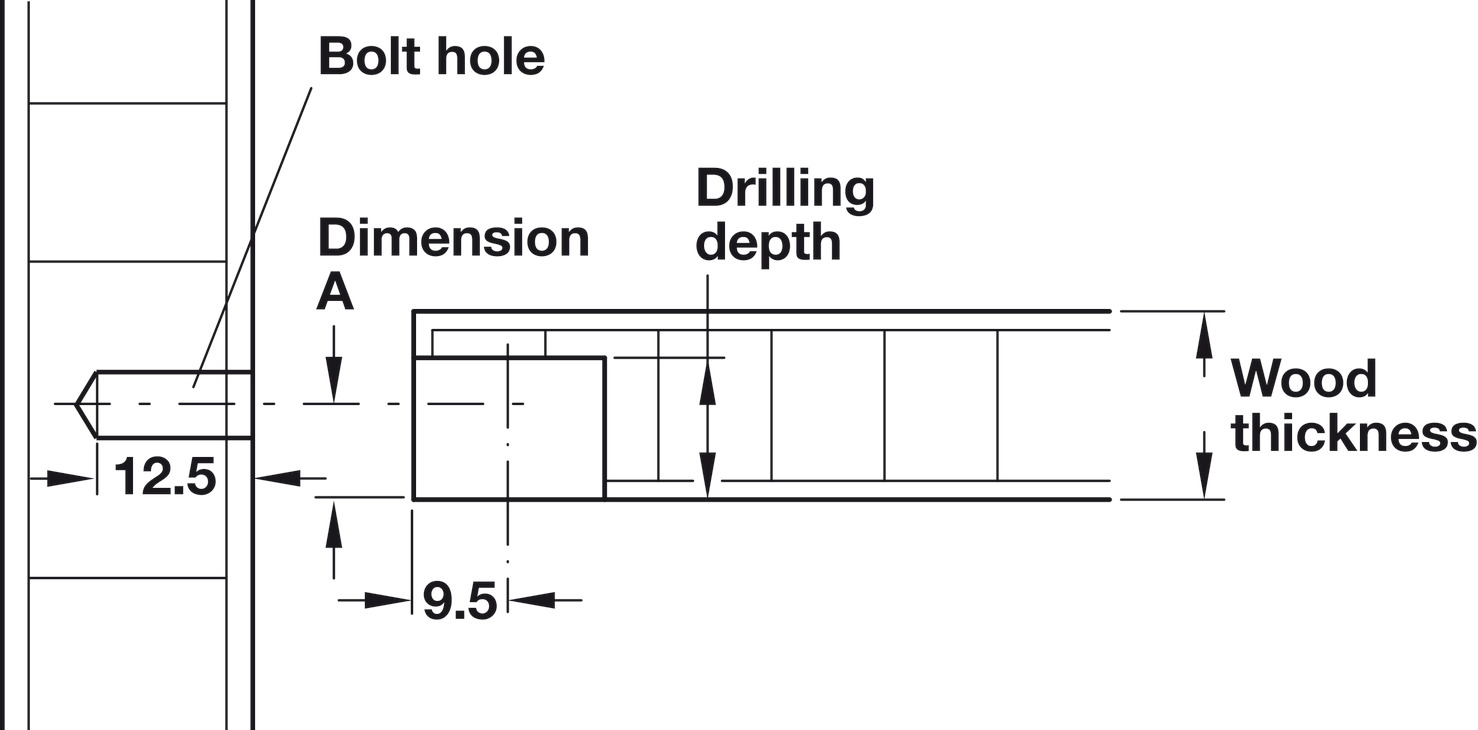

Drilling depth: 12.5 mm +1 mm

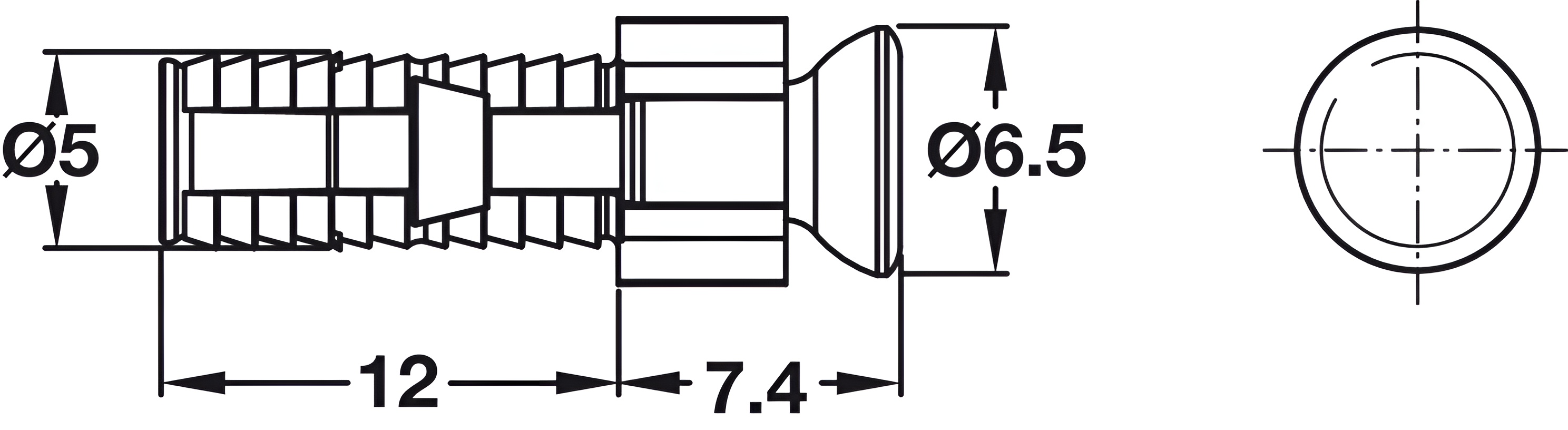

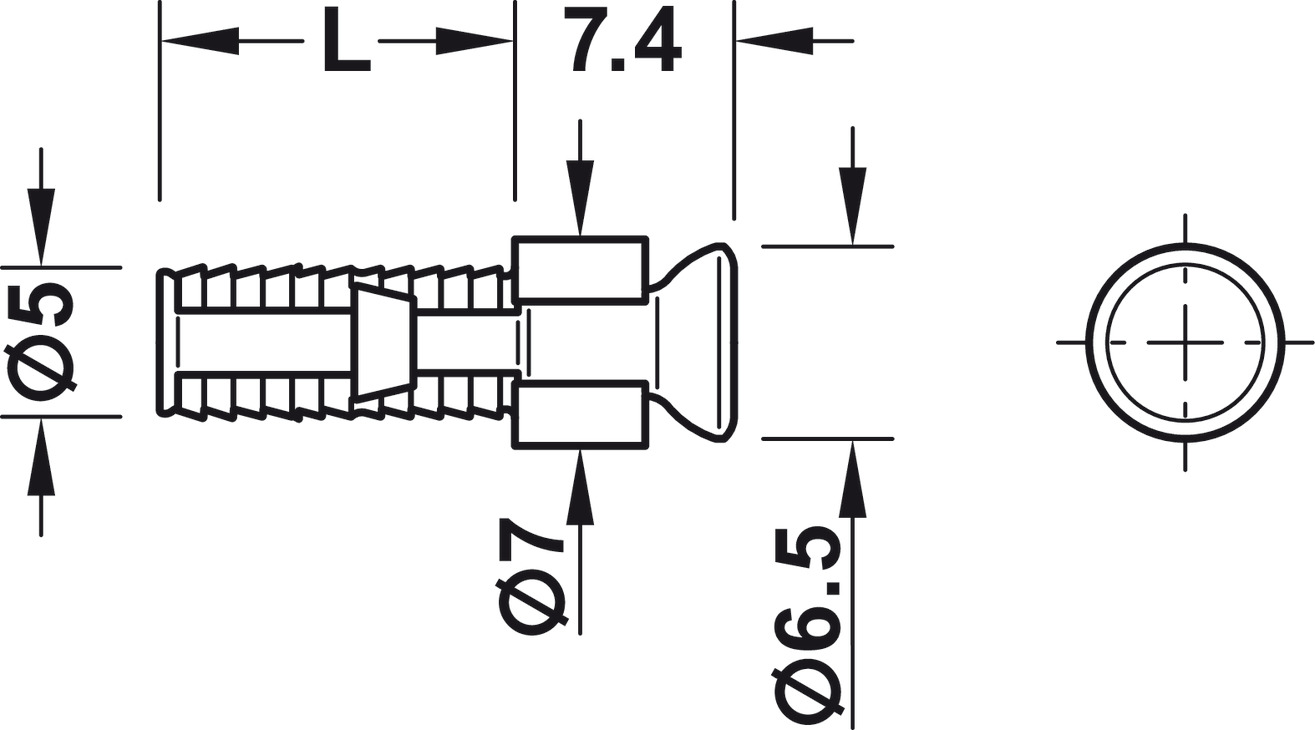

For drill hole Ø: 5.00 mm
Installation: Insert spreading sleeve into the drill hole by hand as far as it will go. Pulling the Rafix housing spreads and secures the wall plug. For dismantling, press the bolt back into the wall plug and pull it out the drill hole together with the spreading sleeve.
Material: Plastic, Zinc alloy
Thread length: 12.00 mm
