Hafele 282.01.505 Shelf Support, 7 mm is engineered to provide robust support for wooden shelves, ensuring stability and reliability in various applications. Crafted from high-quality steel and finished with a brass plating, this shelf support combines durability with an elegant appearance, making it suitable for both functional and aesthetic purposes. With a load-bearing capacity of 100 kg (220 lbs) when using four supports, this product complies with the stringent standards outlined in DIN EN 1727:1998-06, ensuring peace of mind for your shelving solutions. The 7 mm diameter drill hole requirement allows for easy installation, making it a convenient choice for any project. The pin length of 9 mm and a support size of 0.50 mm provide a secure fit within the drilled hole, while the insert fitting design simplifies the installation process. Ideal for a variety of settings, from residential to commercial spaces, the Hafele 282.01.505 Shelf Support is a reliable choice for ensuring that your shelves not only look great but can also withstand substantial weight. Whether you're designing a custom shelving unit or upgrading existing furniture, this shelf support delivers the strength and style needed to enhance any environment.

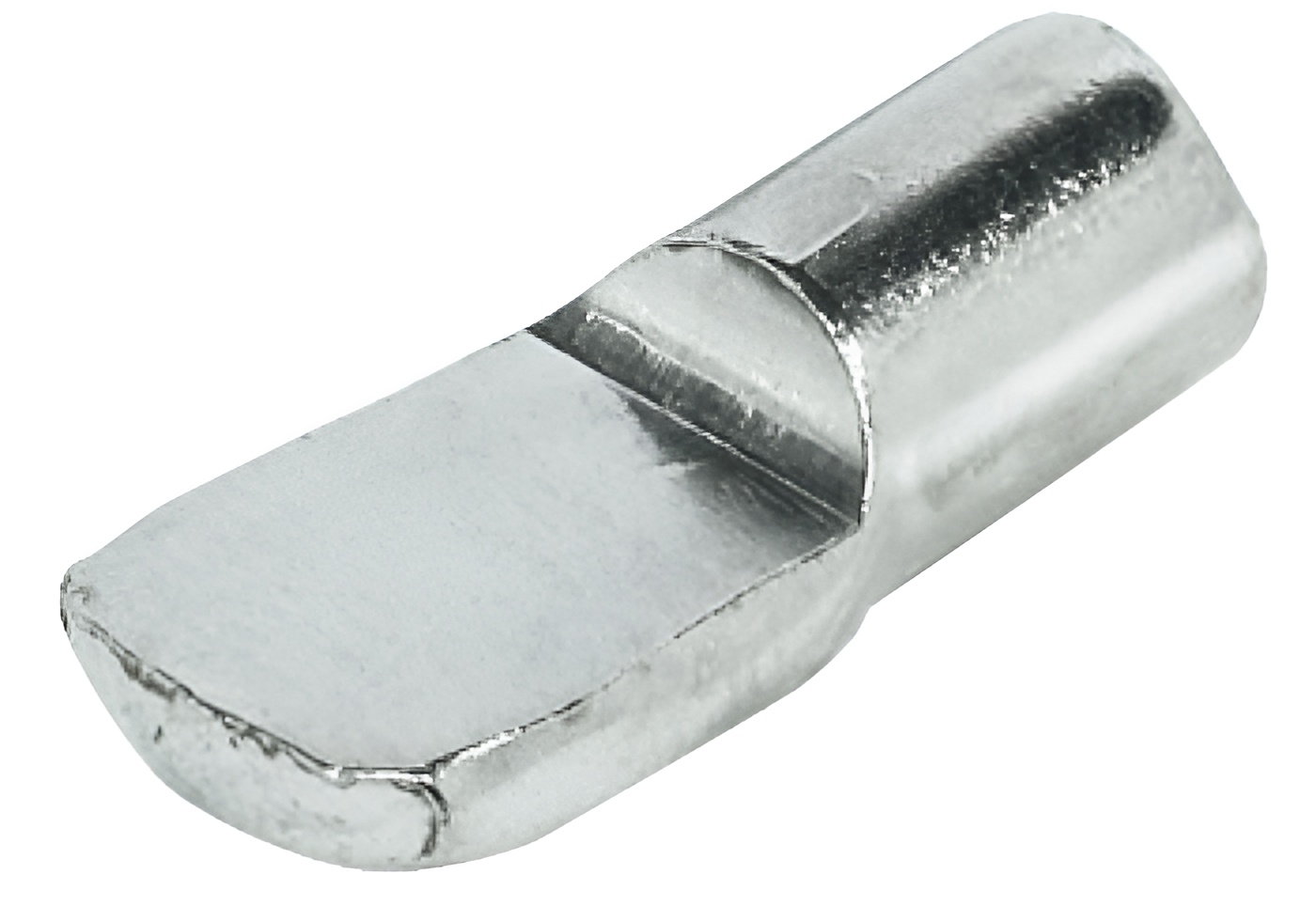

Shelf Support, 7 mm
Steel, load-bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06), Brass-plated
Area of application: for wooden shelves
Color/finish: brass plated
For drill hole Ø: 7.00 mm
Installation: For insert fitting
Installation reference: for inserting into drill hole Ø 7 mm or sleeve
Load bearing capacity: 220 lbs
Load bearing capacity with 4 shelf supports: 100.00 kg
Material: Steel
Note on load bearing capacity: recommended load-bearing capacity
Pin length: 9.00 mm
Support size: 0.50 mm
Version: load bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)
