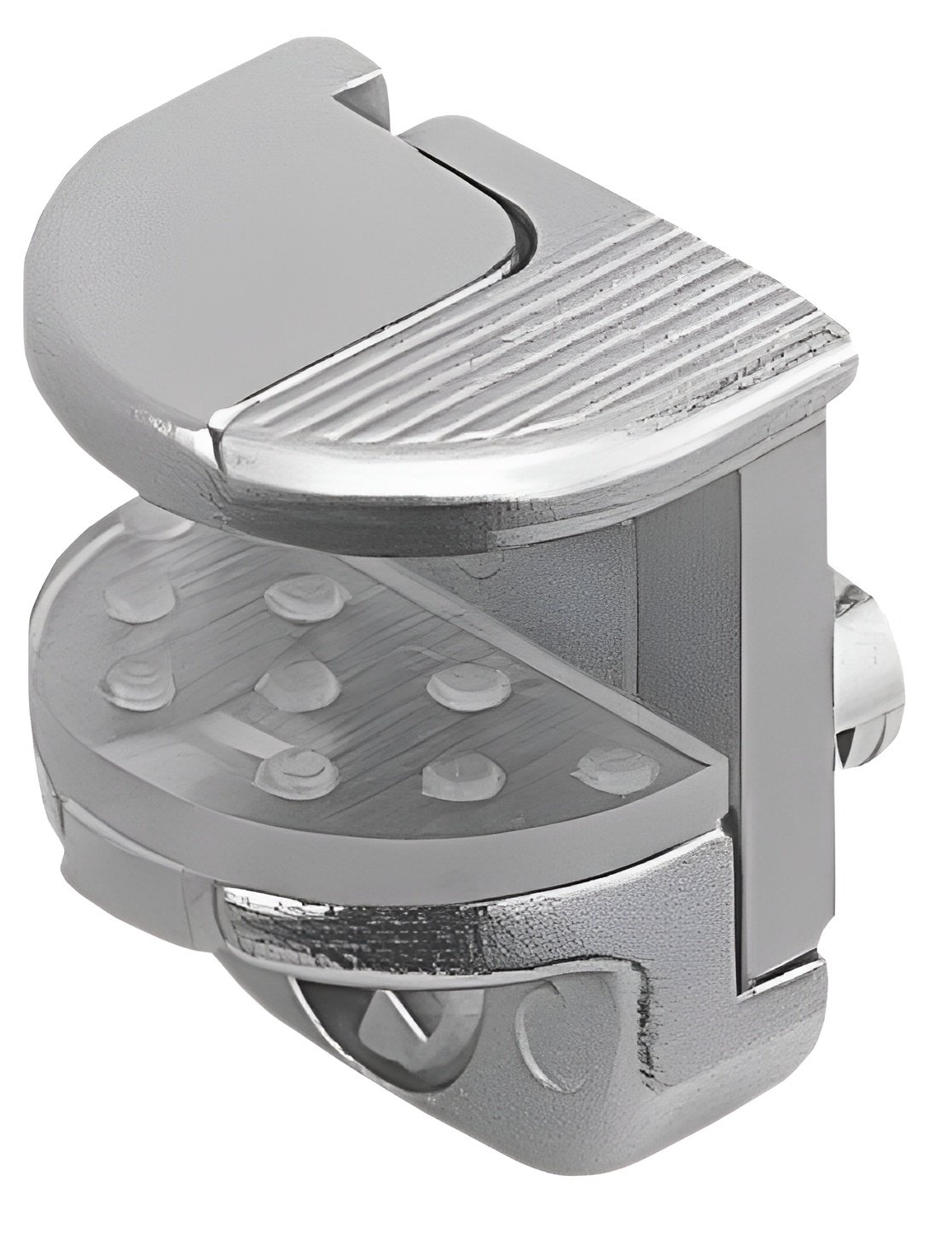

Hafele 282.13.712 Glass Shelf Support for Glass Thickness of 8/10/12 mm is designed to provide robust and reliable support for your glass shelving needs. Constructed with a sleek nickel plating, this shelf support not only enhances durability but also adds a touch of elegance to your interior spaces. The support is specifically designed for glass thicknesses of 8 mm, 10 mm, and 12 mm, accommodating a variety of applications in both residential and commercial settings. For optimal installation, the shelf width should be 6 to 7 mm less than the inside cabinet width, ensuring a perfect fit. The support requires a pre-drilled hole with a diameter of 5.00 mm for insertion and tightening. With a pin length of 9.00 mm and a support size of 7.00 mm, it provides a secure hold for your glass shelves, allowing you to display items with confidence. The Hafele 282.13.712 is an excellent choice for those seeking a reliable and stylish solution for glass shelving. Its plug fitting installation means you can quickly and easily set up your shelves, making it a practical addition to your furniture fittings collection. Plus, it ships conveniently via UPS, ensuring prompt delivery to your project site.
Glass Shelf Support for Glass Thickness of 8/10/12 mm

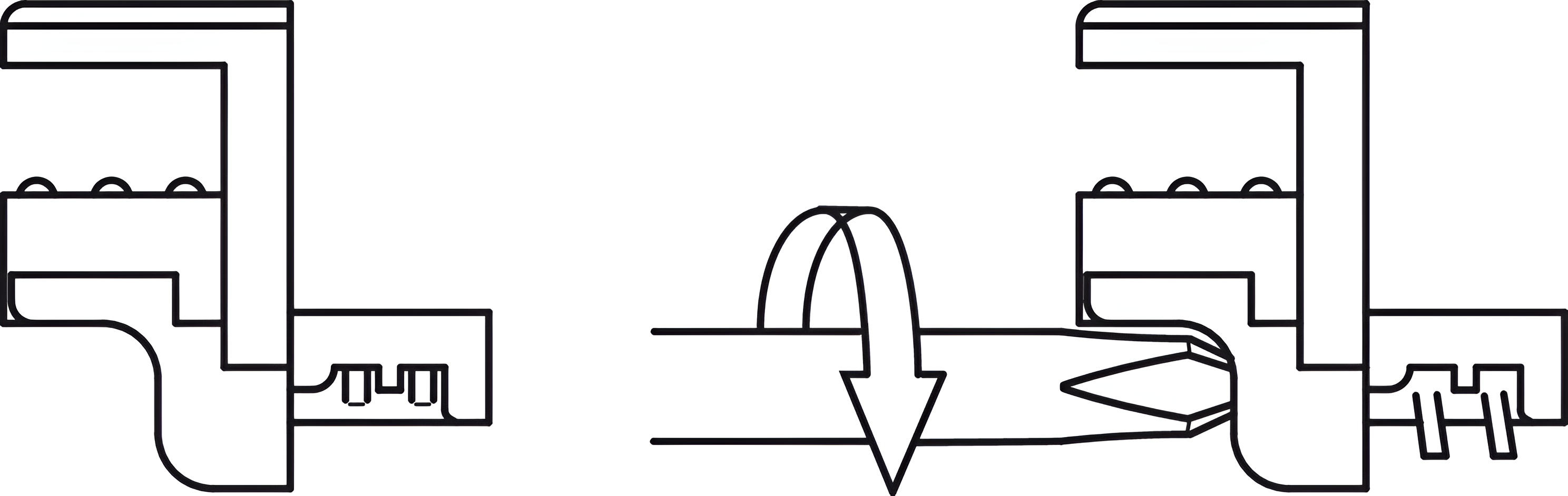

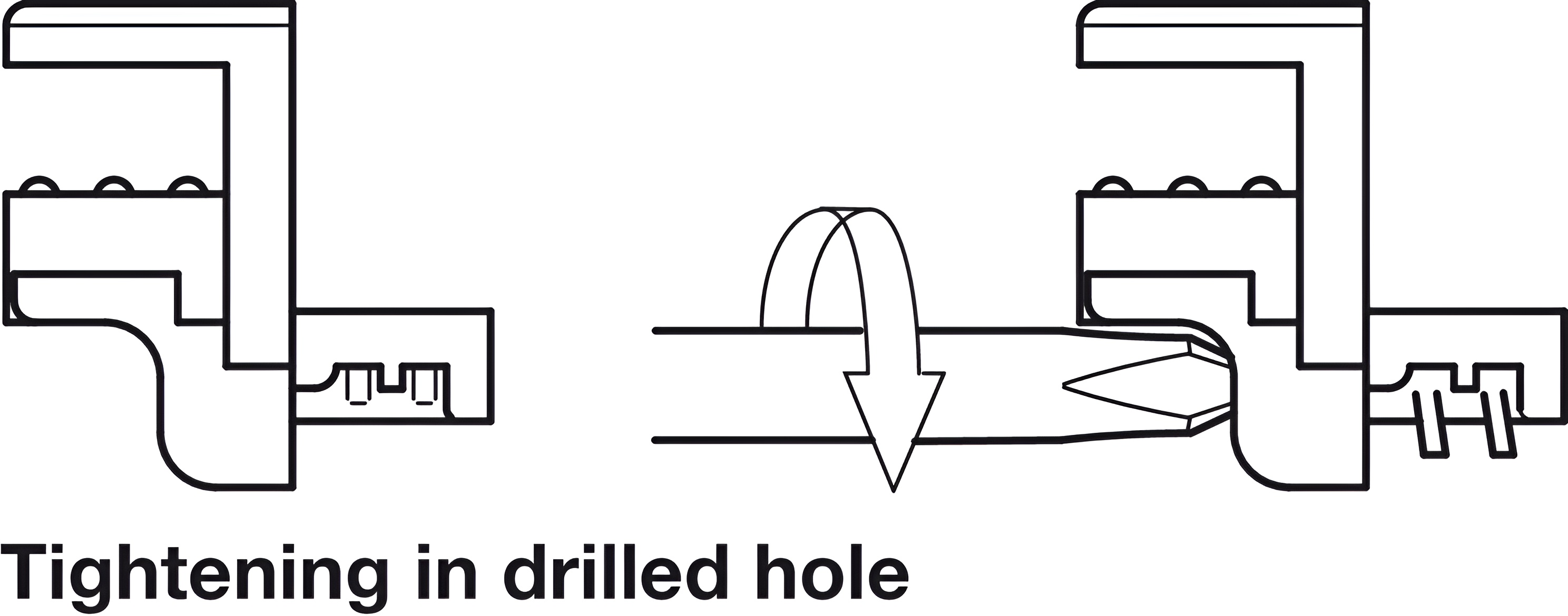

For insertion and tightening in a pre-drilled hole, Nickel plated
Area of application: for glass shelves

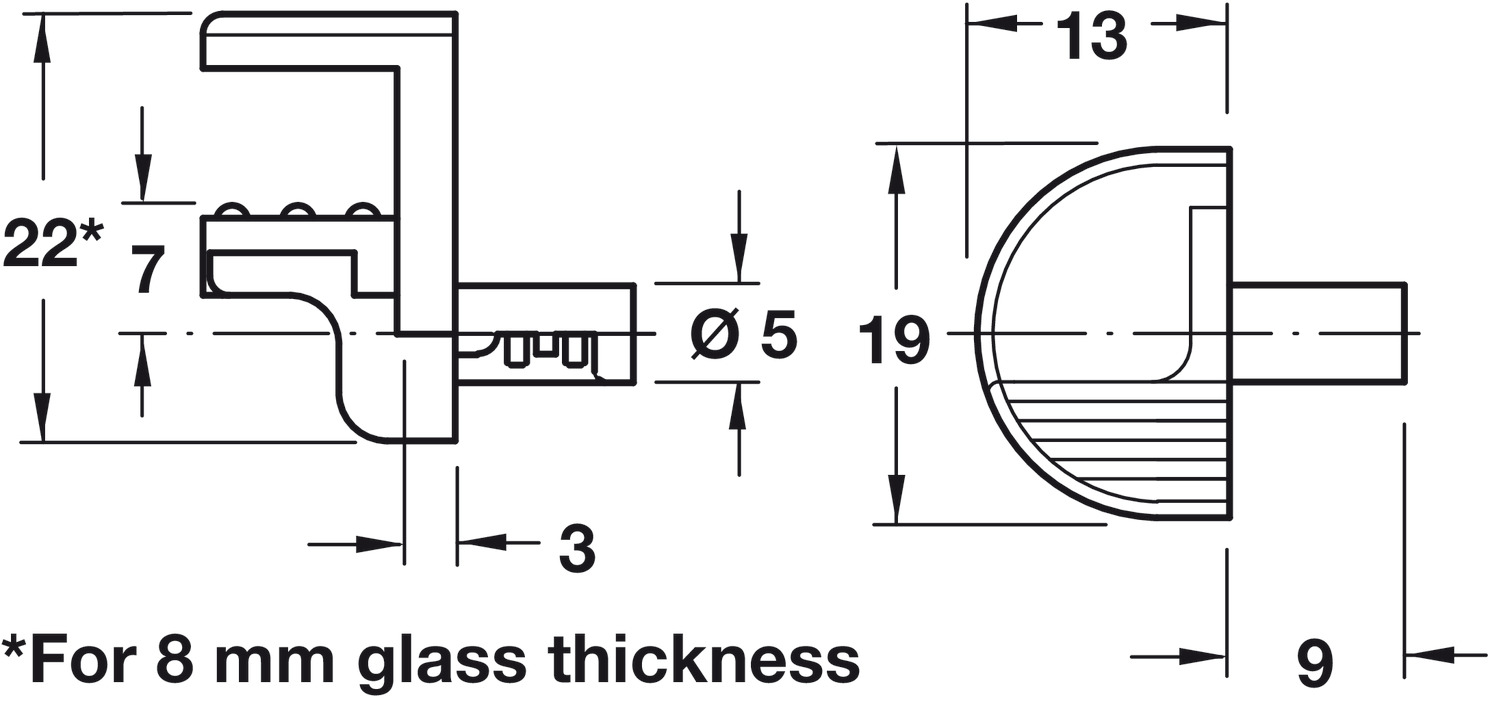

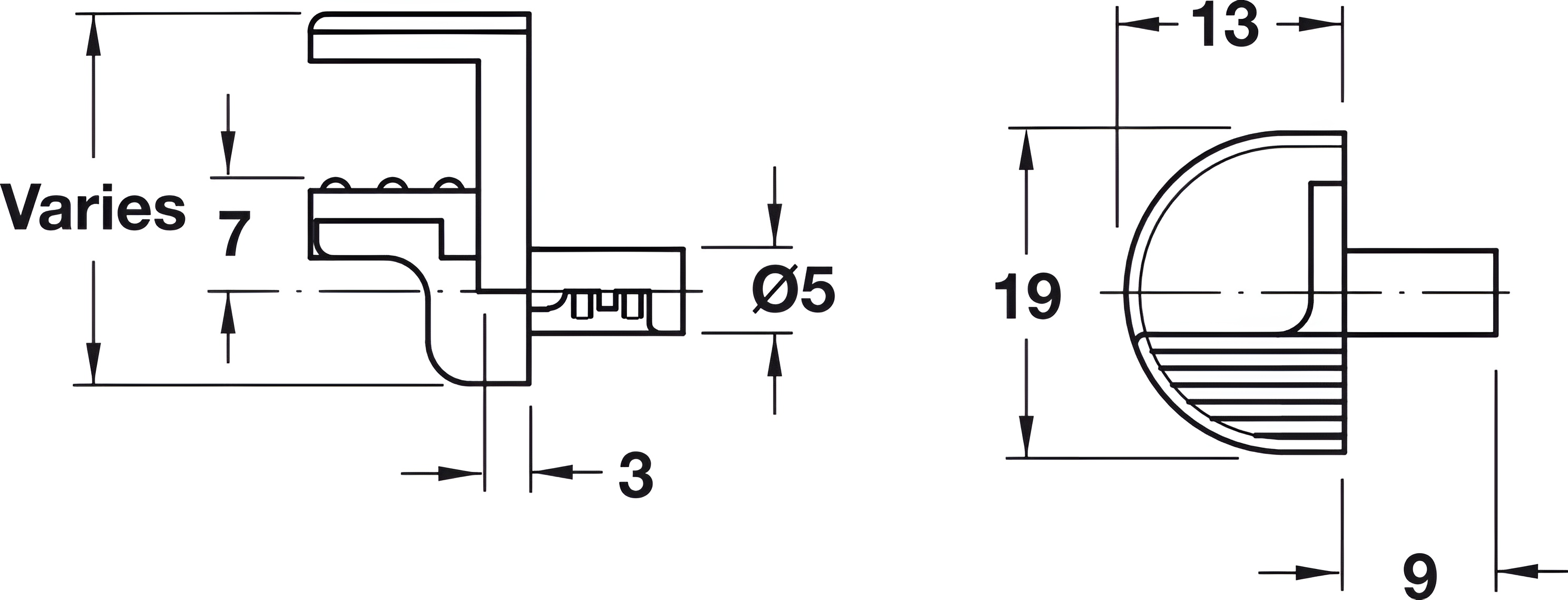

For drill hole Ø: 5.00 mm
For glass thickness: 8–12 mm
Installation: Plug fitting
Pin length: 9.00 mm
Support size: 7.00 mm
