Hafele 287.41.915 Hinged Spring Bracket offers a robust solution for extending tables and worktops, making it an ideal choice for both residential and commercial applications. Constructed from durable steel and finished in yellow chromatized, this bracket combines strength with an appealing aesthetic. With dimensions of 380 x 25 x 120 mm, it provides a compact yet effective support mechanism. Designed for easy installation, the bracket features a folding design with a spring-loaded locking mechanism, ensuring stability while in use. Each bracket can bear a load capacity of 20 kg, while a pair can support up to 40 kg (approximately 88 lbs). It's important to note that these load capacities are based on static testing and can vary depending on the application and weight distribution. The Hafele 287.41.915 is versatile enough to enhance the functionality of your furniture without compromising style. Whether you're looking to maximize space in a small kitchen or create flexible work areas, this hinged spring bracket delivers reliable performance. Trust in Hafele's expertise to provide innovative solutions that meet the demands of modern living while maintaining a professional appearance.

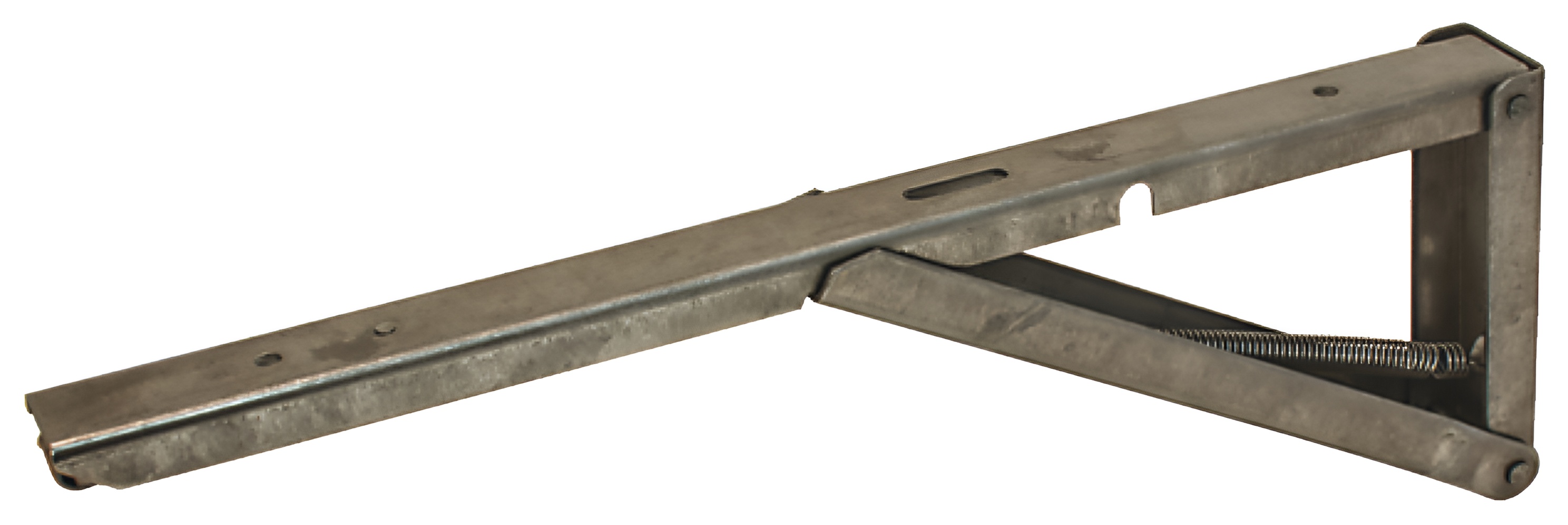

Hinged Spring Bracket, 40 kg

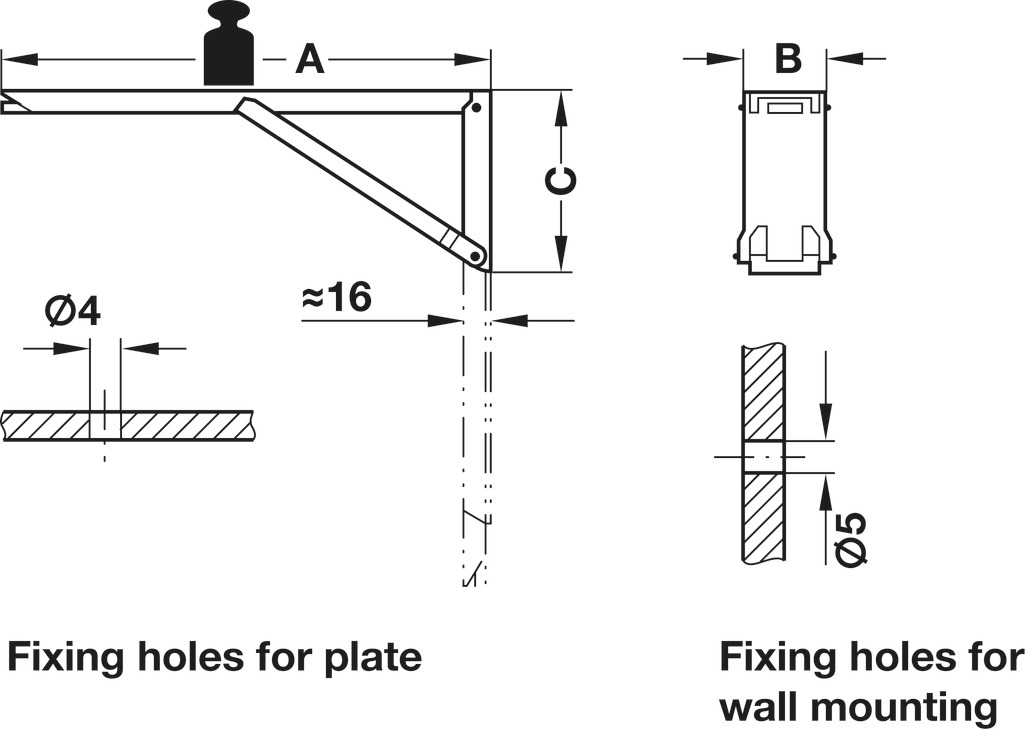

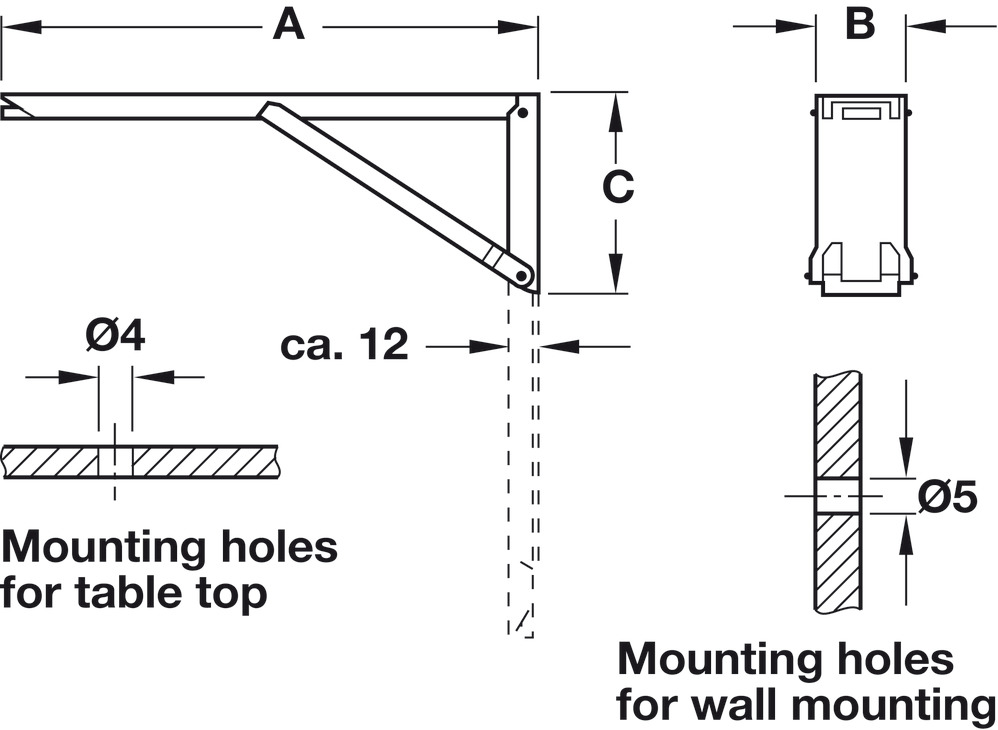

Steel, Dim. (A x B x C): 380 x 25 x 120 mm, yellow chromatized
Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

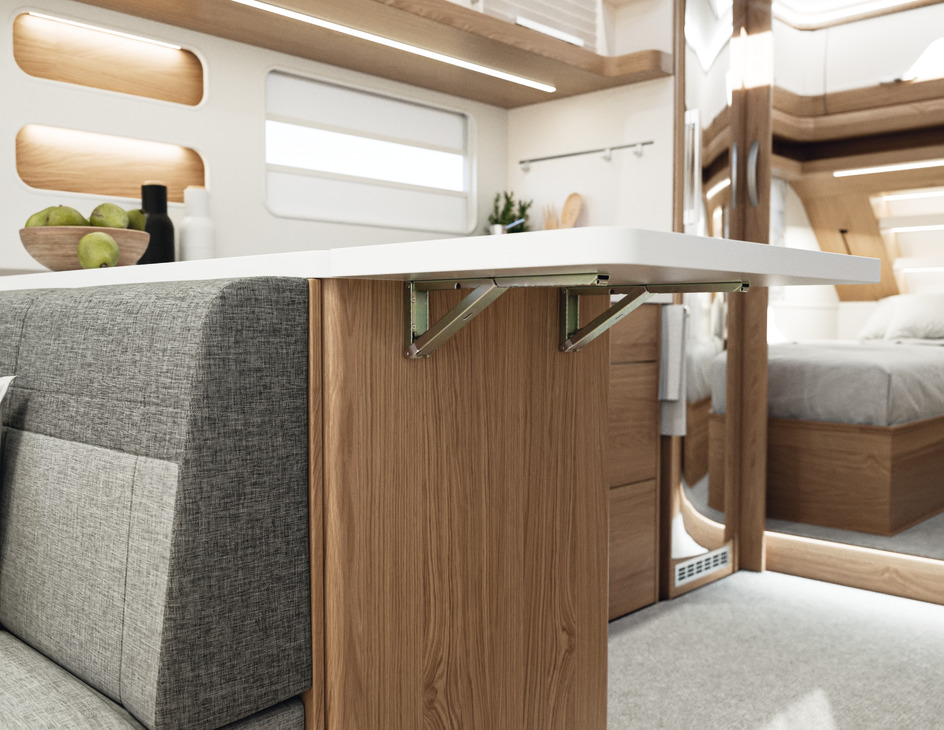

Area of application: For extending tables and worktops
Color/finish: yellow chromatized
Depth: 380.00 mm
Height: 120.00 mm
Installation reference: Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.
Load bearing capacity: Per pair: 88 lbs
Load bearing capacity per item: 20.00 kg
Load bearing capacity per pair: 30.00 kg
Material: Steel
Note on load bearing capacity: Per pair: (88 lbs.) 40
Order reference: Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

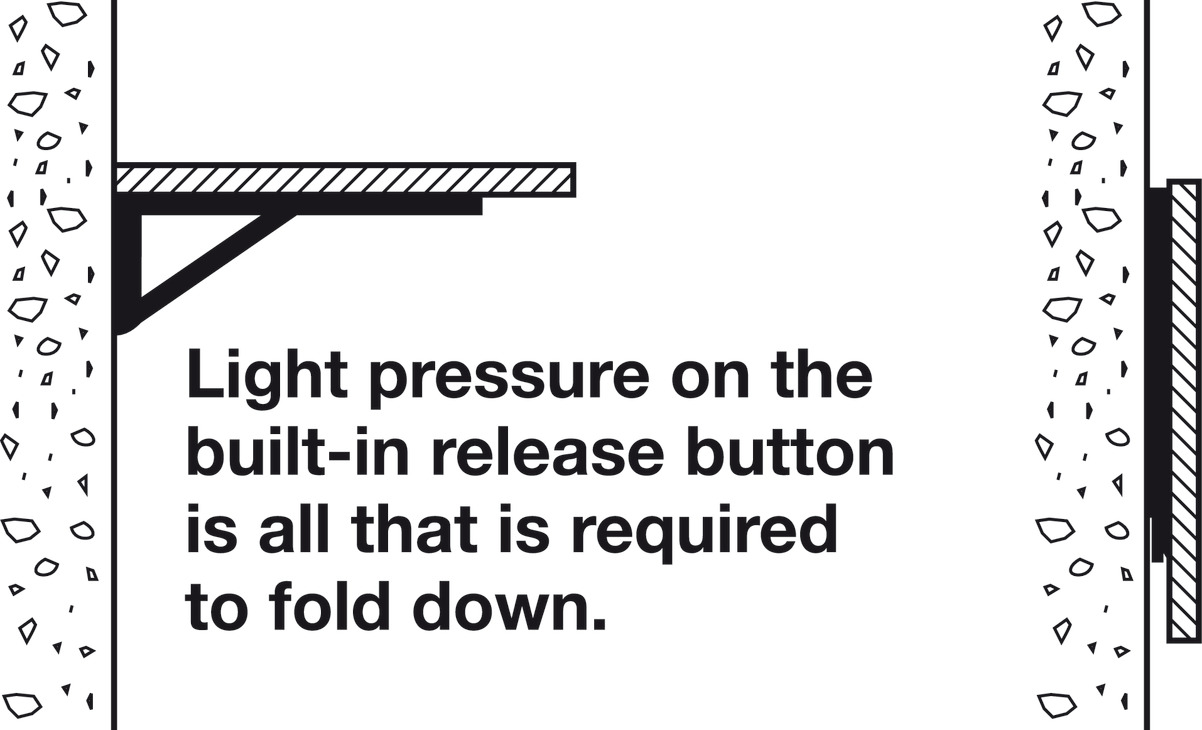

Version: Folding, With locking mechanism via spring loaded support
Width: 25.00 mm
