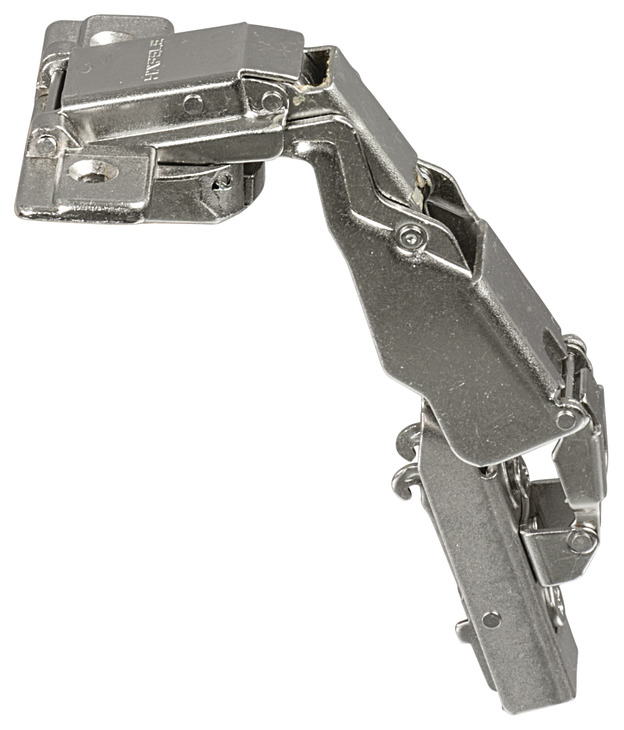

Hafele 315.02.701 Wide Angle Clip-On Hinge offers an impressive opening angle of 165°, making it an excellent choice for maximizing accessibility in cabinetry. Designed for half overlay applications, this hinge facilitates seamless integration into your furniture projects. The soft-close mechanism ensures that doors close gently and quietly, enhancing the overall user experience. This hinge features a concealed twin design and cranked type, ensuring both functionality and aesthetics are prioritized. With a cup drilling depth of 11.50 mm and a diameter of 35.00 mm, it allows for easy installation with screw fixing. The door processing requires cup drilling, aligning perfectly with standard drilling patterns of 45/9.5, which simplifies assembly. For added versatility, the 315.02.701 hinge includes a 3-dimensional adjustment facility when paired with the appropriate mounting plate, enabling precise alignment for perfect door closure. The automatic closing spring works in tandem with the soft-close feature, providing a robust and reliable locking function. Whether you are a building professional or a knowledgeable homeowner, this hinge ensures durability and ease of use, making it a smart choice for any cabinetry project. With shipping available via UPS, incorporating this hinge into your designs has never been easier.
Wide Angle Clip-On Hinge, Opening Angle 165, Half Overlay
Soft-Close
Adjustment facility: 3-dimensional (with appropriate mounting plate)
Concealed hinge version: twin
Crank type: Cranked
Cup drilling depth: 11.50 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Door processing for assembly: with cup drilling

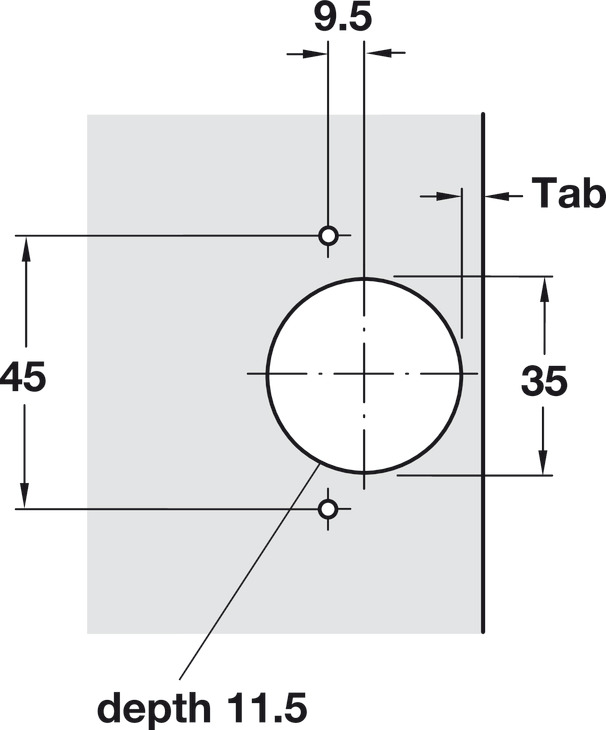

Drilling pattern: 45/9.5
Lock function: With automatic closing spring, With soft closing mechanism
Opening angle: 165°
