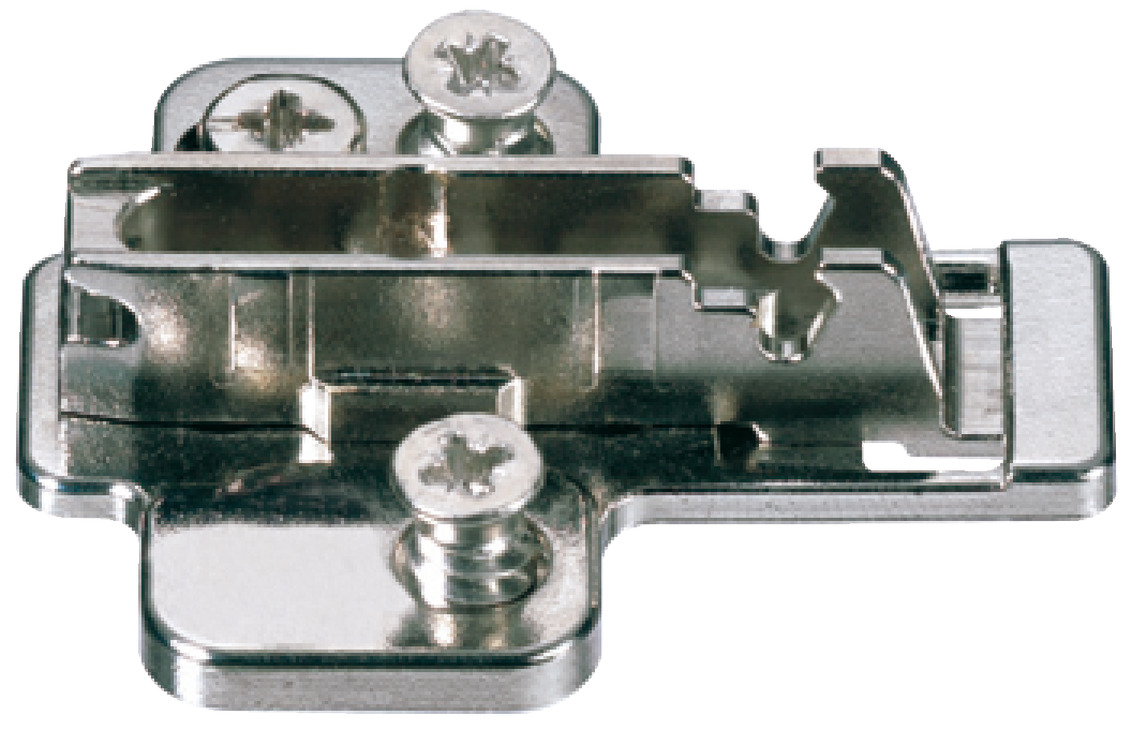

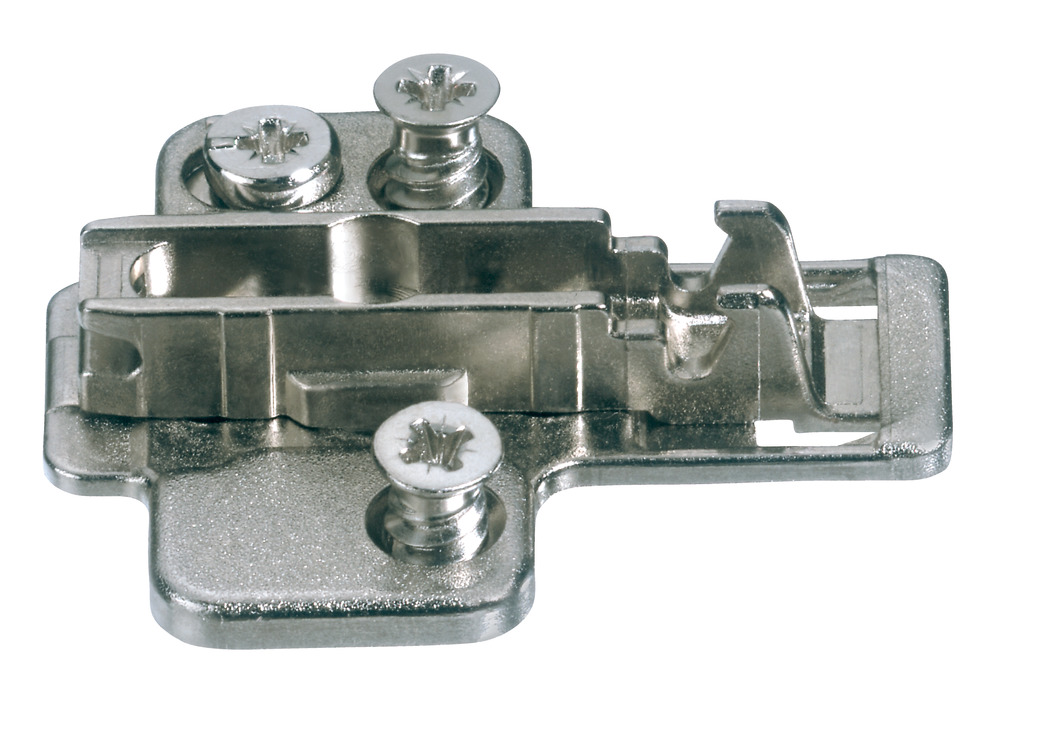

Hafele 322.89.724 Mounting Plate is designed for seamless integration with Grass Click On System hinges, specifically tailored for the Nexis line. Crafted from durable zinc alloy, this mounting plate ensures long-lasting performance and stability in various applications. With a height of just 4 mm, it maintains a low profile while providing robust support. This mounting plate features a cruciform cam adjusting mechanism, allowing for easy and precise alignment during installation. The pre-mounted Euro screw fixing simplifies the installation process, making it an ideal choice for both professionals and skilled DIYers. The drilling depth required is 9.50 mm, with an edge distance of 37.00 mm, ensuring compatibility with standard cabinetry practices. For optimal performance, the mounting plate accommodates a drill hole diameter of 5.00 mm, and it comes with a screw distance of 32.00 mm, along with a screw length of 10.50 mm. These specifications enable a secure and reliable fit for various cabinet configurations. The Hafele 322.89.724 Mounting Plate is not only practical but also contributes to the overall aesthetic of furniture, making it a valuable addition to any project requiring precision and quality.
Mounting Plate, Cruciform Cam Adjusting, Pre-Mounted Euro Screw Fixing for Grass Click On System Hinges, Nexis
Height 4 mm

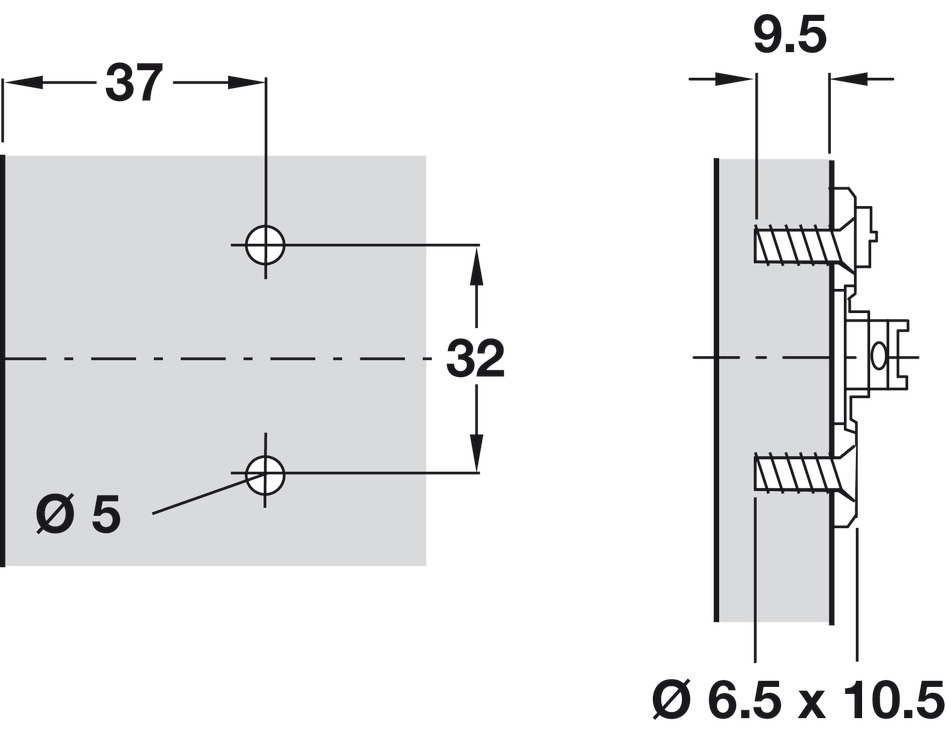

Drilling depth: 9.50 mm
Edge distance: 37.00 mm
For drill hole Ø: 5.00 mm
Material: Zinc alloy
Screw distance: 32.00 mm
Screw length: 10.50 mm
