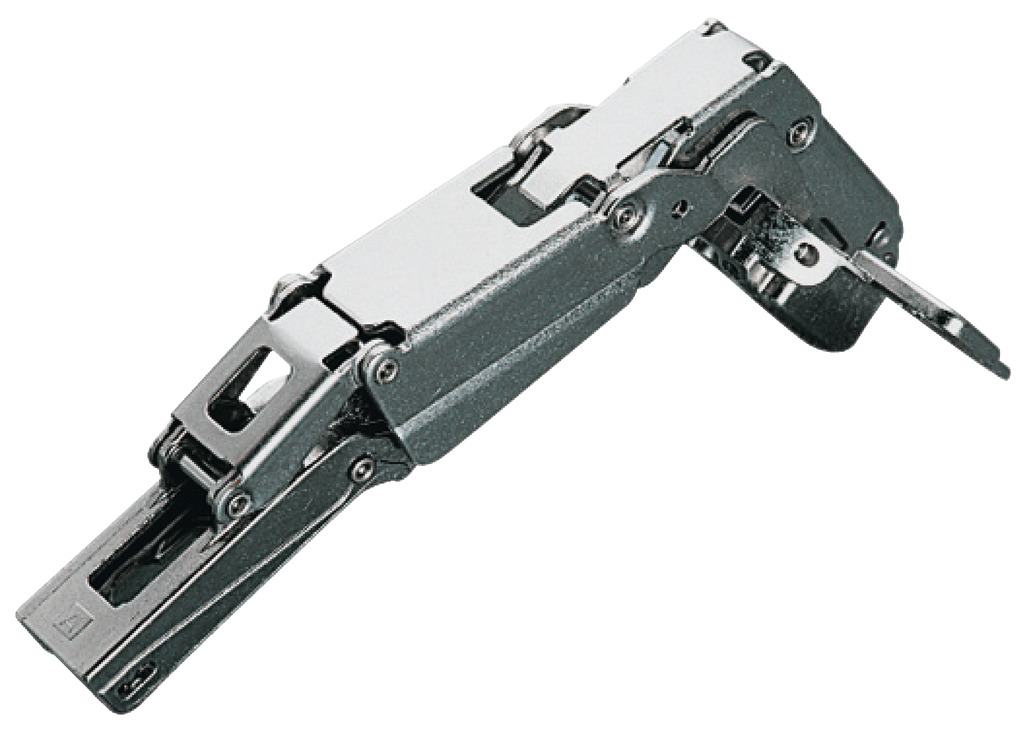

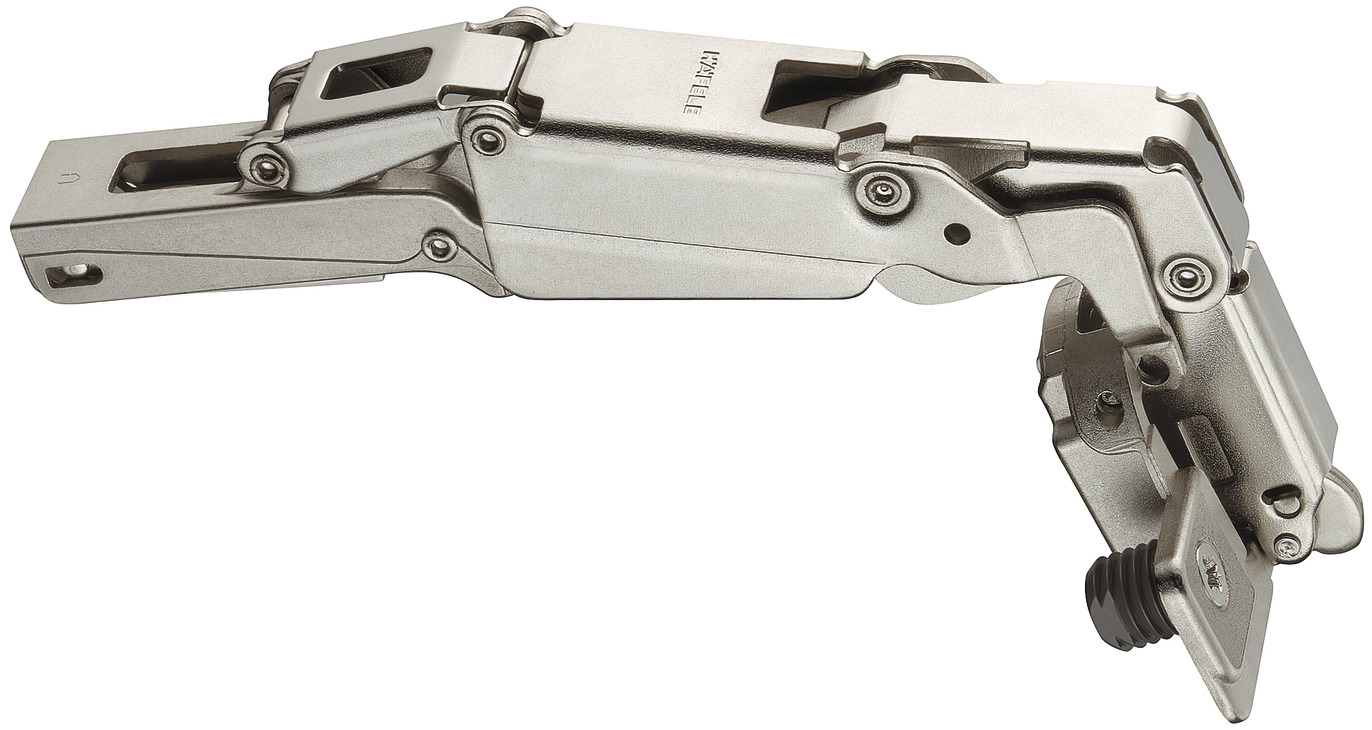

Hafele 329.07.654 Salice 200 Series Concealed Hinge 165, Full Overlay Mounting

Hafele 329.07.654 Concealed Hinge, Salice 200 Series, 165, offers an exceptional solution for full overlay mounting on wooden doors up to 26 mm thick. Designed for dowel mounting, this hinge features a zero offset, making it ideal for internal pull-outs or extending trays. With a generous opening angle of 165°, it ensures maximum accessibility while maintaining a sleek, concealed appearance. The hinge's adjustment facilities allow for easy installation and fine-tuning, including a side adjustment of 4.5 mm, height adjustment from -2 to +2 mm, and depth adjustment with Metalla mounting plates. Crafted from high-quality materials-zinc alloy for the cup and steel for the hinge arm-this hinge combines durability and functionality. The nickel-plated finish adds a touch of elegance, while the automatic closing spring enhances usability without a soft-close mechanism. For optimal performance, the cup drilling depth is 11 mm with a diameter of 35 mm, and a drilling pattern of 45/9.5 is available upon request. Please note that mounting plates are sold separately, allowing for customization based on your project needs. The Hafele 329.07.654 hinge is the perfect choice for professionals seeking reliable and stylish hardware solutions.

Salice - Concealed Hinge, 200 Series, 165, full overlay mounting

Wooden Doors up to 26 mm, dowel mounting, model C2RFA99

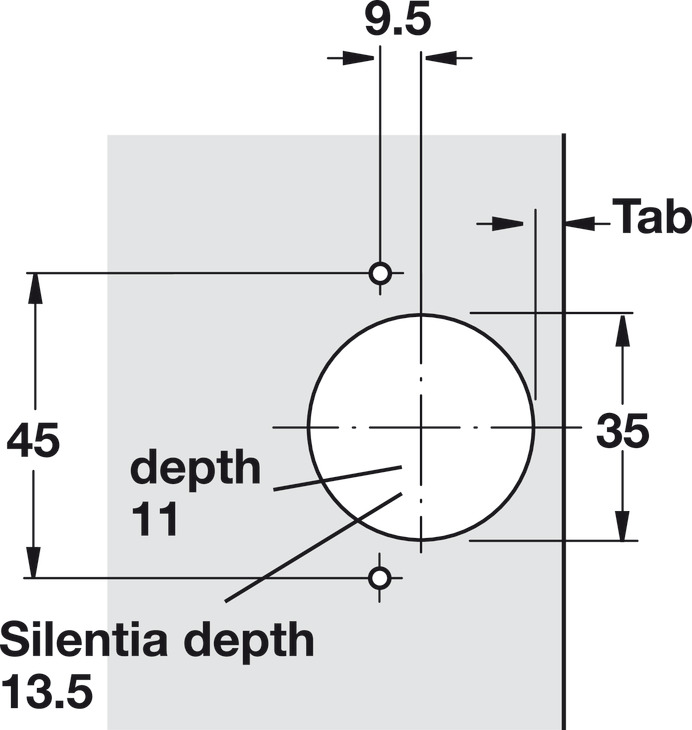

Drilling pattern 45/9.5 available by request.

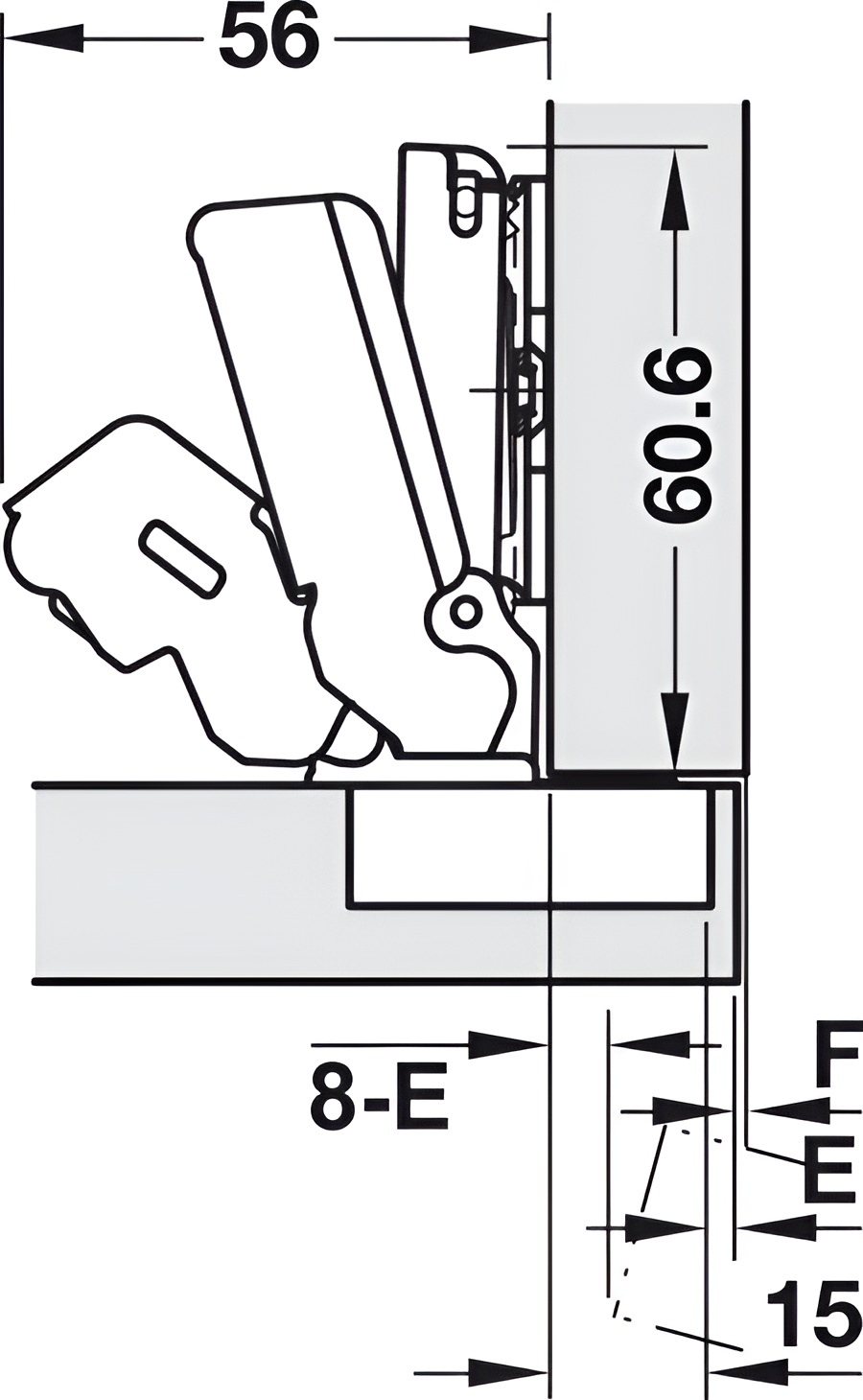

• Door overlay mm 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 3 4 5 6 7 8 0 3 4 5 6 7 8 3 3 4 5 6 7 8 6 3 4 5 6 7 8 9 Distance to cup E mm Mounting plate distance mm
• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 16 0,0 0,0 0,0 0,0 0,0 0,0 18 0,0 0,0 0,0 0,0 0,0 0,0 20 0,0 0,0 0,0 0,0 0,0 0,0 22 0,7 0,1 0,1 0,1 0,1 0,1 24 2,7 1,8 1,2 0,9 0,7 0,6 26 4,6 3,8 3,0 2,5 2,0 1,7 28 7,9 6,9 5,9 4,9 3,9 3,2 Minimum gap F Rounding off the edge of door reduces the given values.

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.23
