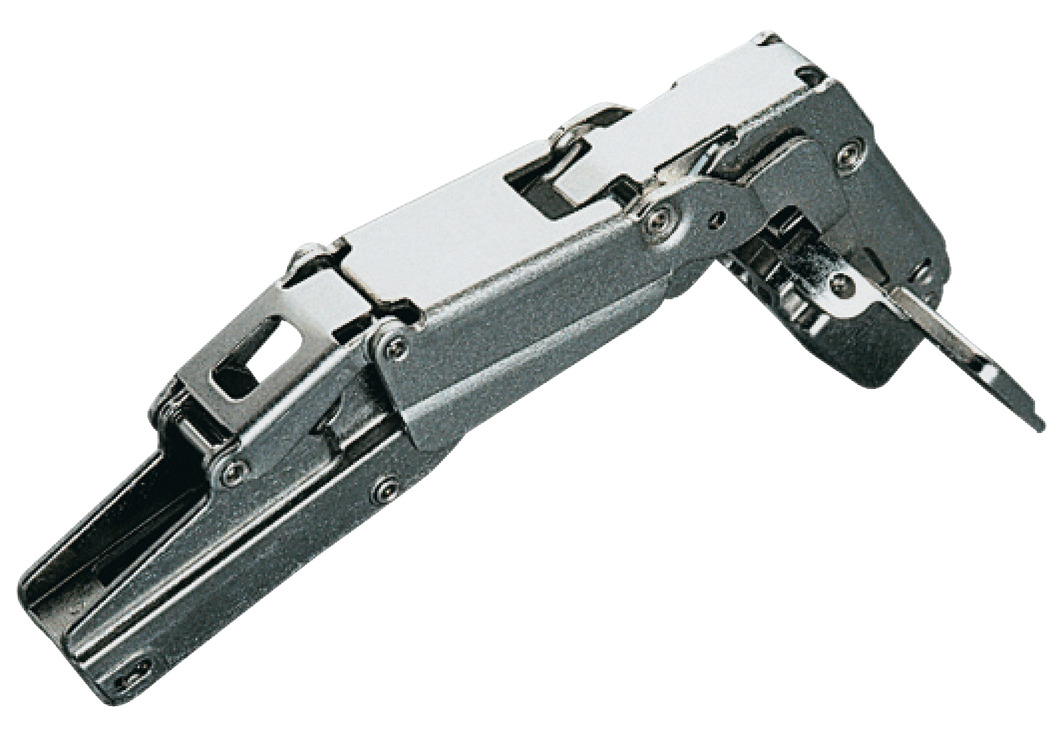

Hafele 329.07.681 Salice 200 Series Concealed Hinge, 165, Half Overlay/Twin Mounting

Hafele 329.07.681 Concealed Hinge is expertly designed for cabinets featuring internal drawer boxes or pull-out shelves, offering a seamless aesthetic with its half overlay and twin mounting options. This cranked hinge provides a generous opening angle of 165°, ensuring easy access to the contents of your cabinets. Crafted from durable materials, including a zinc alloy cup and a robust steel hinge arm, this hinge ensures longevity and reliable performance. The nickel-plated finish not only enhances its visual appeal but also adds a layer of corrosion resistance. Installation is straightforward, with compatibility for wood doors and a cup drilling depth of 11 mm, making it a versatile choice for various cabinetry applications. The hinge features an adjustment facility that includes side adjustment of 4.5 mm, height adjustment ranging from -2 to +2 mm, and depth adjustments depending on the mounting plates used. With a drilling pattern of 45/9.5 available upon request, this hinge accommodates multiple door thicknesses while maintaining a minimum gap for optimal functionality. For those seeking a reliable, high-performing concealed hinge solution, the Hafele 329.07.681 is an exceptional choice, offering both practicality and style for modern cabinetry.

Salice - Concealed Hinge, 200 Series, 165, half overlay mounting/twin mounting

For cabinets with internal drawer boxes or pull-out shelves, Rapido mounted, model C27FG99

Drilling pattern 45/9.5 available by request.

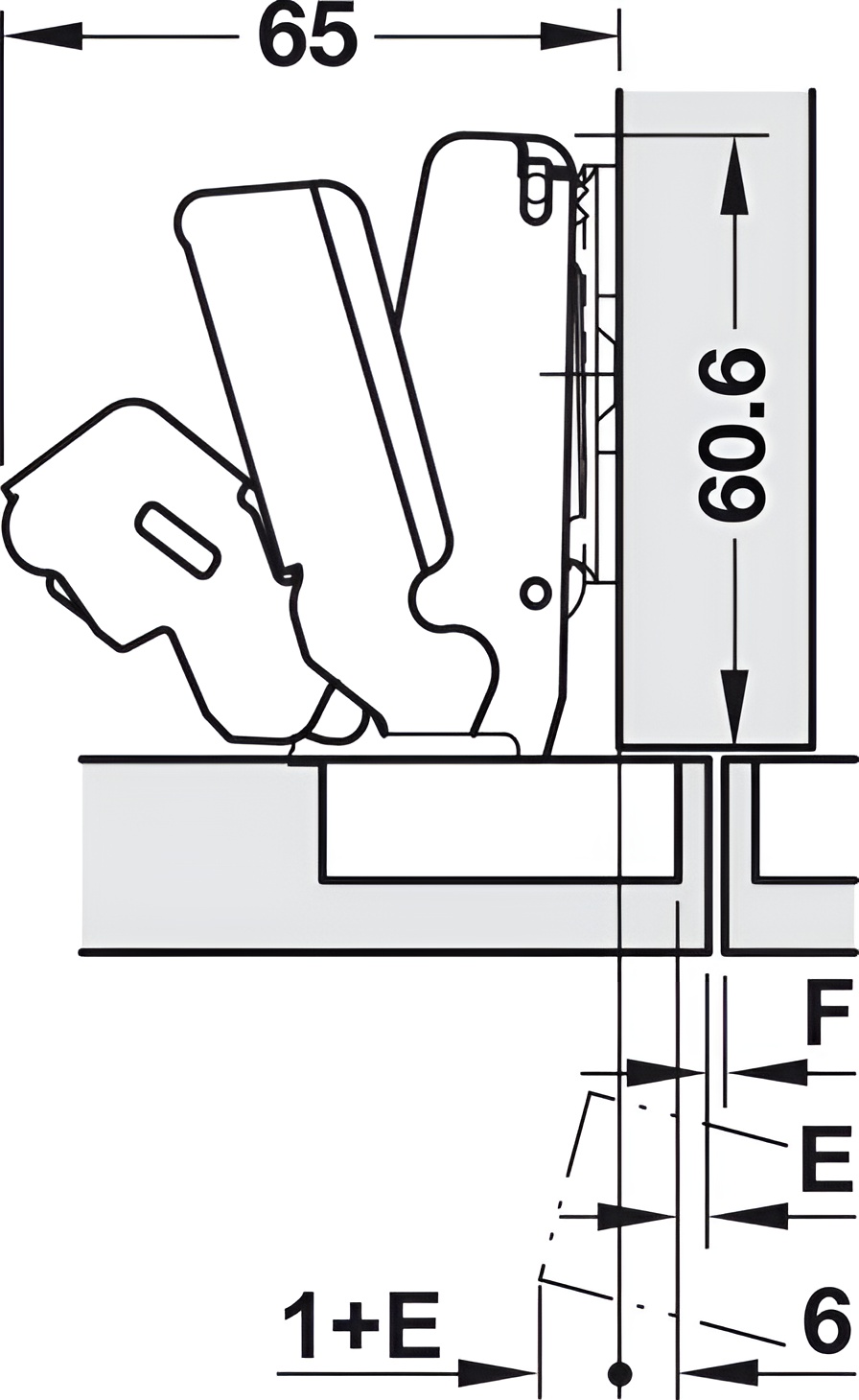

• Door overlay mm 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 3 4 5 6 7 8 0 3 4 5 6 7 8 3 3 4 5 6 7 8 6 3 4 5 6 7 8 9 Distance to cup E mm Mounting plate distance mm
• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 16 0,0 0,0 0,0 0,0 0,0 0,0 18 0,0 0,0 0,0 0,0 0,0 0,0 20 0,0 0,0 0,0 0,0 0,0 0,0 22 0,7 0,1 0,1 0,1 0,1 0,1 24 2,7 1,8 1,2 0,9 0,7 0,6 26 4,6 3,8 3,0 2,5 2,0 1,7 28 7,9 6,9 5,9 4,9 3,9 3,2 Minimum gap F Rounding off the edge of door reduces the given values.
