Hafele 329.15.400 Concealed Hinge, Salice 700 Series, offers an exceptional combination of functionality and sleek design, featuring a 110° opening angle for maximum accessibility. This full overlay hinge is designed specifically for wood doors and ensures a seamless integration into cabinetry, enhancing the aesthetic appeal of any interior space. Crafted from durable steel and nickel-plated for added resilience, the hinge is insensitive to extreme temperatures, making it suitable for a variety of environments. It exceeds ANSI/BHMA standards A156.9 2010, ensuring reliability and performance that building professionals and discerning homeowners can trust. Installation is straightforward with a screw-on design, and the hinge features a drilling pattern of 45/9.5, allowing for precise alignment and secure fitting. Please note that mounting plates are sold separately, providing flexibility in installation options. The Hafele 329.15.400 is supplied with a concealed hinge, ensuring that the hardware remains hidden for a clean look. Whether you are outfitting a new project or upgrading existing cabinetry, this hinge is the ideal choice for a sophisticated, functional solution. Enjoy the perfect balance of style and practicality with Hafele's innovative hardware.

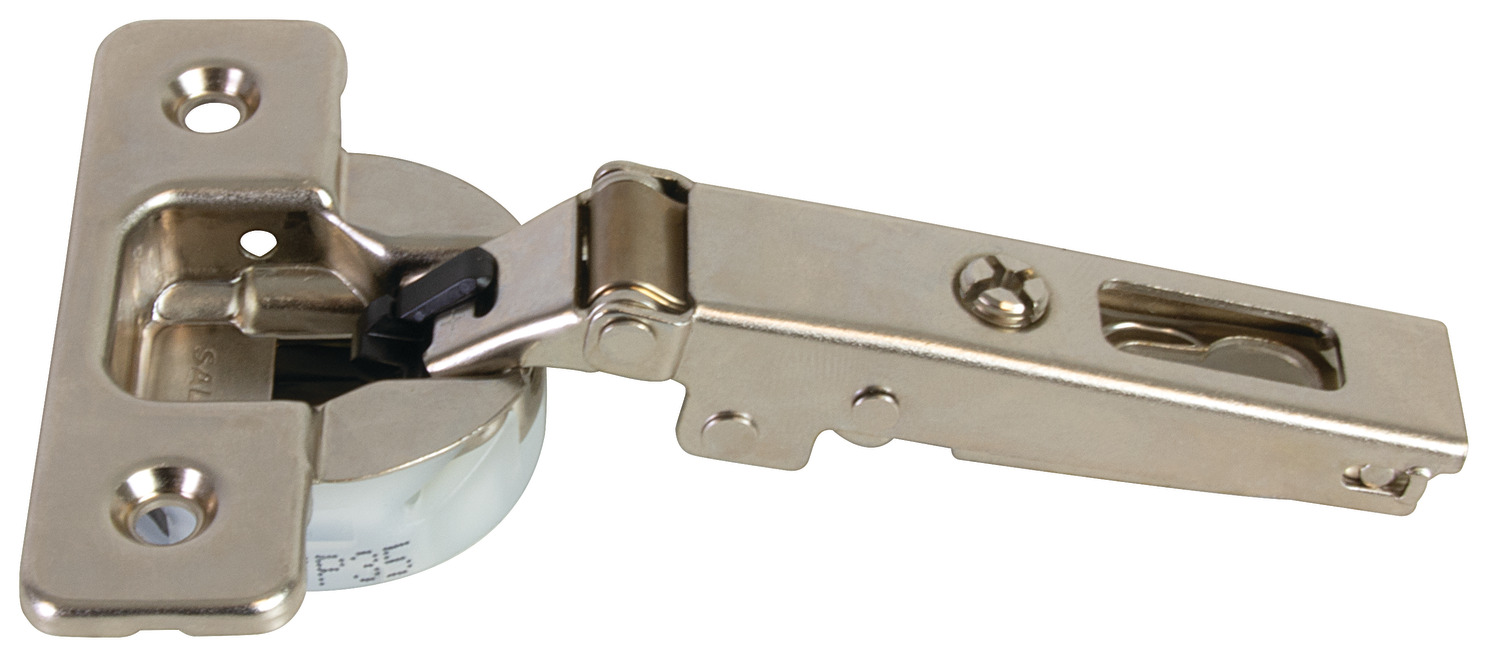

Salice - Concealed Hinge, 700 Series, 110 Opening Angle, Silentia+
Full Overlay, C7P6AE9, Screw-on, nickel-plated
Dimensions and gap specifications in the drawings and tables are calculated: Using factory settings With mounting plate distance 0 mm for door offset with max. opening angle
Area of application: For wood doors
Color/finish: Cup: nickel plated
Concealed hinge version: full overlay

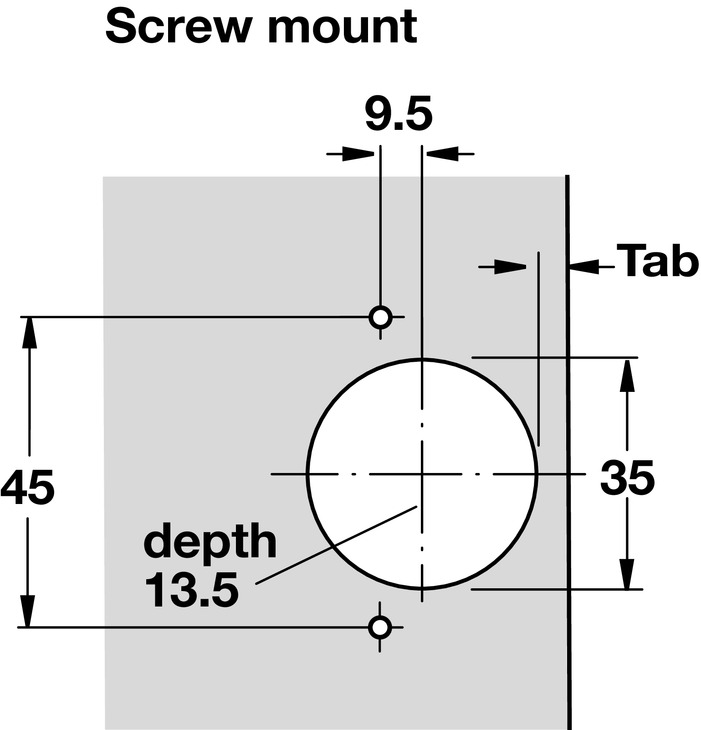

Drilling pattern: 45/9.5
Installation: Screw
Material: Steel
Model No.: C7P6AE9
Opening angle: 110°
Order reference: Mounting plates sold separately
Supplied with: Concealed hinge
