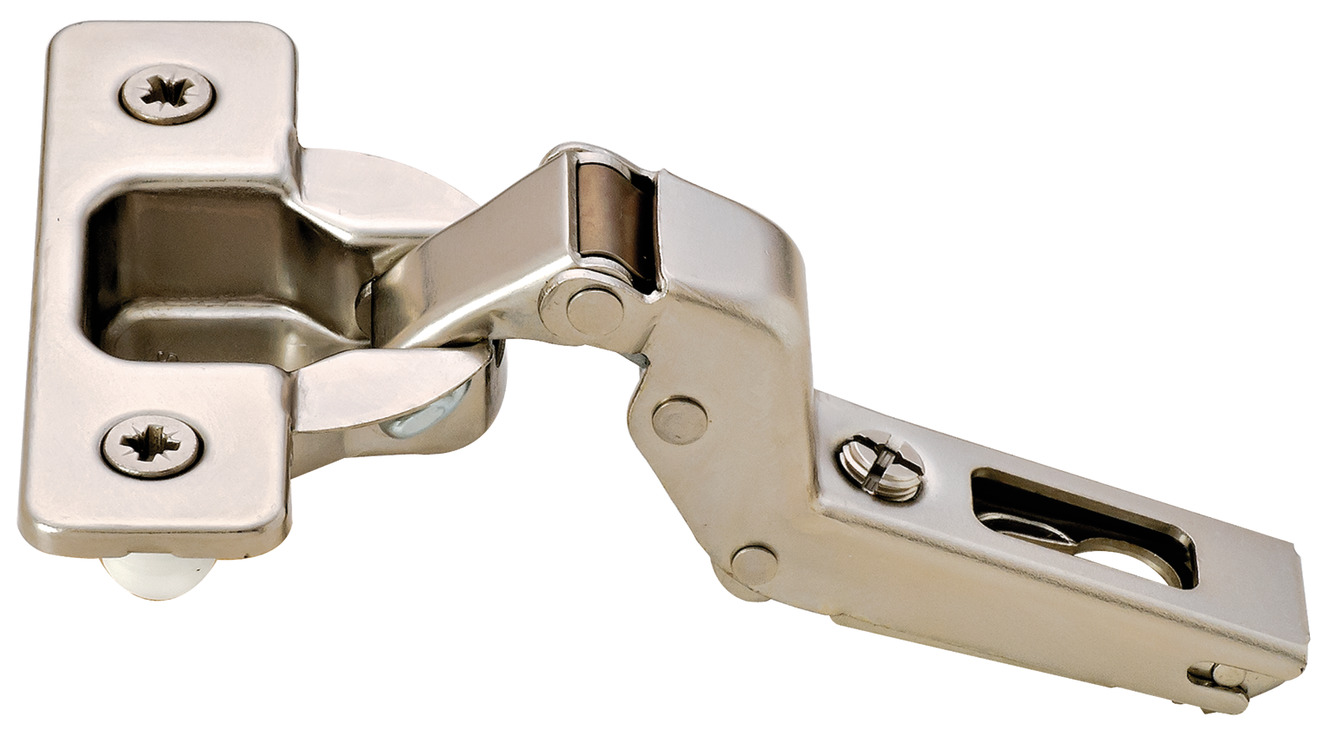

Hafele 329.17.570 Salice 110 Concealed Inset Hinge

Hafele 329.17.570 Concealed Hinge, Salice 110, inset mounting delivers an exceptional combination of functionality and style for your cabinetry needs. Designed for wood doors, this hinge features a self-closing mechanism that ensures a smooth and silent operation, enhancing the overall user experience. Its cranked design allows for an impressive opening angle of 110°, providing easy access to the cabinet space. This hinge is engineered for versatility, accommodating various door overlays and minimum gaps, making it suitable for a range of applications. The installation process is user-friendly, with options for a slide-on system A or quick fixing system SM. The hinge features a cup drilling depth of 11 mm and a diameter of 35 mm, designed for press fitting, ensuring a secure and reliable hold. With a nickel-plated finish, the Hafele concealed hinge not only offers durability but also adds a sleek aesthetic to any interior. The adjustment facilities include side adjustment of 4.5 mm and height adjustment from -2 to +2 mm, allowing for precise alignment during installation. Constructed from robust steel, the model C2R6P99 is built to withstand the rigors of daily use while maintaining its elegant appearance.

Salice - Concealed Hinge, 200 Series/700 Series, 110 Opening Angle, Inset Overlay

from interior width 70 mm, Self-close, press fit, Model C2R6P99

• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 16 0,5 0,5 0,5 0,5 17 0,7 0,7 0,7 0,7 18 0,9 0,9 0,9 0,9 19 1,2 1,2 1,2 1,2 20 1,5 1,5 1,5 1,5 21 1,8 1,8 1,8 1,8 22 2,4 2,1 2,1 2,1 23 3,7 2,7 2,6 2,5 24 5,1 4,1 3,1 3,0 25 6,5 5,5 4,1 3,5 26 7,8 6,8 5,4 4,4 Minimum gap F Rounding off the edge of door reduces the given values.
• Door overlay mm -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 0 3 4 5 6 3 3 4 5 6 6 3 4 5 6 9 Distance to cup E mm Mounting plate distance mm

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.20
