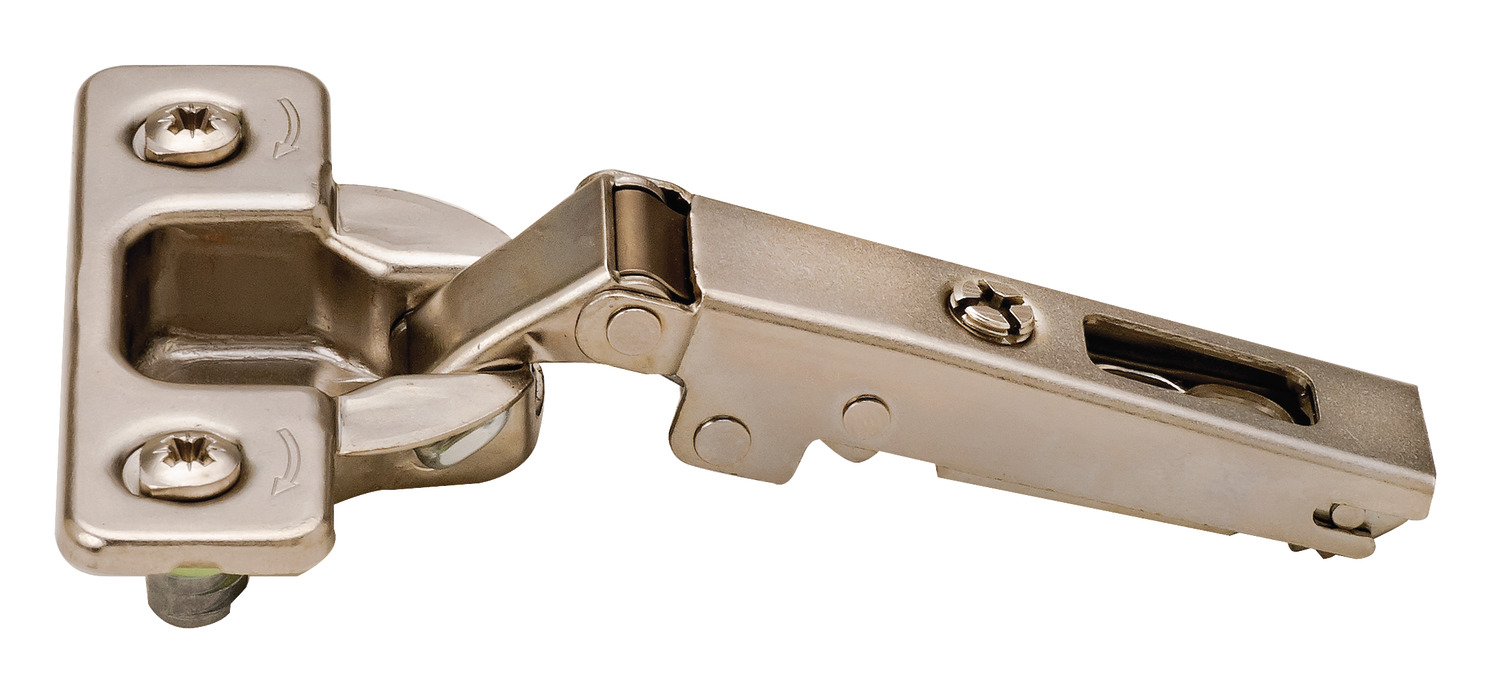

Hafele 329.17.583 Concealed Hinge is designed specifically for wooden doors, offering a seamless aesthetic with its self-closing feature. This hinge is part of the Salice 200 Series/700 Series and provides a generous 110° opening angle, allowing for enhanced accessibility and ease of use. The hinge is engineered with precision, featuring a cranked design that ensures a secure fit. With Rapido Mounting, installation is straightforward, making it an ideal choice for both professionals and knowledgeable DIY enthusiasts. The model C276D99 includes an adjustment facility that allows for side adjustments of 4.5 mm, height adjustments ranging from -2 to 2 mm, and depth adjustments from -0.5 to 2.8 mm, ensuring a perfect alignment with your cabinetry. Crafted from durable steel, this hinge also requires cup drilling for assembly, with a cup drilling depth of 11.00 mm and a diameter of 35.00 mm. The drilling pattern of 45/9.5 adds to the installation versatility. Whether you are renovating or building new cabinetry, the Hafele 329.17.583 Concealed Hinge combines functionality with an elegant design, making it a reliable choice for your projects.

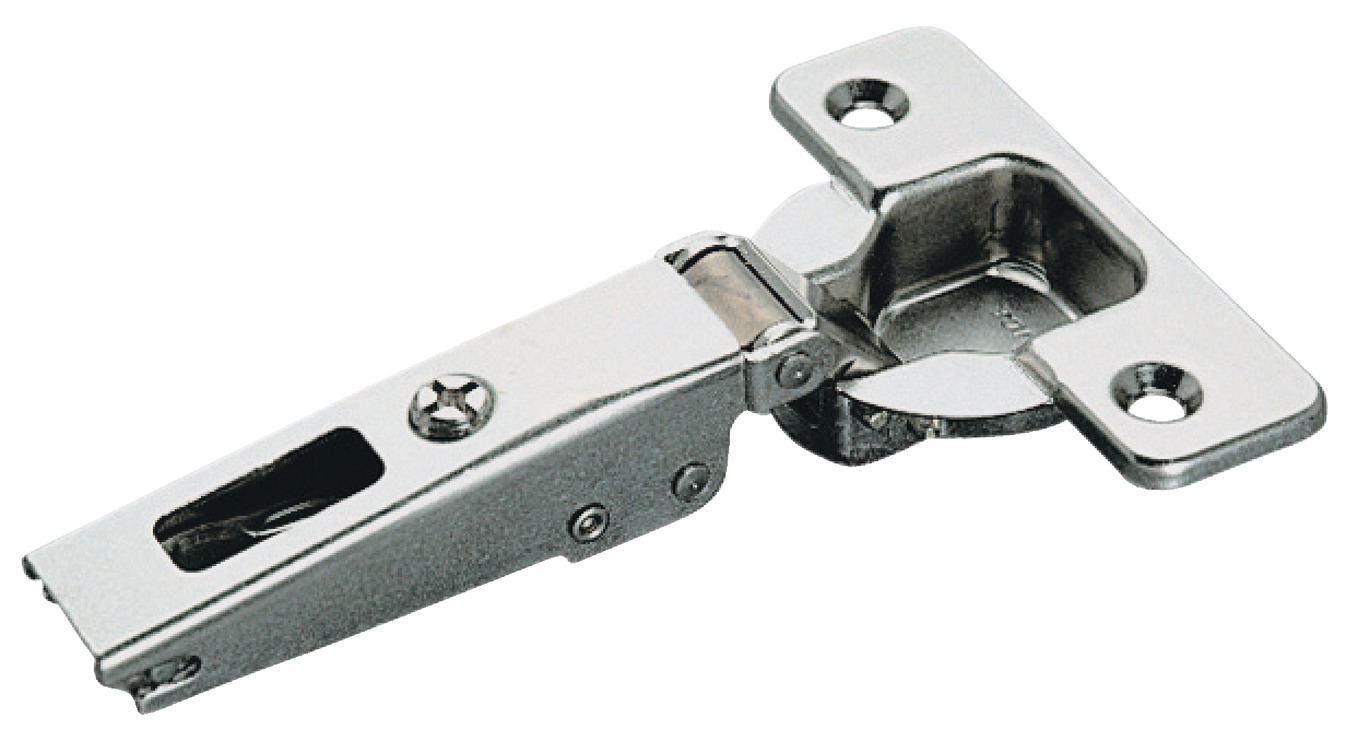

Salice - Concealed Hinge, 200 Series/700 Series, 110 Opening Angle, 1/2" Overlay
for wooden doors, Self-close, Rapido Mounting, Model C276D99
Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment facility -0.5 – 2.8 mm
Area of application: For wood doors
Crank type: Cranked

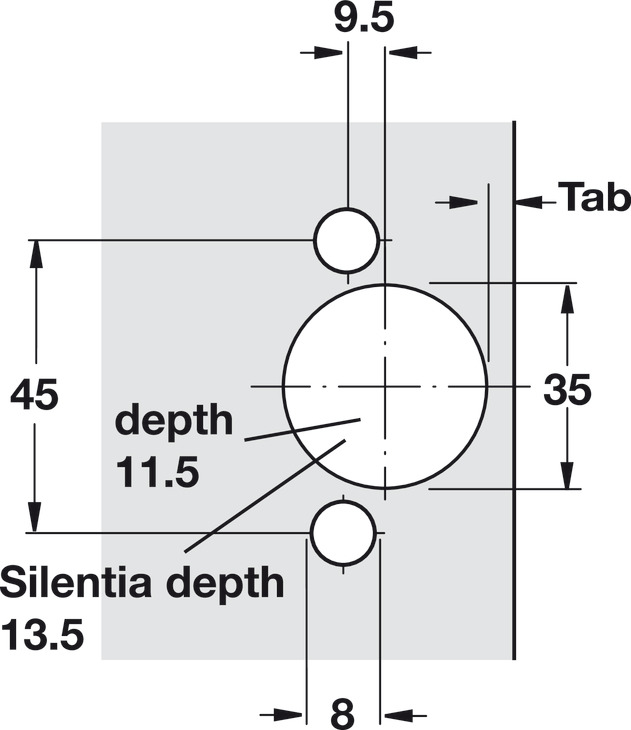

Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
Material: Steel
Model No.: C276D99

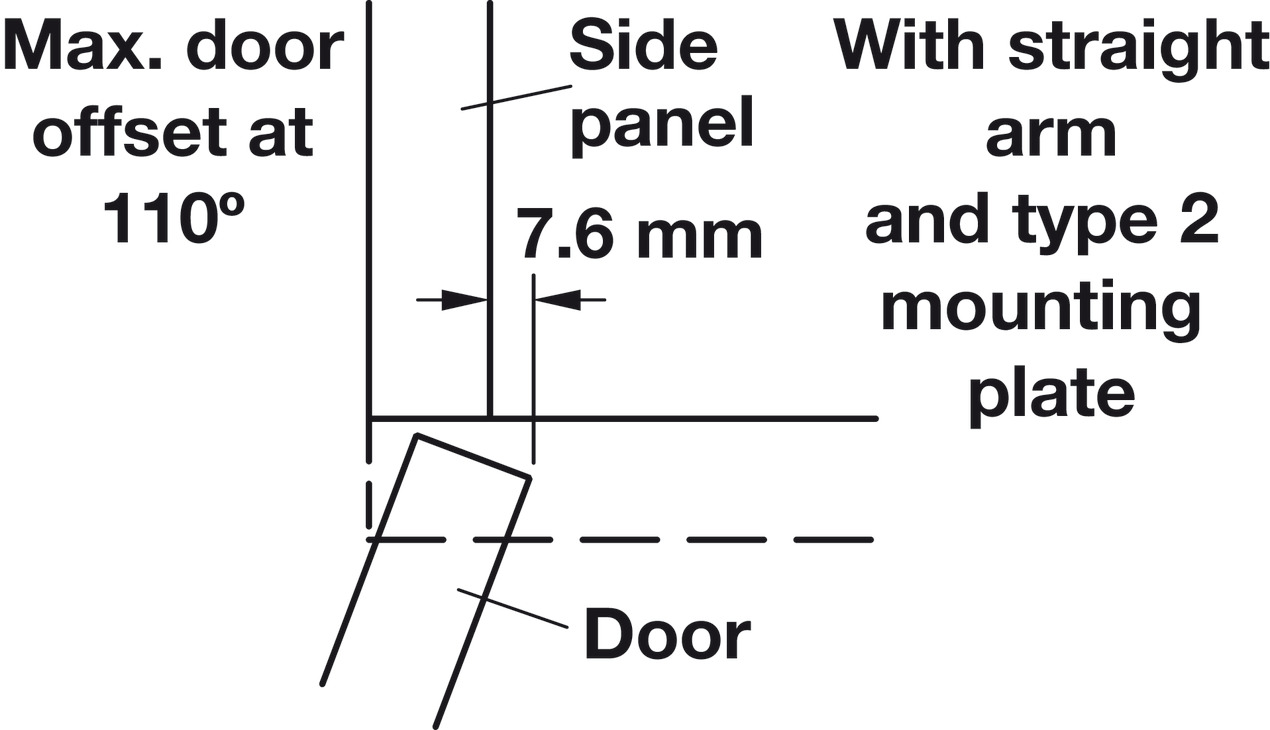

Opening angle: 110°
