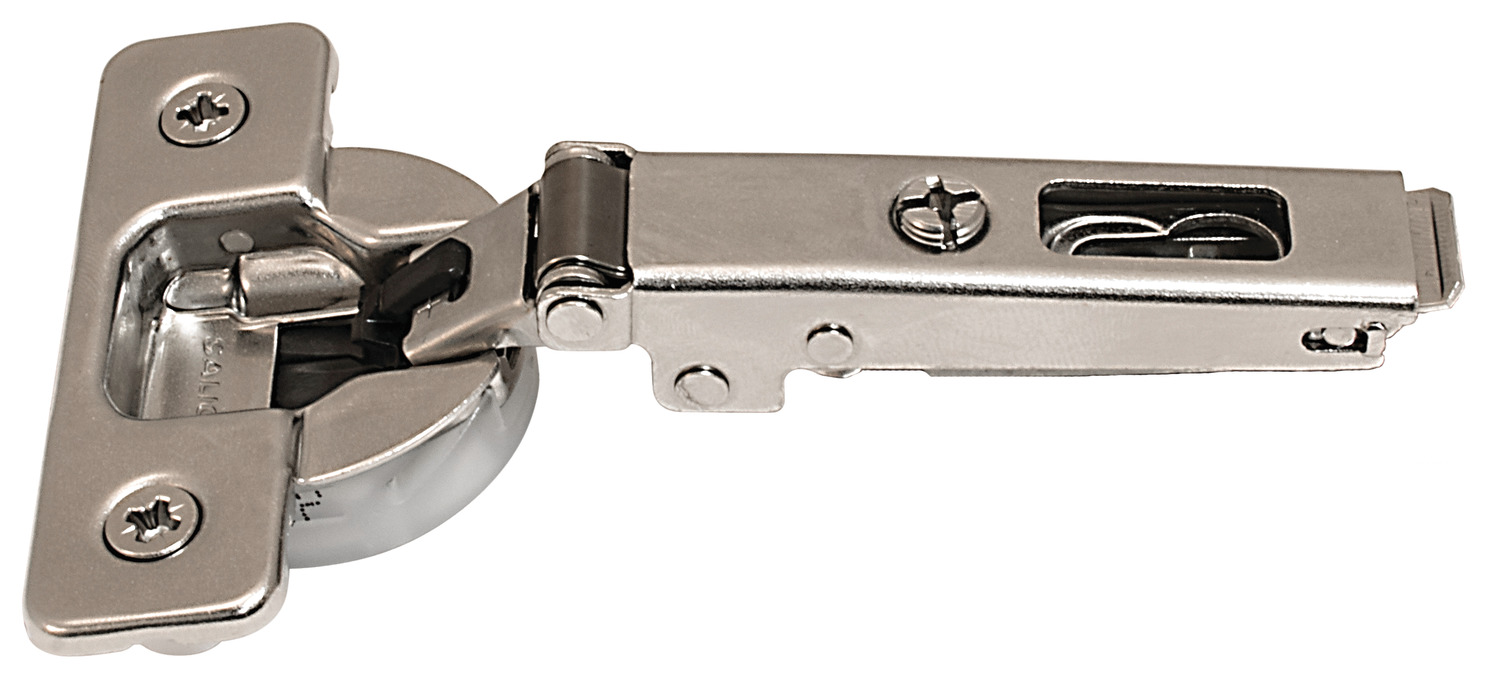

Hafele 329.28.470 Concealed Hinge, Salice 100 Series, offers a seamless solution for wood doors with its full overlay design and impressive 105° opening angle. Constructed from durable steel and finished in sleek nickel plating, this hinge not only enhances the aesthetic of any space but also ensures long-lasting performance. The Silentia+ feature provides a soft-close mechanism, preventing slamming and promoting a quiet, refined environment. This hinge exceeds ANSI/BHMA standards A156.9 2010, making it a reliable choice for both residential and commercial applications. It performs exceptionally well in extreme temperature conditions, ensuring that it remains impervious to environmental changes. The hinge is designed for easy installation, requiring cup drilling for assembly with a drilling pattern of 45/9.5. For optimal performance, remember that mounting plates are sold separately. The Hafele 329.28.470 is the perfect choice for architects and builders seeking high-quality hardware that combines functionality with elegance. Whether you’re upgrading existing fixtures or designing a new project, this hinge delivers exceptional quality and style, making it an indispensable part of any furniture fitting scheme.
Salice - Concealed Hinge, 100 Series, 105 Opening Angle, Silentia+, Nickel Plated
Full Overlay, C1R6AE9, Dowel
Adjustment facility: Side adjustment 4.5 mm, Height adjustment -2 – 2 mm
Area of application: For wood doors
Color/finish: nickel plated
Cup drilling depth: 12.50 mm
Cup fixing: For press fitting
Door processing for assembly: with cup drilling

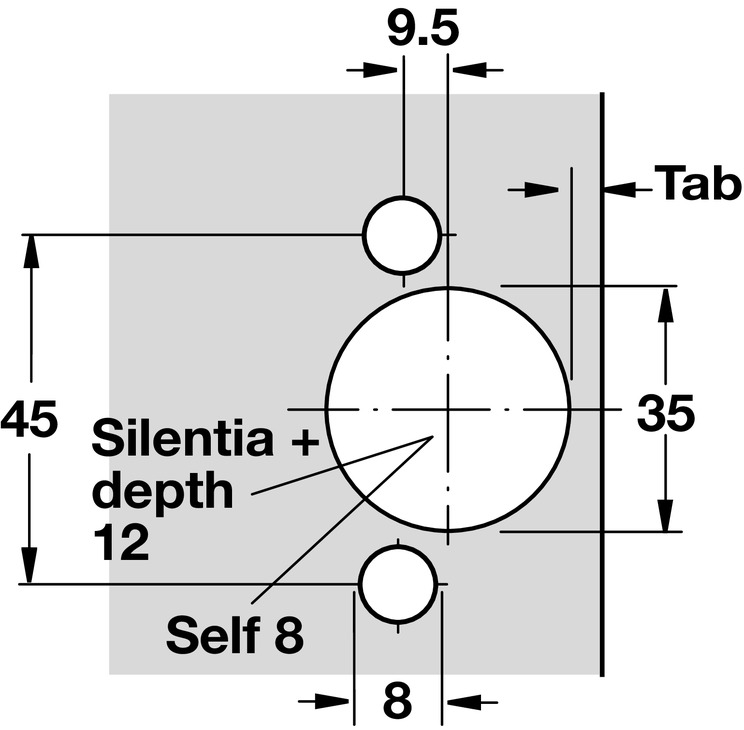

Drilling pattern: 45/9.5
Material: Steel
Model No.: C1R6AE9
Opening angle: 105°
Order reference: Mounting plates sold separately
