Hafele 329.31.515 Salice Blind Corner Concealed Hinge, 94 Self-Close, Inset, Nickel-Plated

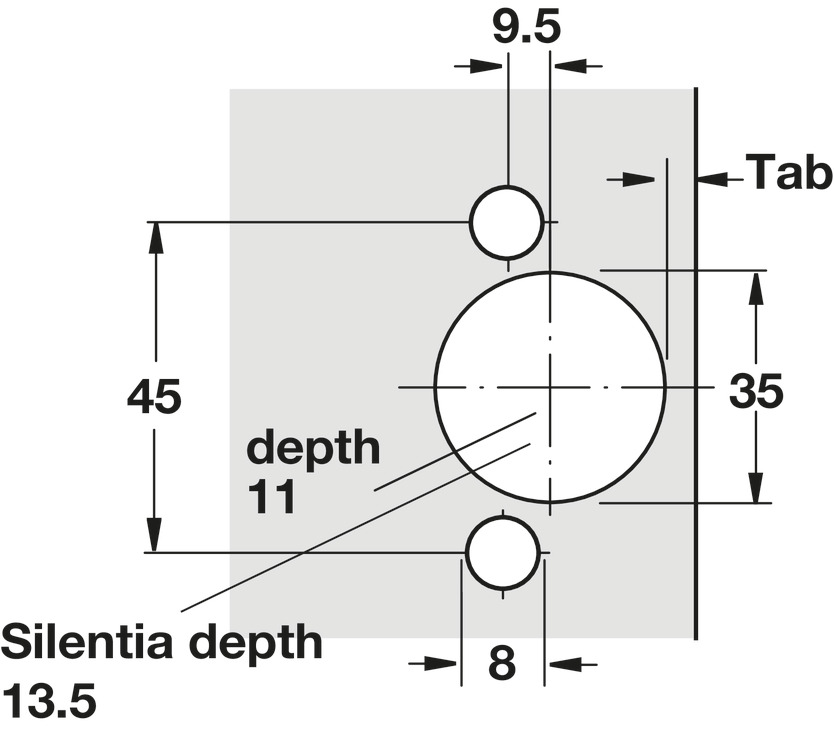

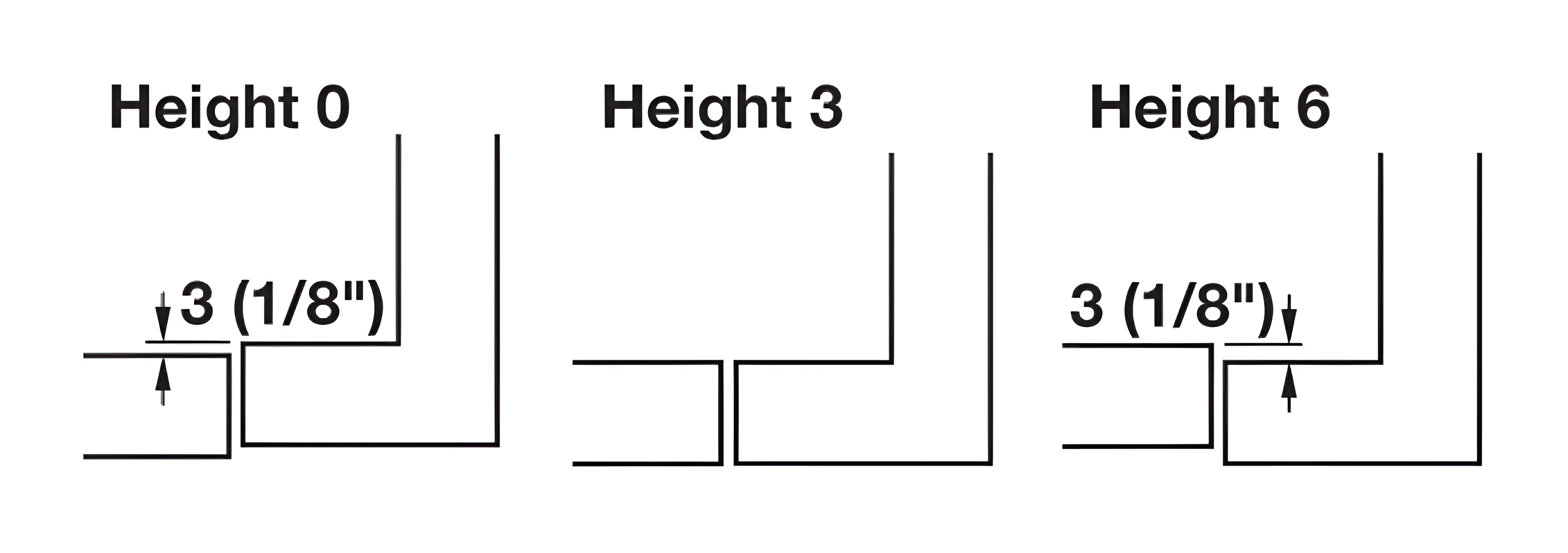

Hafele 329.31.515 Blind Corner Concealed Hinge offers a seamless solution for creating functional and aesthetically pleasing cabinetry in blind corner applications. Designed for inset mounting, this hinge features a nickel-plated finish that ensures durability while enhancing the visual appeal of your furniture. With a generous opening angle of 94 degrees, this hinge allows for easy access to corner cabinets, maximizing space efficiency. The self-closing mechanism, equipped with an automatic closing spring, ensures doors close securely, preventing accidental openings. Installation is made hassle-free with a press-fitting cup for quick assembly, requiring only a cup drilling depth of 11 mm and a diameter of 35 mm. The hinge accommodates wood door materials and is compatible with either the slide-on system A or the quick fixing system SM. Adjustment facilities include a side adjustment of 4.5 mm, height adjustment ranging from -2 to +2 mm, and depth adjustments with mounting plates from -0.5 to +2.8 mm, providing flexibility for precise alignment. Please note that mounting plates are sold separately. Elevate your cabinetry design with the Hafele 329.31.515 Blind Corner Concealed Hinge, combining functionality with a sleek finish for an impressive outcome.

Salice - Blind Corner Concealed Hinge, 94 Opening Angle, Self-Close, Inset Mounting, Nickel-Plated

Special Application, Press-fitting, model C2RBN99AC

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.26
