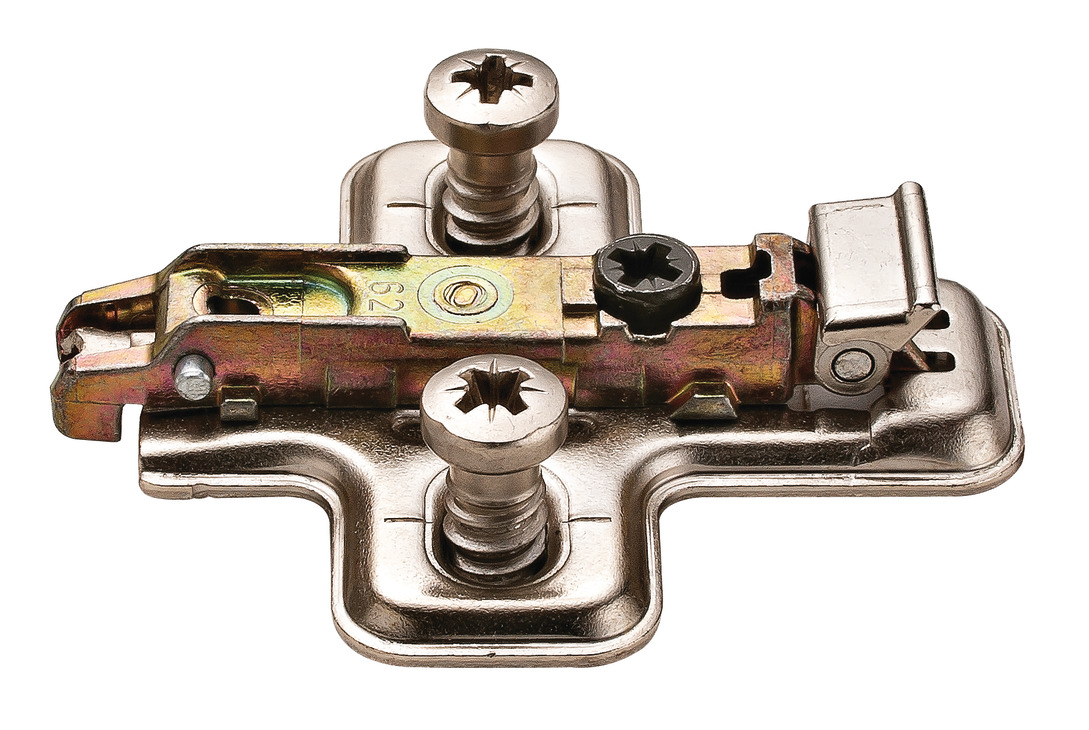

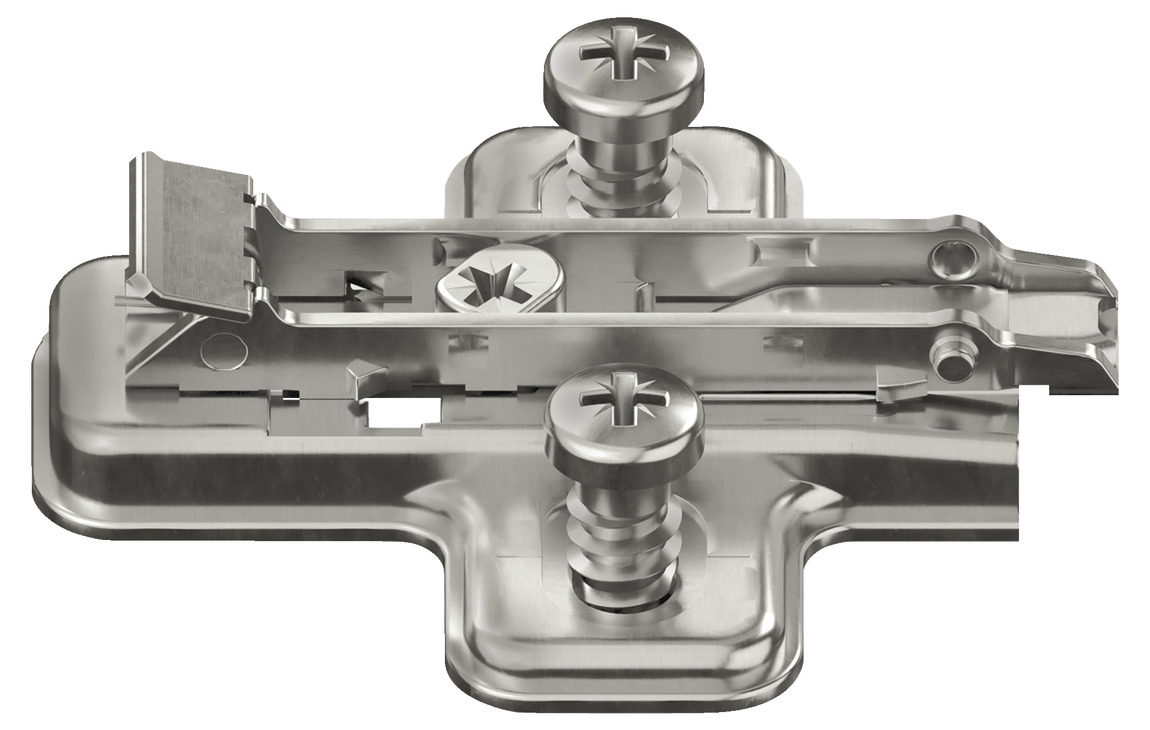

Hafele 329.74.516 Clip Mounting Plate, Salice with quick fixing system is engineered for seamless integration with Häfele Metalla 510 concealed hinges. This mounting plate features a robust design crafted from high-quality steel and comes finished in a sleek nickel plating that enhances its durability and aesthetic appeal. Designed for efficiency, the mounting plate includes pre-mounted Euro screws, enabling quick and easy installation. With a drilling depth of 11 mm and a distance of 6 mm, it accommodates various applications effectively. The plate allows for height adjustment via a slot of ±2 mm, while depth adjustment is made simple through its eccentric design, ensuring a precise fit every time. With a screw distance of 32 mm and suitable for drill hole diameters of 5 mm, this mounting plate is versatile and adaptable for different setups. The quick fixing system SM further streamlines the installation process, making it an ideal choice for both professionals and knowledgeable homeowners seeking reliable solutions. Whether you're upgrading existing hardware or embarking on a new project, the Hafele 329.74.516 Clip Mounting Plate is an essential component that promises ease of use and lasting performance.
Clip Mounting Plate, Salice with quick fixing system
With pre-mounted Euro screws, Distance D: 6 mm, drilling depth: 11 mm
Adjustment facility: Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric
Area of application: For Häfele Metalla 510 concealed hinges
Color/finish: nickel plated
Drilling depth: 11.00 mm

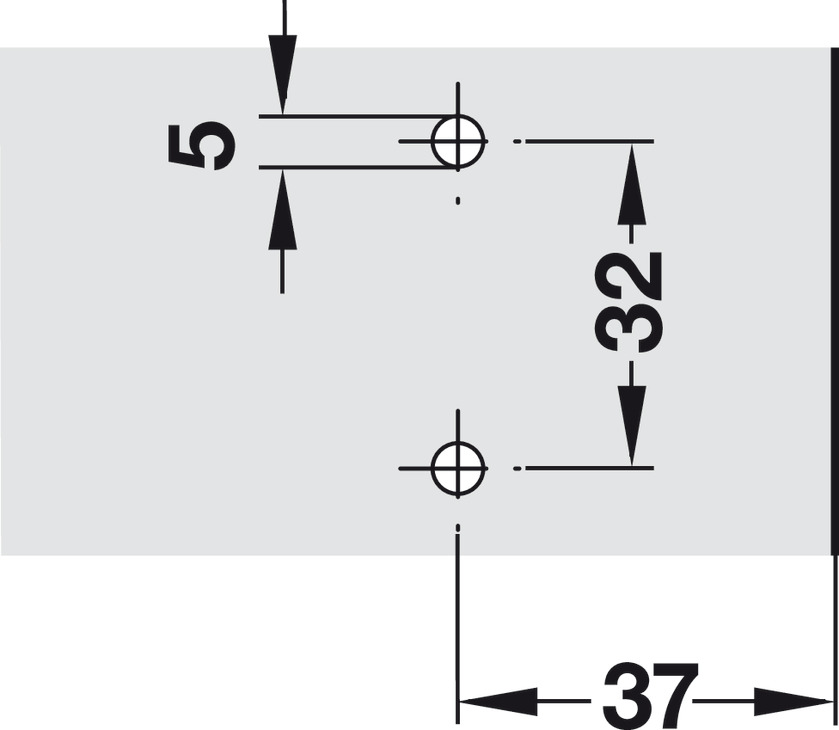

Edge distance: 37.00 mm
Fixing method: Quick fixing system SM
For drill hole Ø: 5.00 mm
Manufacturer: Häfele
Material: Steel
Model: BAVGM39F/16
Model series: Metalla 510 SM
Mounting plate version: For screw fixing with pre-mounted Euro screws
Screw distance: 32.00 mm
Suitable for: Häfele Metalla 510 concealed hinges
