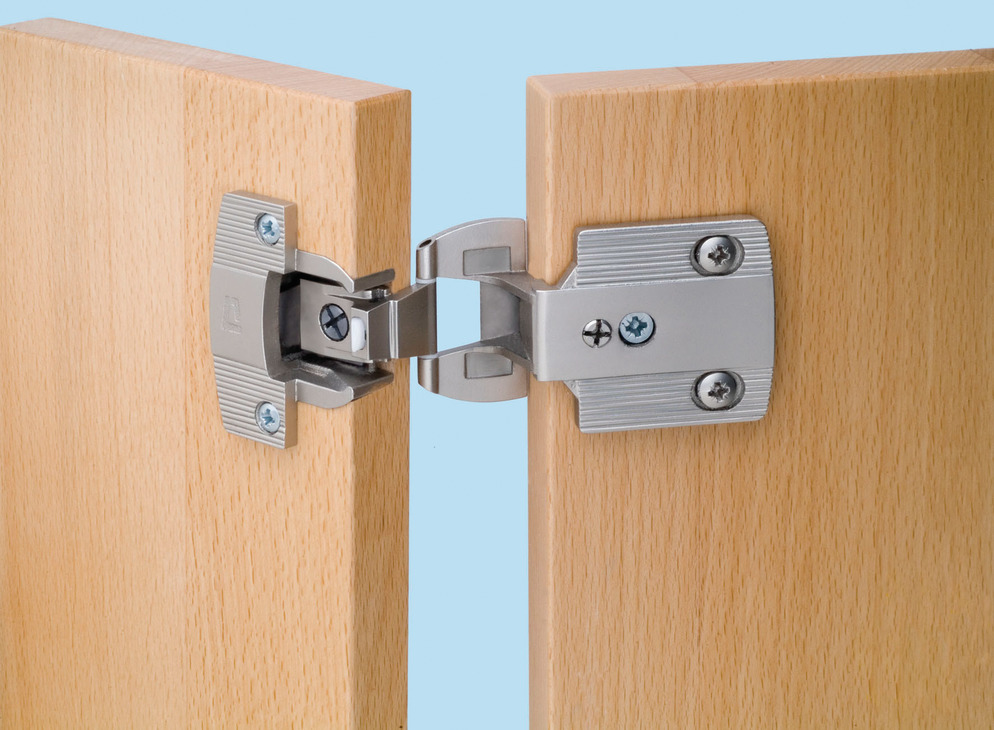

Hafele 344.06.920 Aximat 300 Grade 1 Single Pivot Institutional Hinge Arm with DowelsHafele 344.06.920 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1 with Expanding Dowels offers a sleek and sophisticated solution for cabinetry and storage walls. Finished in a stylish matt nickel, this hinge arm is designed for full overlay doors, providing a minimal 5 mm (3/16") knuckle visibility, ensuring a clean and refined look. With a generous opening angle of 270°, this hinge allows for exceptional accessibility, making it ideal for both residential and commercial applications. The integrated catch ensures doors remain securely closed without the need for additional magnetic catches, enhancing the overall functionality. Installation is straightforward, featuring pre-installed expanding dowels for 5 mm holes, although #6 wood screws for hinge attachment are not included. Designed to meet ANSI/BHMA Grade 1 standards, this hinge arm is robust and reliable. It accommodates door widths up to 600 mm (23 5/8") and can be used in a twin-mounted version for dual doors on a single side panel. The hinge cup is also adaptable, available in screw-mount or dowel-mount configurations, and clips together with the arm without tools, simplifying the installation process. For optimal safety, the installation of a safety screw in the arm is required, ensuring long-lasting performance.

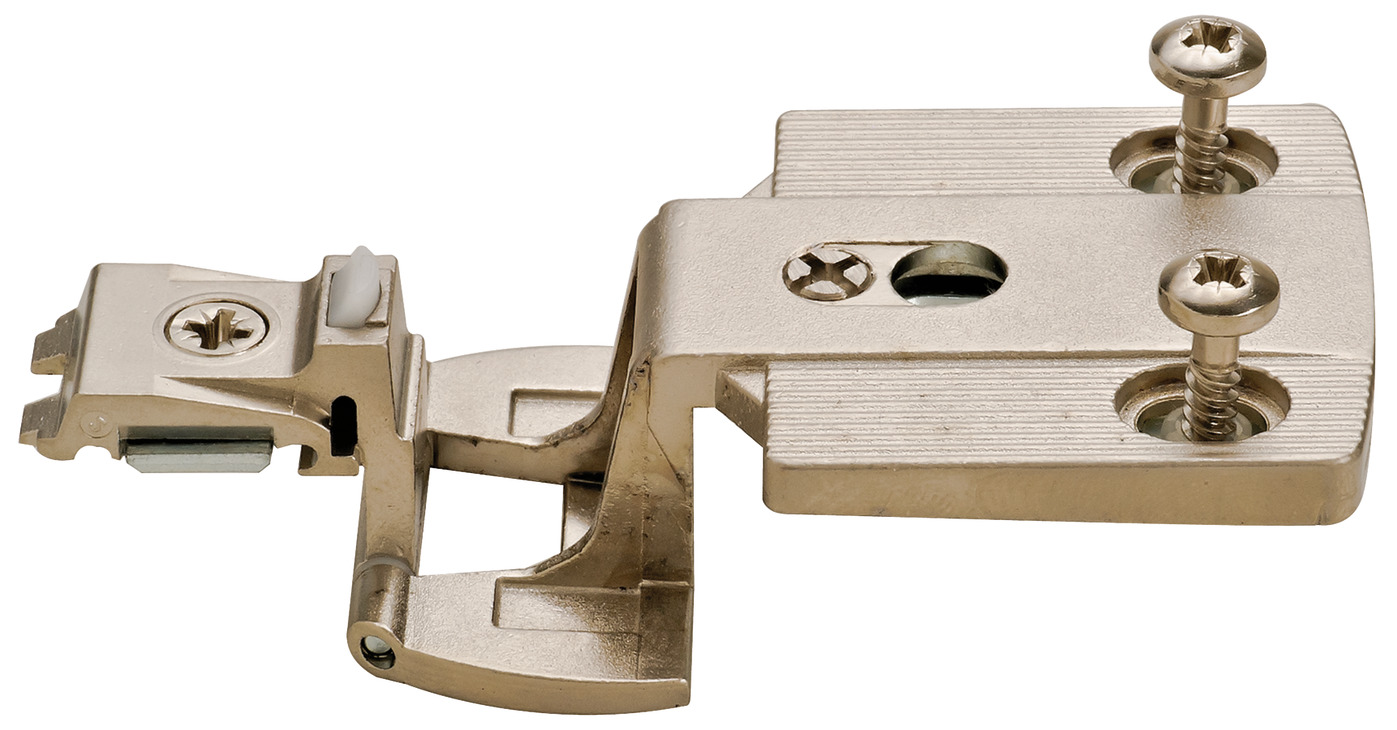

Aximat - Single Pivot Institutional Hinge Arm, 300, Grade 1 with Expanding Dowels
Aximat 300, Matt nickel, full overlay, 270 opening angle
Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible Integrated catch keeps doors closed, no additional magnetic catches required #6 wood screws for hinge attachment are not included Tested in accordance with ANSI/BHMA Grade 1 standards
Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment Hinge cup component available in screw-mount or dowel-mount Arm and cup clip-together, no tools required

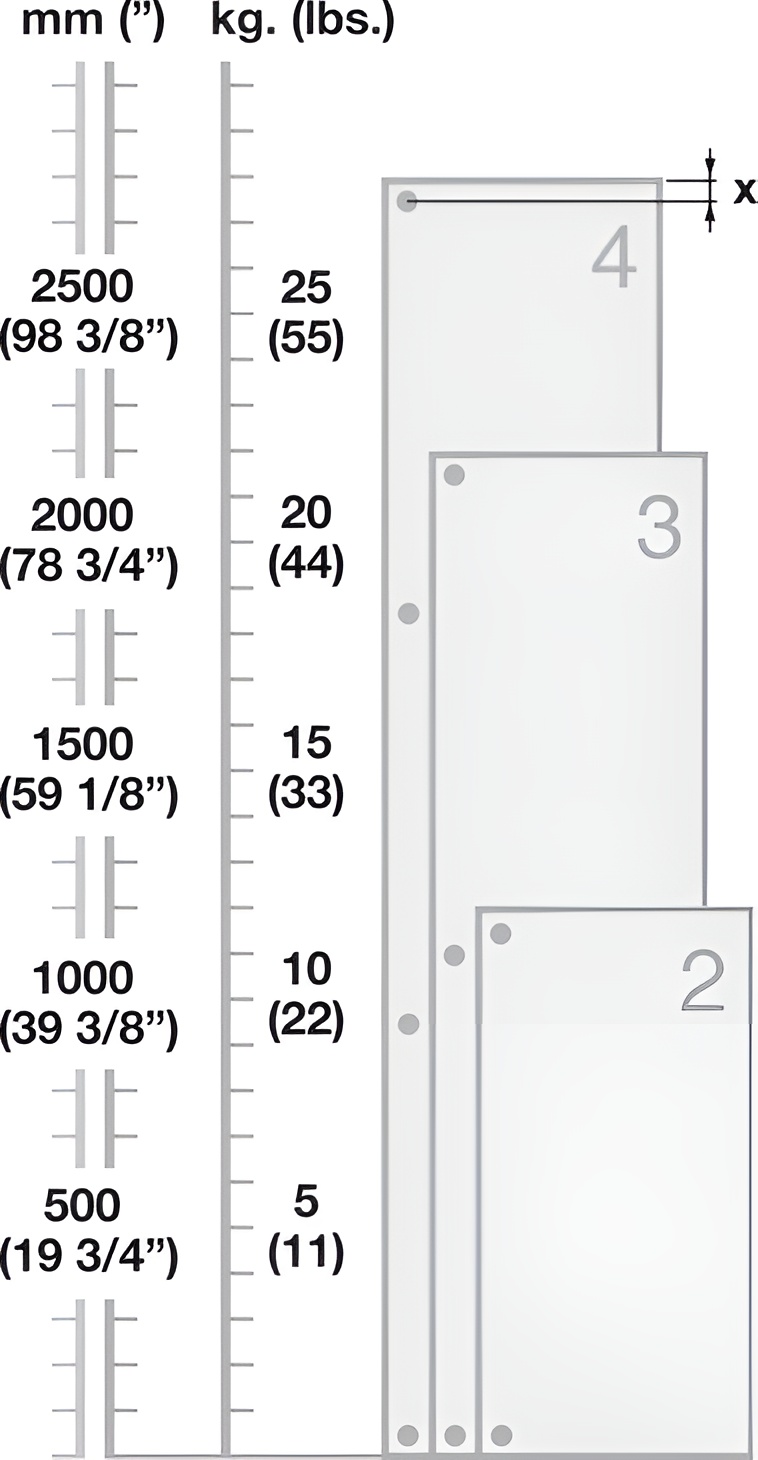

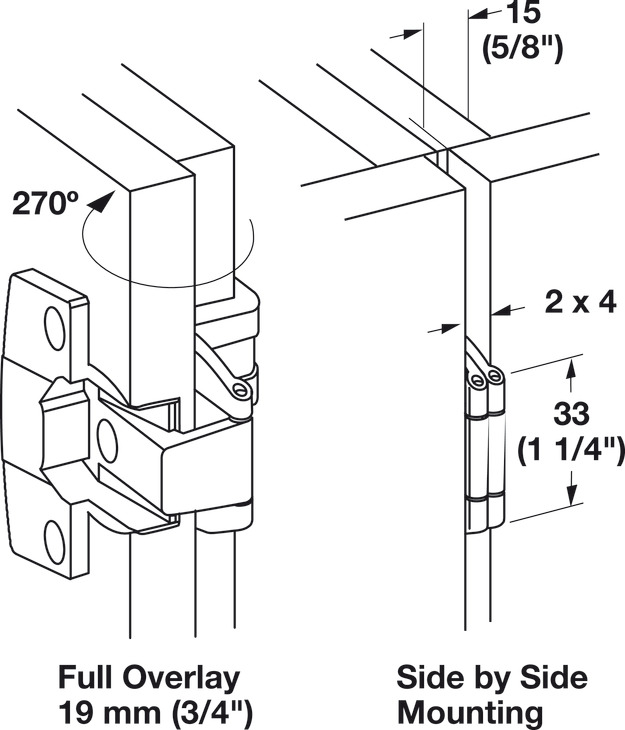

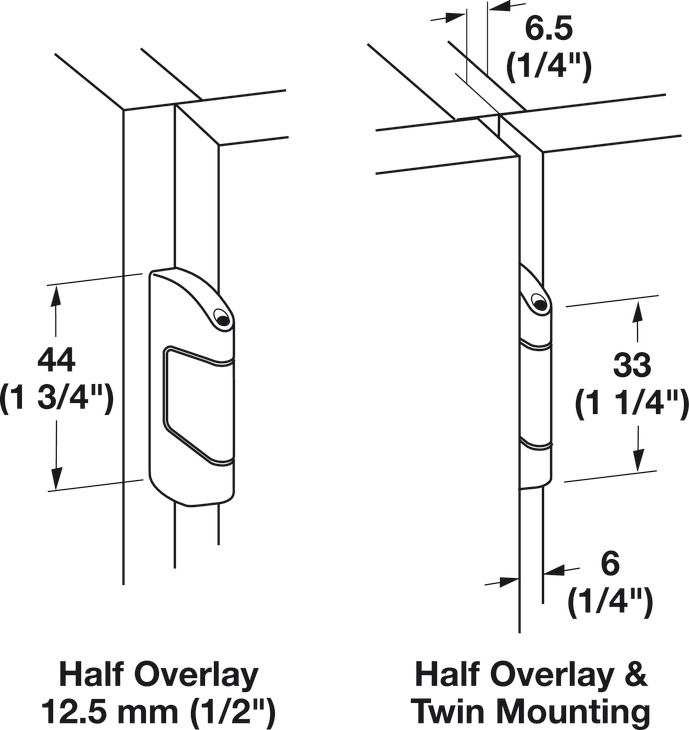

Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel. Twin-mounted version requires 2 cups. Recommended number of hinges: Door widths up to 600 mm (23 5/8"), Door width should not exceed height.

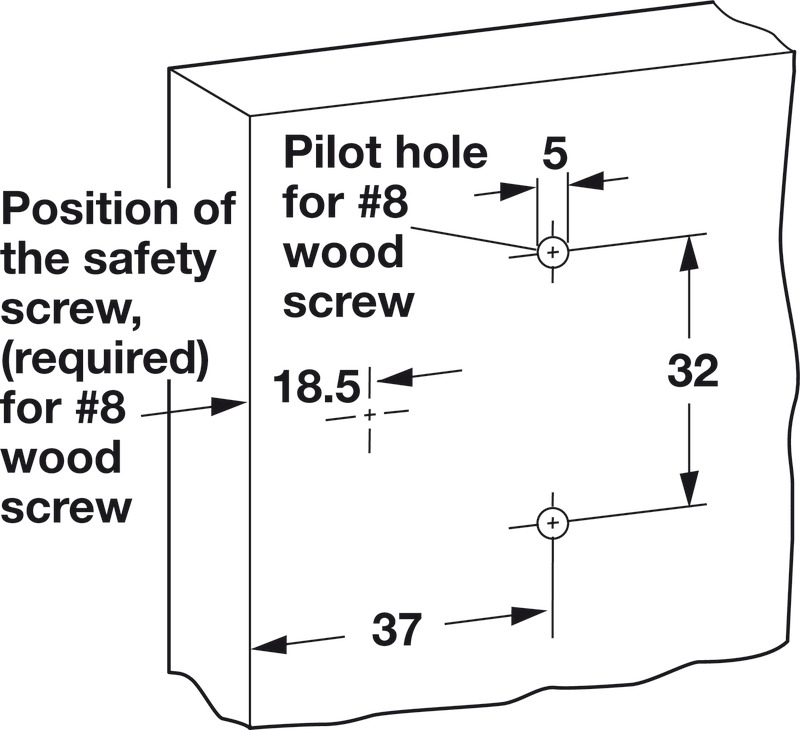

Installation of safety screw in arm is required.
Attributes
Area of application: For single cabinets and storage walls
Color/finish: matt, nickel plated

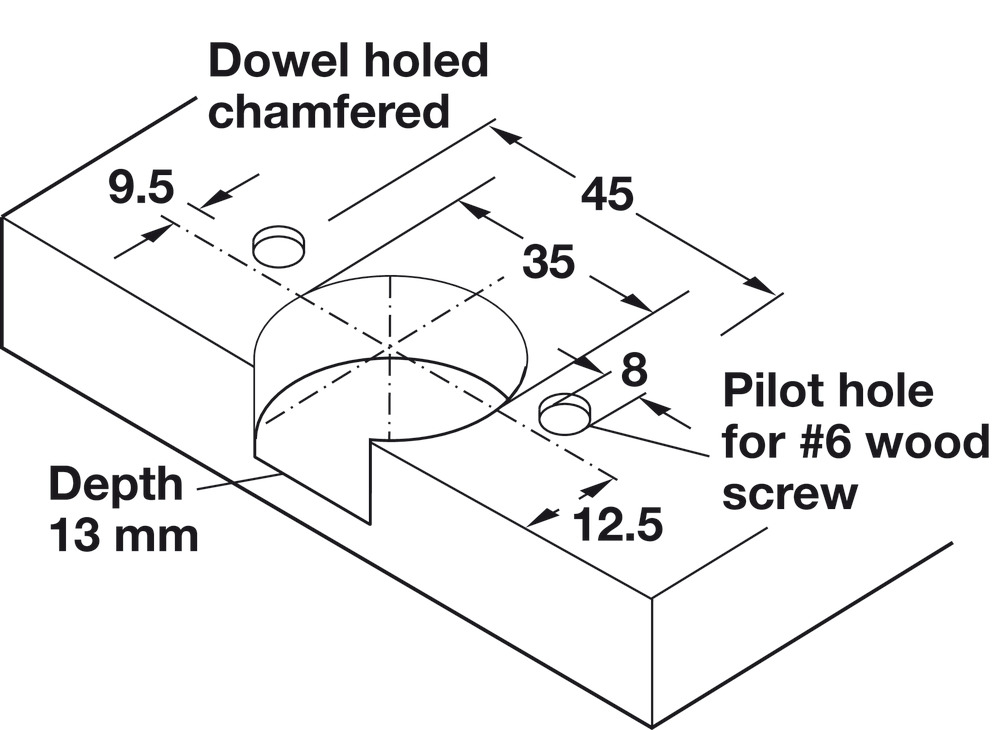

Cup drilling depth: 13.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: without

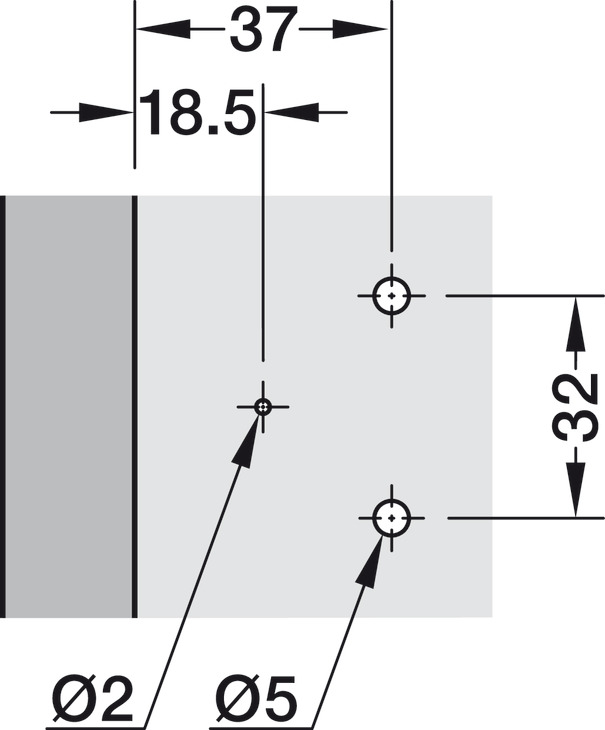

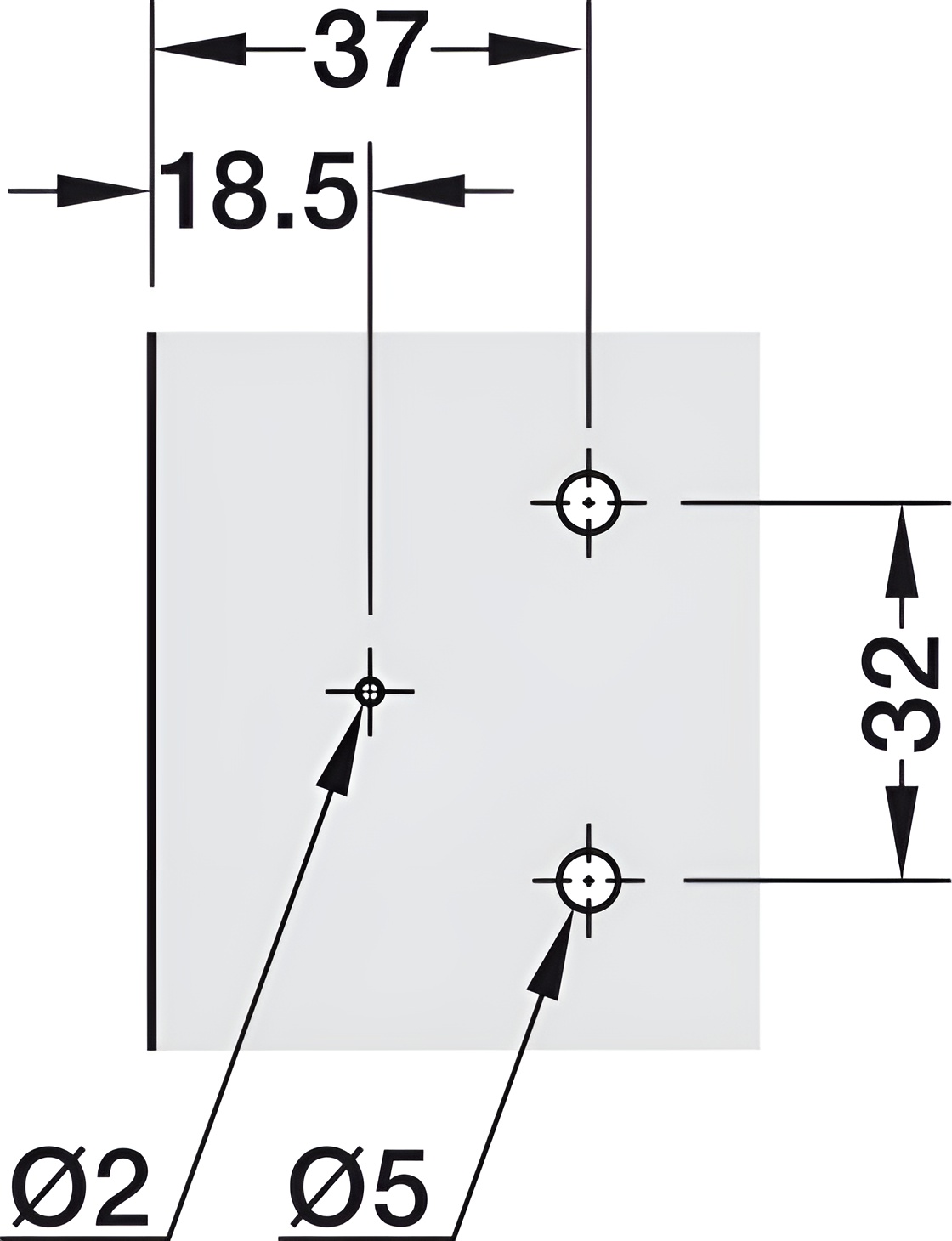

Installation: With pre-mounted expanding dowels for 5mm holes
Material: Zinc alloy
Opening angle: 270°
Order reference: #6 wood screws for hinge attachment are not included
Side panel thickness: ≥19 mm
