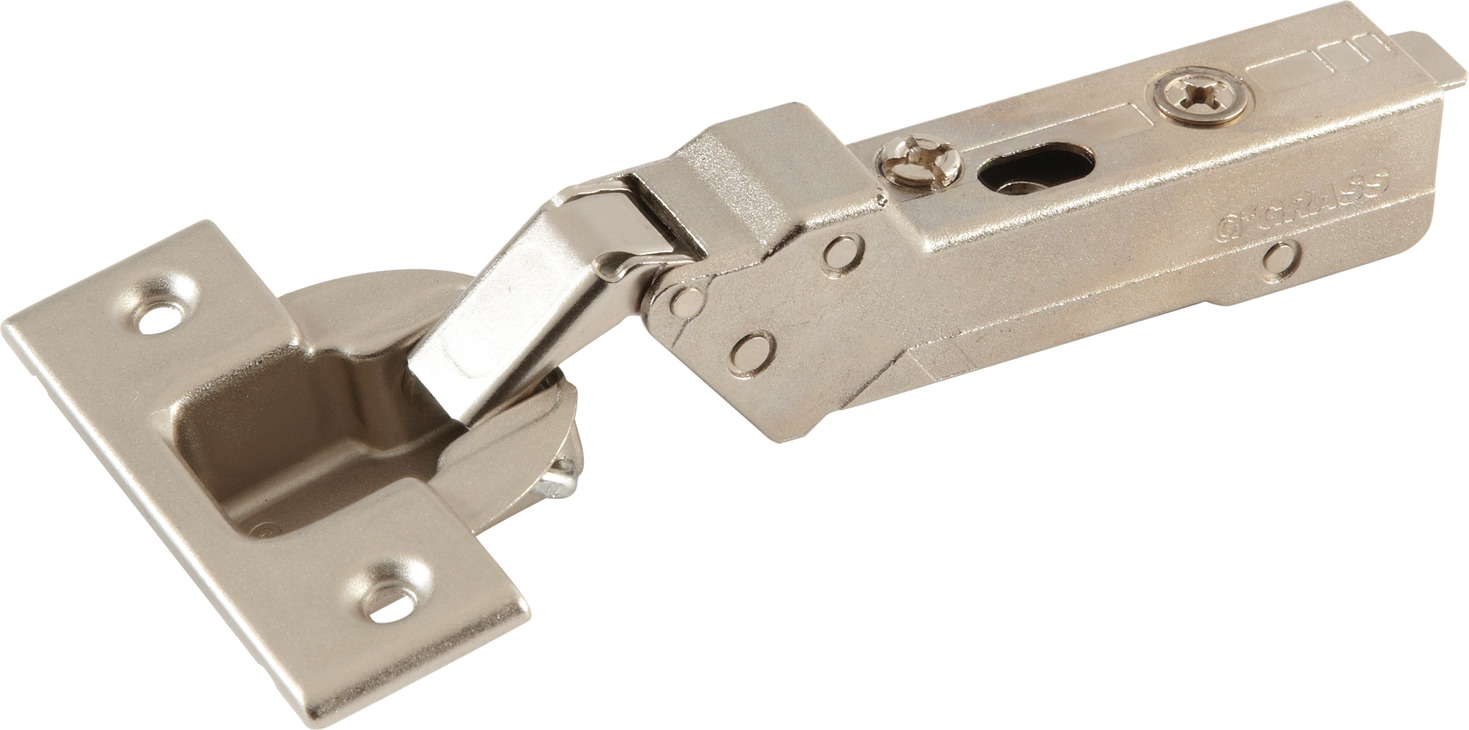

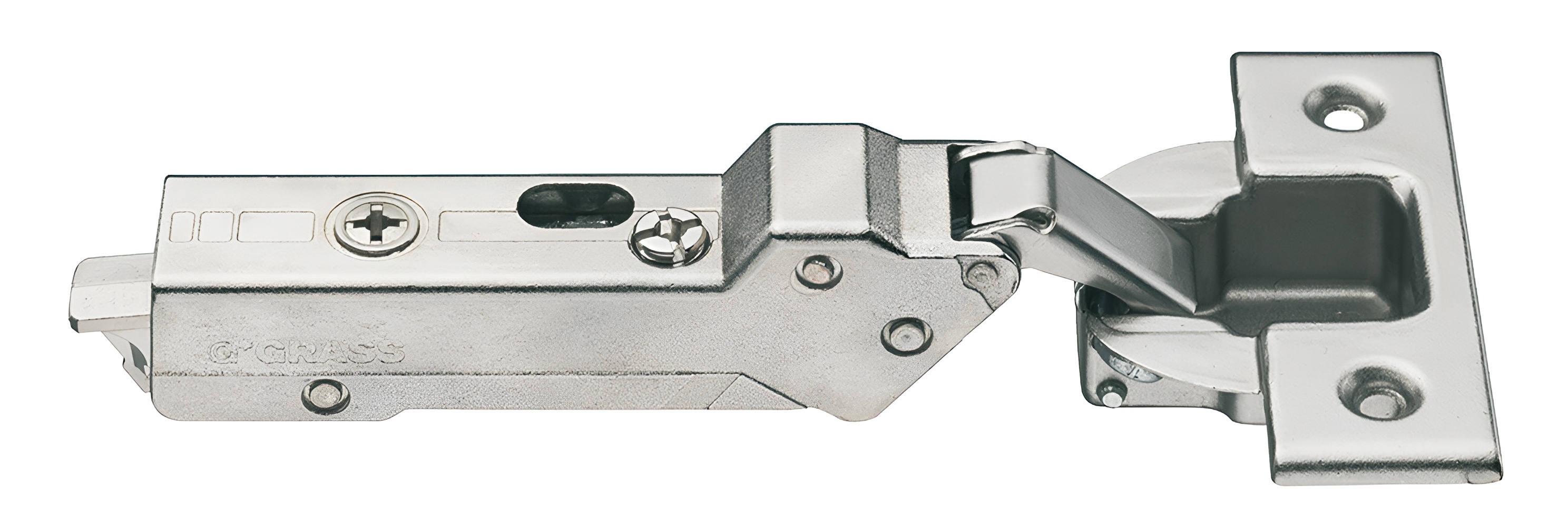

Hafele 348.31.602 Grass TIOMOS Concealed Hinge, 110 Half Overlay, Twin MountHafele 348.31.602 Concealed Hinge offers a sophisticated solution for standard applications with its innovative design and functionality. This self-closing hinge facilitates easy installation with a screw-on model, providing robust support for half overlay and twin mounting setups. Boasting a 110° opening angle, it ensures optimal access to cabinet interiors, enhancing usability. The hinge features an optional integrated 3-way adjustable soft closing mechanism, allowing for smooth and quiet door operation. Its automatic opening mechanism enables convenient access to front panels, eliminating the need for handles. Designed for door thicknesses up to 24 mm, the hinge maintains optimum gap dimensions, ensuring a clean and professional finish. Installation is hassle-free with the clip system, allowing doors to be mounted without tools. The hinge is crafted from durable materials, including a steel cup and zinc alloy hinge arm, and is finished in a sleek nickel plating for added elegance. With side, height, and depth adjustment facilities, this hinge accommodates various cabinet configurations. For those looking to enhance their cabinetry with a reliable and aesthetically pleasing hinge solution, the Hafele 348.31.602 is an excellent choice, seamlessly blending functionality with refined design.
Grass - Concealed Hinge, Tiomos, 110 Opening Angle, Half Overlay/Twin Mounting
for standard applications, Self-close, screw-on, model F045138459228
optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm with automatic opening mechanism for convenient opening of front panels without handles Optimum gap dimensions with door thickness of up to 24 mm

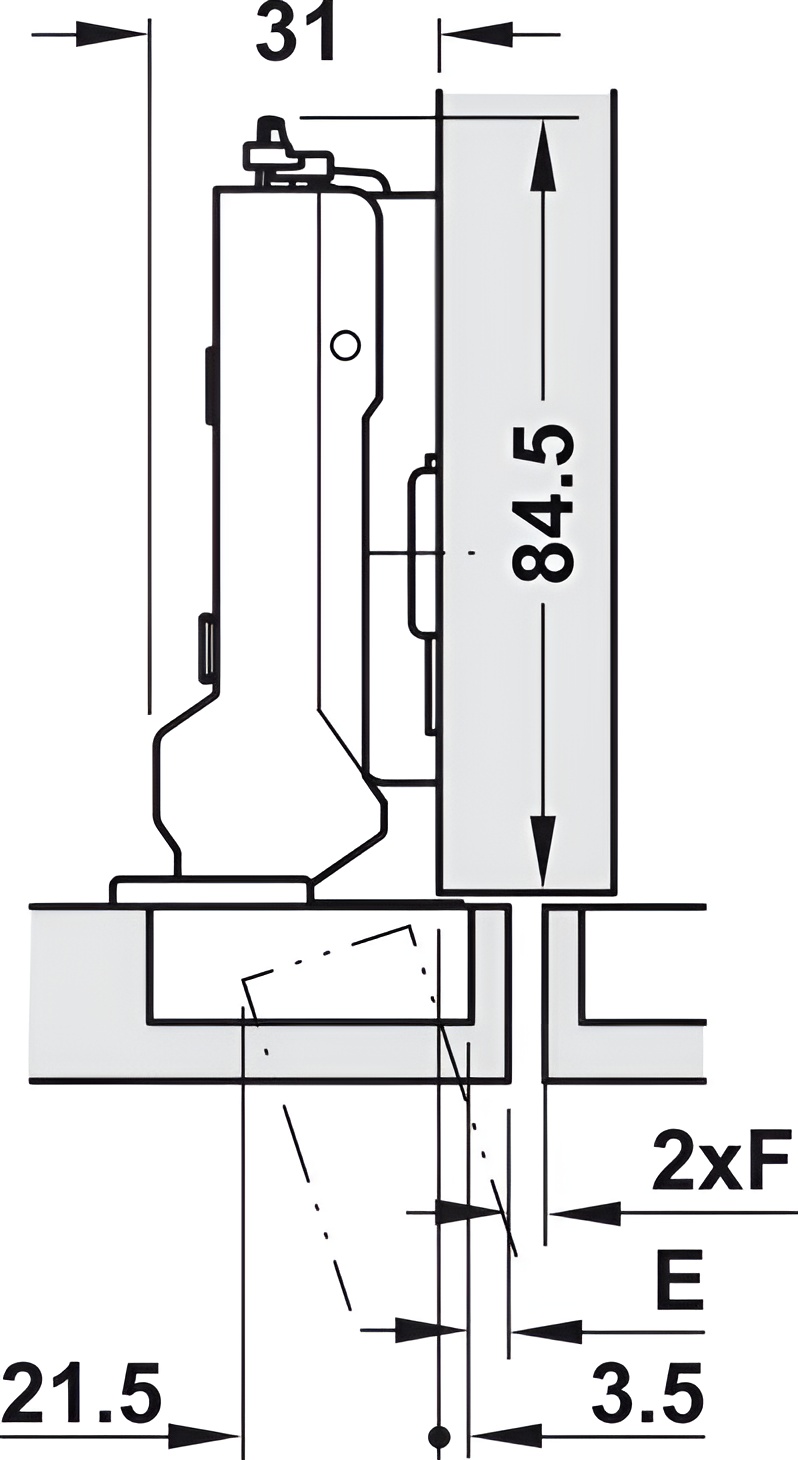

Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2 mm.
The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.
- Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,6 0,6 0,6 0,6 0,6 17 0,6 0,6 0,6 0,6 0,6 18 0,7 0,7 0,7 0,7 0,7 19 0,9 0,9 0,9 0,9 0,9 20 1,1 1,1 1,1 1,1 1,1 21 1,4 1,3 1,3 1,3 1,3 22 1,6 1,6 1,6 1,5 1,5 24 2,4 2,1 2,1 2,1 2,0 Minimum gap F
- Door overlay mm 5,5 6,5 7,5 8,5 9,5 10,5 11,5 12,5 13,5 14,5 3 4 5 6 7 -2 3 4 5 6 7 0 3 4 5 6 7 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate
Area of application: for standard applications
Color/finish: nickel plated
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35.00 mm
Cup fixing: For mounting in drilled hole, for screw fixing
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet without tools with clip system
Lock function: With automatic closing spring, Without soft closing mechanism
Material: Cup: Steel, Hinge arm: Zinc alloy
Model No.: F045138459228
Opening angle: 110°
Order reference: Please order Grass Tipmatic separately for hinges with opening mechanism.
