Hafele 348.32.810 Concealed Hinge, Grass TIOMOS, 155 Opening Angle, Full Overlay offers a seamless solution for large door applications with overlays up to 24 mm. Designed with a soft-close feature, this hinge ensures a gentle and quiet door closure, enhancing the overall user experience. The full overlay plus design allows for maximum door coverage while maintaining an elegant aesthetic. With an impressive opening angle of 155°, this hinge provides ample accessibility, making it ideal for both residential and commercial applications. The hinge is crafted from durable zinc alloy, ensuring longevity and reliable performance. Installation is straightforward, with the cup drilling depth set at 10.00 mm and a drilling pattern of 45/9.5, accommodating various cabinetry designs. The Hafele 348.32.810 requires cup drilling for assembly, with a drilling depth of 3/8" and a cup drilling diameter of 35.00 mm. Its straight crank type further simplifies installation, making it a practical choice for builders and homeowners alike. Available for UPS shipping, this hinge is a perfect combination of functionality and style, ensuring that your cabinets not only look great but also operate smoothly for years to come.

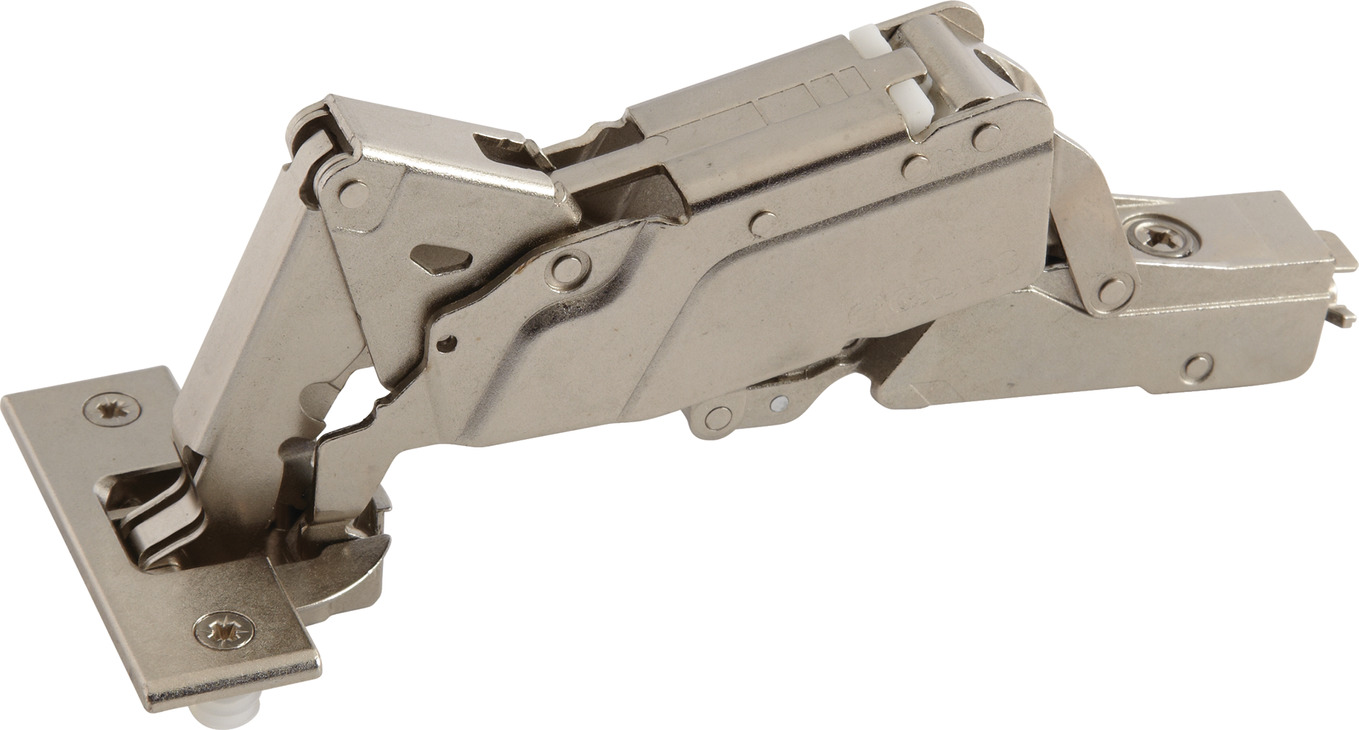

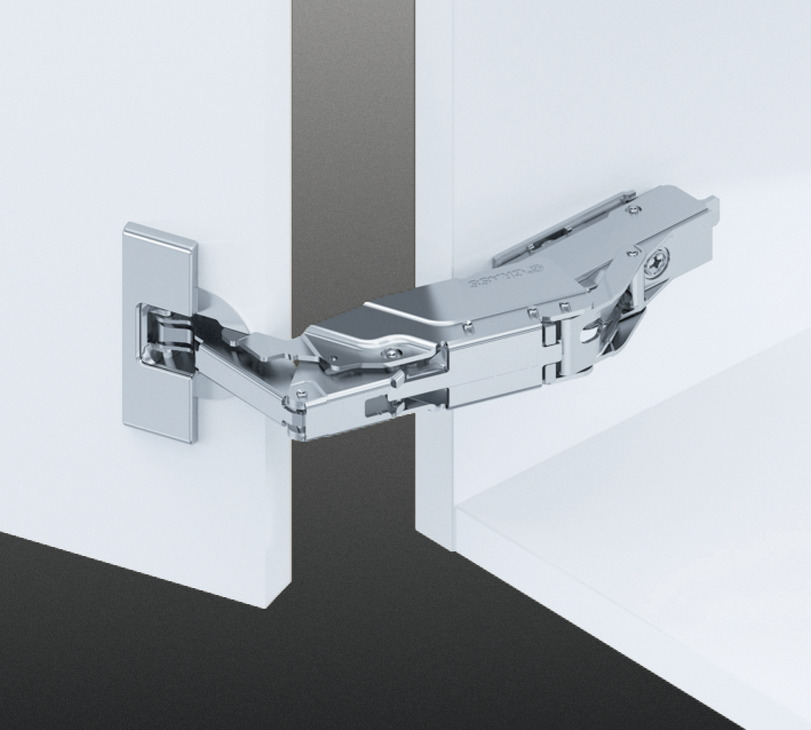

Grass - Concealed Hinge, Tiomos, 155 Opening Angle, Full Overlay
Soft-close, press-fit, model F028138564217
Area of application: For large door overlay up to 24 mm

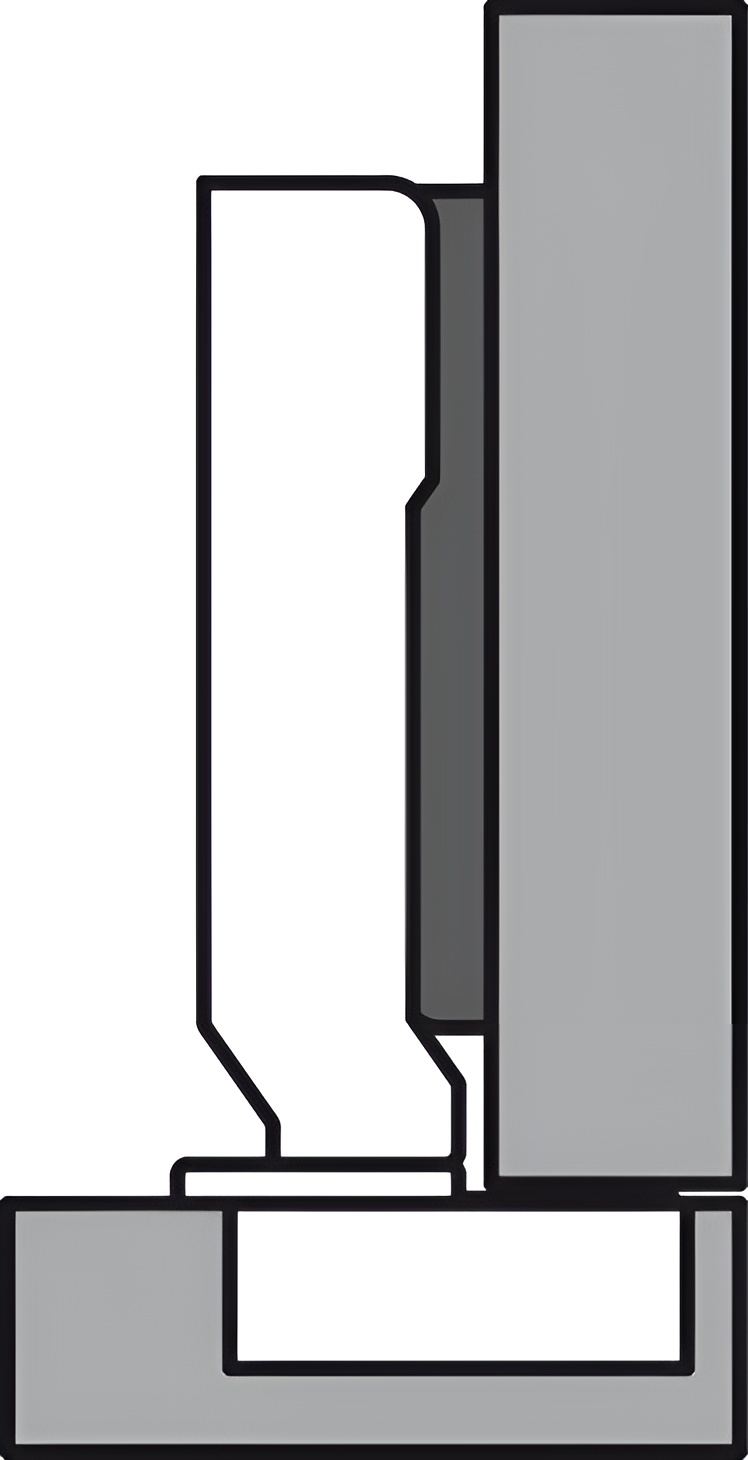

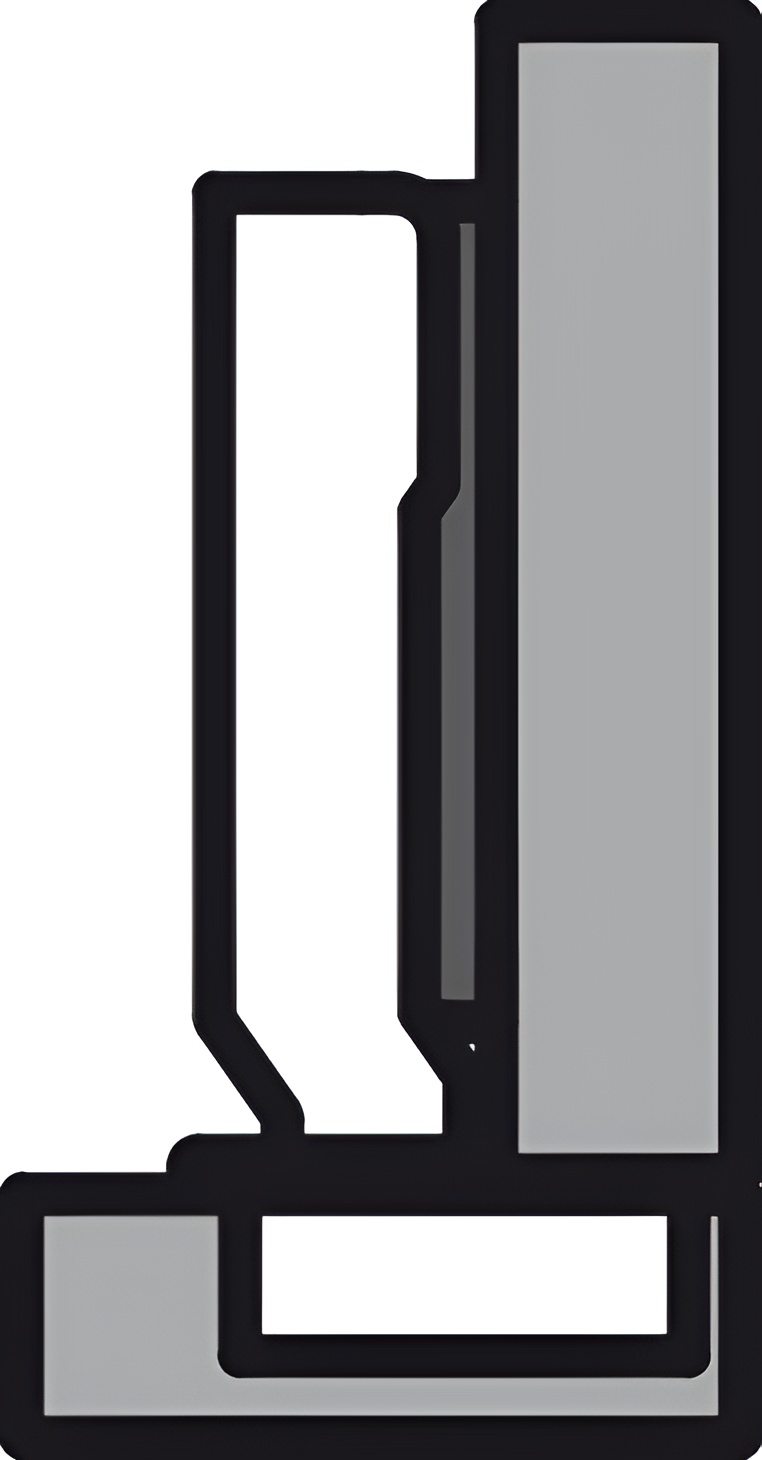

Concealed hinge version: full overlay plus
Crank type: Straight

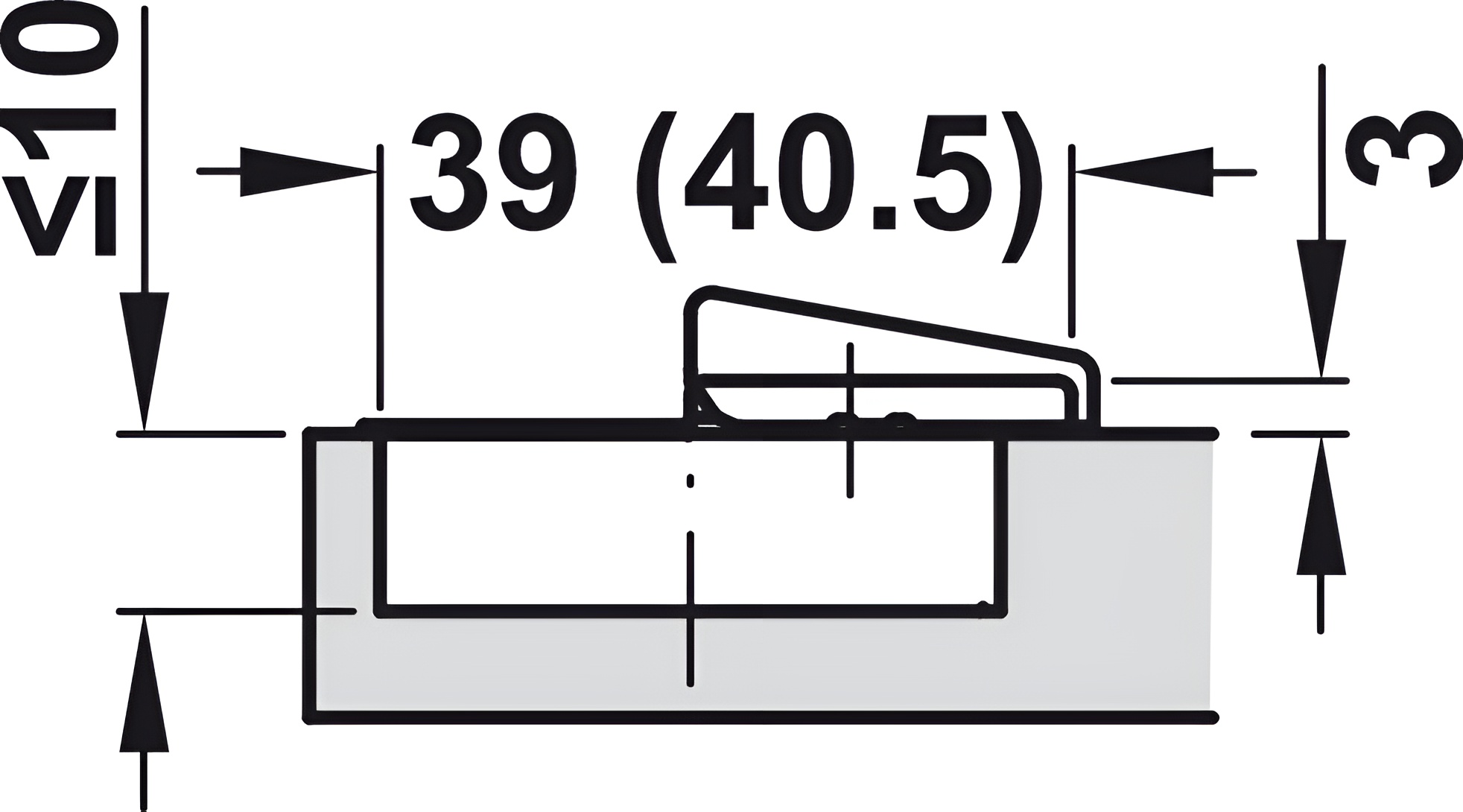

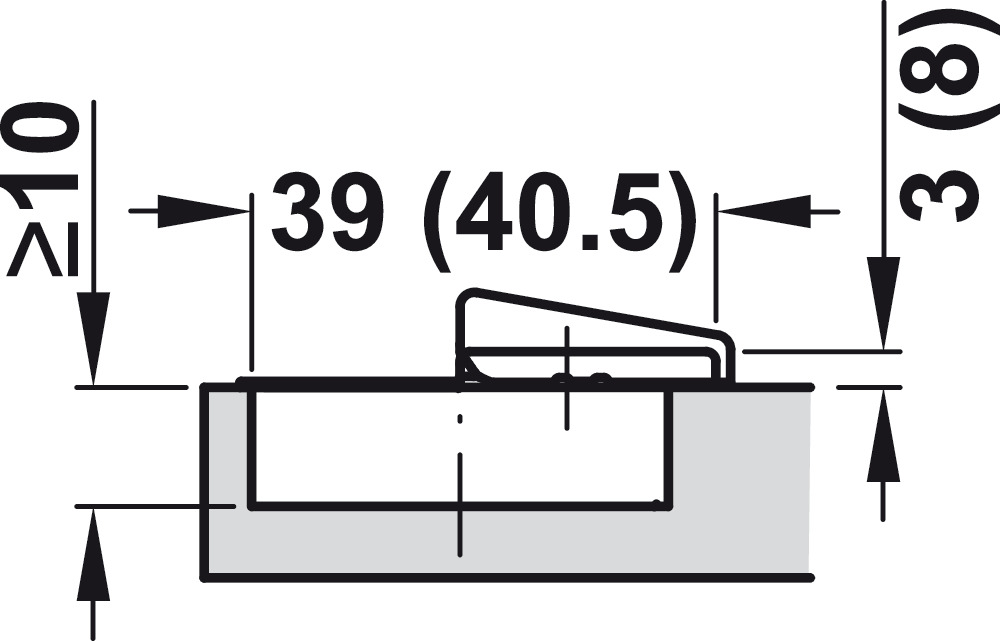

Cup drilling depth: 10.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling
Drilling depth: 3/8"

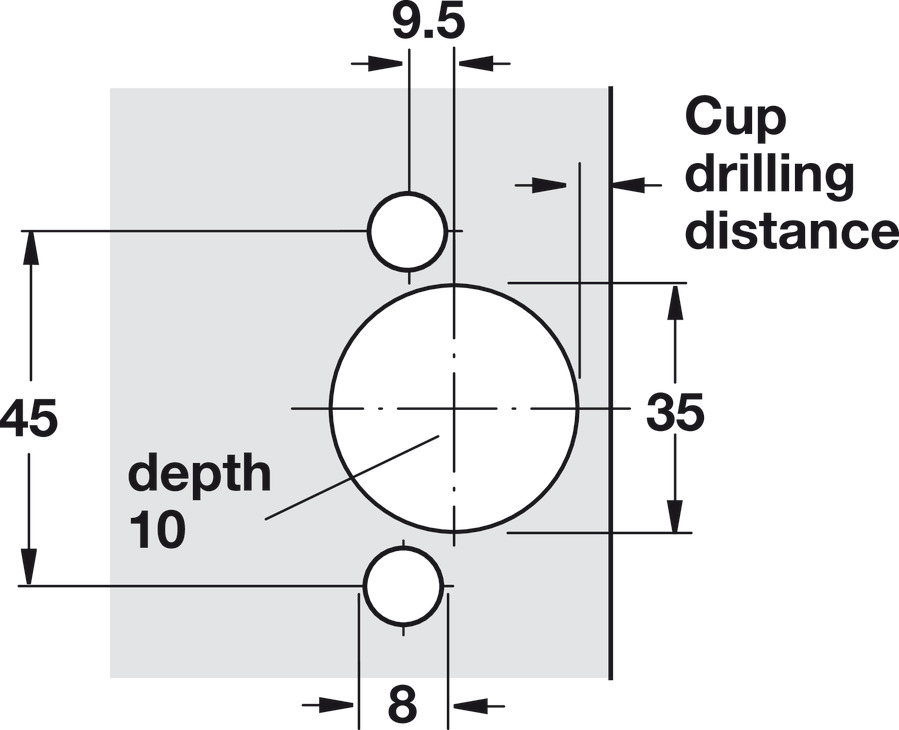

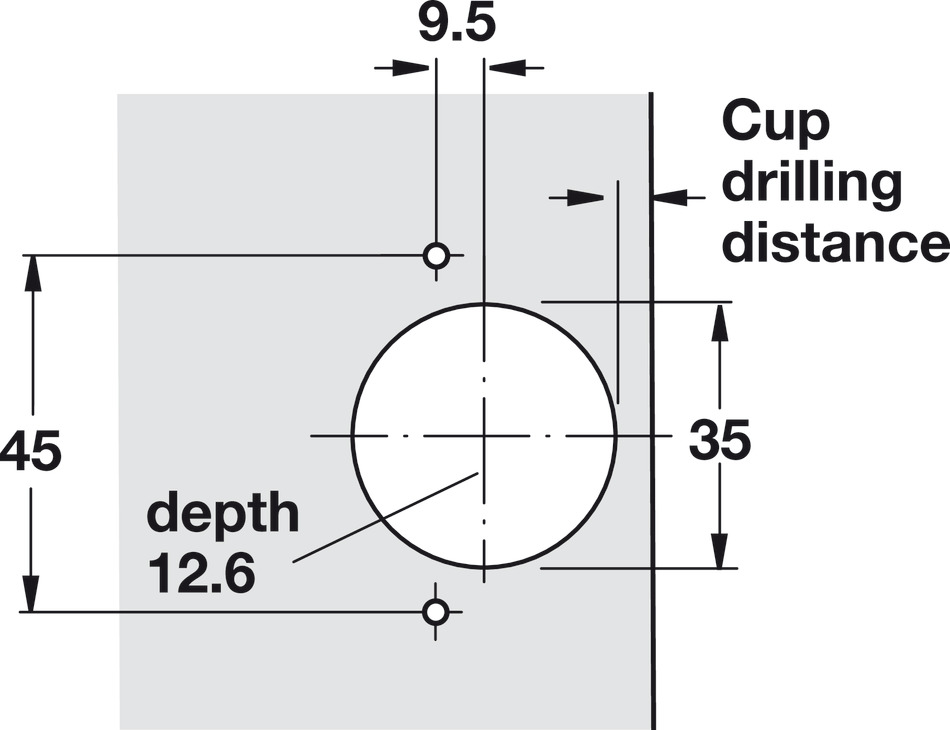

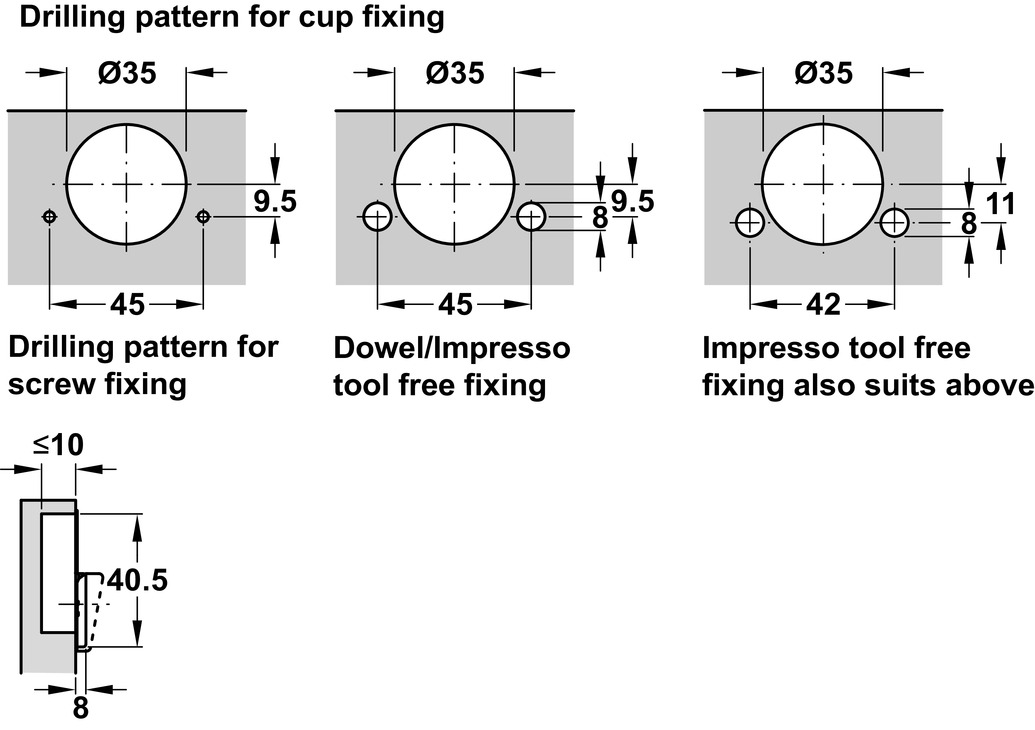

Drilling pattern: 45/9.5
Material: Zinc alloy
Model No.: F028138564217
Opening angle: 155°
