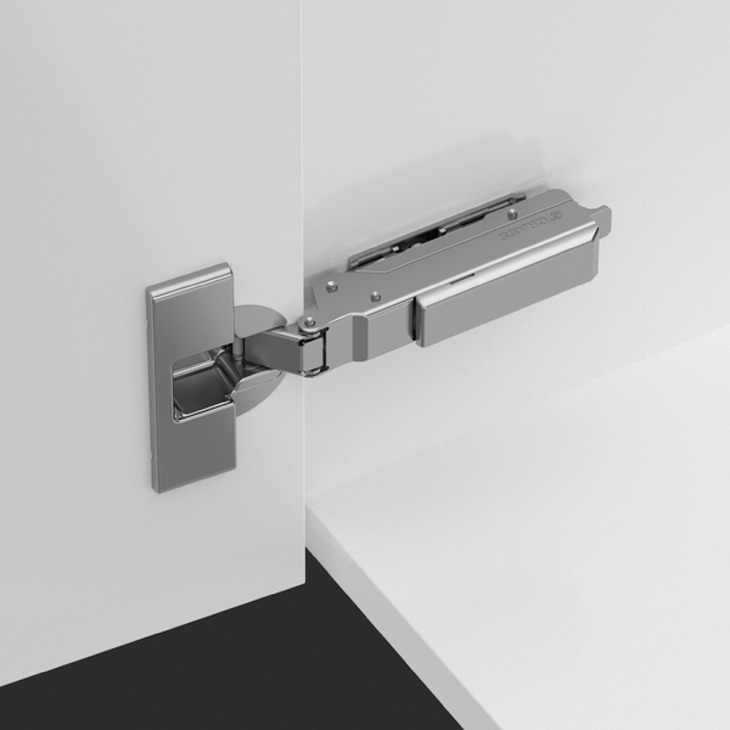

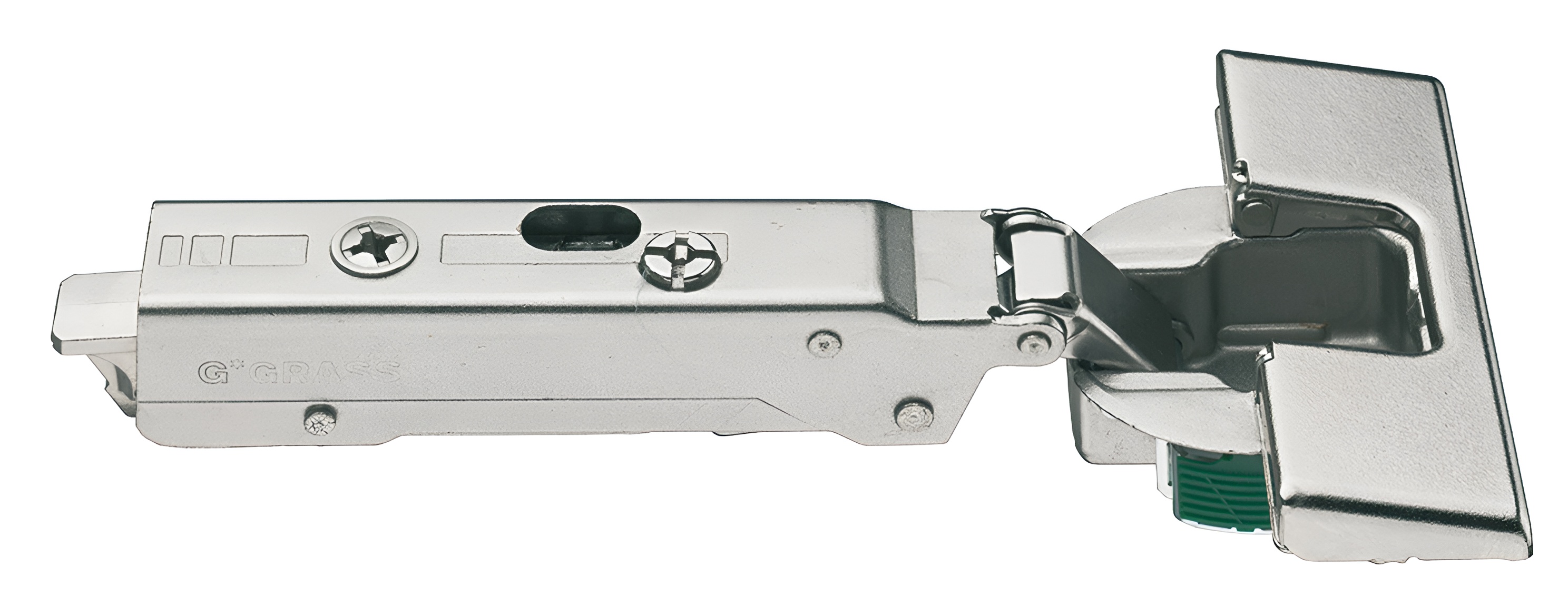

Hafele 348.34.811 Grass TIOMOS Concealed Hinge, 94 Opening Angle, Overlay

Hafele 348.34.811 Concealed Hinge, Grass TIOMOS, offers an innovative solution for thick and profile doors, accommodating thicknesses of up to 36 mm. This hinge features a self-closing mechanism integrated into the hinge arm, ensuring smooth operation and reliable performance. With an impressive opening angle of 94 degrees, it promotes ease of access while maintaining a sleek appearance. Designed for a full overlay configuration, the Hafele TIOMOS hinge supports door overlays starting from 12 mm up to 24 mm, providing flexibility in various applications. The adjustment facilities include ±2 mm side adjustments, as well as height and depth adjustments, allowing for precise alignment and installation. This hinge is nickel-plated, combining durability with an attractive finish, making it suitable for any professional or home setting. The cup drilling depth of 12.60 mm and diameter of 35.00 mm make for straightforward installation, requiring cup drilling for assembly. For added convenience, the hinge can be mounted without tools using a clip system, streamlining the installation process. Suitable for wooden doors, the Hafele 348.34.811 is an essential choice for those seeking quality and functionality in their architectural hardware.

Grass - Concealed Hinge, Tiomos, 94 Opening Angle, Overlay

for thick doors and profile doors up to 36 mm, Screw-on, self-close, model F028138572228

Door overlay over 24mm possible, with side adjustments by ±2 mm.

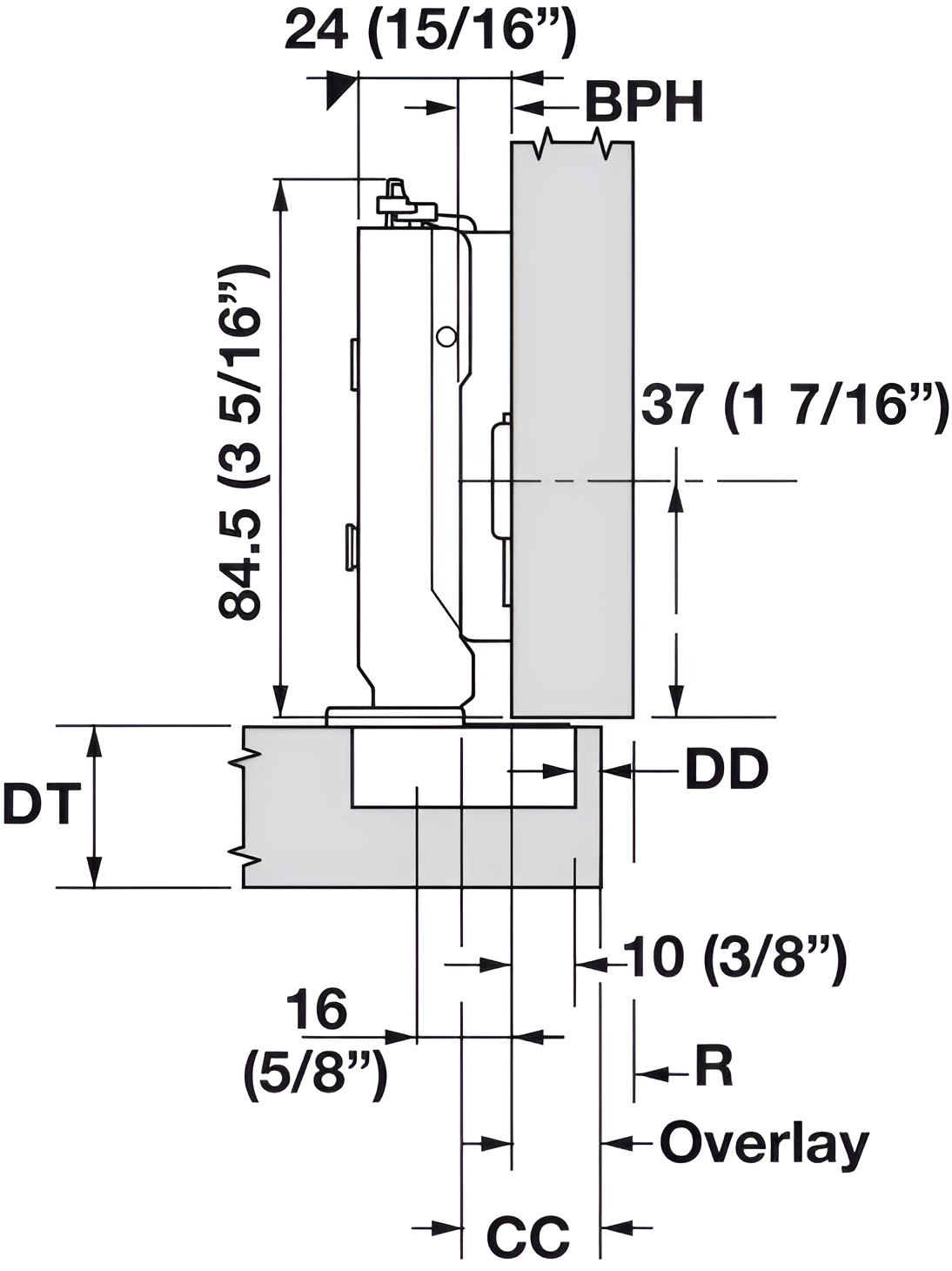

• Door overlay mm 12 13 14 15 16 17 18 19 20 21 3 4 5 6 7 -2 3 4 5 6 7 0 3 4 5 6 7 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm

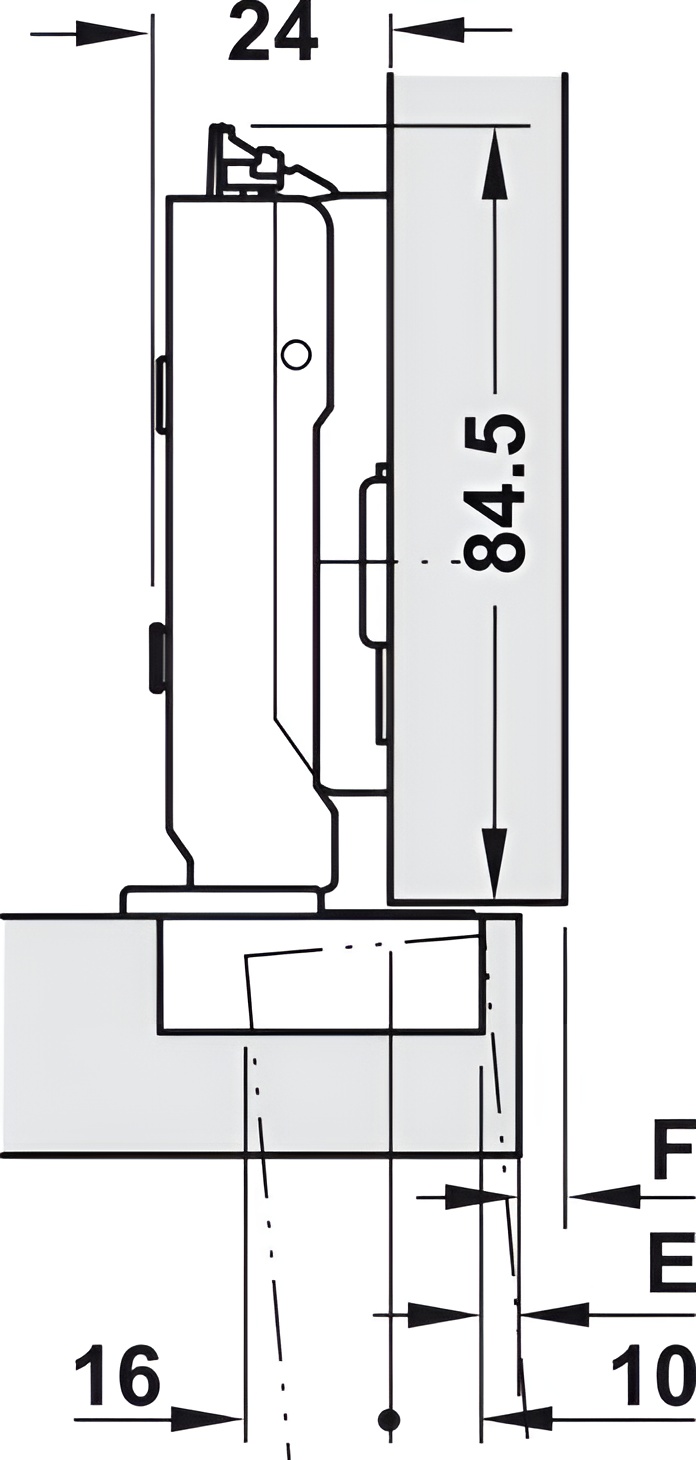

• Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,2 0,2 0,2 0,2 0,2 18 0,2 0,2 0,2 0,2 0,2 20 0,3 0,3 0,3 0,3 0,3 22 0,5 0,5 0,5 0,5 0,5 24 0,6 0,6 0,6 0,6 0,6 26 1,0 1,0 1,0 1,0 1,0 28 2,0 1,5 1,5 1,3 1,3 30 4,5 3,5 2,5 2,5 1,5 36 10,6 9,6 8,6 7,6 6,7 Minimum gap F

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.49
