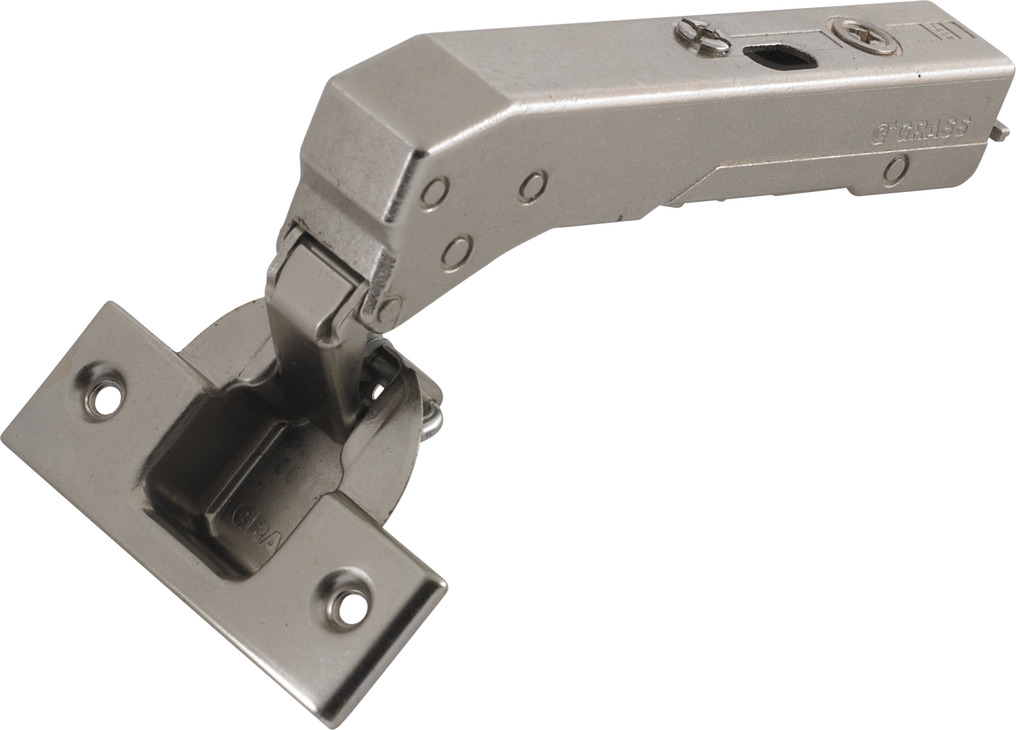

Hafele 348.37.800 Grass TIOMOS Concealed Blind Corner Hinge, 110 Inset Mounting

Hafele 348.37.800 Concealed Blind Corner Hinge offers an innovative solution for blind corner applications with its smart inset mounting design. This hinge features a soft-close mechanism that enhances user experience by ensuring gentle and quiet closure, making it perfect for modern cabinetry. With a generous opening angle of 110 degrees, it allows for easy access to corner spaces that are often difficult to reach. Designed for versatile use, this hinge is compatible with doors made from wood and requires cup drilling for assembly. The hinge arm incorporates an optional, integrated 3-way adjustable soft-closing mechanism, ensuring precise alignment and operation tailored to your specific installation needs. It features side adjustment of 2 mm, height adjustment ranging from -2.5 to +2.5 mm, and depth adjustment from -2 to +3 mm, accommodating various cabinet configurations. Constructed with a steel cup and a zinc alloy hinge arm, the hinge boasts a sleek nickel-plated finish, enhancing both durability and aesthetic appeal. Installation is straightforward, utilizing a convenient clip system that allows for door mounting without tools. The Hafele 348.37.800 is the ideal choice for achieving a flush front design with a minimum gap, elevating both functionality and style in your furniture projects.

Grass - Concealed Blind Corner Hinge, Tiomos, 110 Opening Angle, Inset Mounting

for blind corner applications (inset), Soft-close, screw-on, model F028138536223

Use mounting plate 3 mm for flush front design of door and blind corner.

• Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,6 0,6 0,6 0,6 0,6 17 0,6 0,6 0,6 0,6 0,6 18 0,7 0,7 0,7 0,7 0,7 19 0,9 0,9 0,9 0,9 0,9 20 1,1 1,1 1,1 1,1 1,1 21 1,4 1,3 1,3 1,3 1,3 22 1,6 1,6 1,6 1,5 1,5 24 2,4 2,1 2,1 2,1 2,0 Minimum gap F
