Hafele 348.38.513 Wing Baseplate is expertly designed for use with Grass Tiomos concealed hinges, providing a reliable and efficient solution for your cabinetry needs. Crafted from durable steel and finished in an attractive nickel plating, this baseplate not only enhances the aesthetic appeal of your projects but also ensures long-lasting performance. One of the standout features of this model is its height adjustment capability via a worm gear, allowing for precision adjustments within a range of ±2 mm. This flexibility helps achieve the perfect alignment for your doors, enhancing functionality and appearance. With a height of just 3 mm and a screw distance of 32 mm, the baseplate is engineered for easy integration. The clip system fixing method simplifies installation, making it quick and hassle-free. Additionally, the edge distance of 37 mm ensures compatibility with a variety of applications, making it a versatile choice for both professionals and knowledgeable DIY enthusiasts. Whether you're working on new installations or retrofitting existing cabinetry, the Hafele 348.38.513 Wing Baseplate is an essential component that combines practicality with quality, ensuring your projects stand the test of time.

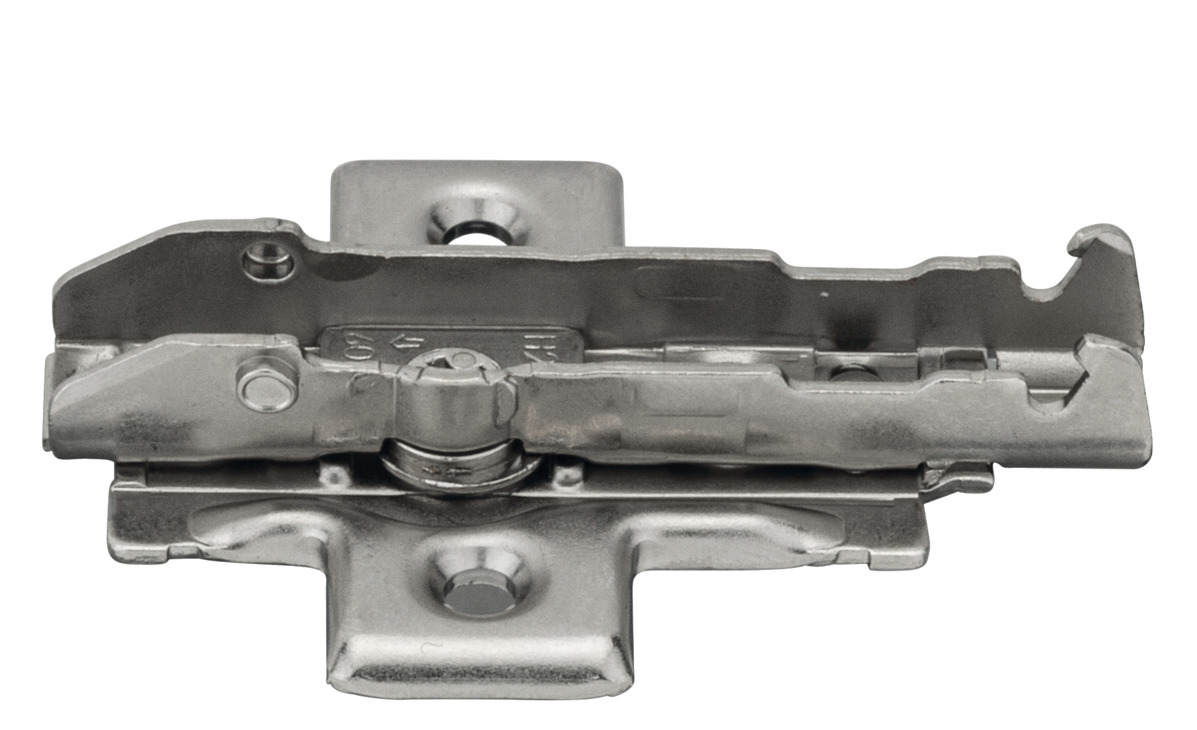

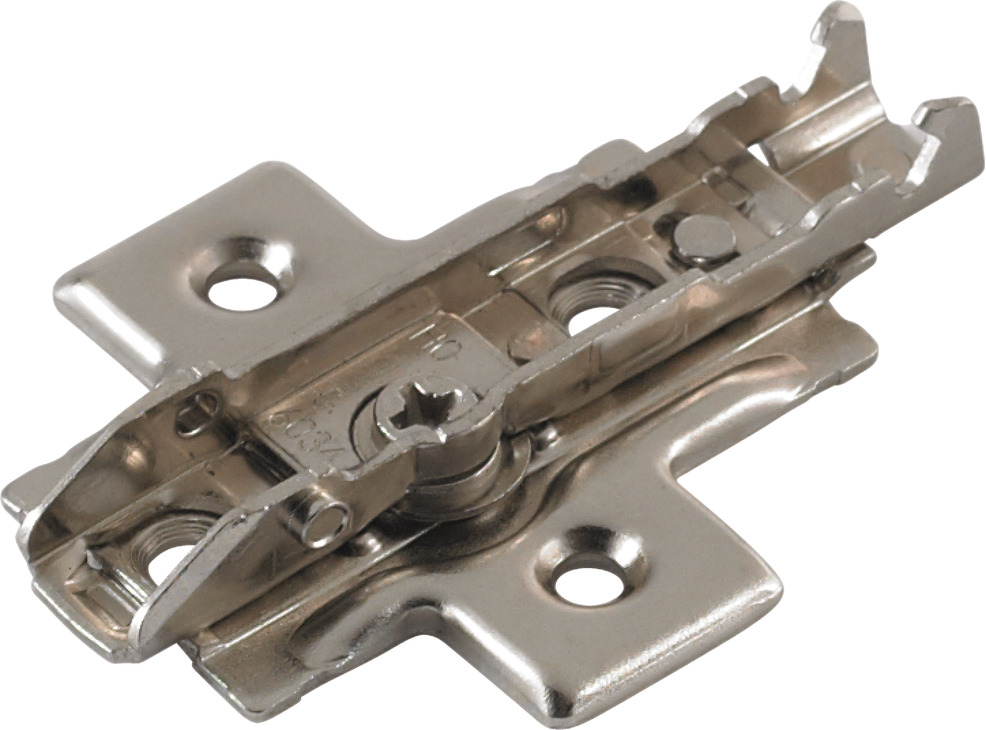

Grass - Wing Baseplate, Tiomos 4-Point Fixing with Wood Screws
Height adjustment via worm gear, Height 3 mm, model F058139748228

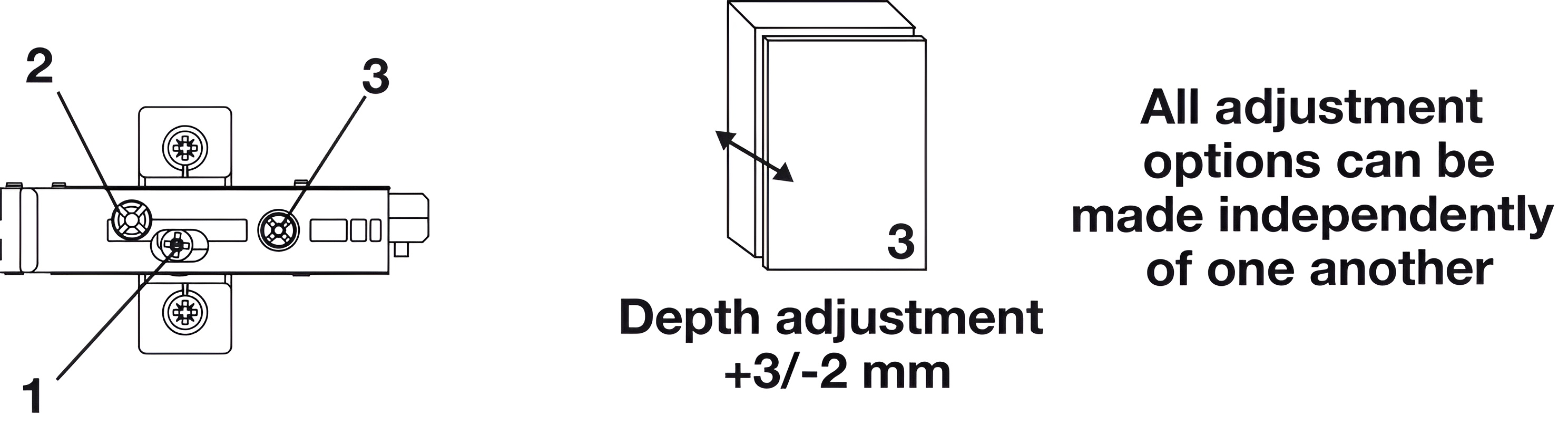

Adjustment facility: Height adjustment Via worm gear ±2 mm
Area of application: for Grass Tiomos concealed hinges
Color/finish: nickel plated
Distance: 3.00 mm

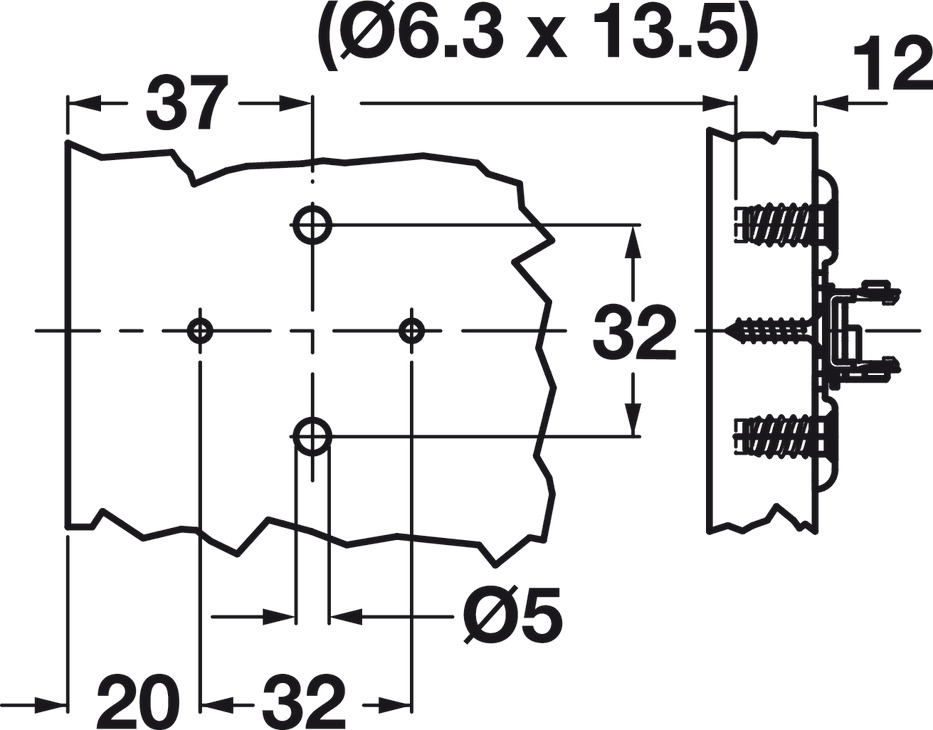

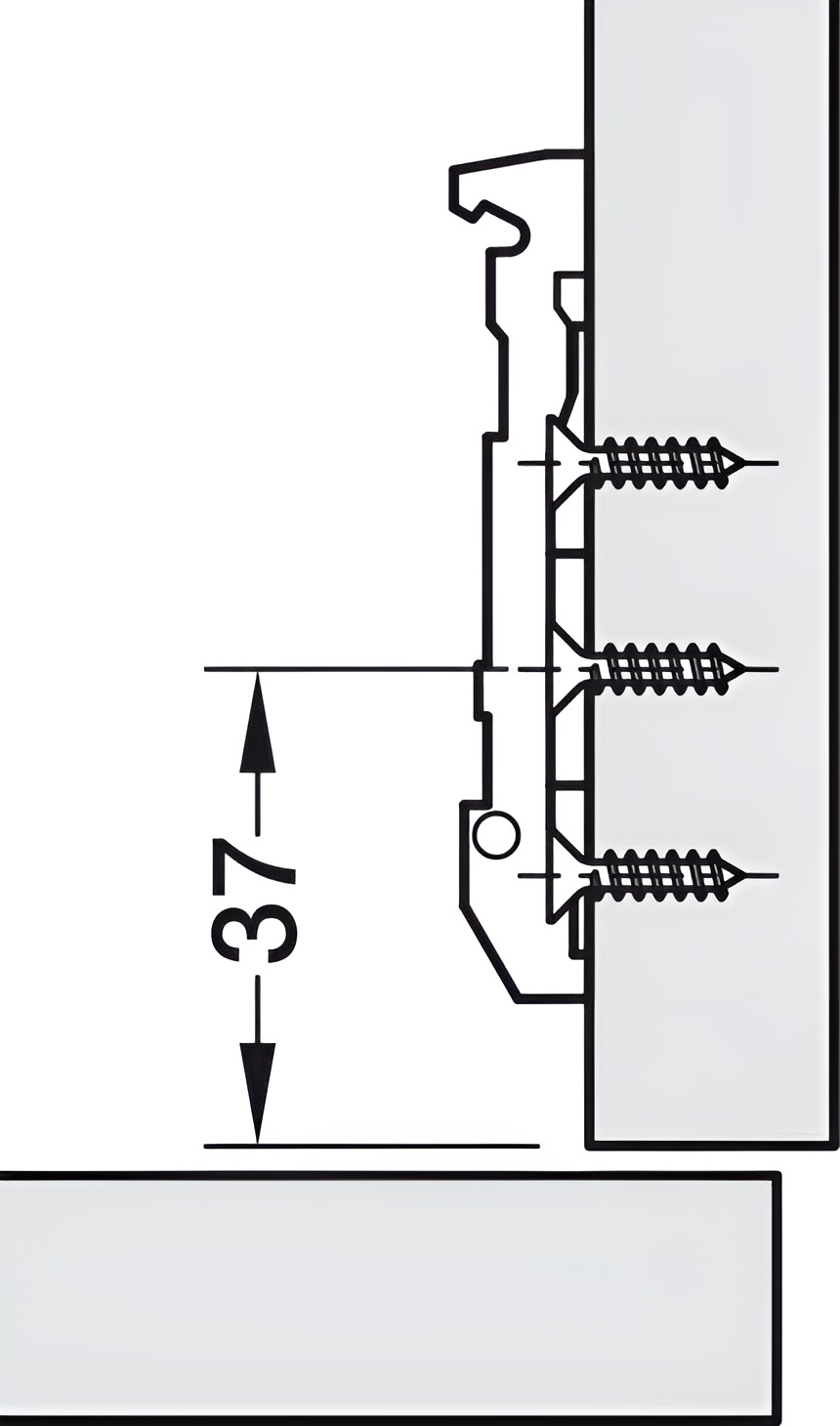

Edge distance: 37.00 mm
Fixing method: clip system
Material: Steel
Model: F058139748228
Model series: Tiomos
Mounting plate version: for screw fixing with chipboard screws
Screw distance: 32.00 mm
