Hafele 348.90.025 Concealed Face Frame Hinge offers a seamless blend of functionality and style, perfect for modern cabinetry. Designed specifically for a 1-1/4" overlay, this hinge features a soft-close mechanism that is pre-mounted within the hinge cup, ensuring a quiet and controlled closure every time. The hinge boasts an impressive opening angle of 108°, providing ample access to cabinet interiors, making it ideal for both residential and commercial applications. Crafted from durable steel, the one-piece hinge and base plate are engineered for strength and reliability. The 3-dimensional adjustment capabilities allow for precise installation, with side, height, and depth adjustments that ensure a perfect fit. The adjustment switch further enhances usability, enabling regulation of the closing action for personalized performance. Installation is simplified with a drilling pattern of 45/9.5, and the hinge requires a cup drilling depth of 10.70 mm. Front and rear locating tabs aid in positioning the hinge accurately on the face frame, while the included flat head screw for the hinge cup and pan head screw for the base plate ensure secure attachment. Elevate your cabinetry with the Hafele 348.90.025 hinge, combining innovative design with exceptional usability.

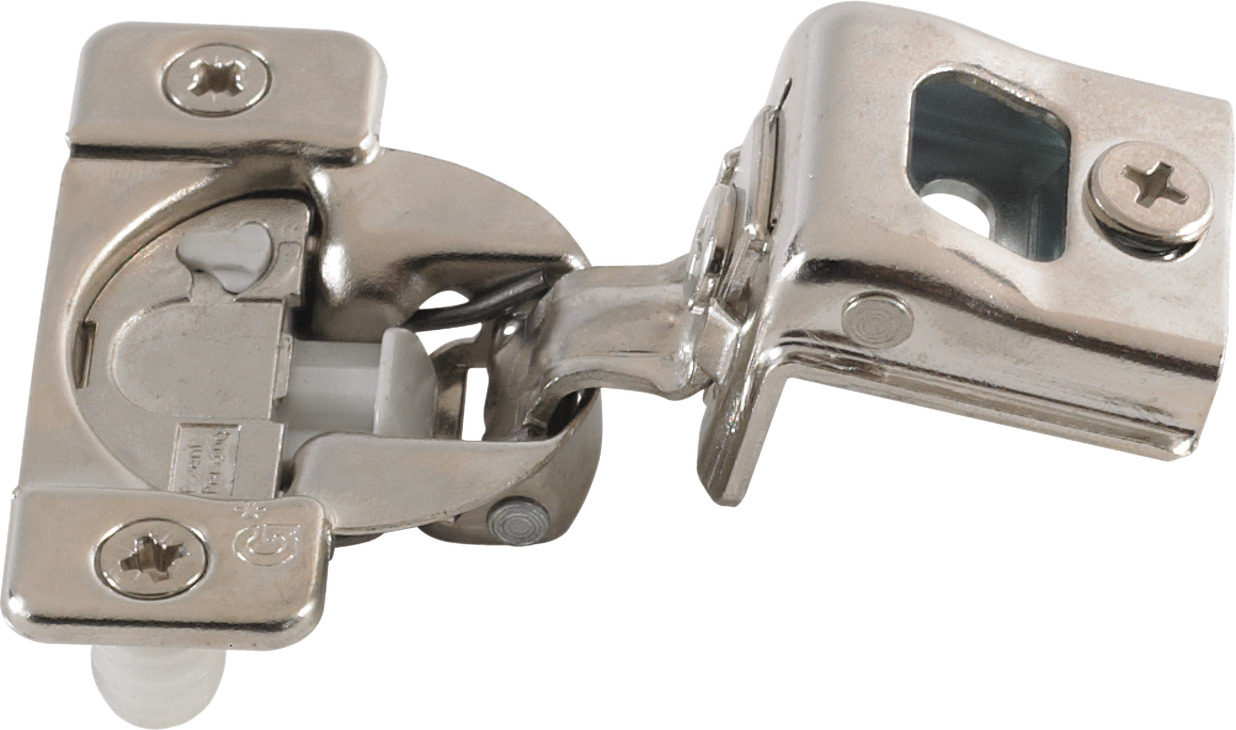

Grass - Concealed Face Frame Hinge, TEC Wrap Around, 108 Opening Angle, Soft-Close
1-1/4" Overlay, Press-fit Model 02910A-15
Adjustment facility: Side adjustment facility 1.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment facility -5 – 2.5 mm
Cup drilling depth: 10.70 mm
Door processing for assembly: with cup drilling
Drilling depth: Cup drilling depth: 7/16"
Drilling pattern: 45/9.5
Installation height: 1/4" – 1"
Material: Steel
Model No.: 02910A-15
Opening angle: 108°
