Hafele 348.90.028 Concealed Face Frame Hinge is expertly designed for a seamless integration in cabinetry, featuring a 1-1/2" overlay and a remarkable 108° opening angle. This Grass TEC wrap-around hinge incorporates a soft-close mechanism that is pre-mounted in the hinge cup, ensuring a gentle and quiet closure with every use. Crafted from durable steel, this one-piece hinge and base plate offer robust performance and longevity. The hinge allows for 3-dimensional adjustment, including side, height, and depth adjustments, making installation and alignment a straightforward process. The adjustment facilities include a side adjustment of 1.5 mm, height adjustment ranging from -2 to 2 mm, and depth adjustment from -5 to 2.5 mm, providing flexibility for various cabinet configurations. Installation is simplified with flat head screws for the hinge cup and pan head screws for the base plate, ensuring a secure fit. The hinge cup requires a drilling depth of 10.70 mm, while the pattern is standardized at 45/9.5, making it compatible with most cabinetry needs. Whether for residential or commercial applications, the Hafele 348.90.028 hinge is the perfect choice for achieving a polished, professional finish in any space.

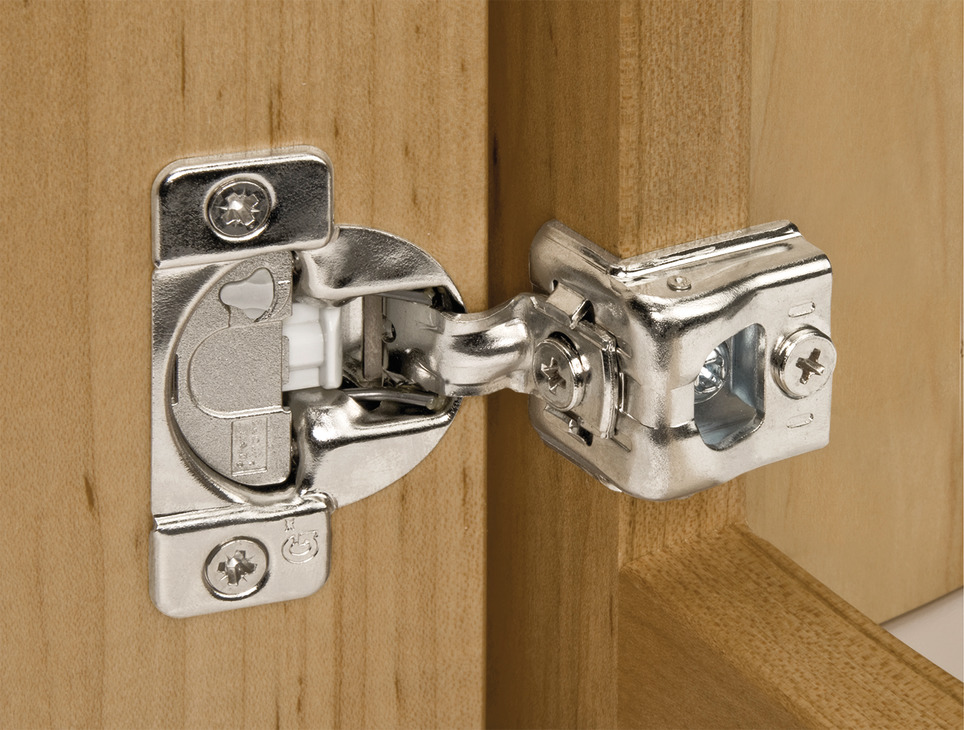

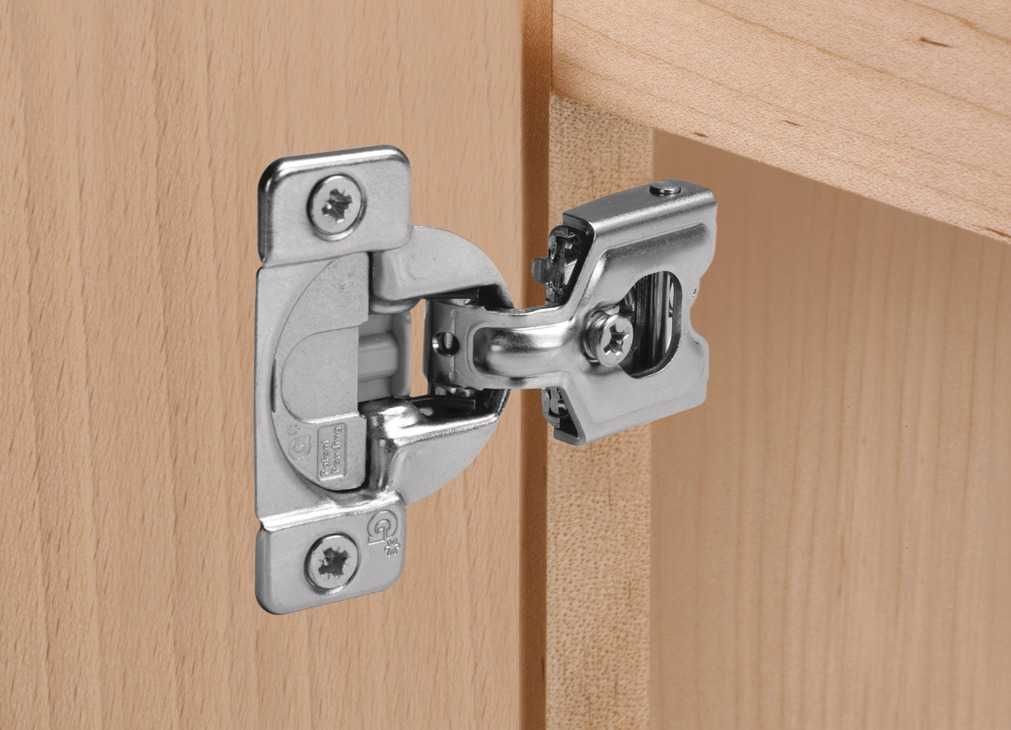

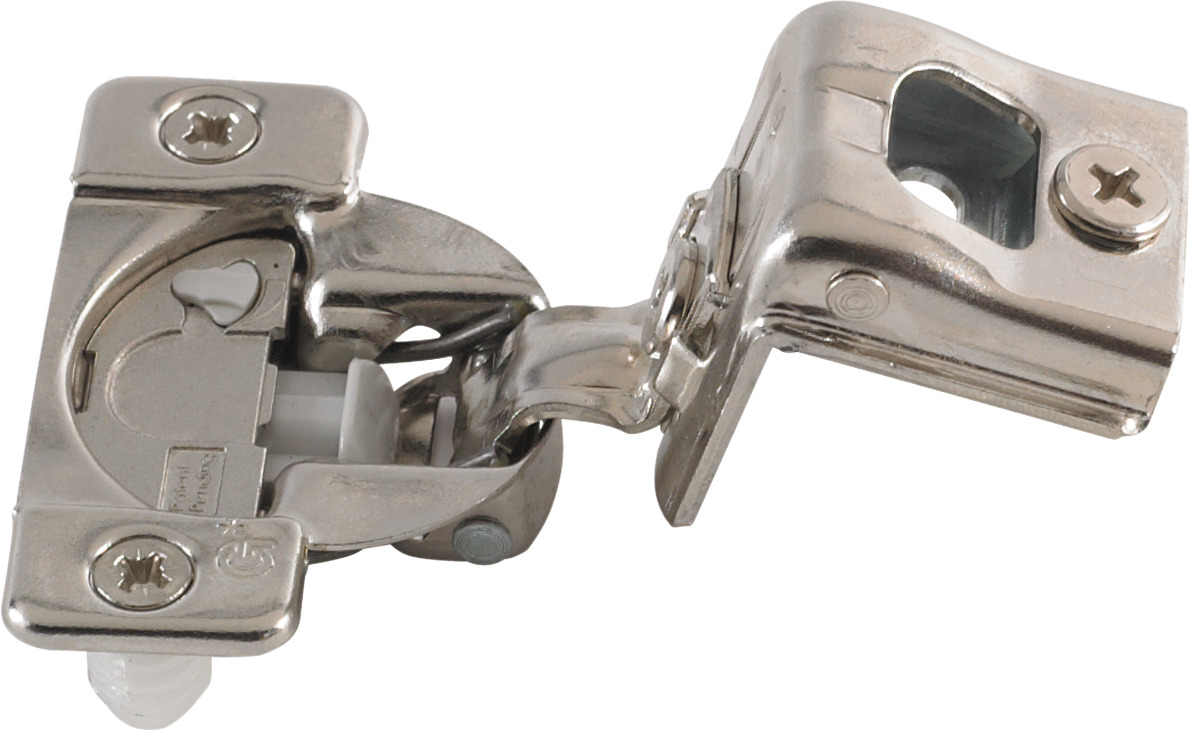

Grass - Concealed Face Frame Hinge, TEC Wrap Around, 108 Opening Angle, Soft-Close
1-1/2" Overlay, Press-fit Model 02805A-15
Adjustment facility: Side adjustment facility 1.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment facility -5 – 2.5 mm
Cup drilling depth: 10.70 mm
Door processing for assembly: with cup drilling
Drilling depth: Cup drilling depth: 7/16"

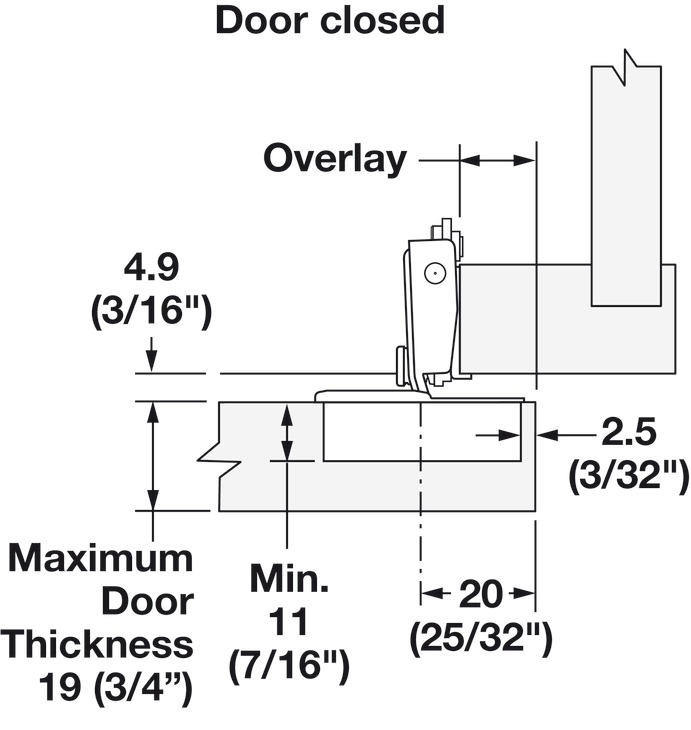

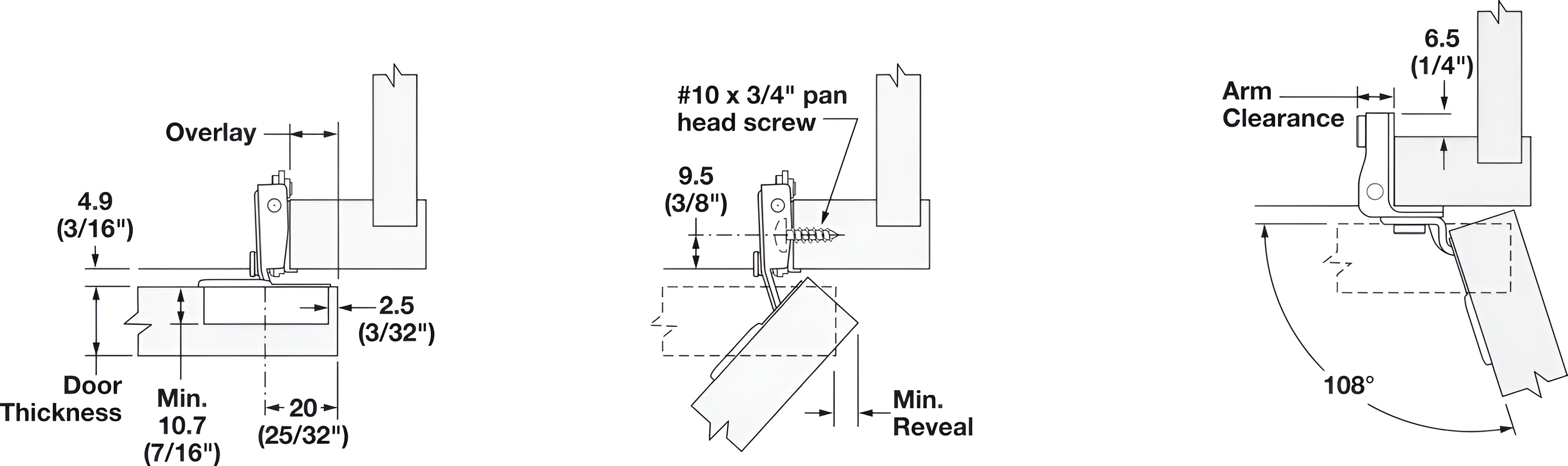

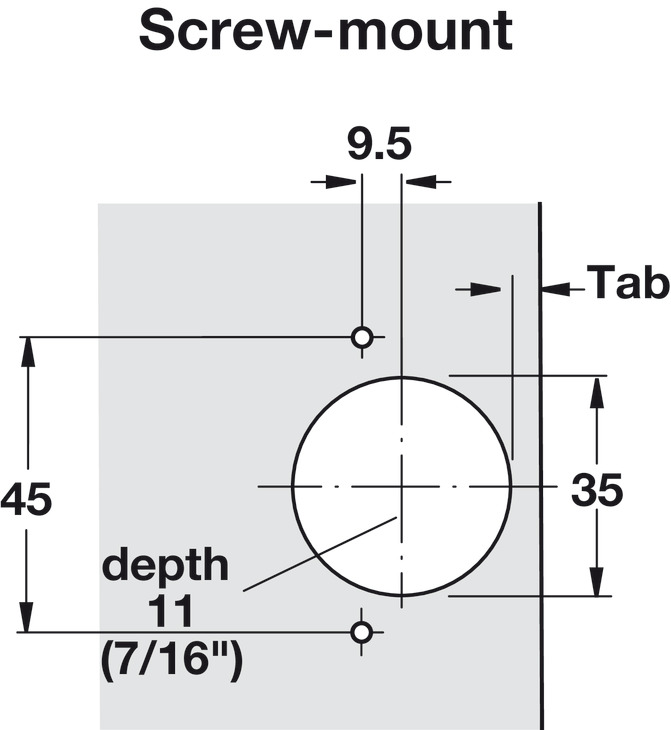

Drilling pattern: 45/9.5
Installation height: 1/4" – 1"
Material: Steel
Model No.: 02805A-15
Opening angle: 108°
