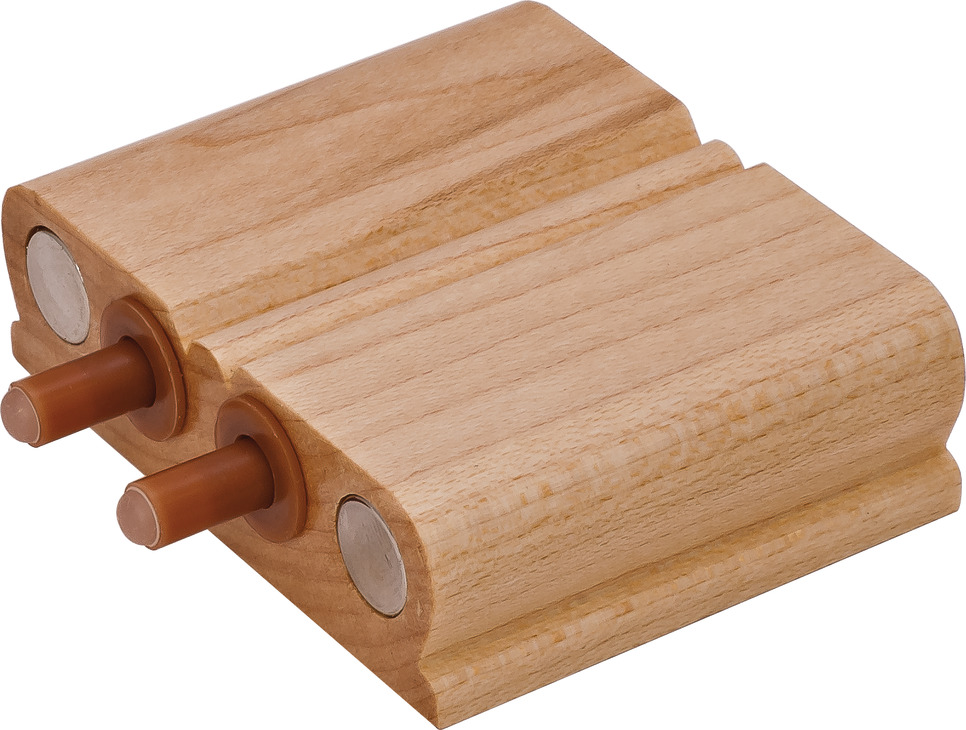

Hafele 356.31.120 Soft-Close Door Stop for Double Doors offers an innovative solution for creating a soft and silent closing mechanism on inset doors equipped with free-swinging hinges. Crafted from maple with a clear coat finish, this door stop is ideal for high-end custom kitchen cabinets, enhancing both functionality and aesthetics. Utilizing advanced Neodymium magnets and Smove shock absorbers, this system gently pulls doors closed, ensuring a smooth operation. The magnets are strategically separated by a rubber bumper, allowing doors to close quietly while effectively accommodating warped doors up to 1/4" in thickness. For optimal performance, two units per door are recommended-one installed at the top and one at the bottom. Designed for versatility, the Hafele Soft-Close Door Stop can be used on both frameless and face frame constructions, provided that free-swinging hinges are employed. The installation process is straightforward, featuring an easy-to-install keyhole slot that provides approximately 1/2" of front-to-back adjustment. The supplied components include left-hand and right-hand blocks with installed magnets and Smove shock absorbers, ensuring a complete setup for your double-door application. Experience enhanced convenience and elegance with Hafele's exceptional craftsmanship.
Soft-Close Door Stop for Double Doors
Maple with clear coat finish
Area of application: For double doors
Color/finish: Clear coat
Material: Maple clear coat
Soft closing mechanism installation: For screw fixing

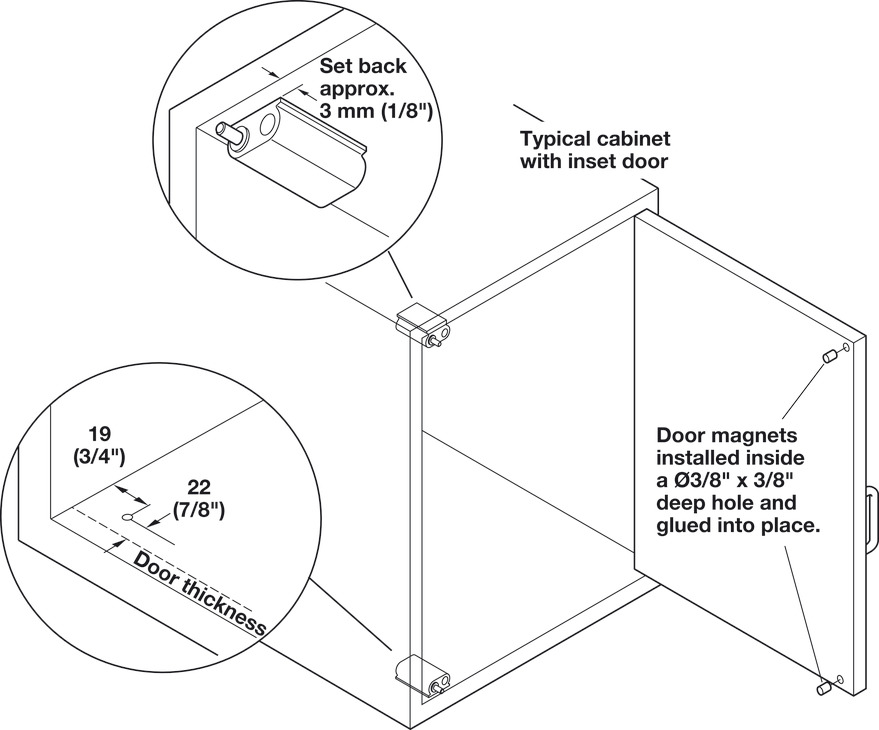

Suitable for: Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closedMagnets are separated by a rubber bumper, so door closes quietlyAvailable for single or double-door applications2 units per door are recommended; 1 on top and 1 on bottomMagnets are strong enough to pull in warped doors (up to 1/4" approx.)Can be used on Frameless or Face Frame ConstructionFree-swinging hinges must be usedRecommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinetsRecommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8")Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
Supplied with: L/H & R/H blocks with Smoves & magnets installed Mounting screws 2 door magnets with matching mounting screws 2 door bumpers
Version: Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closed Magnets are separated by a rubber bumper, so door closes quietly Available for single or double-door applications 2 units per door are recommended; 1 on top and 1 on bottom Magnets are strong enough to pull in warped doors (up to 1/4" approx.) Can be used on Frameless or Face Frame Construction Free-swinging hinges must be used Recommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinets Recommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8") Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
