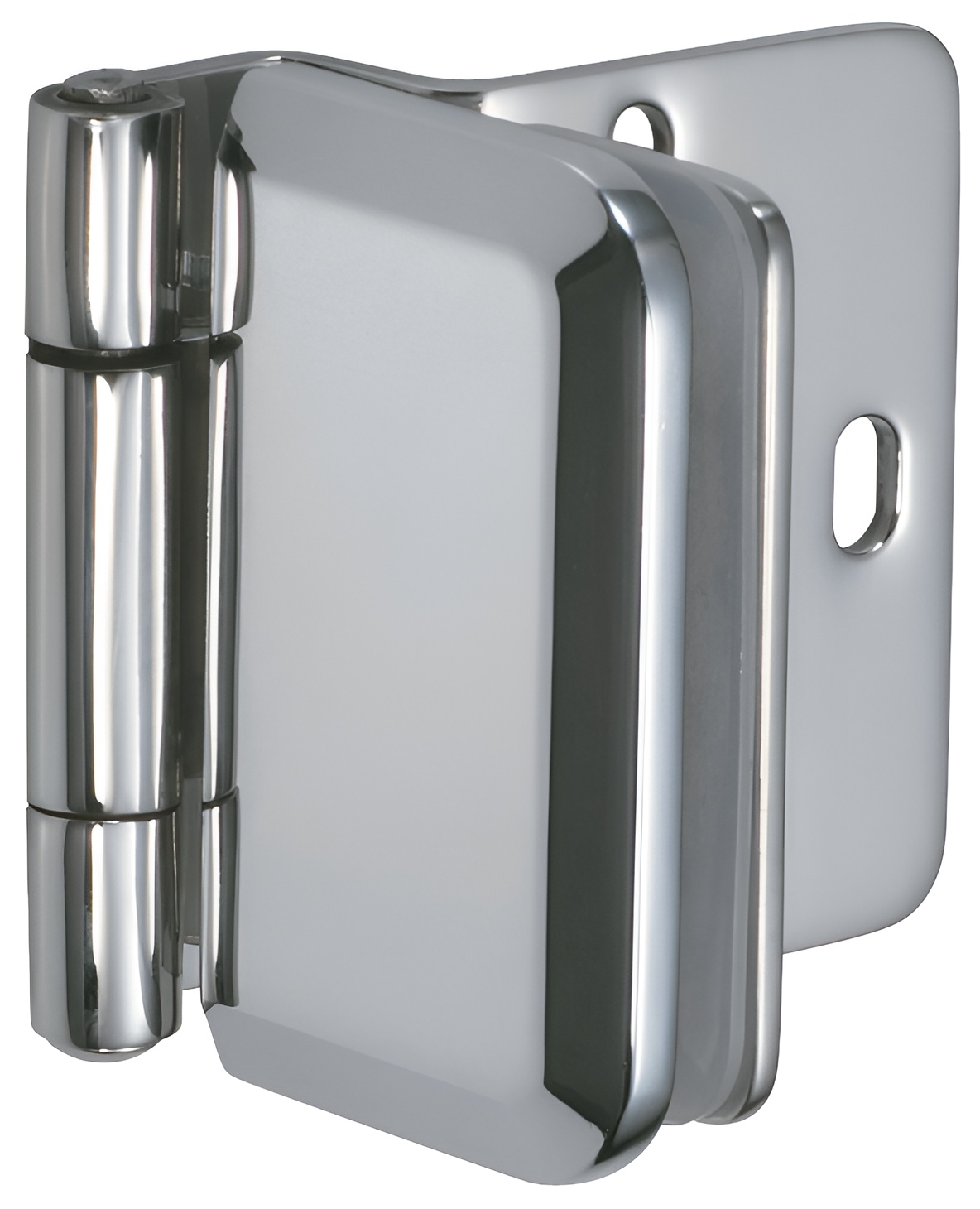

Hafele 361.46.041 Glass Door Hinge is expertly designed for mid-size glass doors, providing a robust solution for half overlay door applications. Constructed from high-quality 304 stainless steel, this hinge offers excellent resistance to corrosion, making it ideal for environments where durability is essential. Accommodating door heights up to 900 mm (35 7/16 inches) and widths of up to 650 mm (25 9/16 inches), the hinge supports a minimum door weight of 26.4 lbs per pair and can bear loads up to 12 kg. The hinge is compatible with glass thicknesses between 5 and 8 mm, ensuring secure and reliable installation through precise glass drilling. With an impressive opening angle of 180°, the Hafele glass door hinge allows for maximum accessibility and ease of use. The knuckle diameter of 8 mm contributes to its sturdy performance, while the zinc alloy cover cap adds a touch of sophistication. Whether you're working on residential or commercial projects, this hinge combines functionality with aesthetic appeal, making it a versatile choice for your glass door installations. For hassle-free shipping, the product is available for UPS delivery, ensuring you get your fittings quickly and conveniently.
Glass Door Hinge, 304 Stainless Steel for Glass 4 - 6 mm
For mid-size glass doors, For half overlay doors
Area of application: Where resistance to corrosion is needed
Door construction: Inset
Door height max.: 900.00 mm
Door processing for assembly: with glass drilling
Door weight min.: Per pair: 26.4 lbs
Door width max.: 650.00 mm
For door height: ≤900 mm
For door height (inches): 35 7/16"
For door material: glass
For door width: ≤650 mm
For door width (inches): 25 9/16"

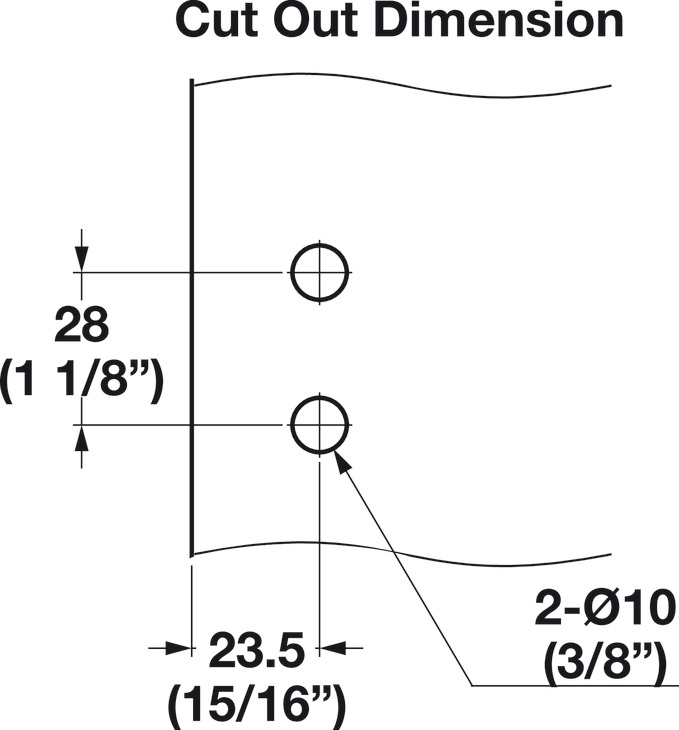

For drill hole Ø: 4–10 mm
For glass thickness: 5 – 8 mm
Knuckle diameter: 8.00 mm
Load bearing capacity per pair: 12.00 kg
Material: Stainless steel, Cover cap: Zinc alloy
Opening angle: 180°
