Hafele 373.66.314 Swing-Up Fitting, Duo forte Complete Set for Wood Aluminum offers a versatile solution for your cabinetry needs. Designed for flaps made from wood or with aluminum frames, this fitting accommodates frame widths starting from 45 mm, making it an ideal choice for both modern and traditional interiors. The complete set includes a lid stay, mounting bracket for the cabinet, and a screw-on bracket for the flap, ensuring a straightforward installation process with euro screws. With a holding power adjustment facility and a wear-resistant friction coupling, this fitting ensures smooth operation and longevity. The lid stay allows for an opening angle of 90°, while the flap stay can be configured for an opening angle of 75° to 110°. It supports cabinet heights between 250 mm and 700 mm and is designed for a maximum lid weight of up to 12 kg. The sleek black finish adds a contemporary touch, while its compact design requires minimal space within the cabinet. Whether used as a lid stay or flap stay, the Hafele 373.66.314 Swing-Up Fitting is engineered for efficiency, making it a reliable choice for any cabinetry project.

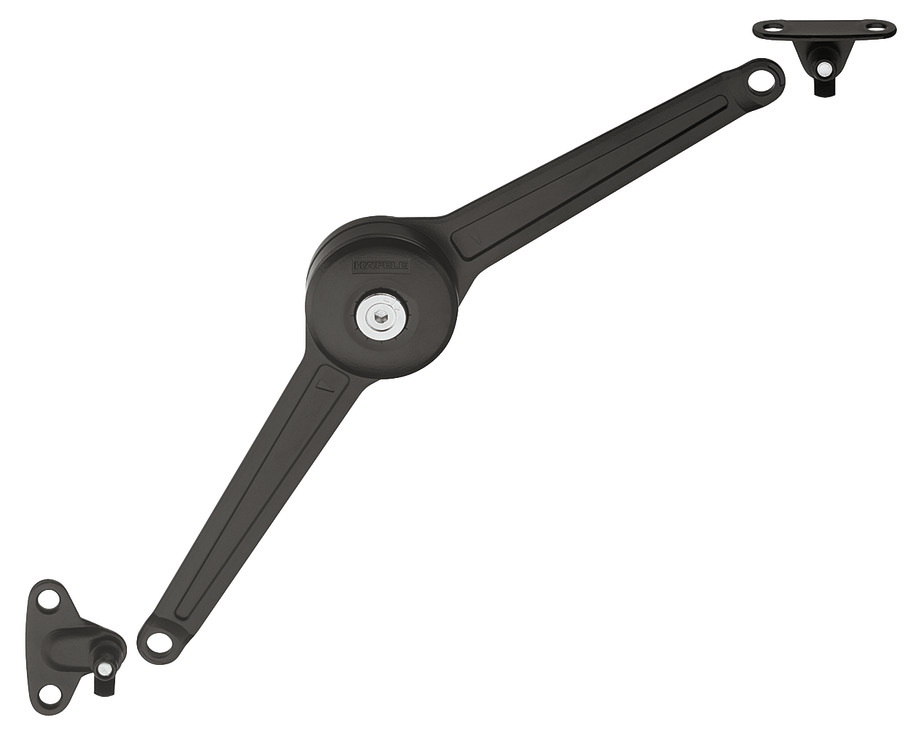

Swing-Up Fitting, Duo forte Complete Set for Wood Aluminum
for flaps made from wood or with aluminium frame, from frame width of 45 mm, Black, euro screws

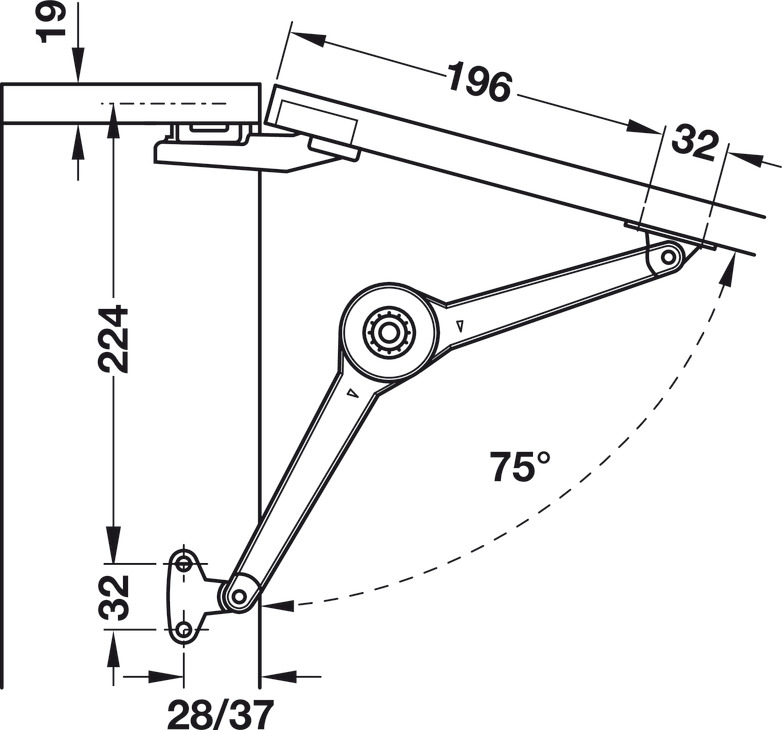

The following mounting dimensions and sample measurements tables for this kind of application must be adhered to
Adjustment facility: Holding power
Area of application: for flaps made from wood or with aluminium frame, from frame width of 45 mm
Color/finish: Black
Edge distance: 37.00 mm
Flap type: one-piece
For cabinet height: 250 – 700 mm
For lid weight: ≤12 kgnote sample measurements table
Installation: Euro screws
Lid material: Wood, Aluminum frame
Material: Steel
Mounting: right and left hand use
Opening angle: 75 – 110 °
Supplied with: 1 piece lid stay, 1 piece mounting bracket for cabinet and 1 piece screw-on bracket for flap
Version: Complete set
