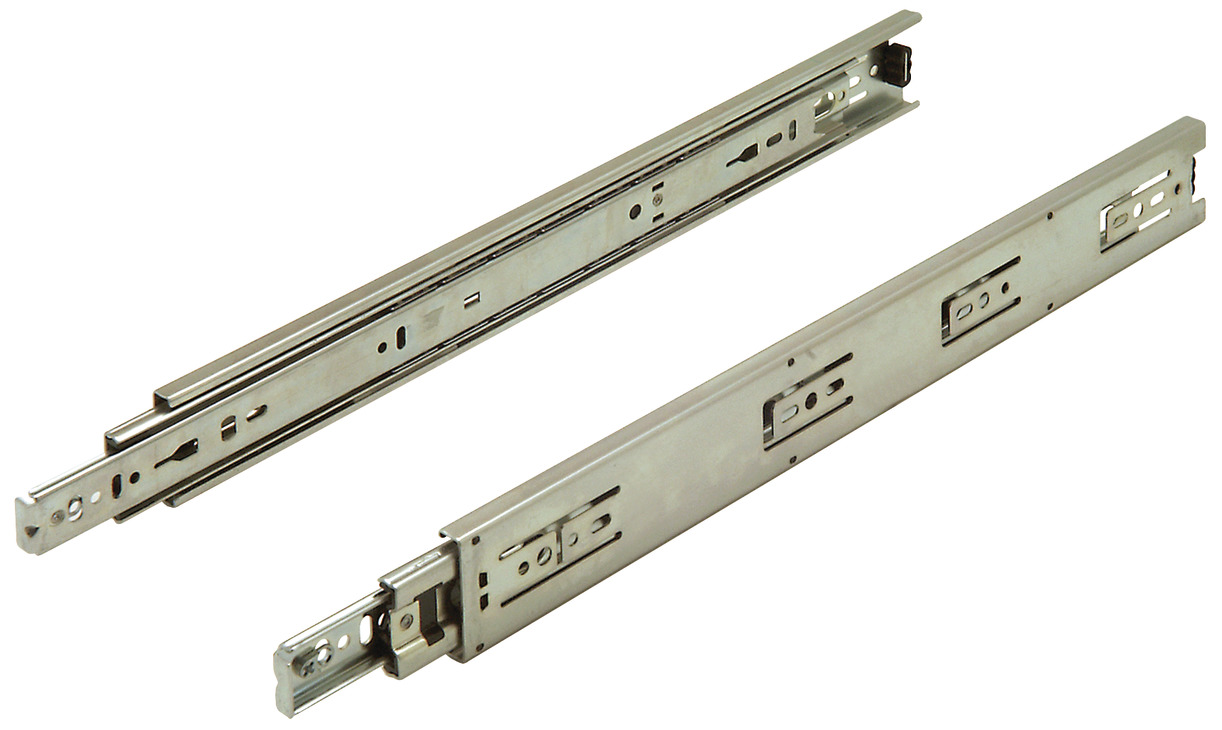

Hafele 422.16.553 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide is designed for optimal performance in drawer systems, supporting loads of up to 90 lbs. Constructed from durable steel with a zinc finish, this slide ensures long-lasting reliability and a polished look that complements various applications. Ideal for drawers up to 16 inches wide, it features a full extension design that allows for easy access to contents, making it perfect for both residential and commercial projects. The slide operates on a ball bearing mechanism, providing smooth and silent operation for user convenience. With an installation length of 550 mm and an extension length of 584 mm, it fits seamlessly into a variety of cabinetry styles. The hold-in function enhances usability by keeping the drawer securely closed when not in use. Installation is straightforward, utilizing a side-mounted approach, and the running track can be removed effortlessly using the release lever. This model is BHMA certified to Grade 1 HD-100, guaranteeing its quality and durability. Whether you're outfitting a kitchen, office, or any other space requiring functional and reliable drawer systems, the Hafele Accuride 3834 slide is an excellent choice that combines strength and ease of use.
Accuride - Telescopic Side Mounted Cam Adjust Slide, C3834, 1" Overtravel, 90 lbs Weight Capacity
Zinc, 22"
Area of application: For drawers up to 406 mm (16") wide
Bearing: Ball bearing
Color/finish: Zinc

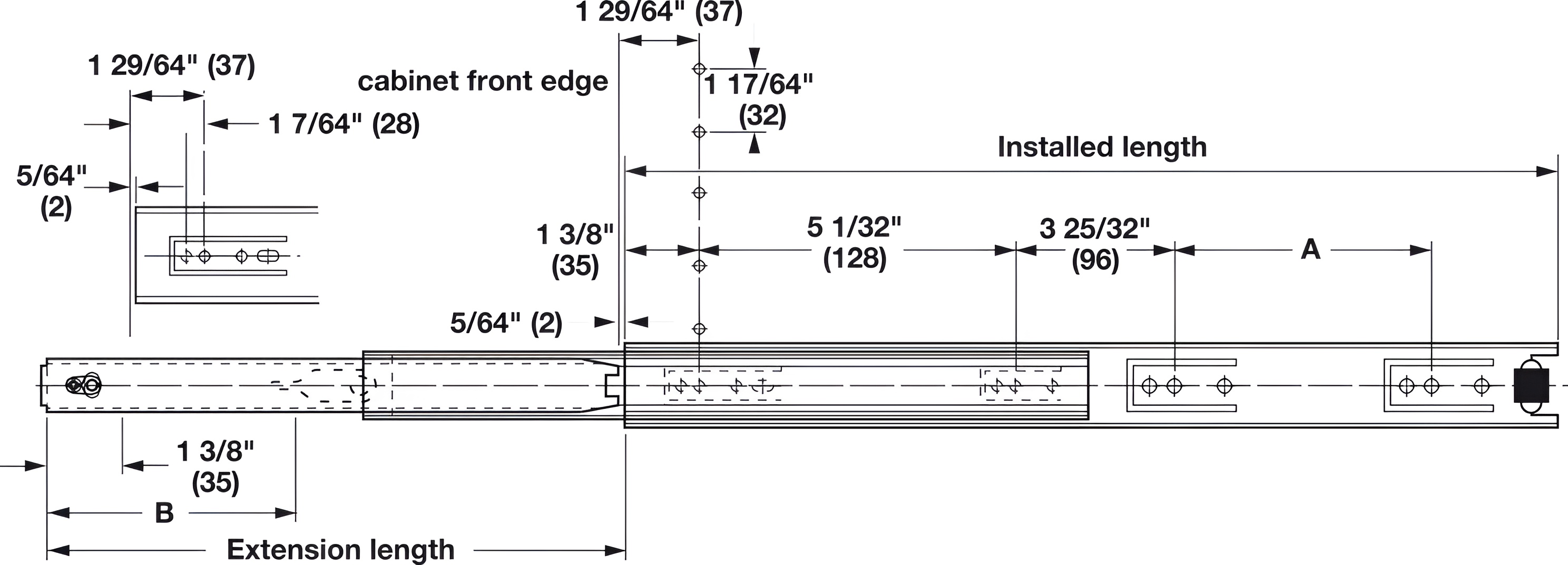

Extension length: 584.00 mm
Holding function: Hold-in
Installation: Side mounted
Installation length: 550.00 mm
Load bearing capacity: 41.00 kg
Load bearing capacity per pair: 41.00 kg
Material: Steel
Model: C3834-C22
Mounting: Side mounted
Removing the running track: With release lever
Type of pull out: Full extension
Version: Telescopic Features low profile for shallow drawers Lever disconnect BHMA certified to Grade 1 HD-100
