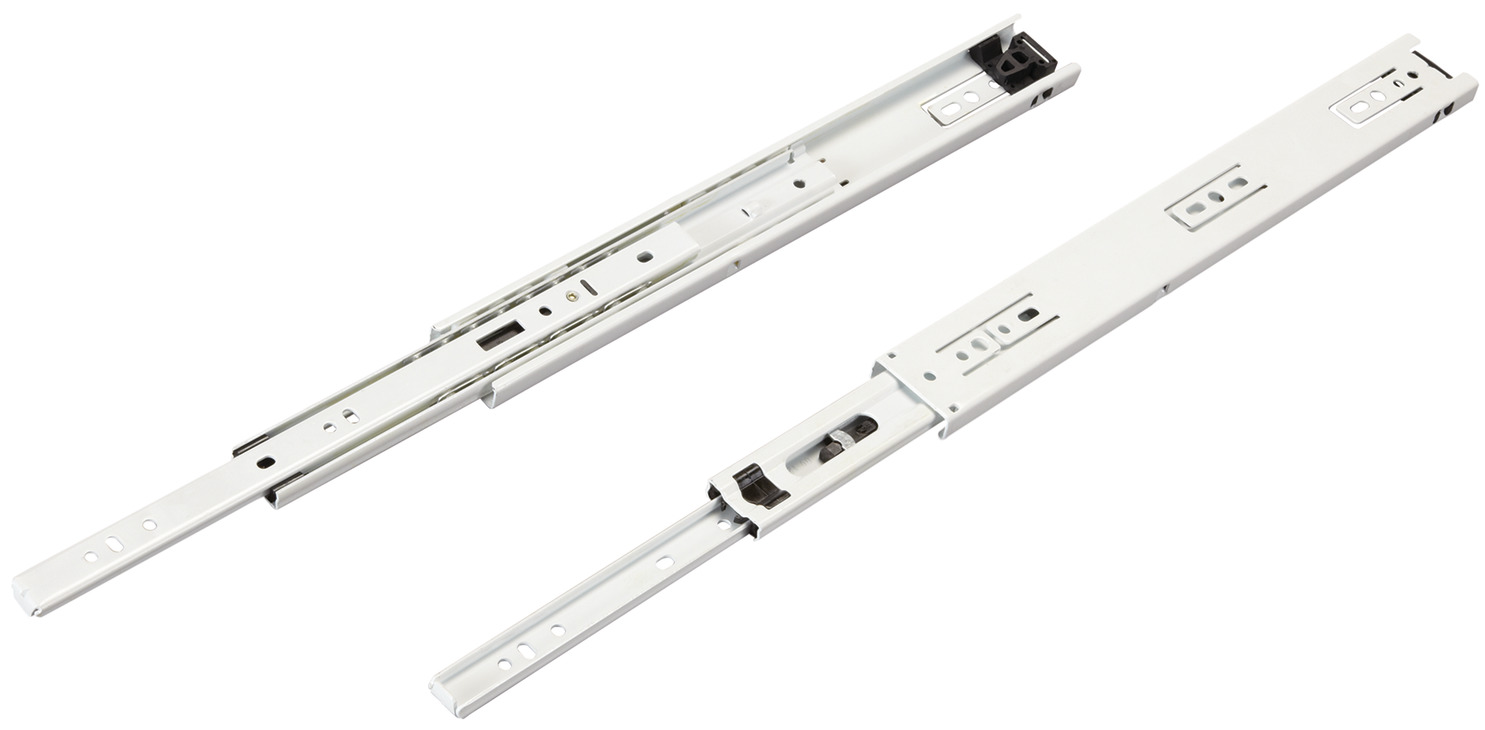

Hafele 422.88.731 Accuride 3732 Side Mounted Slide offers a robust solution for drawers up to 16 inches wide, seamlessly integrating functionality and durability into your cabinetry. Designed for full extension, this slide can support a load bearing capacity of up to 100 lbs (45 kg), ensuring smooth operation even under heavy use. With an installed length of 11 7/8 inches and a travel length of 11 1/2 inches, this slide is engineered for efficient space utilization. The ball bearing mechanism provides effortless sliding, while the hold-in feature ensures that drawers stay securely closed. Installation is straightforward, as the slide is side mounted for easy setup within your cabinetry. Crafted from high-quality steel and finished in a clean white and zinc coating, the Hafele 422.88.731 not only performs well but also complements various design aesthetics. Its slim profile height of 1 1/2 inches (38 mm) allows for a low-profile installation, making it ideal for modern cabinetry solutions. For added convenience, the running track can be removed with a release lever, enhancing maintenance and functionality. This slide is shipped via UPS, ensuring timely delivery for your projects. Elevate your drawer systems with the reliability and performance of Hafele’s Accuride 3732 Side Mounted Slide.
Accuride - Side Mounted Slide, C3732, Full Extension, 100 lbs Weight Capacity
White, 11 7/8" installed length, 11 1/2" travel length
Area of application: Drawers up to 16" wide
Bearing: Ball bearing
Color/finish: White, Zinc
Extension length: 292.00 mm
Holding function: Hold-in
Installation: Side mounted
Installation length: 300.00 mm
Load bearing capacity: 45.00 kg
Material: Steel
Model: EW3732-12P
Mounting: Side mounted
Removing the running track: With release lever
Type of pull out: Full extension
Version: Slim side space mounting 1/2" Lever disconnect Low profile height 1 1/2" (38 mm)
