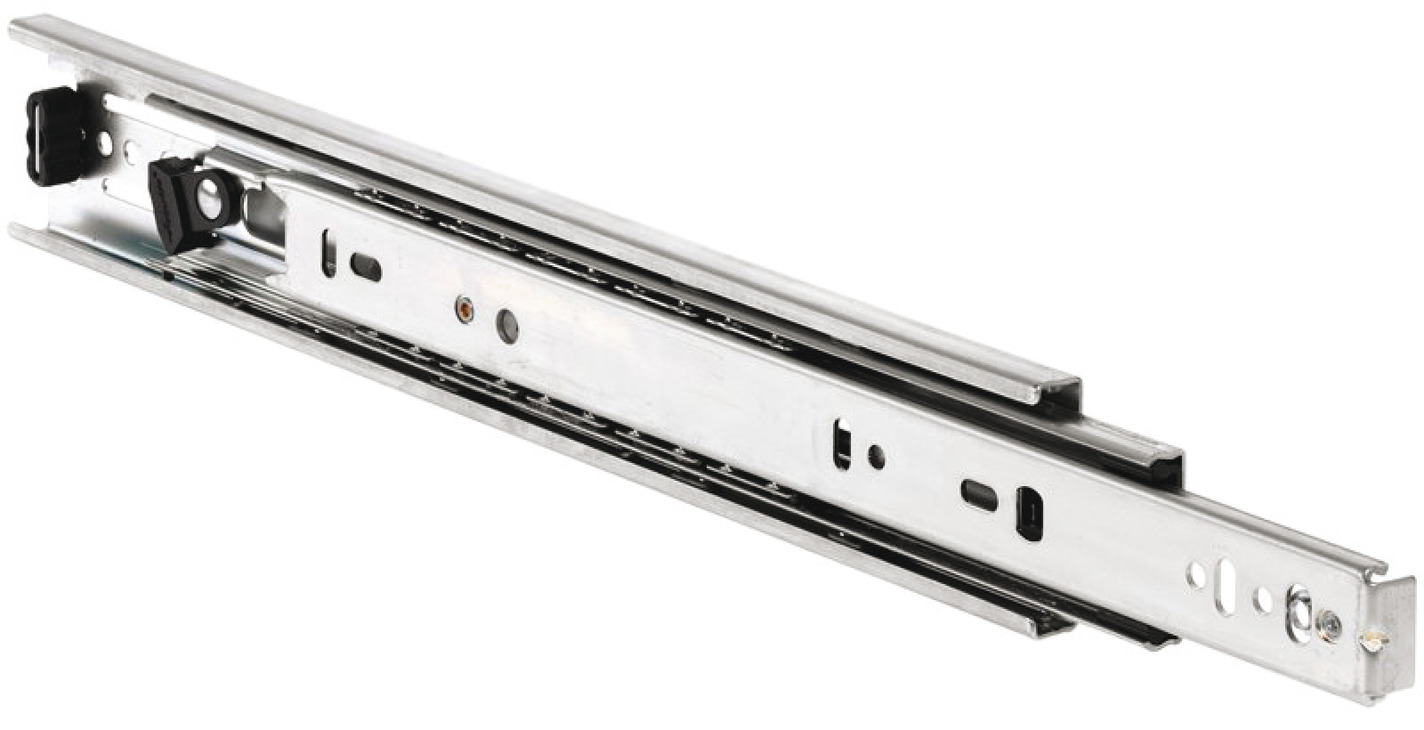

Hafele 422.91.336 Accuride 3832DO Telescopic Detent Out Ball Bearing Drawer Slide offers an exceptional solution for full-extension drawer functionality with a remarkable weight capacity of 100 lbs per pair. Designed specifically for drawers up to 16 inches wide, this side-mounted steel slide features a low-profile design ideal for shallow drawers, ensuring seamless integration into your cabinetry. The innovative hold-in and hold-out detent mechanisms provide a secure hold in both closed and extended positions, making it perfect for applications such as keyboard trays or any situation where a positive hold-out is required. For optimal performance, it is recommended that drawers be constructed 1 1/16 inches (27 mm) less than the cabinet opening. This model, available in a sleek black finish, incorporates a user-friendly lever disconnect, allowing for easy removal of the running track when needed. The installation length of 350 mm ensures straightforward setup, while the BMHA Certified Grade 1 HD-100 rating guarantees reliable performance. For added versatility, the product can be ordered in additional finishes, including zinc plated and white coated, making it a versatile choice for various design aesthetics. Experience enhanced functionality and style with the Hafele Accuride 3832DO drawer slide system.
Accuride - Telescopic Detent Out Ball Bearing Drawer Slide, CB3832DO, Full Extension, 100 lbs Weight Capacity
Load bearing capacity up to 45 kg, steel, side mounted, Black, 14"
Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.
Area of application: For drawers up to 406mm (16") wide
Color/finish: Zinc plated, Light galvanized

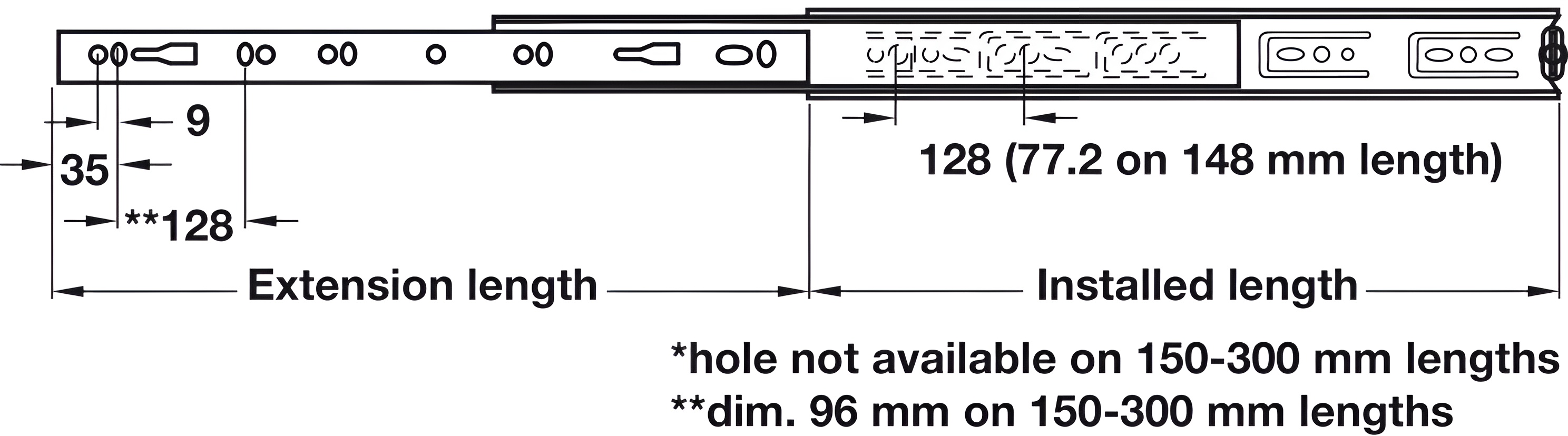

Extension length: 350.00 mm
Holding function: Engage in closed and extended position
Installation: For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening
Installation length: 350.00 mm
Load bearing capacity: 100 lbs/pair
Material: Steel
Model: CB3832-C14DOP
Mounting: Side mounted
Order reference: Available also in black, zinc plated or white coated on request from 10 pairs.

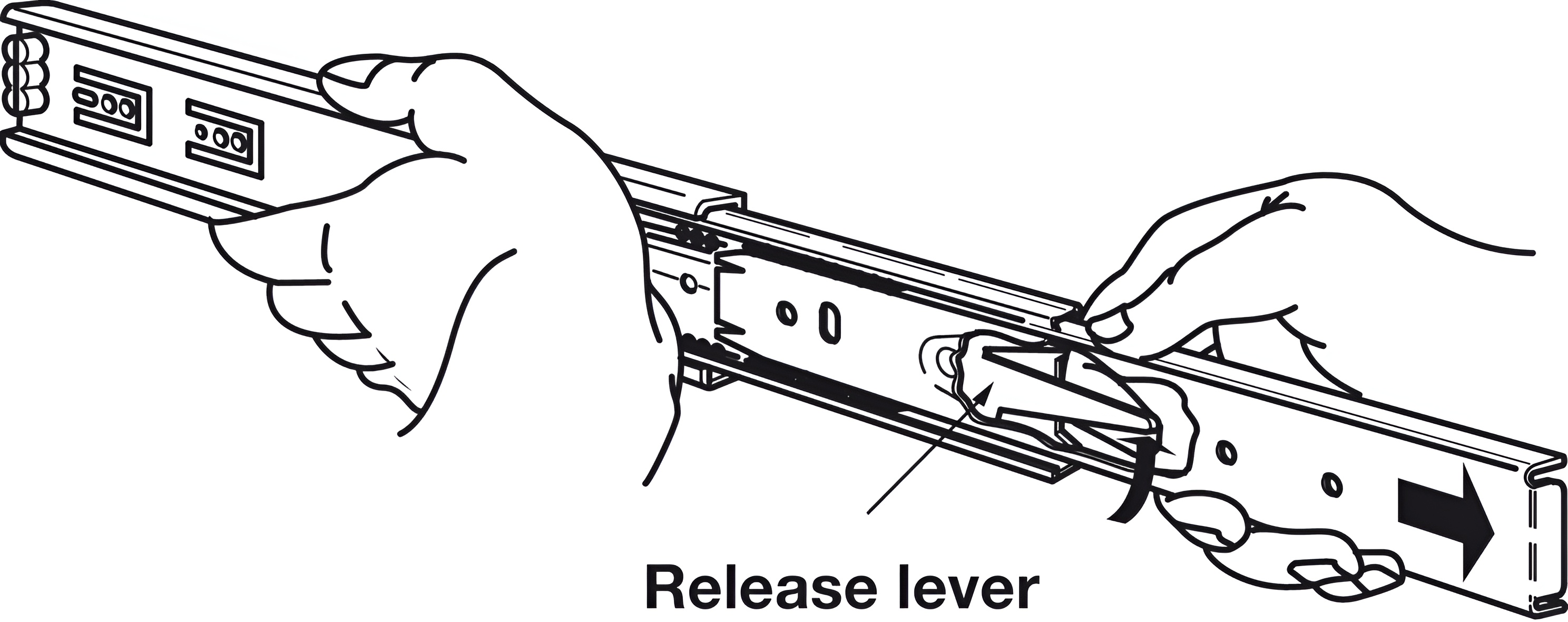

Removing the running track: With release lever
Type of pull out: Full extension
Version: With hold-in device in closed position and hold-out device in extended position
