Hafele 432.21.976 Ball Bearing Runners, Hafele Matrix Runner BB A45, offer a reliable and efficient solution for smooth drawer operation. Designed with full extension capabilities, these steel runners are side-mounted and ideal for drawers with material thicknesses of 1.2/1.2/1.4 mm. The hold-in device ensures that drawers remain securely closed, preventing any unwanted creeping open. With a load-bearing capacity of up to 45 kg, these runners are robust enough for various applications. They measure 550 mm in length, with a height of 45 mm and a width of 12.7 mm, making them versatile for different drawer sizes. The runners are finished in zinc, providing both durability and a sleek aesthetic. Installation is straightforward, featuring screw fixing for easy setup. The innovative release lever allows for quick removal of the running track, ensuring maintenance is hassle-free. Supplied in convenient packaging, each box contains 100 drawer members or 50 cabinet members, all individually polybagged for protection. Tested in accordance with ANSI/BHMA and WI Lever disconnect standards, the Hafele Matrix Runner BB A45 combines functionality with quality, making it an essential choice for building professionals and knowledgeable homeowners alike.

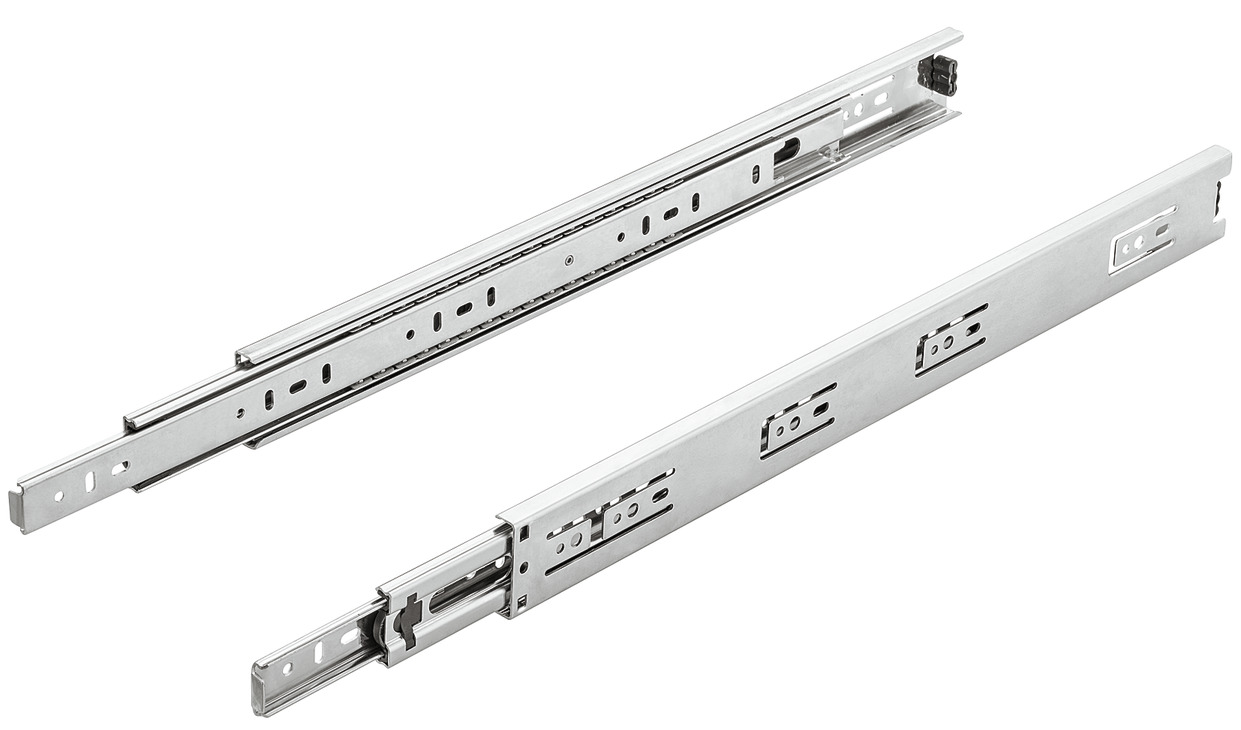

Hafele - Ball bearing runners, Matrix Runner BB A45, full extension, steel, side mounted
With hold-in device for holding in closed position, Zinc 550 mm length
Pallet quantities available upon request.
Area of application: For material thickness 1.2/1.2/1.4 mm
Color/finish: Zinc
Dim. ( W x H): 12.7 x 45 mm
Extension length: 550.00 mm
Height: 45.00 mm
Height (inch): 1 3/4"
Installation: Side, for screw fixing
Load bearing capacity: 45.00 kg
Material: Steel
Material thickness: 1.2/1.2/1.4 mm
Mounting: Side clearance: (1/2")
Nominal length: 21 5/8"
Order reference: Separated members are sold in pieces
Removing the running track: With release lever
Supplied with: Drawer Members have 100 pc/box Cabinet Members have 50 pc/box 5 Pairs/box (each polybagged)
Type of pull out: Full extension
Version: For easy installation, can be disengaged using release lever, with hold-in device in closed position
Width: 12.70 mm
Width (inch): 1/2"
