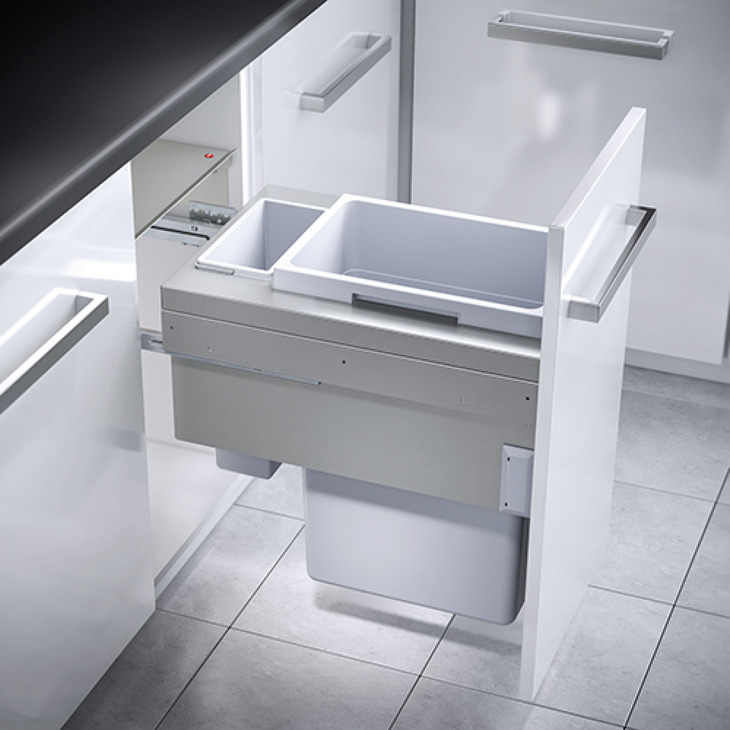

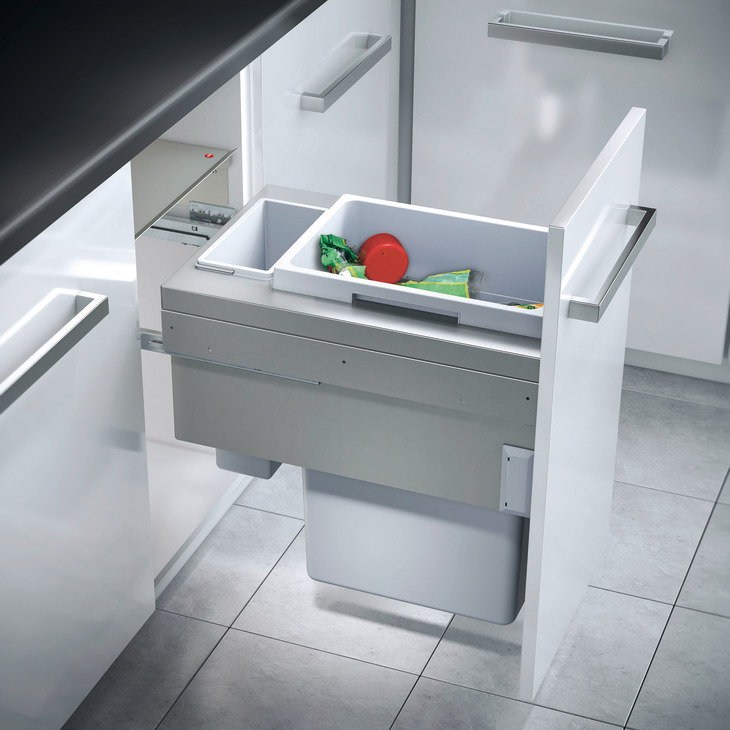

Hafele 503.70.511 Waste Bin Pull-Out, Hailo Euro Cargo offers an innovative waste management solution designed for seamless integration into your cabinetry. With a compact installation width of 400 mm, it fits perfectly in kitchens and utility areas, optimizing space while keeping refuse discreetly concealed. This pull-out system features a sturdy metal lid that doubles as a shelf, supporting up to 100,000 cycles of use-ideal for busy environments. The internal cabinet width accommodates a range from 362 mm to 368 mm, ensuring a snug fit within your cabinetry. Measuring 528 mm in depth, it also boasts a minimum installation height of 545 mm to suit various cabinet designs. Constructed with a powder-coated steel frame and a durable plastic bin, this waste bin pull-out is both functional and aesthetically pleasing. The covered pull-out mechanism is equipped with synchronized overextension and a soft-close feature, allowing for smooth, quiet operation. It is designed for screw fixing to the side panel, ensuring stability and ease of installation. Transform your waste disposal experience with the Hafele 503.70.511 Waste Bin Pull-Out, where efficiency meets elegance in design.
Waste Bin Pull-Out, Hailo Euro Cargo
Installation behind fronts, cabinet width: 400 mm, Light grey
For internal cabinet width max.: 368.00 mm
For internal cabinet width min.: 362.00 mm
Installation depth: 528 mm

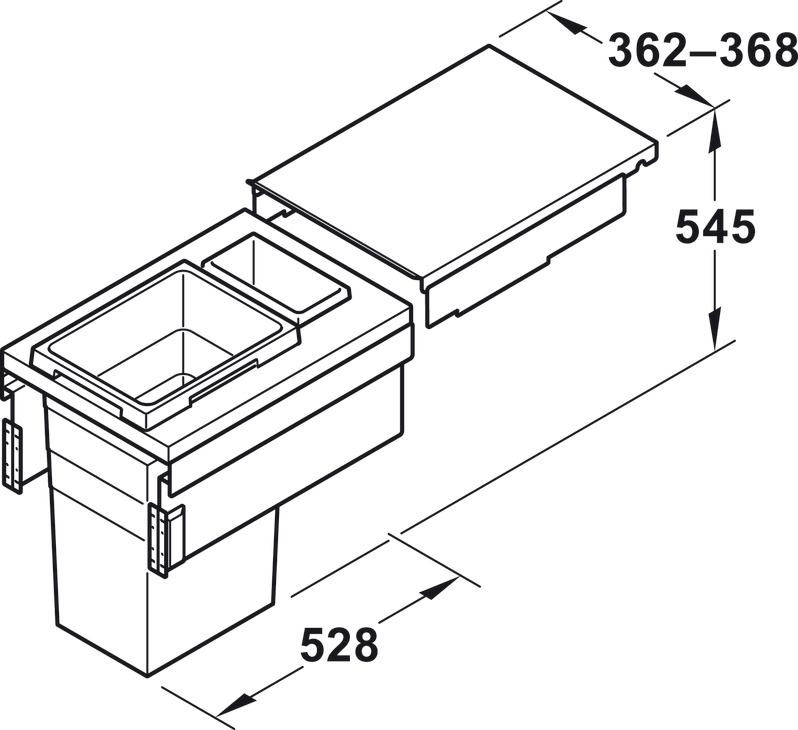

Installation reference: D x H: 528 × 545 mm (20 13/16" × 21 7/16")
Material/finish: Pull out and system lid: Steel, powder coatedBin: Plastic
Min. installation height: 545.00 mm
Mounting: For screw fixing to side panel
Type of pull out: Covered, synchronized overextension with soft closing mechanism

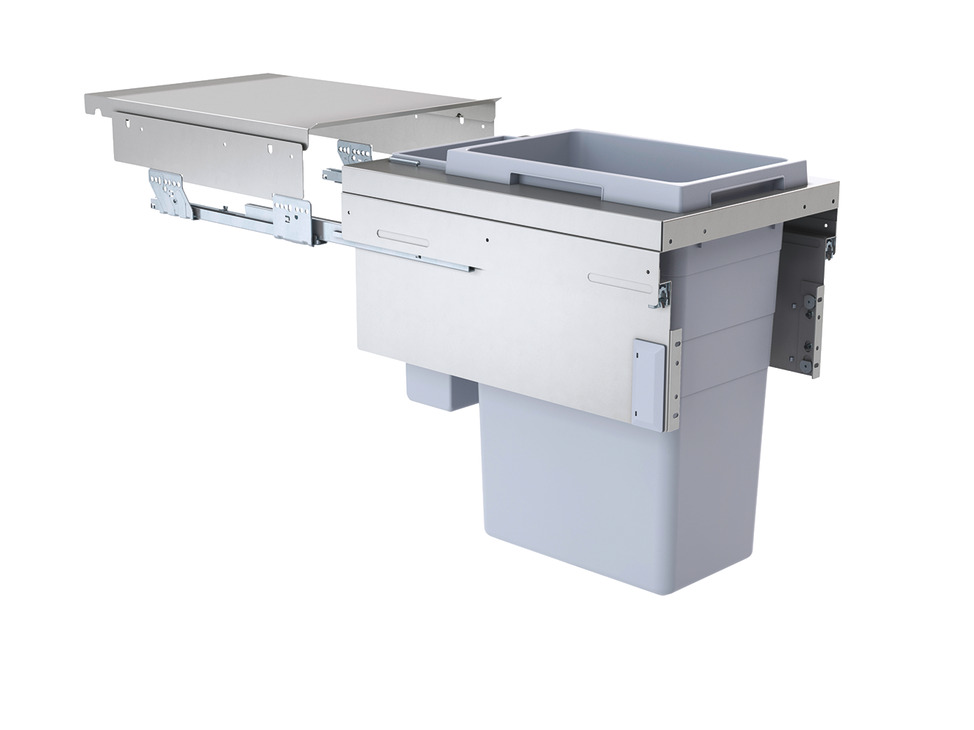

Version: The product is designed to be pulled out of the cabinet in such a way that the lid remains inside the cabinet to act as a storage space. The container is mounted on the inside of the cabinet and has concealed, fully synchronized Nova Pro Smooth-Tec soft-close rails with overextension.
