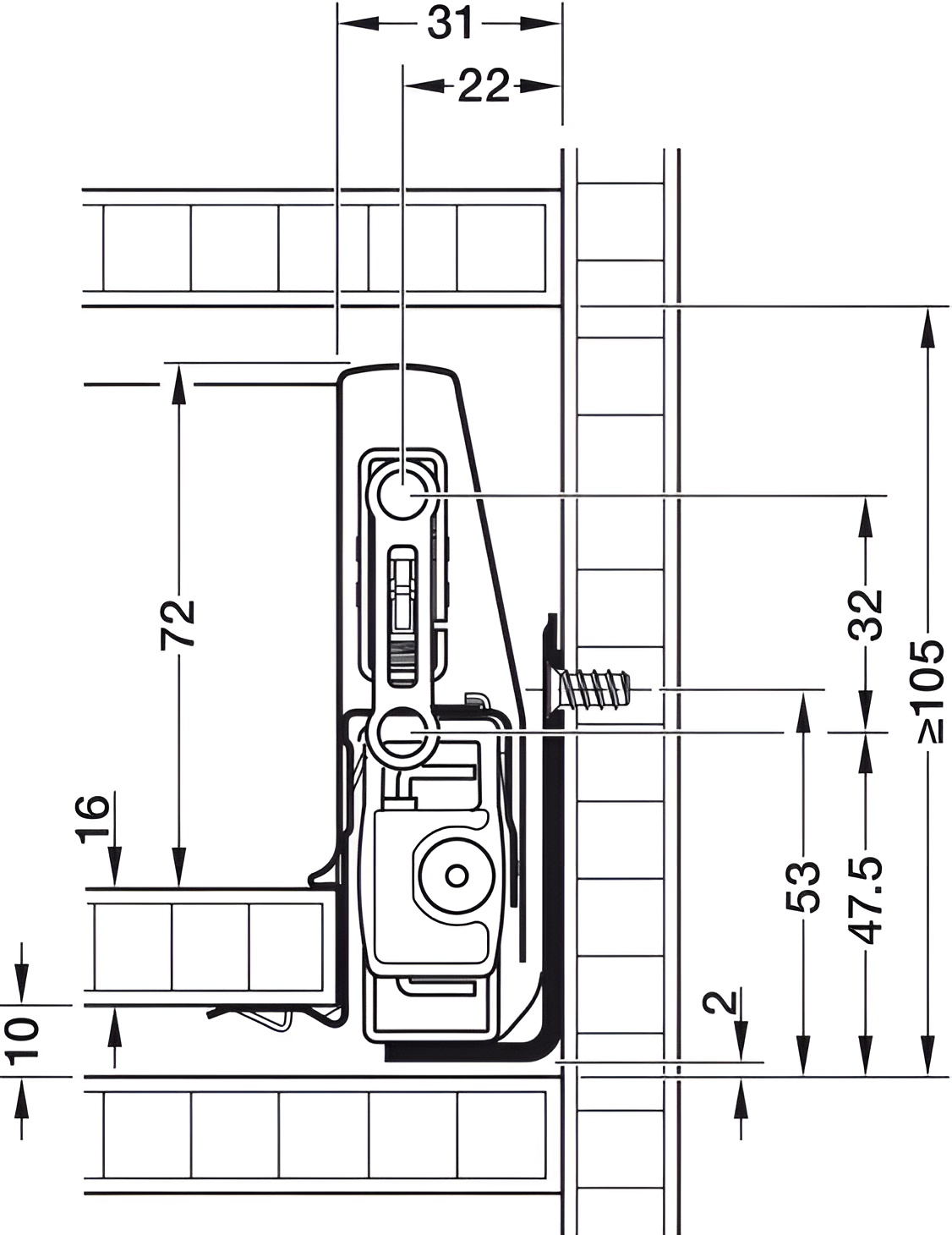

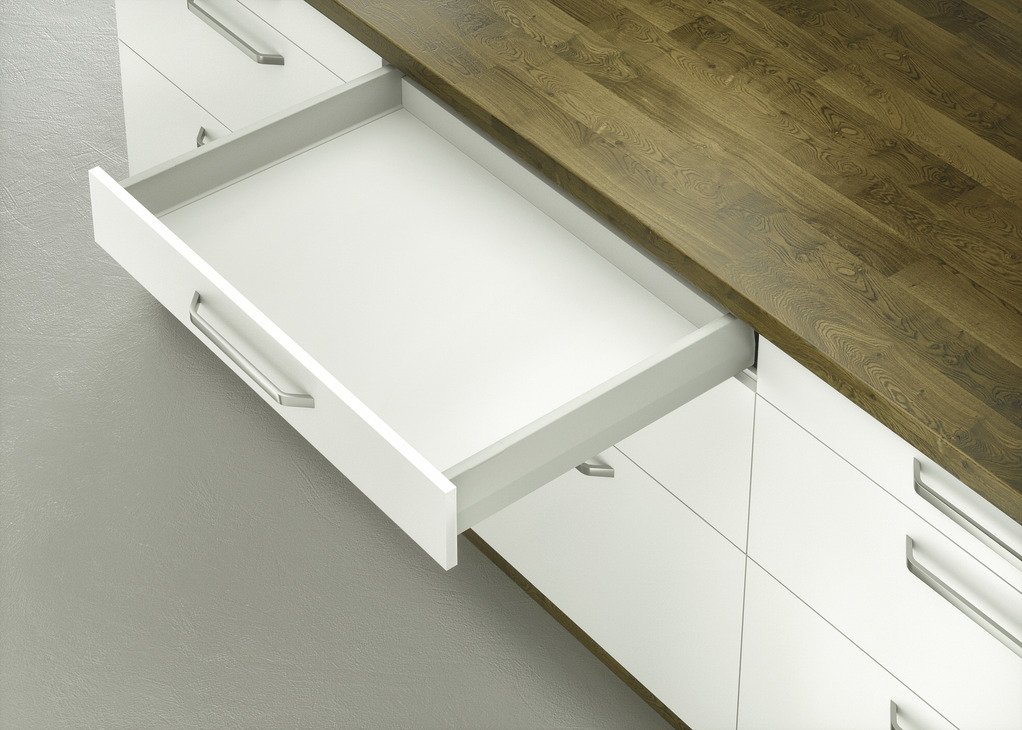

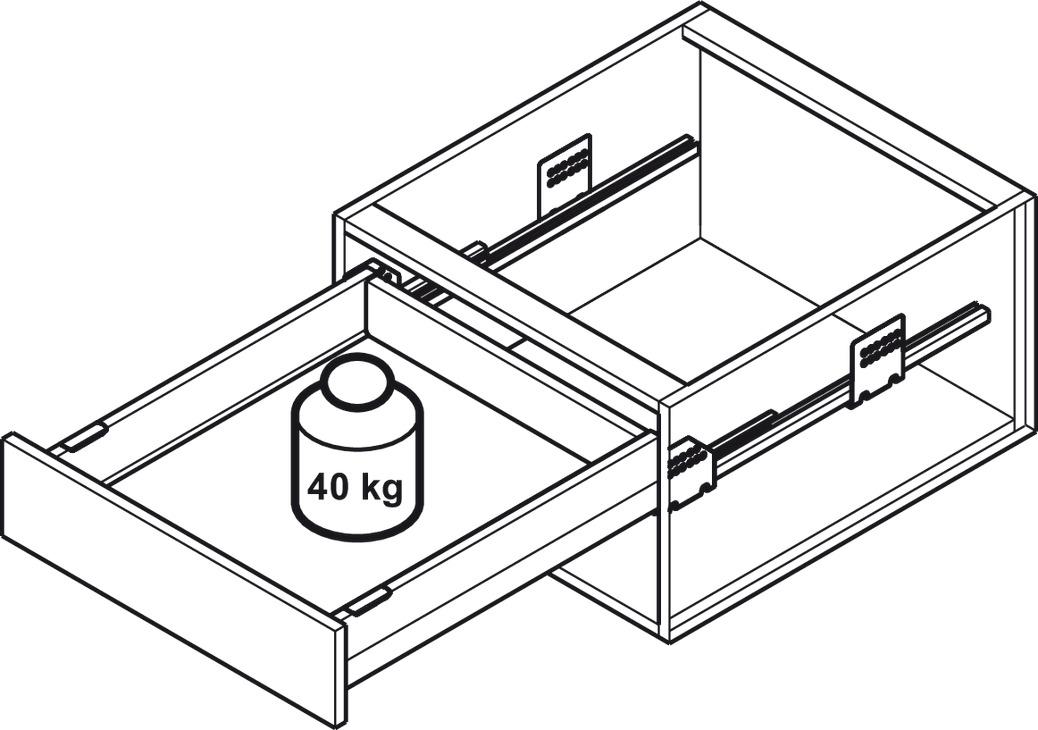

Hafele 513.27.702 Drawer Side Runner System offers a reliable and efficient solution for your drawer needs. Designed to accommodate a drawer side height of 92 mm, this system supports a substantial load-bearing capacity of up to 40 kg, making it ideal for various applications, including kitchen and bathroom cabinetry. The sleek white finish ensures a modern and clean look that complements any décor style. This complete under sink pull-out system includes the Matrix Box P Plus A and B sets, along with essential components such as left and right drawer sides with rear panel fittings, cabinet runners, and Häfele branded cover caps. The full extension design ensures easy access to all contents, while the integrated Smuso soft-closing and self-closing mechanisms provide a smooth, gentle closure every time. Please note that front fixing brackets are not included and must be ordered separately. The nominal length of the drawer side runner system is 350 mm, and it is compatible with drawer sides of nominal lengths of 400 mm or more. For optimal installation, refer to the recommended screws for front and guide fixing. Elevate your cabinetry with the Hafele 513.27.702, combining functionality and style for a seamless user experience.

Drawer side runner system, Hafele Matrix Box P Plus 40, drawer side height 92 mm, load bearing capacity 40 kg

Colour: White, nominal length: 350 mm
