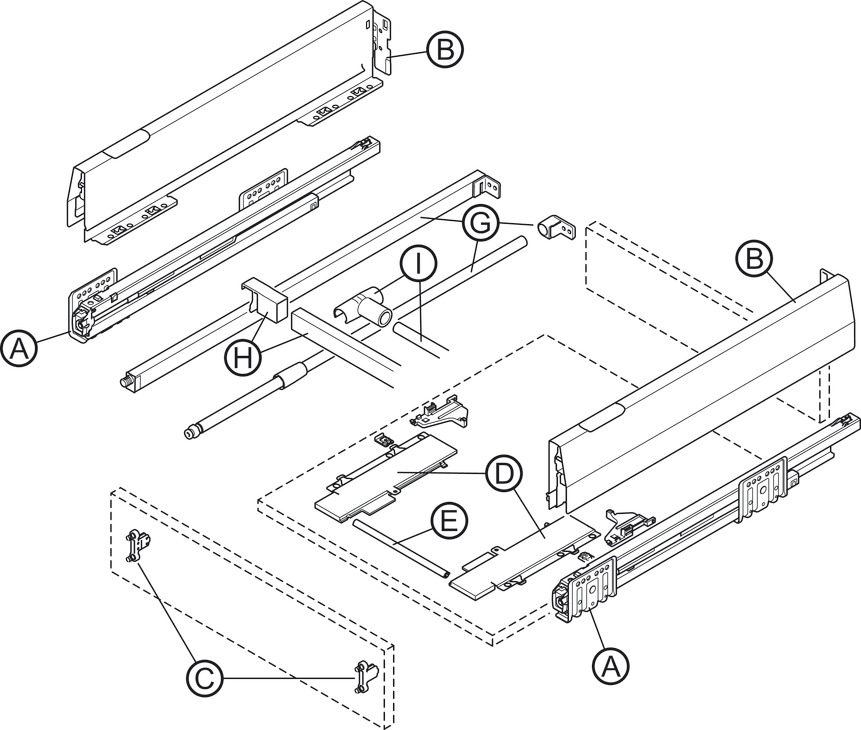

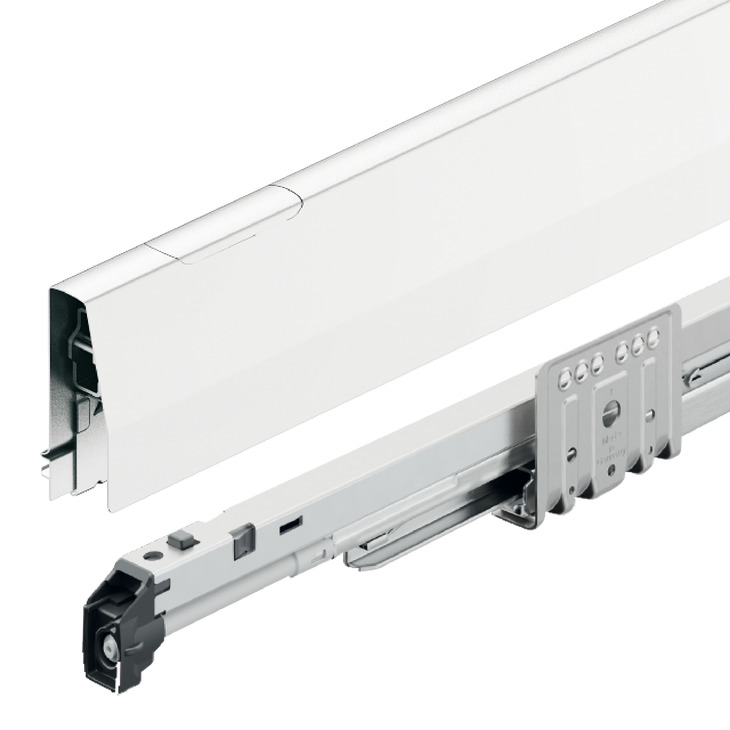

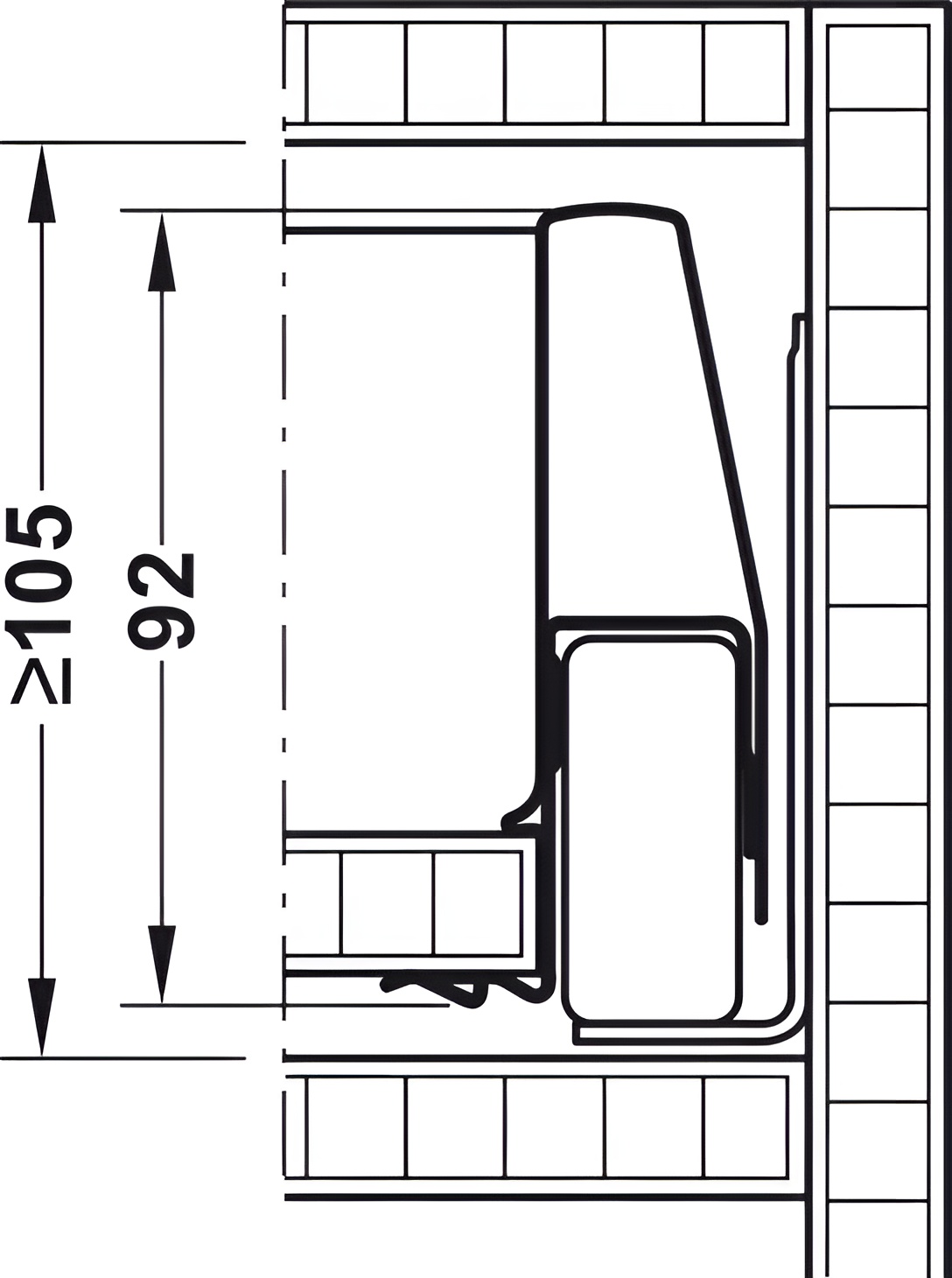

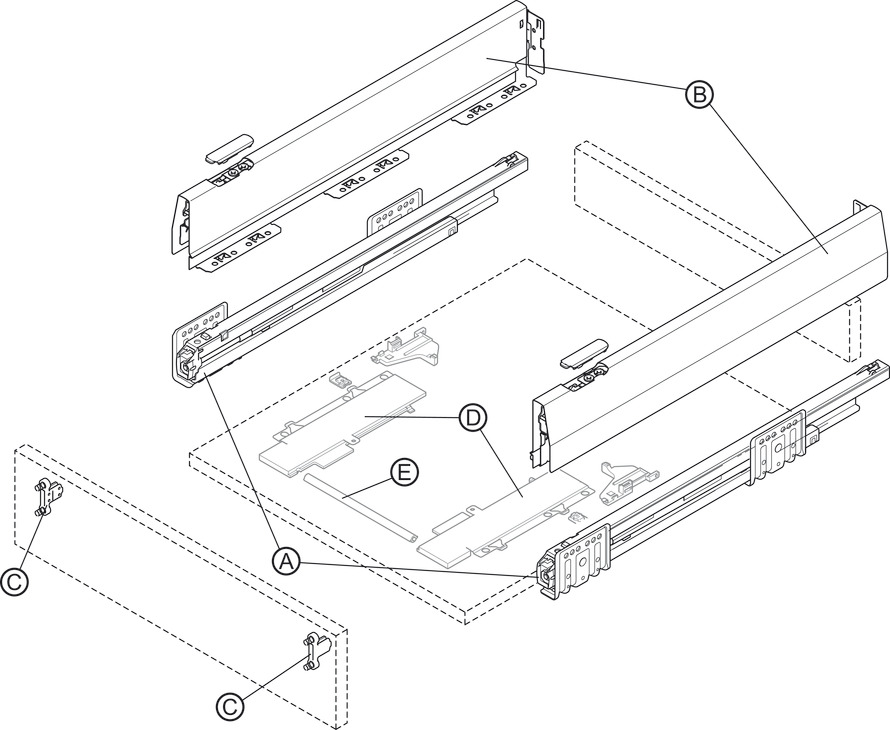

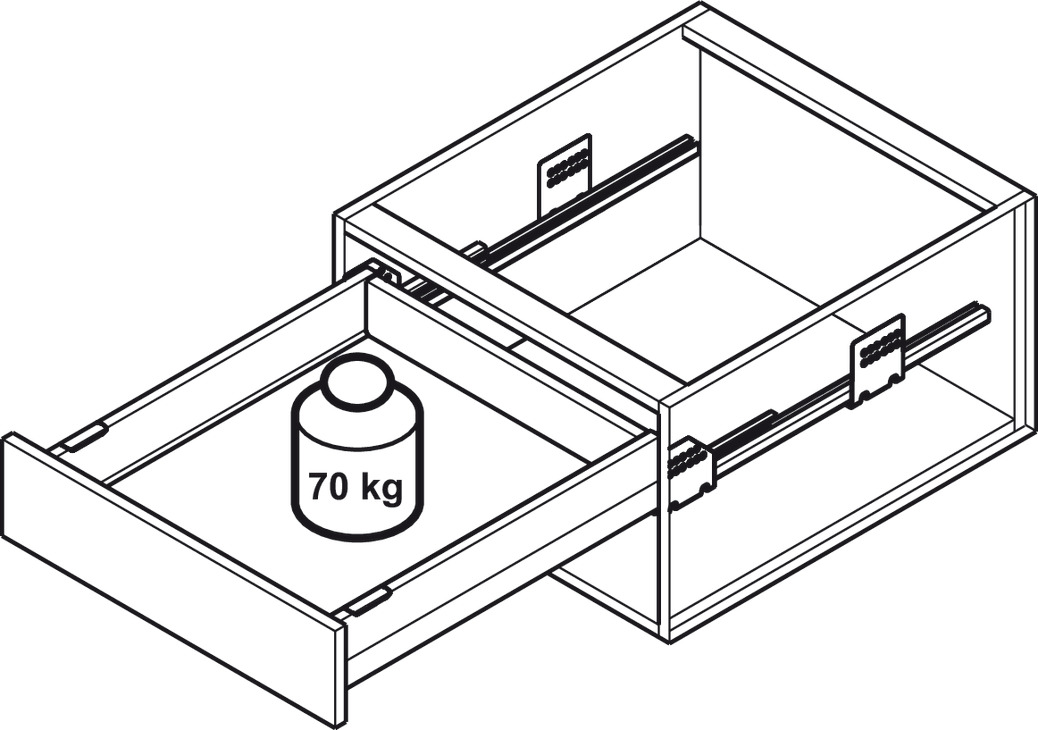

Hafele 513.27.726 Drawer Side Runner System is designed for optimal performance in your cabinetry. This innovative system features the Hafele Matrix Box P Plus 70, delivering a drawer side height of 92 mm and a robust load-bearing capacity of 70 kg, ensuring it meets the demands of daily use. The system comes in a sleek white finish, with a nominal length of 550 mm, making it a versatile choice for various applications. The complete under-sink pull-out assembly includes the Matrix Box P Plus A and B sets, compatible with drawer heights of 92 mm or 115 mm for nominal lengths of 400 mm or greater. It features full extension capabilities, enhanced by integrated Smuso soft closing and self-closing mechanisms, providing a smooth and quiet operation. Included in the package are a left and right drawer side with rear panel fittings, as well as left and right cabinet runners and cover caps adorned with the Häfele logo relief. It's important to note that front fixing brackets are not included and must be ordered separately. For best results, ensure to use the recommended screws for front fixing or guide fixing. This drawer runner system is an excellent choice for those looking to enhance functionality and aesthetics in their cabinetry.

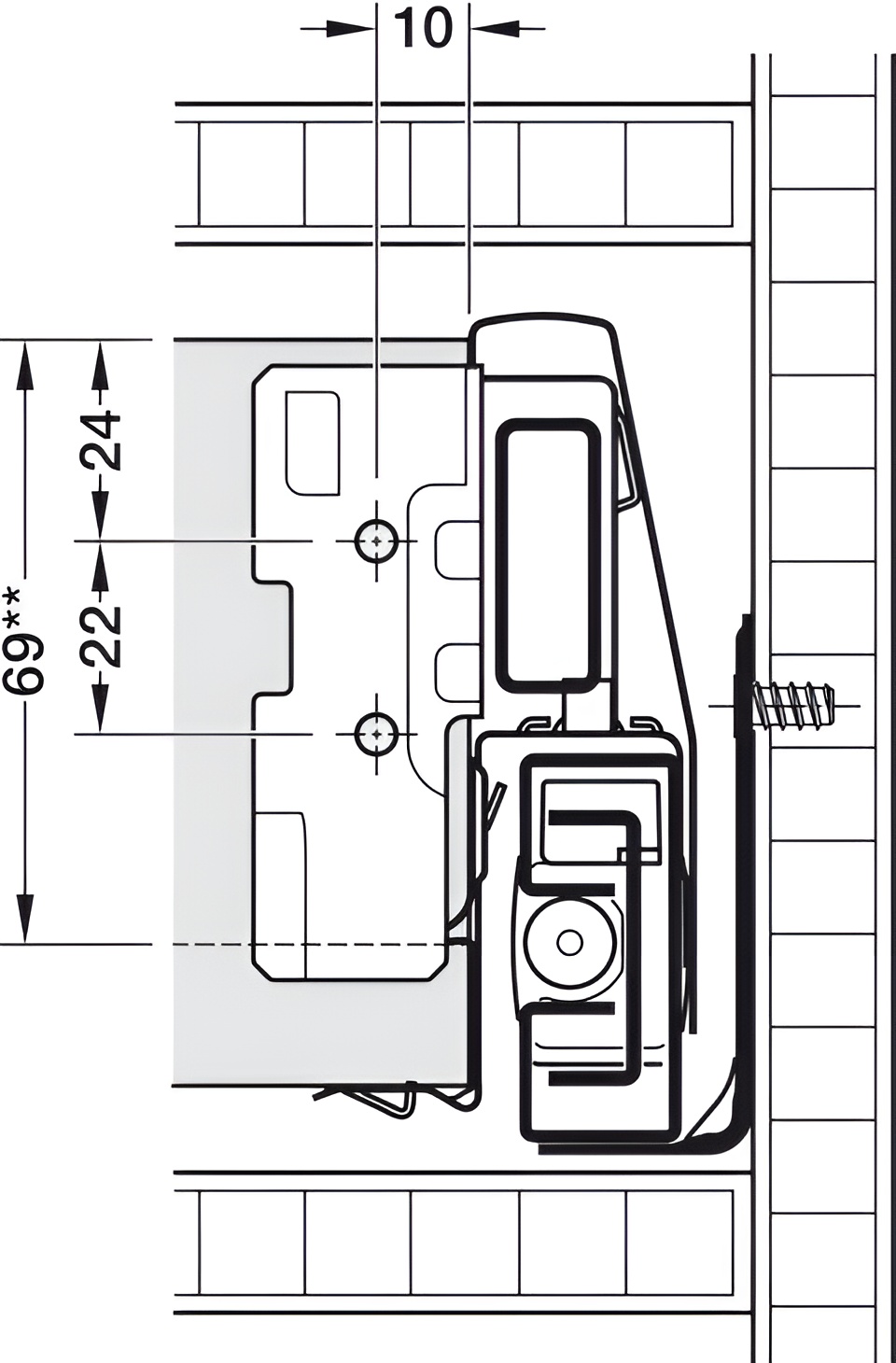

Drawer side runner system, Hafele Matrix Box P Plus 70, drawer side height 92 mm, load bearing capacity 70 kg

Colour: White, nominal length: 550 mm
