Hafele 635.53.272 E-Leg 76mm (3
Images may not represent actual product and finish

Hafele 635.53.272 E-Leg 76mm (3")

Your Price: $142.64
Retail Price:$207.18
Your Savings:$64.54(31%)
Hafele E-Leg, 76 mm diameter, adjustable height, silver aluminum finish; supports up to 220 lbs per leg. Ideal for robust applications.
Part Number : HAF_63553272
Availability: 42 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

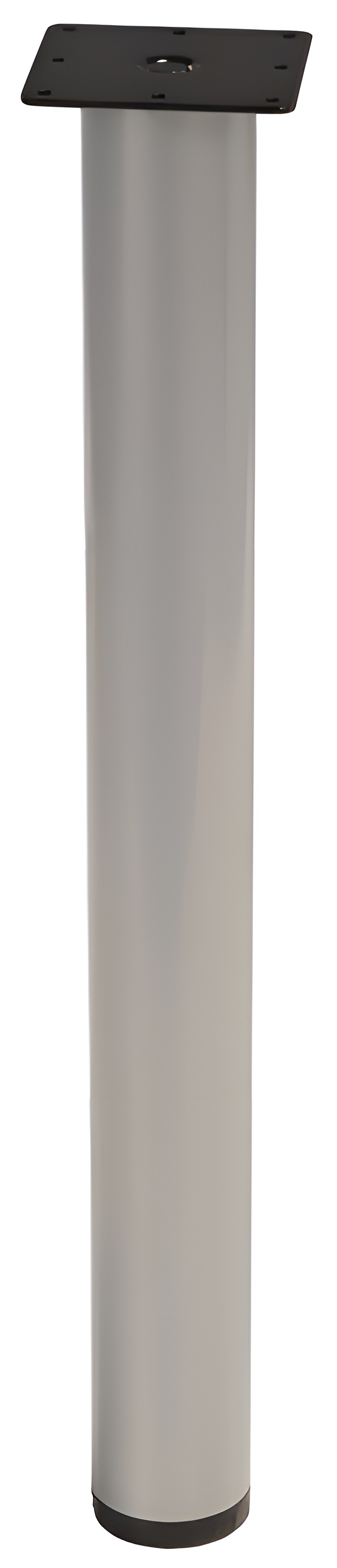

Hafele 635.53.272 E-Leg 76mm (3")

Hafele 635.53.272 E-Leg, 76 mm (3") offers a robust solution for your furniture support needs, combining durability with aesthetic appeal. Standing at 710 mm (28") in height, this leg is crafted from high-quality steel and finished in a sleek Silver Aluminum (RAL 9006), making it a versatile choice for various applications. Designed for ease of installation, the leg screws into a steel square mounting plate using an M10 bolt, ensuring a secure fit. The included plastic levelers are pressed in but can be easily removed and replaced if adjustments are needed, allowing for a height adjustment of up to 25 mm (1"). With a static load rating of 220 lbs (100 kg) per leg, this product is engineered to provide reliable support for your furniture projects. The E-Leg is supplied with four legs, four mounting plates, levelers, and #9 x 1" screws, making it a complete package for your installation needs. Whether you're a building professional or a knowledgeable homeowner, the Hafele E-Leg will enhance your furniture's stability and style. This product ships conveniently via UPS, ensuring that your order arrives promptly and efficiently.

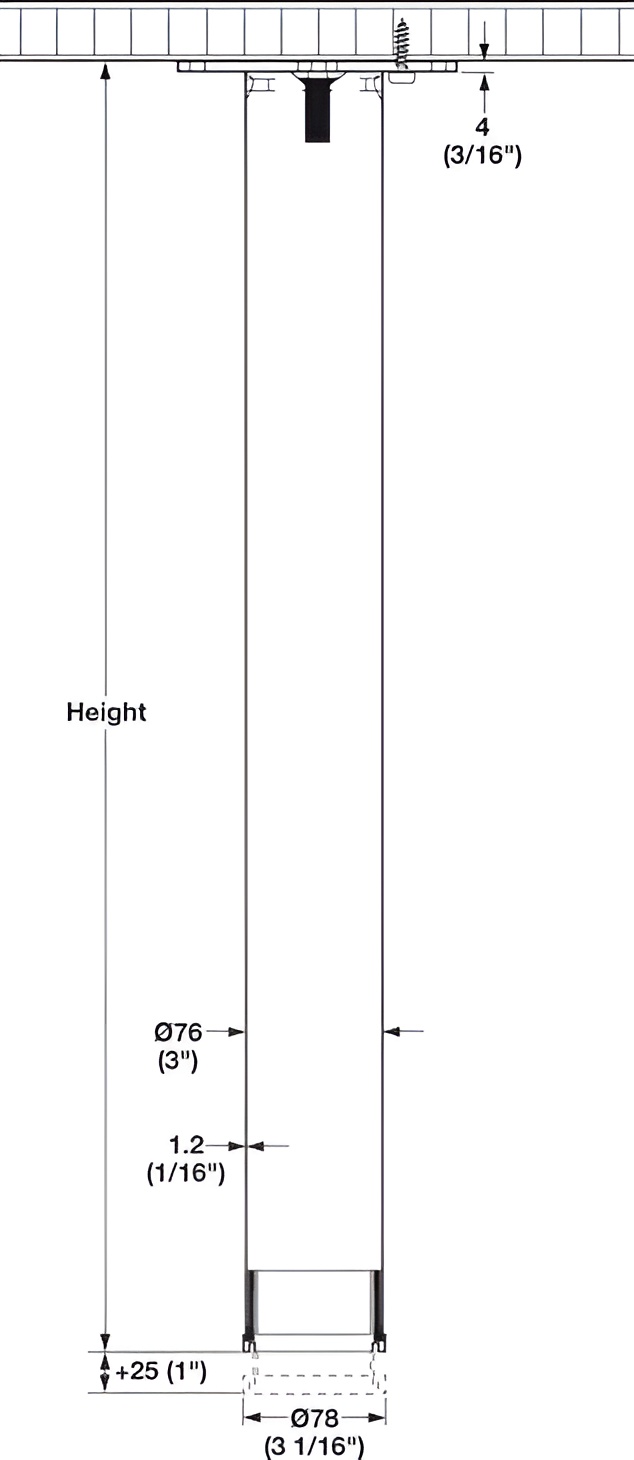

E-Leg, 76 mm (3")

710 mm (28"), Silver aluminum

Height includes mounting plate and levelers


Attributes

Adjustment facility: +25 mm (1")

Area of application: Leg screws into steel square mounting plate with M10 bolt

Color/finish: Silver Aluminum RAL 9006

Diameter: 76.00 mm

Height (inch): Inner: 15"

Installation: Plastic levelers are pressed-in, they can be removed and pounded back in if legs need to be cut

Load bearing capacity: Static load rating: 220 lbs

Load bearing capacity information: 100 kg per leg

Material: Leg: Steel, plated or epoxy-coated Leveler: Plastic Mounting plate: Steel

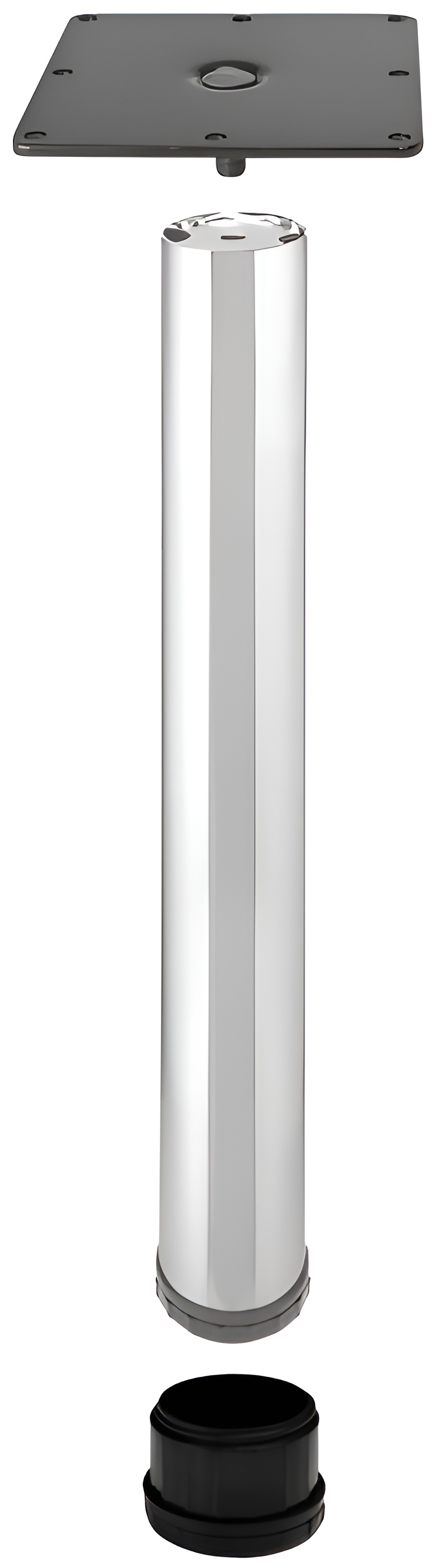

Supplied with: 4 legs 4 mounting plates Levelers Screws #9 x 1"
