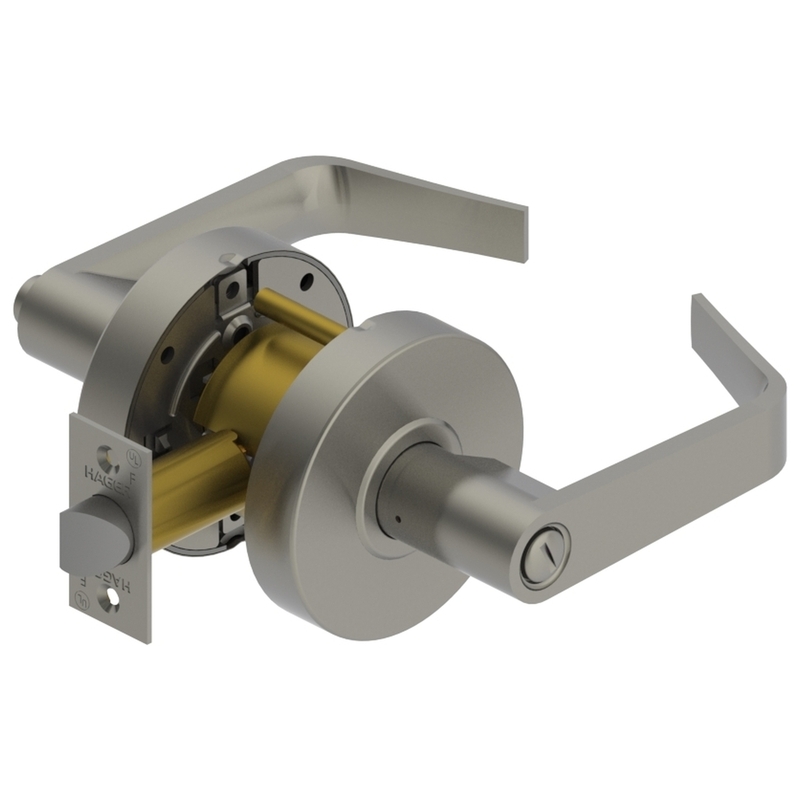

Hager 2540 WTN US26D 2500 Privacy Lock

Hager 2540 WTN US26D 2500 Privacy Lock combines robust security with impressive functionality, making it a prime choice for commercial applications. This Grade 2 privacy cylindrical lock features the stylish Withnell lever and is designed to be non-handed, allowing for versatile installation. Crafted with a conventional cylinder and an ASA strike, its satin chrome finish adds a sleek touch to any door. The Hager 2500 Series lock stands out for its excellent balance of performance and affordability, making it an ideal option for stocking programs. With a heavy gauge steel chassis that is zinc dichromated for corrosion resistance, this lock ensures durability over time. It accommodates door thicknesses ranging from 1-3/8" to 2", making it adaptable for various settings. Certified to meet BHMA ANSI A156.2 standards, this lock provides peace of mind with a reliable deadlocking latchbolt that prevents manipulation when the door is closed. The package includes two brass keys and offers additional keying options from the factory. Backed by a limited five-year warranty, the Hager 2540 WTN is a dependable and stylish solution for privacy needs in commercial environments.

2500 PRIVACY LOCK

Grade 2 Privacy Cylindrical Lock, Withnell Lever, Not Handed, Conventional Cylinder, ASA Strike, Satin Chrome

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The inherent value of this lock and the product offering make our 2500 Series lock a perfect choice for a stocking program. As an economical alternative to other Grade 2 cylindrical locks, it offers both dependability and affordability.

Hager offers Grade 1 and Grade 2 Cylindrical Locks.

3400 and 3500 Series are Hager's cylindrical locks.

3400 Knob:

• Certifications: - BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
• Knob Diameter: - 2-9/32" (58 mm)
• Rose Diameter: - 3" (76 mm)
• Exposed Trim: Wrought Brass or Stainless Steel
• Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance
• Keys: Two brass keys per lock
• Cylinders: Brass 6-pin - Keyed Different - C Keyway
• Other keying options available from factory
• Door Thickness: - 1 3/8" - 1 3/4"
• Backset: - 2 3/4" - 2 3/8" Optional
• Latchbolt: - 1/2" Throw - Stainless Steel - 2 1/4" x 1 1/8" Faceplate
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
• Strikes: ANSI 4-7/8" x 1-1/4" strike - standard, Optional strikes available
• Finishes: - US3, US32D
•  Functions:  - 10 - Passage, 17 - Dummy, 40 - Privacy, 50 - Office, 53 - Entry, 70 - Classroom, 80 - Storeroom

3400 Lever:

• Certifications:
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ADA Compliant ANSI A117.1 Accessibility Code
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors (for double door application, UL/cUL Listed when used with 3/4" latchbolt)
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Lifetime warranty
• Exposed Trim:
  • Lever: Cast zinc
  • Rose: Wrought brass or stainless steel
  • Intruder Classroom function has locking indicator arrow stamped on the interior rose
• Lock Chassis:
  • Heavy gauge steel, zinc dichromated for corrosion resistance
  • Free wheeling levers
  • Thru-bolt mounting levers
• Rose Diameter:
  • 3-17/32" (90 mm) levers; 3" (76 mm) knobs
• Keys:
  • Two operating keys supplied per lock
• Cylinders/Cores:
  • Brass 6-pin, keyed different - C Keyway
  • Other keying options, including keyed 6-pin, available from factory
  • Small Format Interchangeable Core option available
  • SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
  • Large Format Interchangeable Core option available
  • LFIC zero bitted or combinated, brass 6-pin sold separately
• Door Thickness:
  • Levers: 1-3/8" - 2" (35 mm - 51 mm)
• Backset:
  •  2-3/4" (70 mm) - standard
  • 2-3/8" (60 mm) - optional
  • 3-3/4" (94 mm) - optional
  • 5" (128 mm) - optional
• Latchbolt: - 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
  • Square corner faceplates standard, round corner available
  • 3/4" (19 mm) latch available
• Strikes:
  • 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike - Standard
• Finishes:
  • US3, US4, US10, US10B, US26, US26D
•  Functions:  - 10 - Passage, 17 - Dummy, 40 - Privacy, 50 - Office, 53 - Entry, 70 -
•  Classroom, 73 - Corridor, 80 - Storeroom, 95 - Classroom Security
• Options:
  • Lead lined
  • Tactile knurling
  • Split finish
  • Additional latchbolts and strikes available
• Standard Door Prep:
  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
• Lever Options:
  • Archer, August, Withnell levers
• Installation:
  • Comes pre-set for 1-3/4” thick doors for quicker installation
  • Threaded mounting bracket adjusts to proper door thickness in seconds
  •  Only two screws needed to fully secure inside and outside assemblies to the door
  • Screws will ratchet tight letting installer know the lockset is properly tightened
  • Roses and levers snap on in seconds
